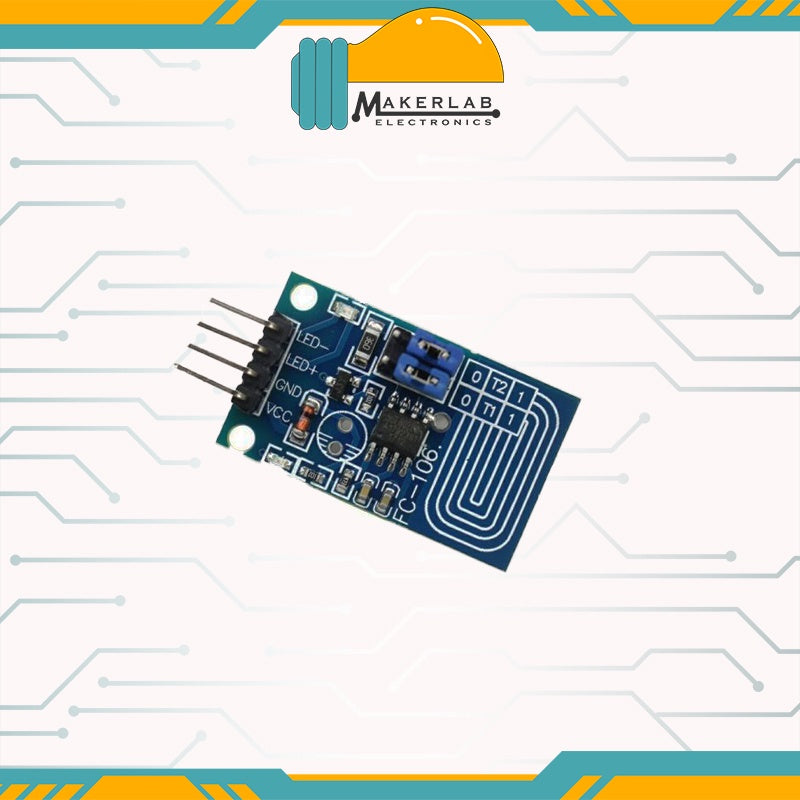

Capacitor Touch Dimmer Constant Voltage LED Stepless Dimming PWM Control Board

Capacitor Touch Dimmer Constant Voltage LED Stepless Dimming PWM Control Board

Out of stock

SKU:MLE02946

Regular price ₱50.00
Regular price Sale price ₱50.00
Sale Sold out
View full details

Capacitor Touch Dimmer Constant Voltage LED Stepless Dimming PWM Control Board

Description:

  • 100% brand new and high quality
  • The lamp brightness can be adjusted by requirement, it is very easy to operate.
  • It can touch in medium protection, such glass, acrylic, plastic, ceramics and so on, which is very safe.
  • Wide application of voltage range, you can choose arbitrarily between 2.4V to 4.5V.
  • Simple applied circuit, less peripheral devices, easy processing, low cost.
  • Anti power and phone interference, the EFT can reach above +/-2KV;the touch response sensitivity and reliability will not affected by the close distance or multi-angle mobile phone interference.

Install: No need to touch copper foil directly, the dimming can be processed across acrylic glass (above 3mm) or plastic.

Application: It can control LED module, light and so on. It is available for indoor LED, lighting lamp, DIY automotive lights dimming refit.

Function: Single touch, using the principle of capacitance touch .The default function is switch, dimming with brightness memories LED touch dimming.

  • Dimming mode: Non-polar PWM dimming.
  • Wiring method: PCB board(VCC,GND) is power input,(LED+, LED-) is connected with the LED lamps of positive and negative level (fingerprint) touch area, also can wire to lead out (the wiring should not be too long), copper skin area should be 2x3cm.With copper foil copper foil board module will side to the shell side.

Using method

  • Click touch(touch duration time is less than 550ms) can control the lamp.
  • Click once, the lamp lights;click again,the lamp off. The initial brightness of lights lit the fixed for the whole brightness of 90%.
  • Press the touch at long time (touch duration time is more than 550ms), you can achieve stepless dimming the lights.
  • Press long time once, light levels gradually increase light levels when released after the release time parked in the corresponding brightness, long time if more than three seconds, the light levels to achieve maximum brightness does not change;
  • again long press touch, light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time, if a long time more than three seconds, the light levels after reaching the minimum brightness does not change.

Technical characteristics:

TI touch input corresponds to the LED lighting control output. There are four optional functions, decided by the T1 and T2 pins input state before power. The details are as follows:

T1=1?T2=1:Without brightness memory, suddenly light and off LED touch Stepless dimming function.

T1=0?T2=1:Without brightness memory, gradually light and off LED touch Stepless dimming function.

T1=1?T2=0:With brightness memory, gradually light and off LED touch Stepless dimming function.

T1=0?T2=0:LED three sections touch dimmer function.

Quantity: 1pc

  • Note: Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon. And due to the difference between different monitors, the picture may not reflect the actual color of the i
