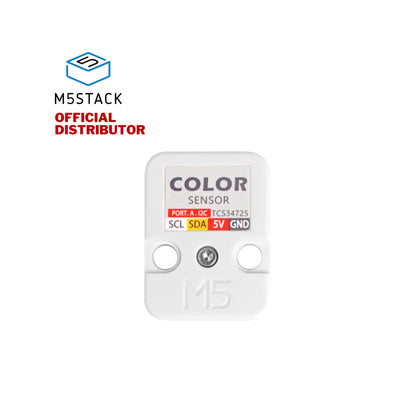

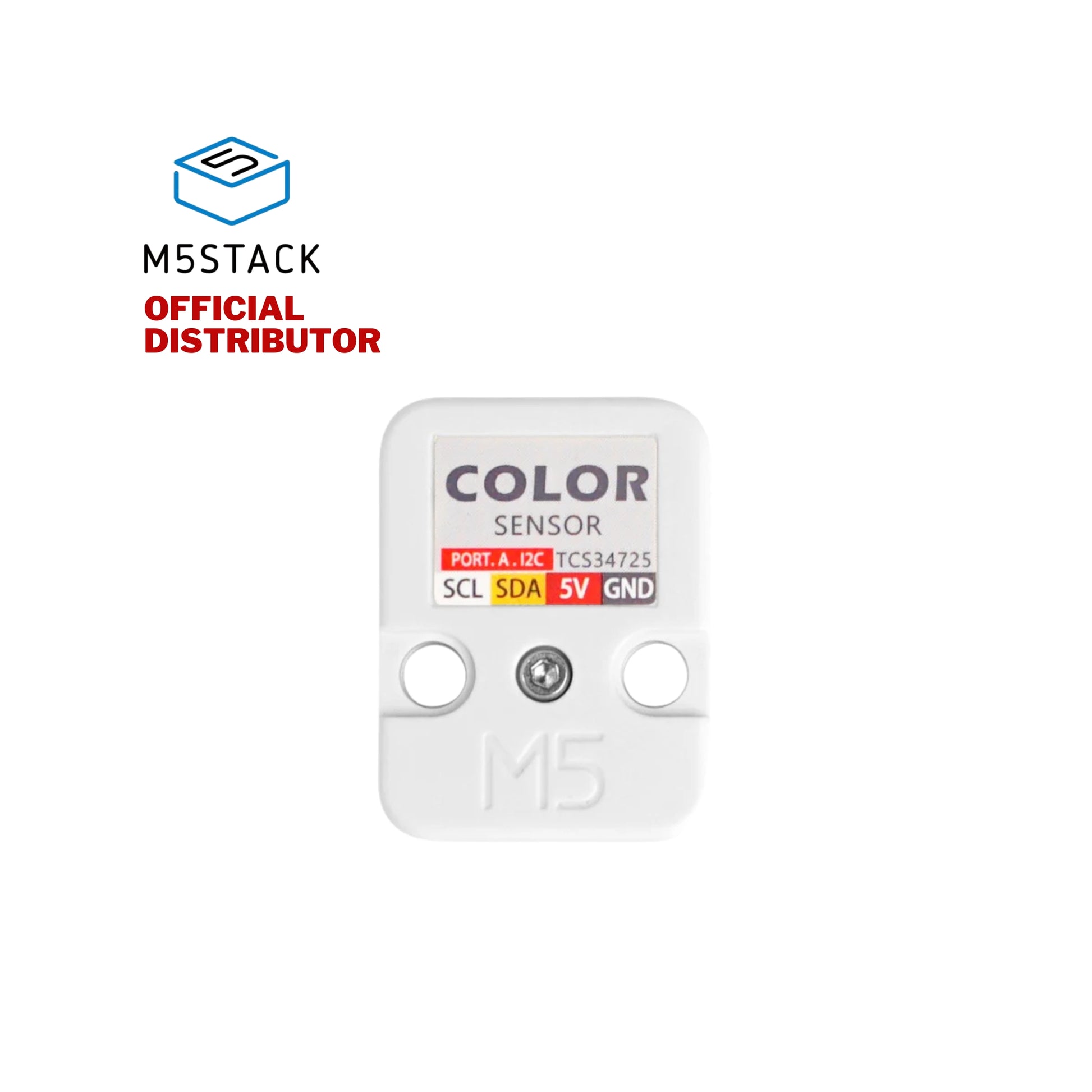

COLOR is color recognition unit integrated with TCS3472 chipset. As the name says, COLOR is able to detect color value and return RGB data as response.
Identify color principle: The TCS3472 chipset integrated with 3*4 array of filtered photodiodes and a 16 bit analog-to-digital embedded converters. Out of the 12 photodiodes, 3 have red filters, 3 have green filters, 3 have blue filters and 3 have no filter (clear), which gives a total range of RGBA (RGB + Transparency)
When detecting the color of an object the TCS3472 returns data from four channels: red(R), green(G), blue(B) and clear(C)(non-filtered). The response from the red, green and blue channels (RGB) can be used to determine a particular source’s chromaticity coordinates (x, y).
Chromaticity Calculation Process Overview:
When we get coordinates (x, y), please reference the below figure so as to get the recommended color.
This Unit communicates with the M5Core via the GROVE A interface(I2C). Address is 0x29.
Product Features

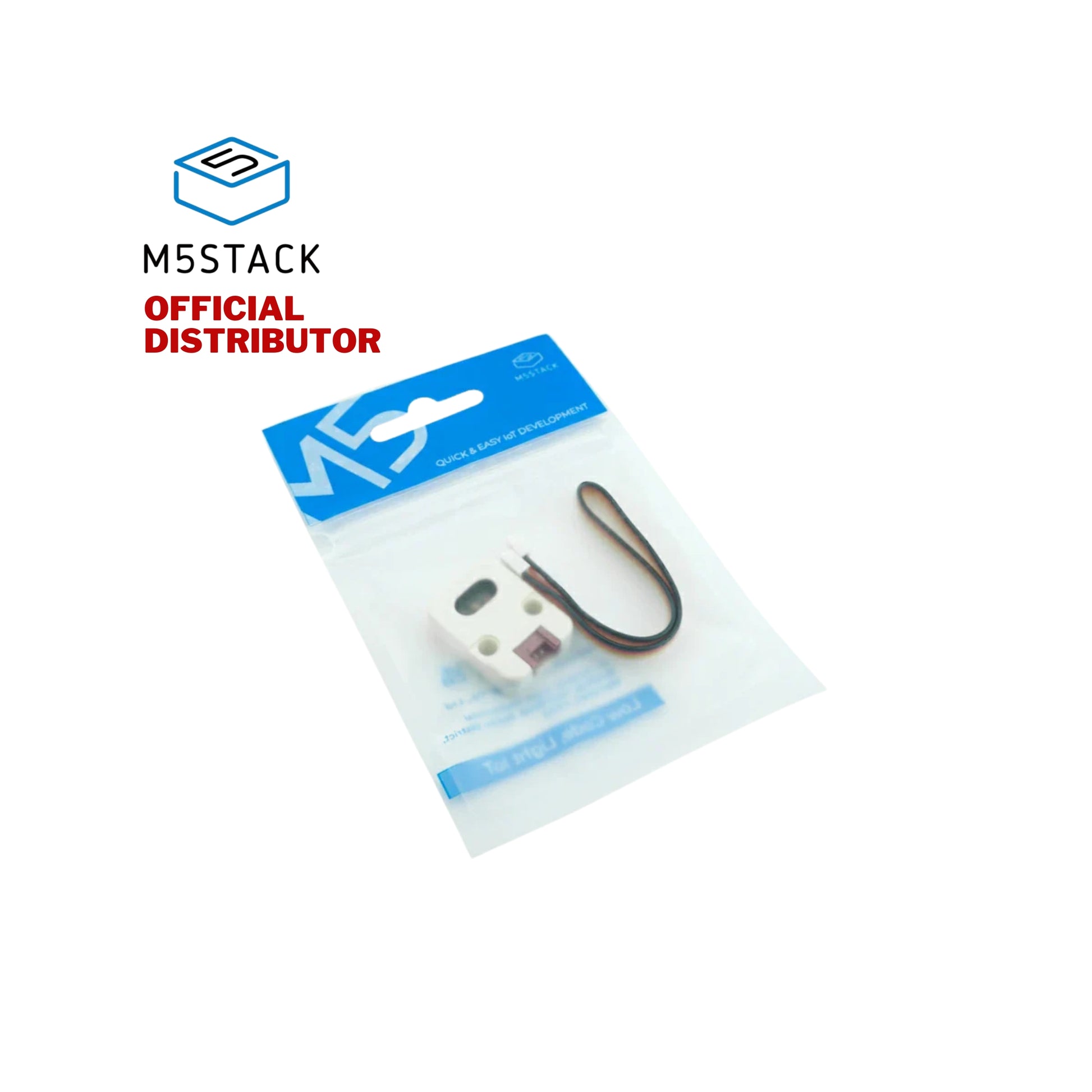

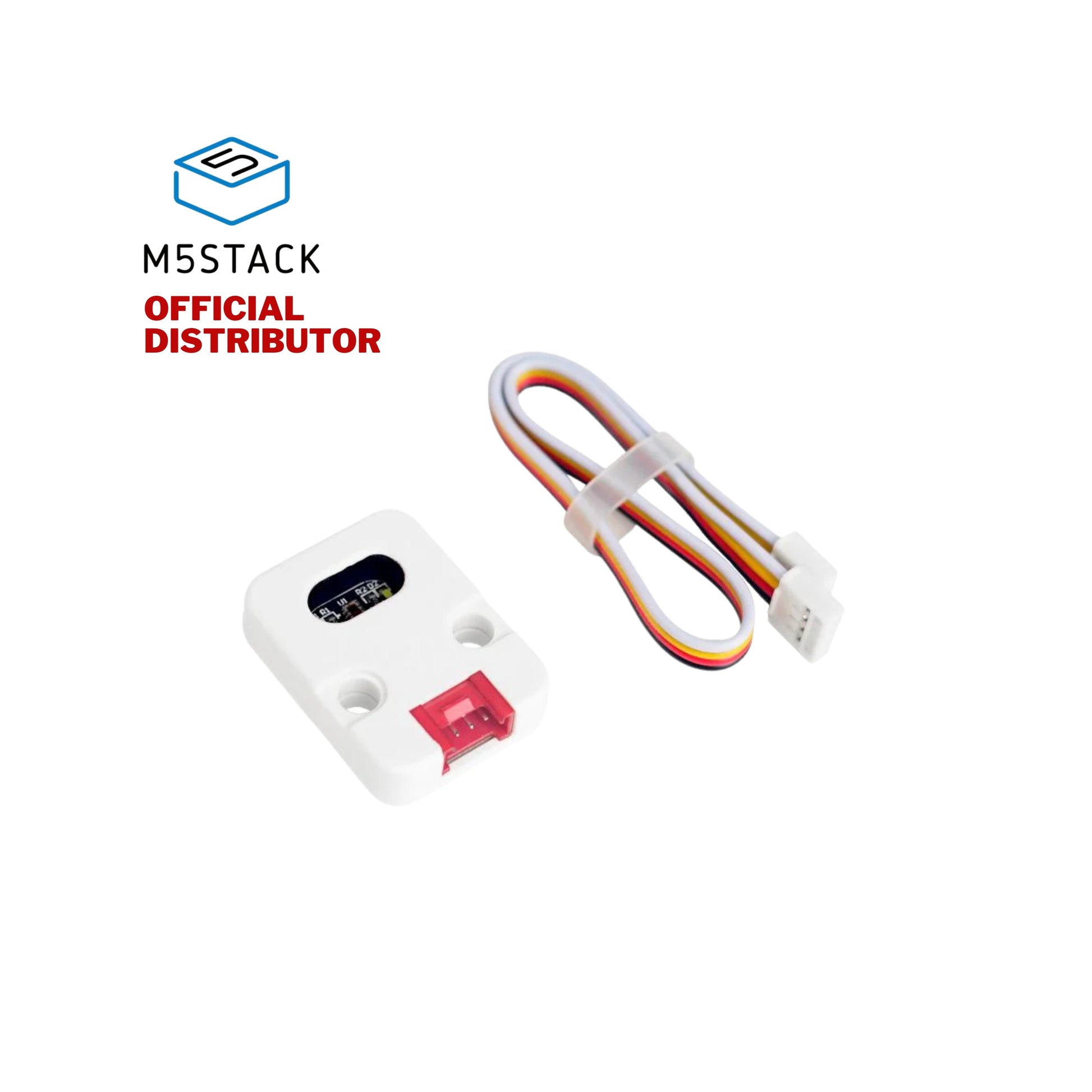

Includes
- 1x COLOR Unit
- 1x Grove Cable
Applications
- Product Color Verification
- Color tracking robot
Specification
Resources | Parameter |
---|---|
IC | TCS3472 |
Workingtemperaturerange | -40°C~85°C |
Communication protocol | I2C?0x29 |
Net weight | 4g |
Gross weight | 17g |
Product Size | 32.2*24.2*8.2mm |
Package Size | 67*53*12mm |
