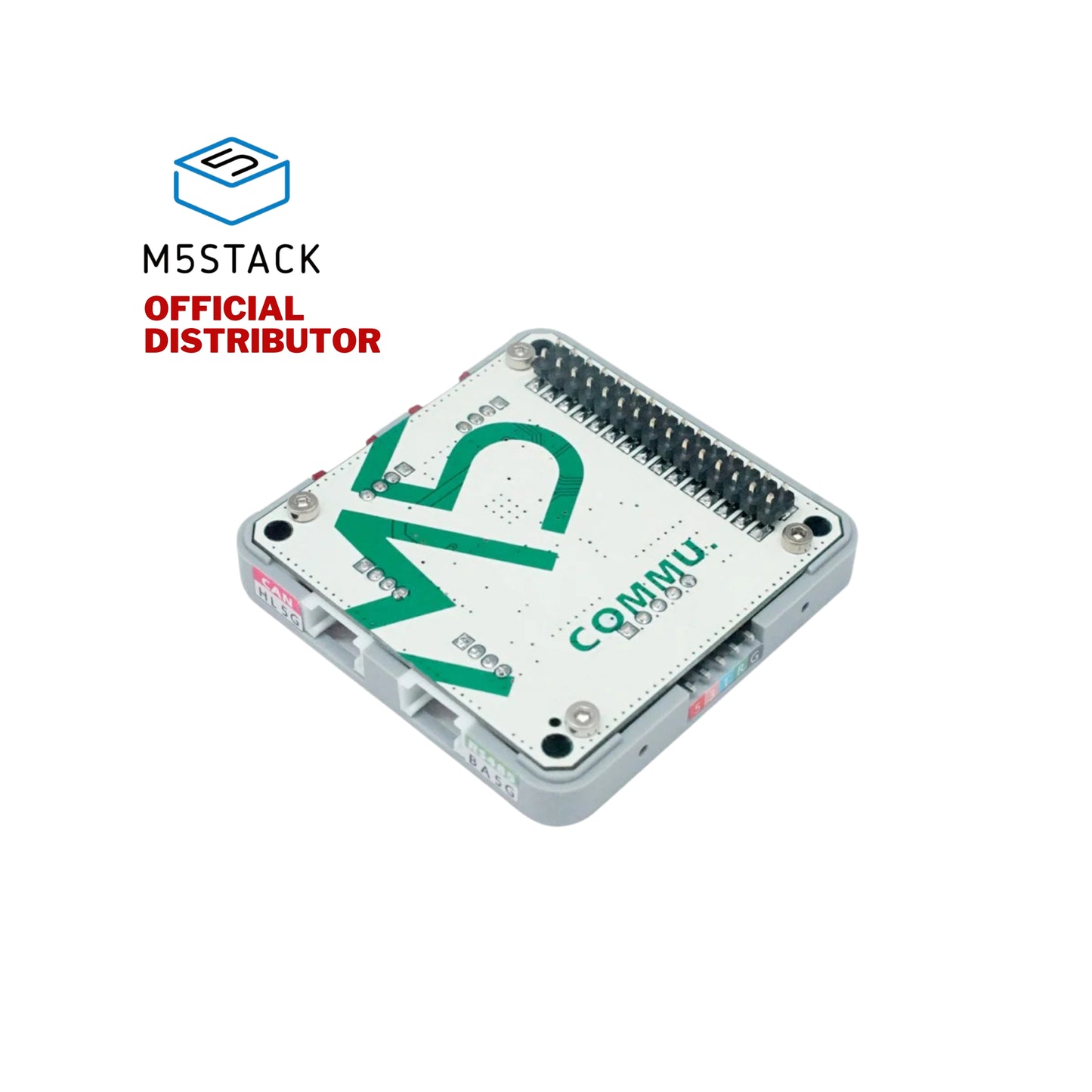

M5Stack COMMU Module Extend RS485/TTL CAN/I2C Port

₱800.00 PHP
₱800.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 6 units left

About the Product

COMMU is a Muti-Communication-Interface-Converter. Integrated with 2I2C, 1TTL, 1CAN, 1RS485. Apparently COMMU has packed with most of series communications.

Default connection: TTL - UART0, RS485 - UART2. Since ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins.

Be care about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changed those jumpers(J6, J7, J9, J10).

Product Features

  • 2x I2C Interface
  • 1x CAN Interface
  • 1x RS485 Interface
  • 1x TTL Interface
  • CAN controller: MCP2515-1/SO
  • RS485 Transceiver: SP3485EN-L/TR

Include

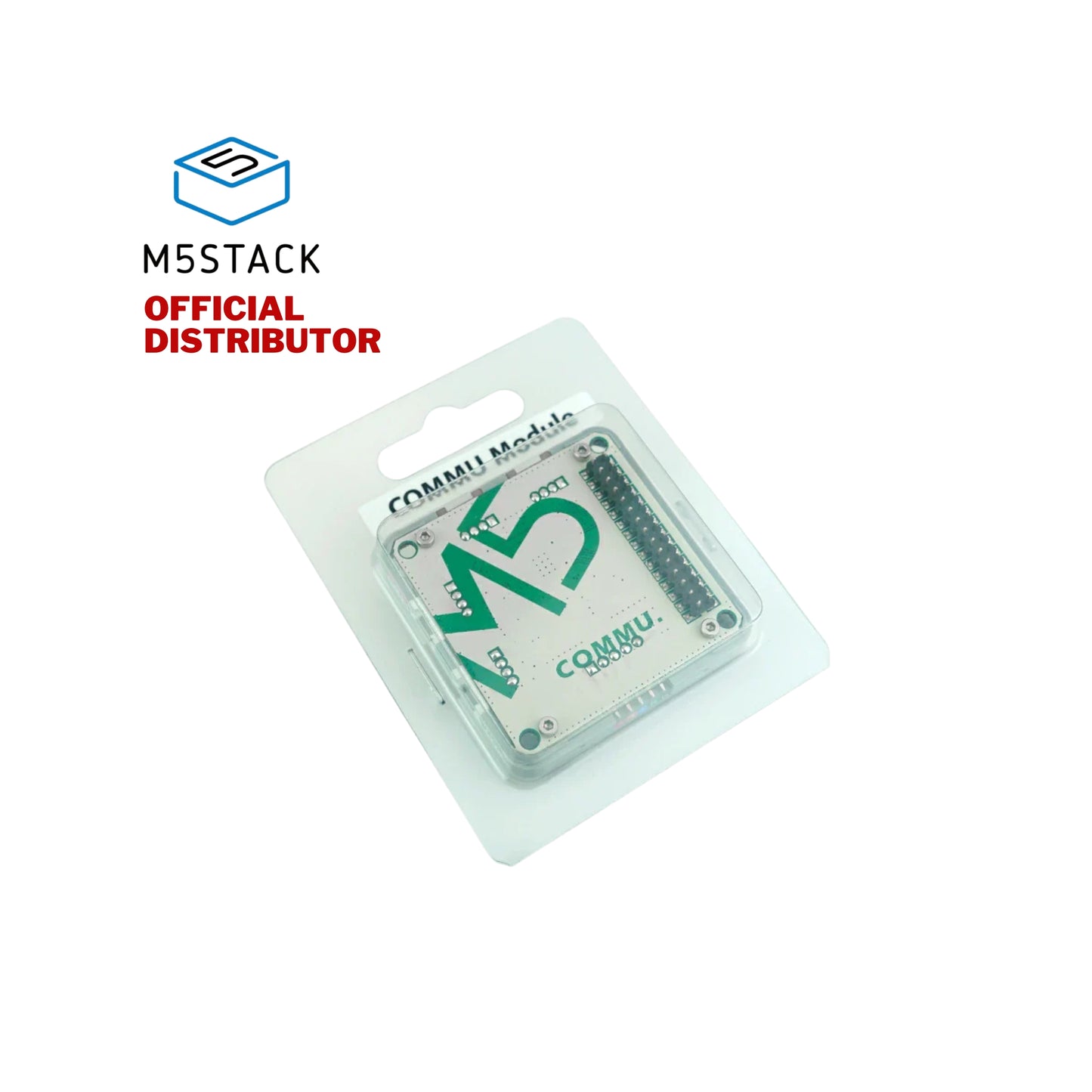

  • 1x M5Stack COMMU Module

Specification

Resources Parameter
Interface I2C x2, CAN x1, RS485 x1, TTL x1
CAN Controller MCP2515-1/SO
RS485 transceiver SP3485EN-L/TR
Net weight 13.5g
Gross weight 24g
Product Size 54.2*54.2*13mm
Package Size 60*57*17mm
Material Plastic ( PC )
