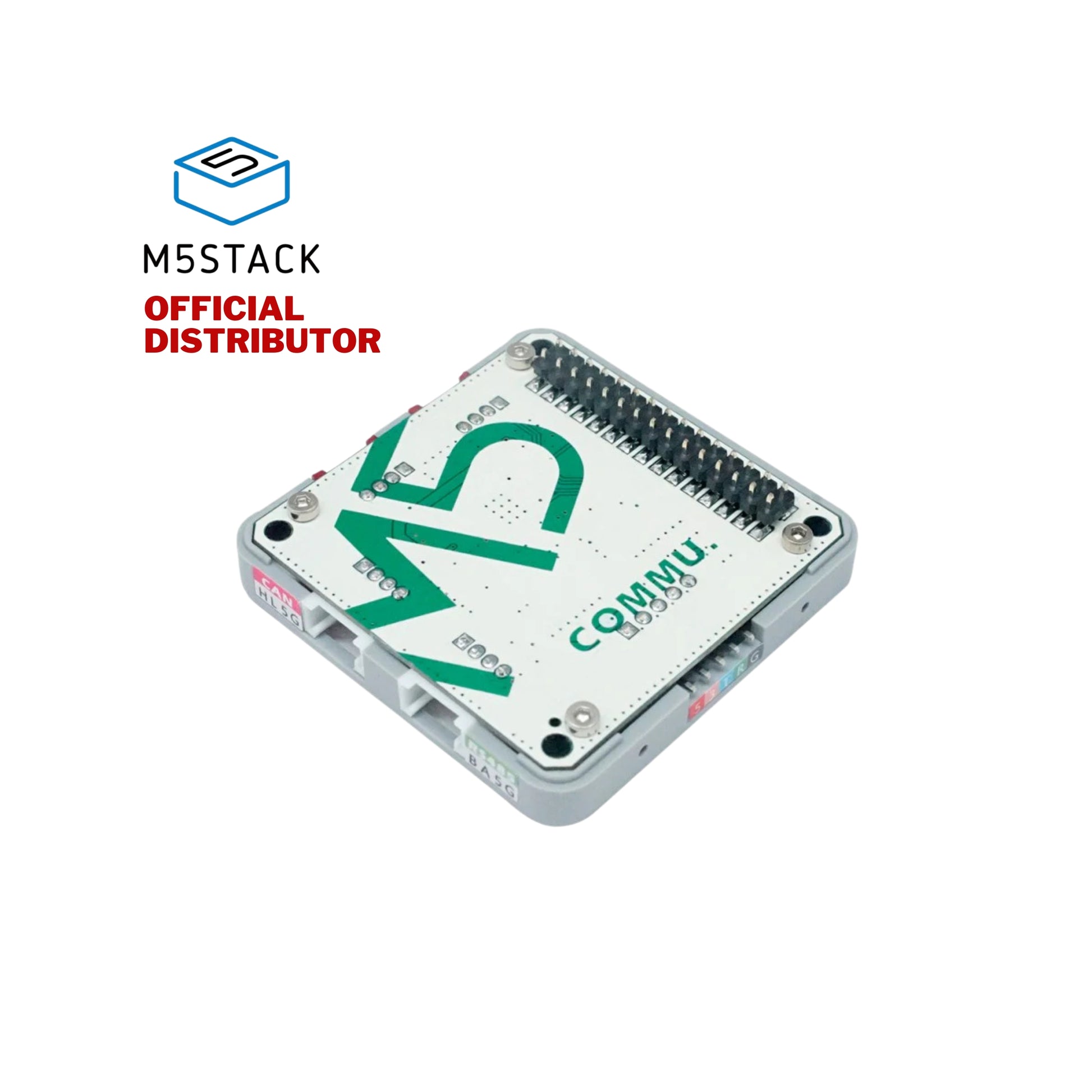

M5Stack COMMU Module Extend RS485/TTL CAN/I2C Port

Description:

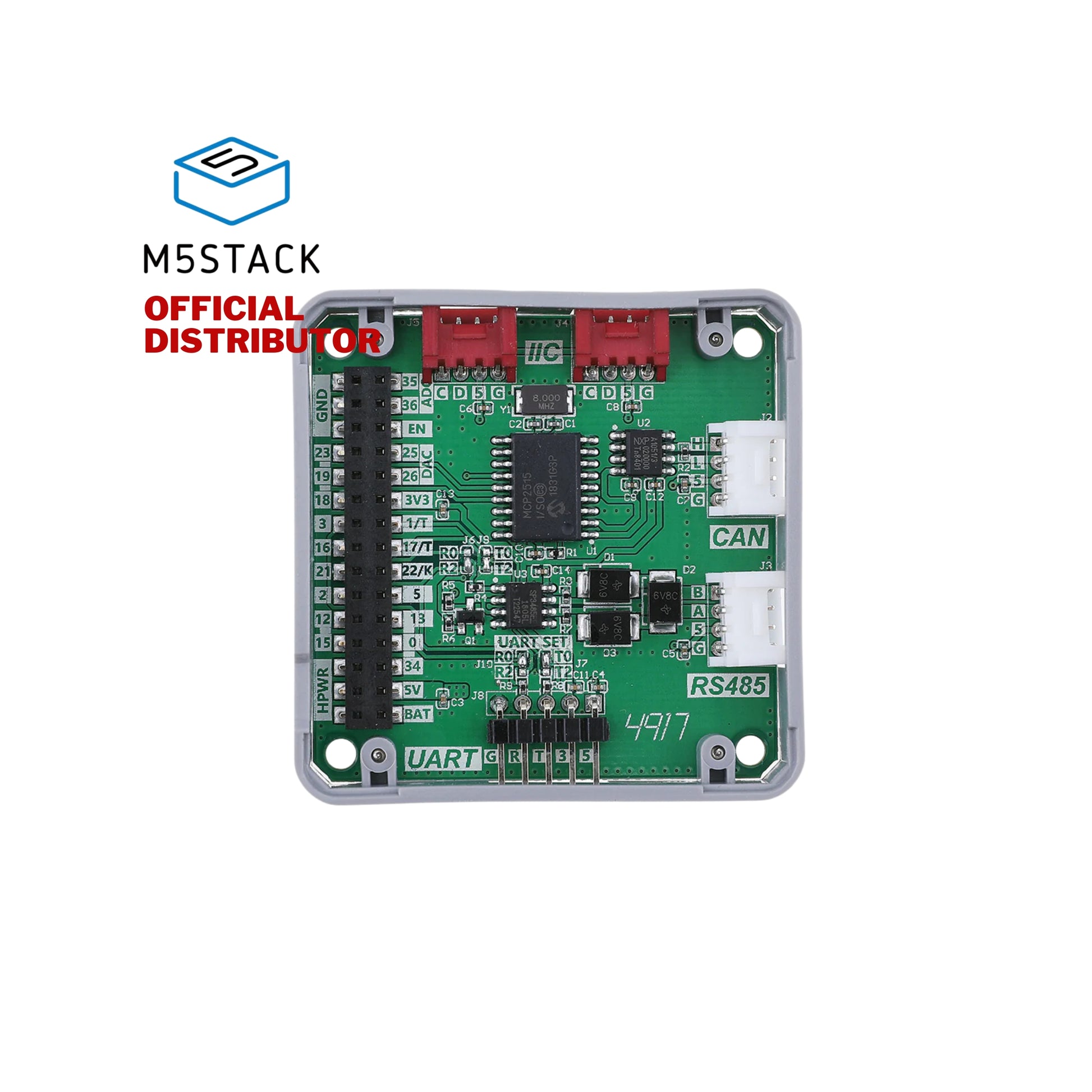

COMMU is a Muti-Communication-Interface-Converter. Integrated with 2I2C, 1TTL, 1CAN, 1RS485. Apparently COMMU has packed with most of series communications.

Default connection: TTL - UART0, RS485 - UART2. Since ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins.

Be care about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changed those jumpers (J6, J7, J9, J10).

Features:

• 2x I2C Interface
• 1x CAN Interface
• 1x RS485 Interface
• 1x TTL Interface
• CAN controller: MCP2515-1/SO
• RS485 Transceiver: SP3485EN-L/TR

Specifications:

• Product Code: M011
• Interface: I2C x2, CAN x1, RS485 x1, TTL x1
• CAN Controller: MCP2515-1/SO
• RS485 transceiver: SP3485EN-L/TR
• Net weight: 13.5g
• Gross weight: 24g
• Product Size: 54.2*54.2*13mm
• Package Size: 60*57*17mm
• Material: Plastic ( PC )

Part List:

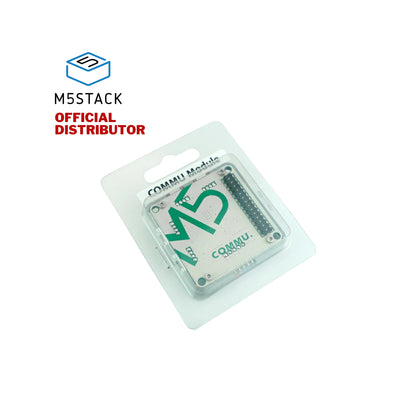

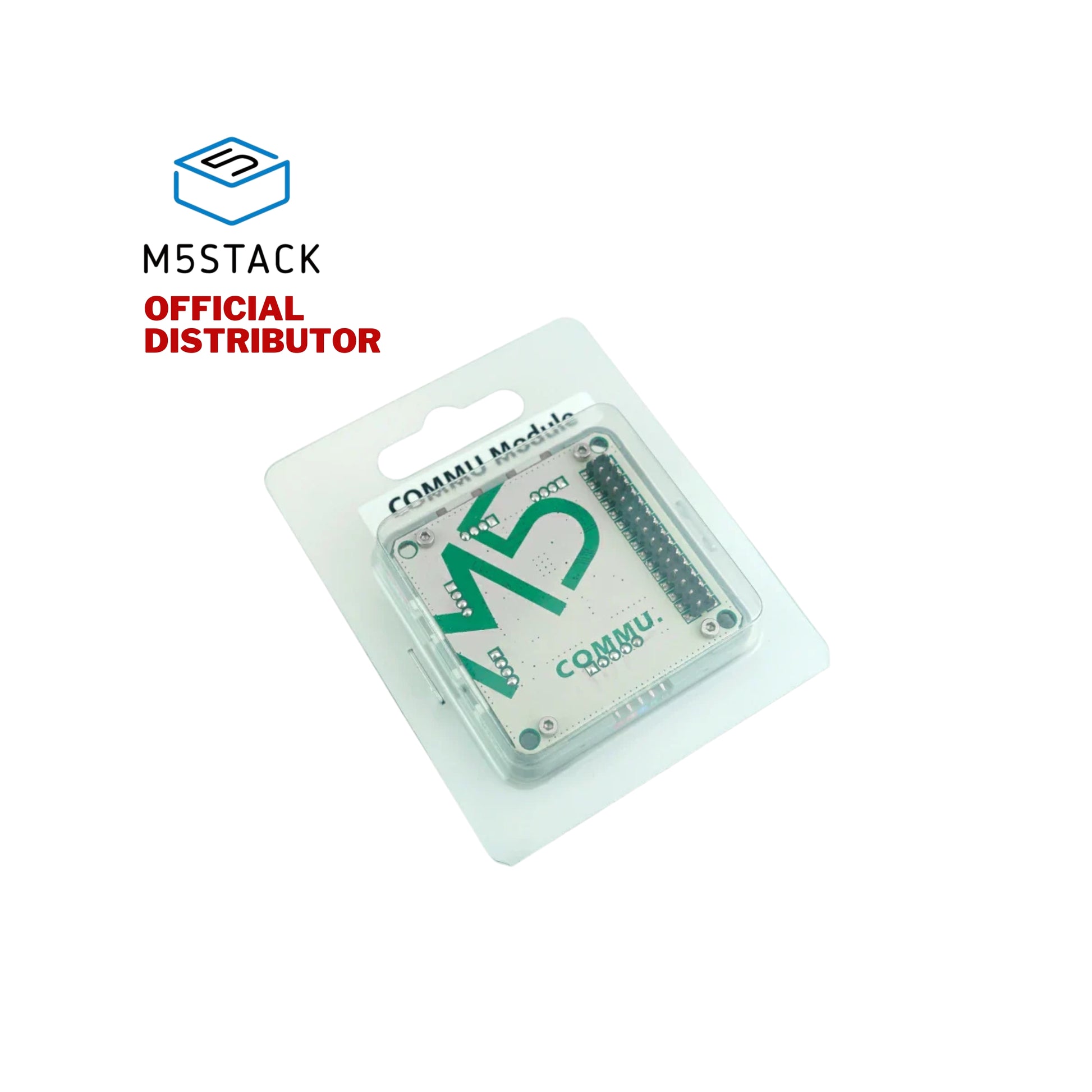

• 1x M5Stack COMMU Module
