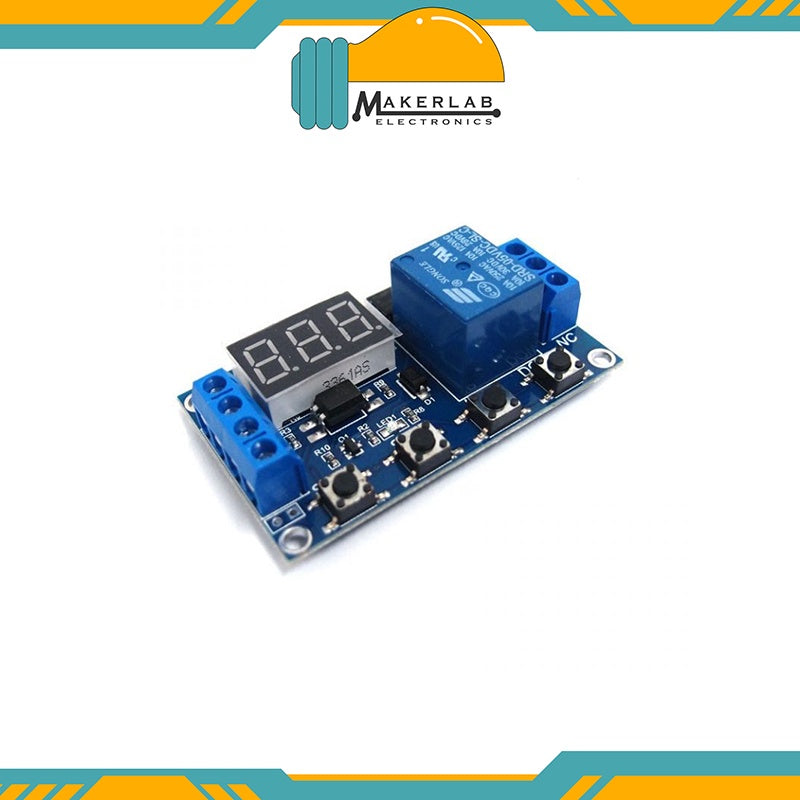

Countdown Relay Module XY-J02

Countdown Relay Module XY-J02

In stock


Regular price ₱200.00
Regular price Sale price ₱200.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details

Countdown Relay Module XY-J02

This Countdown Relay Module XY-J02 has wide voltage power supply (6 - 30V) supports micro USB 5.0V power supply and easy to use. The interface is clear and simple and easy to understand.


  • There is a key stop function (STOP key), with reverse polarity protection
  • Increase the sleep mode, it enables without any operation within 5 minutes and turn off the monitor automatically.
  • You can set a different OP, CL, LOP parameters which are independent of each other.


  • Operating Voltage: 6-30V support micro USB 5V power supply
  • The trigger source: High trigger (3-24V) signal with no common ground system to improve anti-jamming capability of the system(also self-shorting common ground).
  • Output Capability: You can control the DC or AC within 30V 5A or within 220V 5A
  • Quiescent Current: 20mA
  • Operating Current: 50mA
  • Timing Range: 0.1 seconds - 999 minutes continuously adjustable
  • Working Temperature: -40 - 85°C
  • With opto-coupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.

Note: The relay outputs are passive contract, uncharged output to control a line-off role.
