Description:

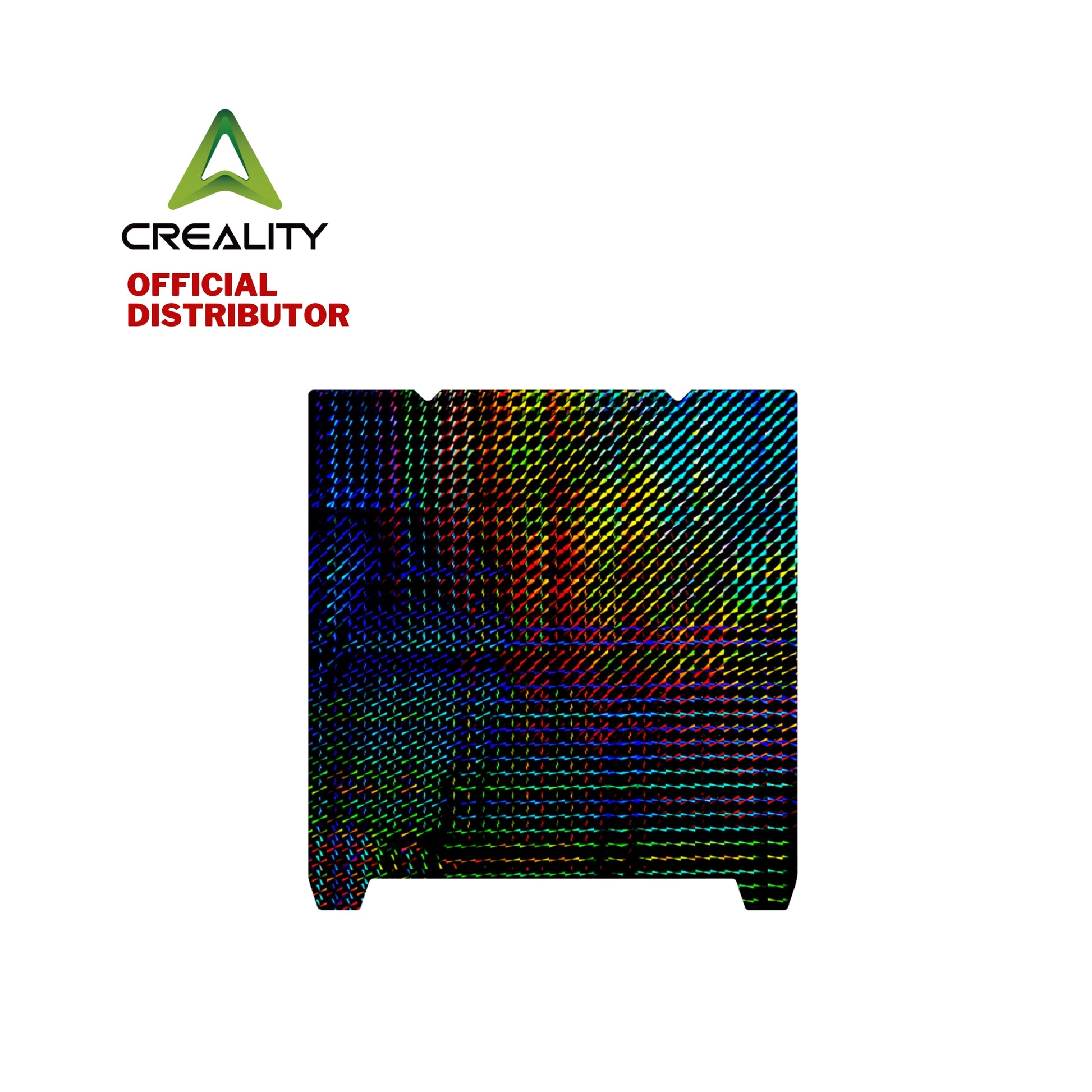

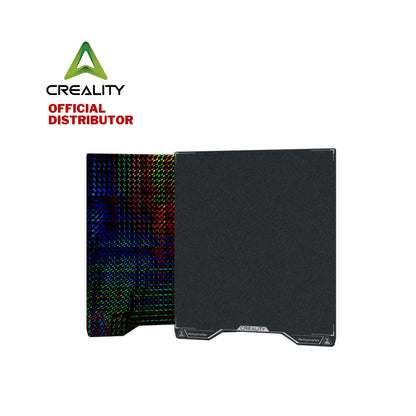

The Creality Dual-Sided Printing PET Phantom Build Plate is an excellent accessory for users of the Creality Hi and K2 Plus 3D printers who wish to add a special, iridescent base texture to their models. One side features a durable PET (Polyethylene Terephthalate) film with a "Phantom" or "Holographic" texture, which gives the bottom of the print a reflective, multicolored, and changing appearance that shines brightly at different viewing angles. The reverse side typically features a Matte or Frosted PEI (Polyetherimide) coating, which is a high-adhesion standard surface ideal for a wide range of engineering and general-purpose filaments. The flexible spring steel construction ensures perfect flatness and allows for quick, tool-free print removal by simply bending the plate.
Features:
Holographic Phantom Finish: The PET side imprints a unique "Phantom" or "Iridescent" holographic texture onto the base of the print, providing a distinctive, color-shifting, and eye-catching aesthetic.
Dual-Sided Versatility: Offers two distinct surfaces: the decorative PET Phantom side and the reliable, high-adhesion matte PEI side.
Excellent Adhesion: Both surfaces ensure strong first-layer adhesion to prevent warping and ensure stable molding during high-speed printing.
Easy Print Removal: The high-elasticity spring steel sheet allows prints to be easily popped off by bending the plate once it has cooled down.
High Flatness: The steel sheet maintains superior flatness and resists deformation, ensuring consistent print quality across the entire build area.
Quick Positioning: Equipped with dual handles and/or locating holes for quick and precise alignment on the magnetic heatbed.
Filament Compatibility:
-
PET Phantom Side (Aesthetic): Best suited for low-temperature filaments like PLA, PETG, and TPU. (Max recommended temperature is ≈80°C to protect the PET film).
-
PEI Side (Standard): Compatible with common and advanced materials including PLA, ABS, ASA, PETG, TPU, and PC.
Specifications:
CREALITY HI
Compatible Models: Creality Hi / Hi Combo
Build Plate Size (L×W): 280 × 265 mm
Core Material: High-Strength Spring Steel Sheet
Surface 1: PET Phantom Texture
Surface 2 (Reverse): Matte / Frosted PEI Coating
Max Bed Temp (PET Side): ≈80∘C
Sheet Thickness: ≈1.0−1.1 mm
CREALITY K2 PLUS
Compatible Models: Creality K2 Plus / K2 Plus Combo
Build Plate Size (L×W): 370 × 370 mm
Core Material: High-Strength Spring Steel Sheet
Surface 1: PET Phantom Texture
Surface 2 (Reverse): Matte / Frosted PEI Coating
Max Bed Temp (PET Side): ≈80∘C
Sheet Thickness: ≈1.0−1.1 mm
