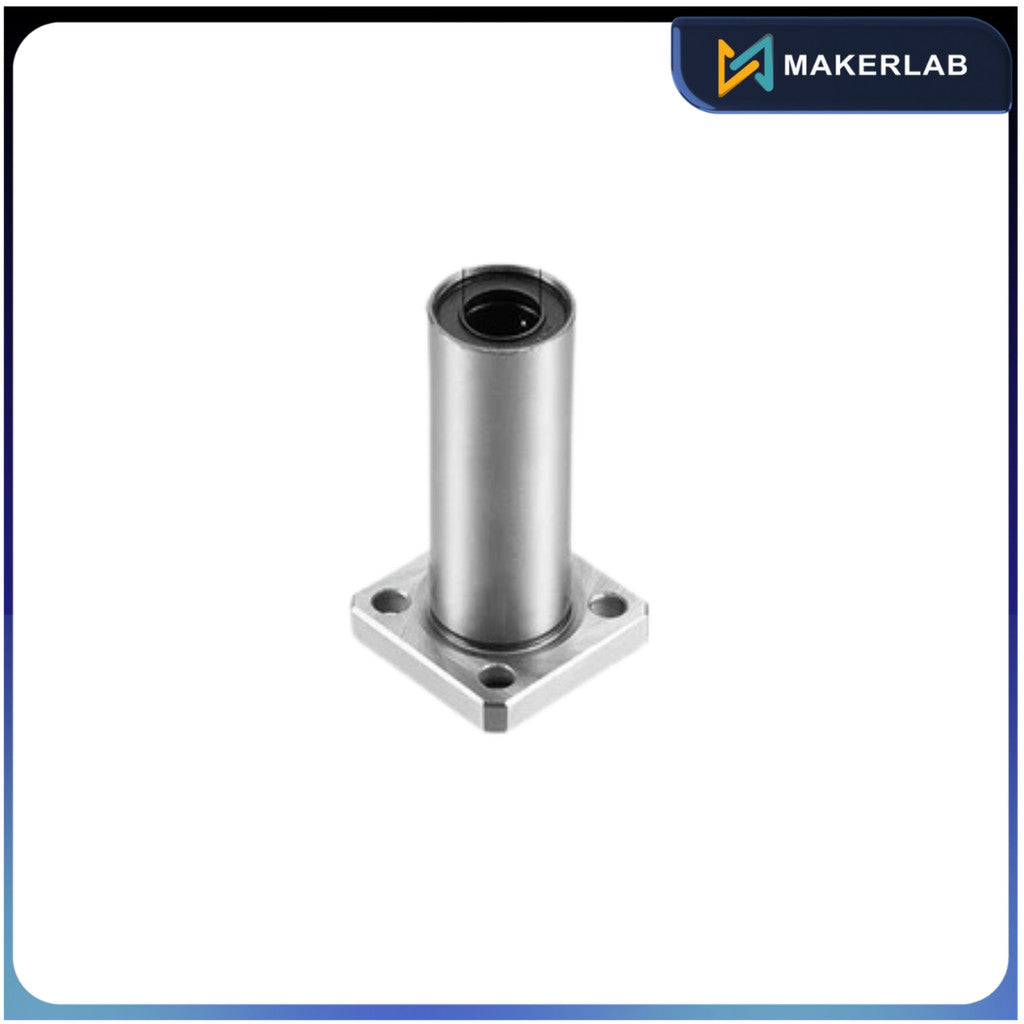

Creality Ender 5 Plus Linear Bearing LMK10uu

₱250.00 PHP
₱250.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 2 units left

About the Product

1.provides LMFUU series Square Flange Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.
2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
4.It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LMK10UU
Bearing Ball Material: Chromium Steel
Outer Shell Material: Chromium Steel
Cage Material: Nylon
Nominal Shaft Diameter (dr): 10mm
Outer Diameter (D): 19mm
Total Length (L): 55mm
Mounting Hole Dia.: 4.6 x 7.5mm / 0.18 x 0.3inch (d1*d2);
Pitch Circle Dia. (PCD): 29mm / 1.14inch;
Flange Size: 30 x 30 x 6mm / 1.18 x 1.18 x 0.24inch (L*W*H)
Ball Circuit: 4
Static Load Capacity (Cor): 1.1kN
Dynamic Load Capacity (Cr): 0.588kN
