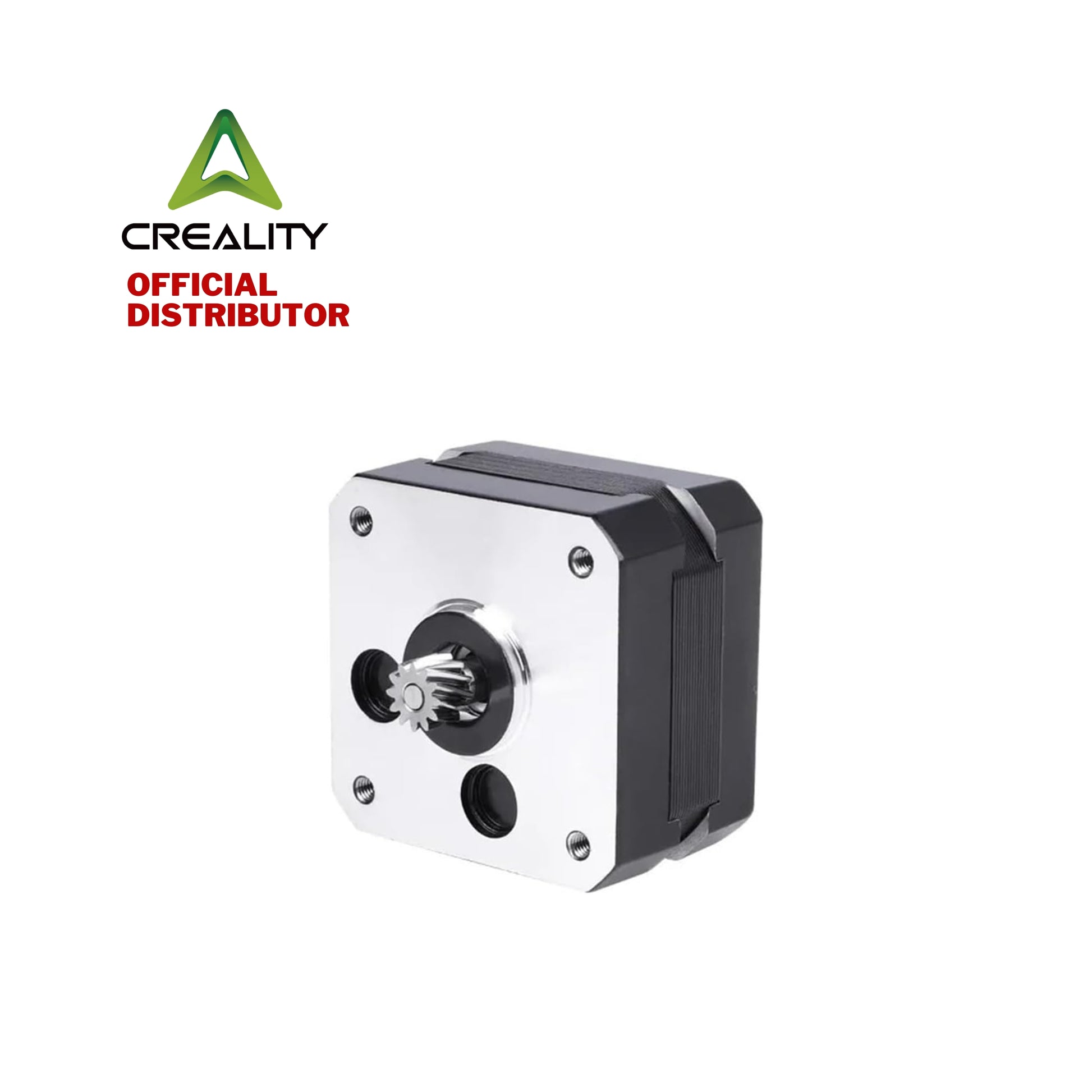

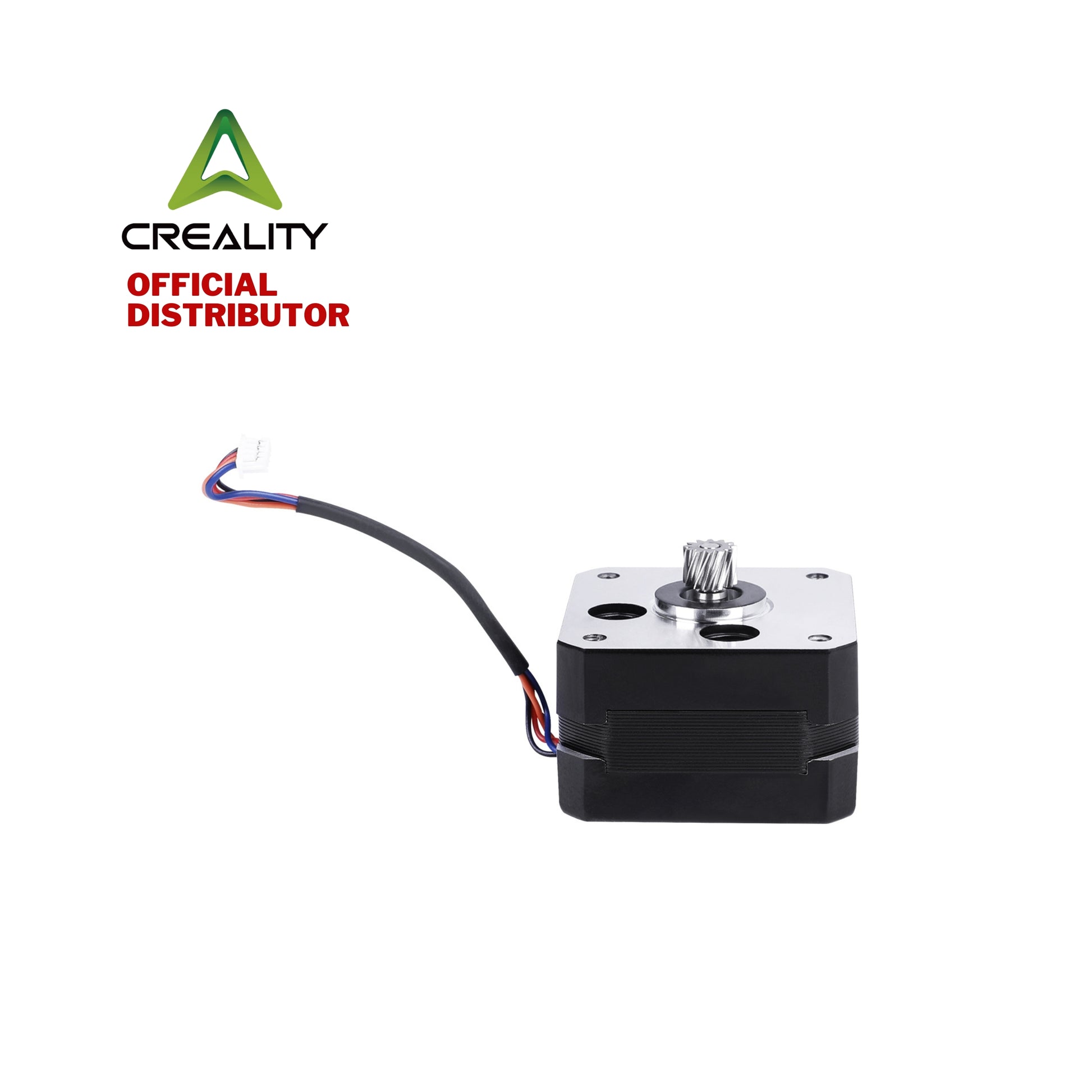

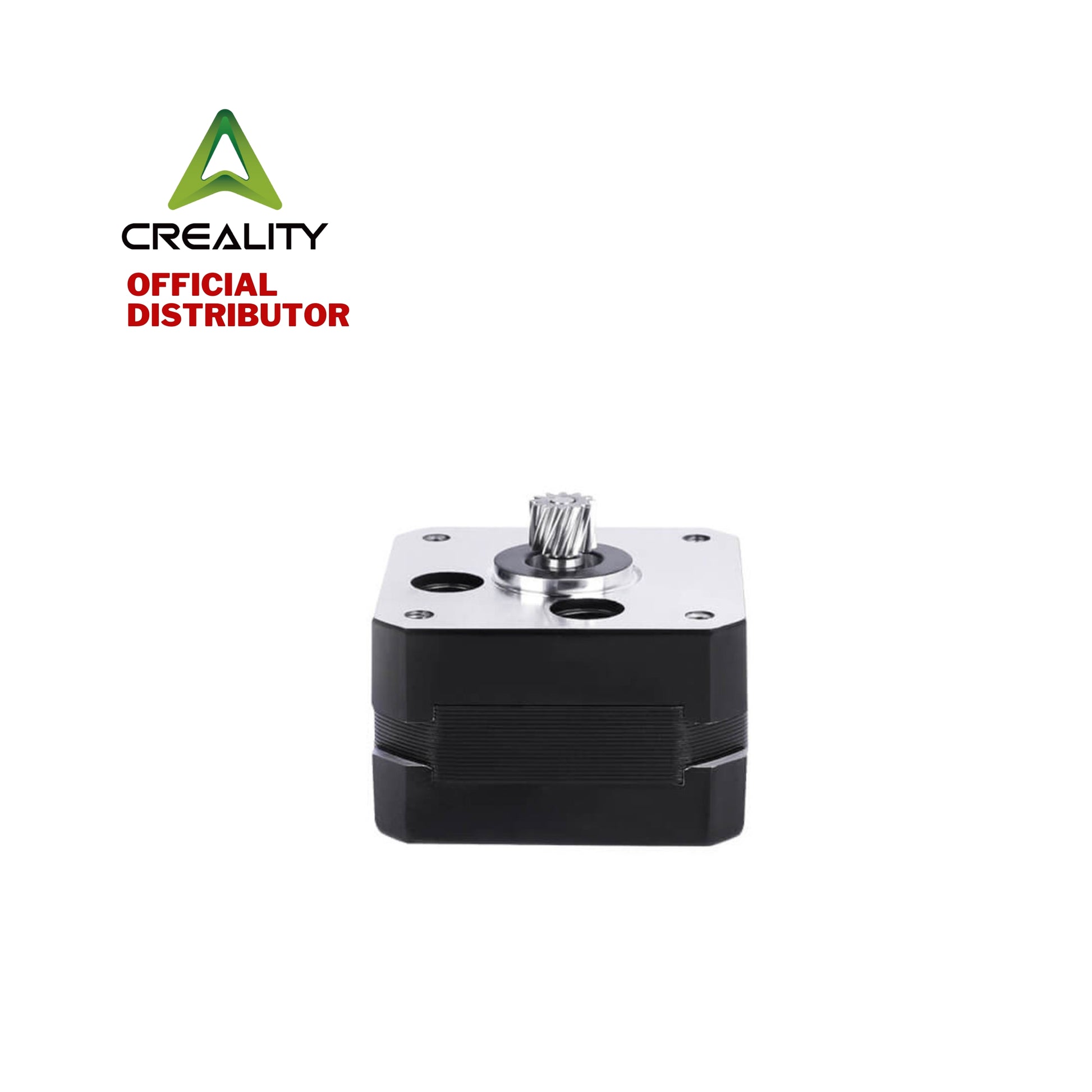

Creality Extruder Motor for Hi Printer

Description:

The Creality Extruder Motor is an Original Equipment Manufacturer (OEM) replacement stepper motor specifically designed for the Creality Hi 3D printer. Identified as a 42-26 Stepper Motor, it is a key component of the printer's high-integration, direct-drive extrusion system. This motor ensures precise and reliable filament feeding, which is crucial for the Creality Hi's high-speed and high-accuracy printing capabilities. It features a compact design to minimize mass on the toolhead, contributing to the printer's ability to achieve fast motion and reduce ringing/ghosting.

Features:

OEM Quality: Genuine Creality replacement part, ensuring perfect fit and compatibility with the Creality Hi 3D printer.
High Precision Extrusion: A 1.8° step angle allows for accurate micro-stepping and reliable filament flow control.
Optimized for Direct Drive: Compact NEMA 17 size with a short, 26 mm body length, reducing weight on the hotend carriage for high-speed printing performance.
Integrated Gear: Comes with a pre-installed, pressed-fit gear (typically a 12-tooth helical gear) for efficient engagement with the extruder mechanism.
Plug-and-Play: Includes the necessary wiring and connector (typically a 4-pin, 1.25 mm pitch connector) for direct installation on the Creality Hi.

Specification:

Model Number: 42−26 Stepper Motor (Refers to 42 mm face ×26 mm length)
Creality Part Number: 3204120242
Compatibility: Creality Hi 3D Printer
Form Factor: NEMA 17
Step Angle: 1.8°
Extrusion Gear: Helical, 12-tooth (Pre-installed)
Rated Current: ≈0.8 A to 0.84 A (Typical for this motor size)
Shaft Length: ≈7 mm
Cable Termination: 4-pin connector (1.25 mm pitch)
Net Weight (N.W.): ≈150 g
