Description:

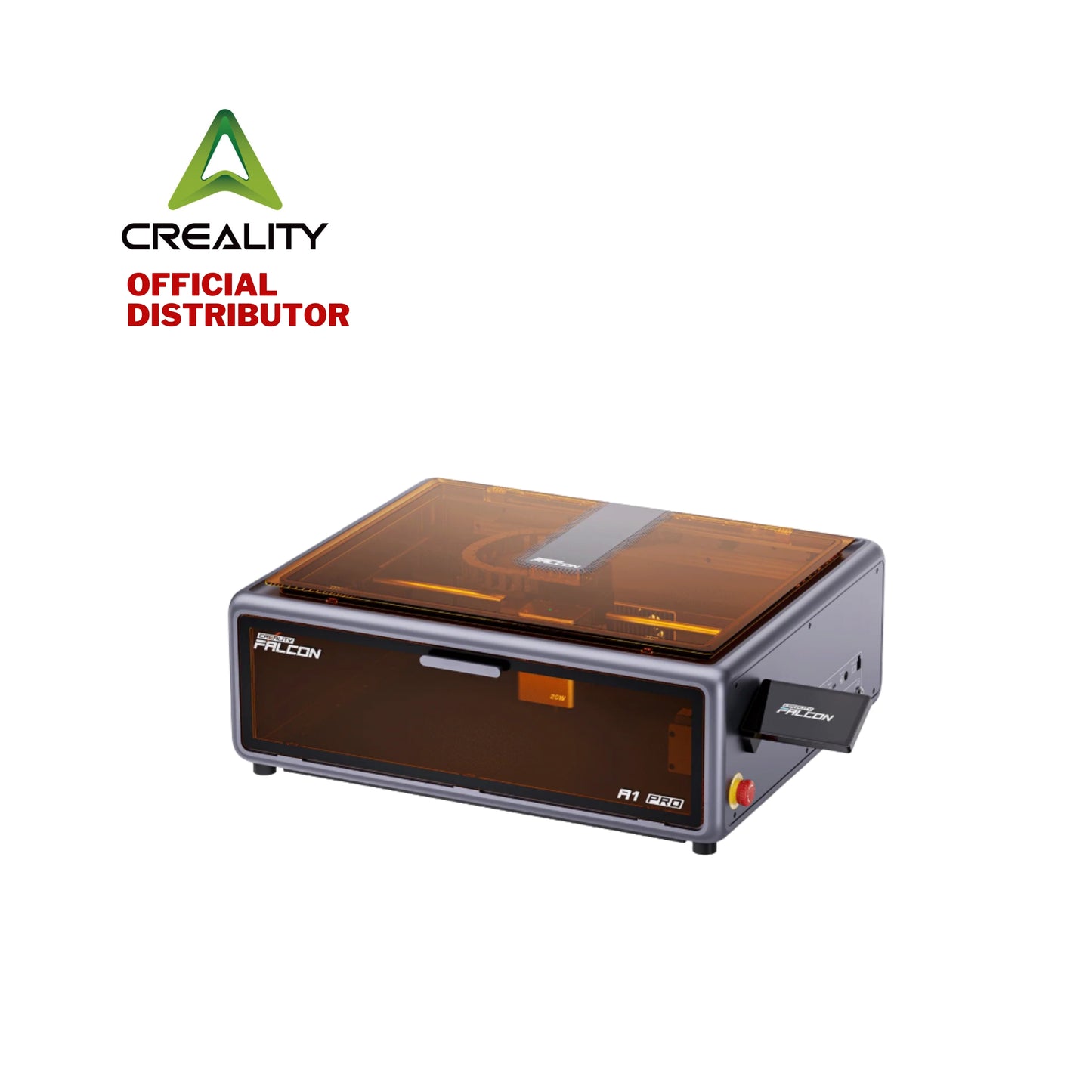

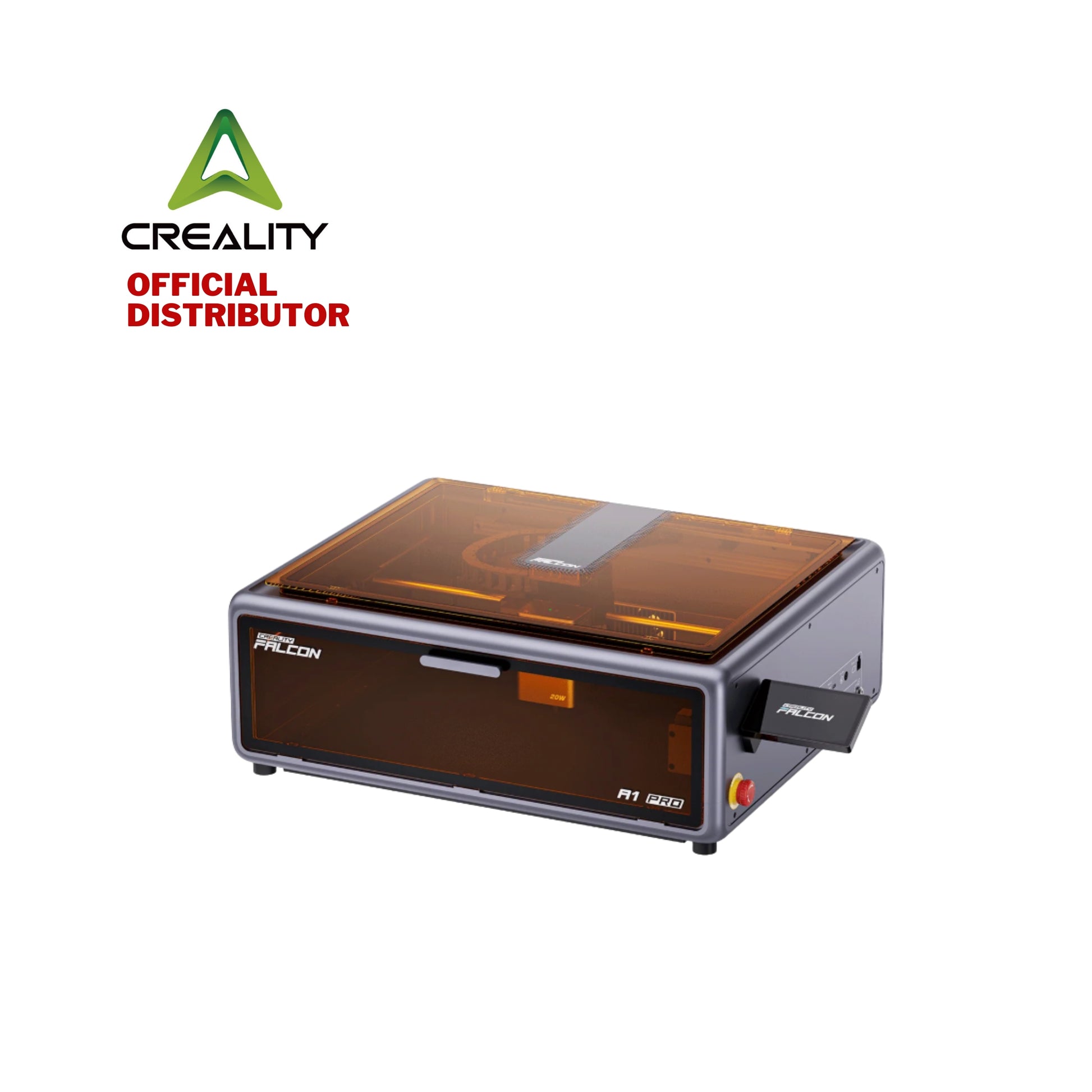

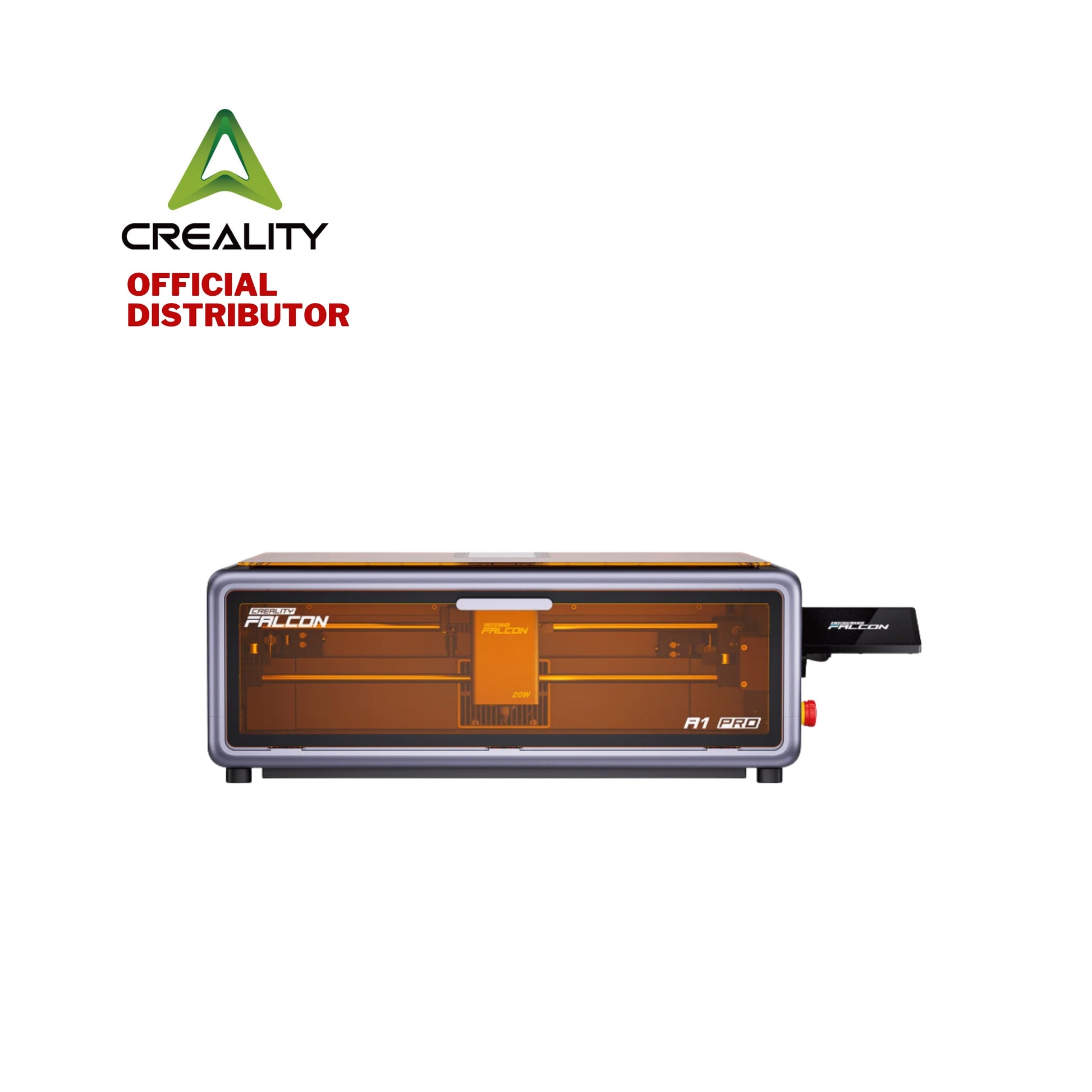

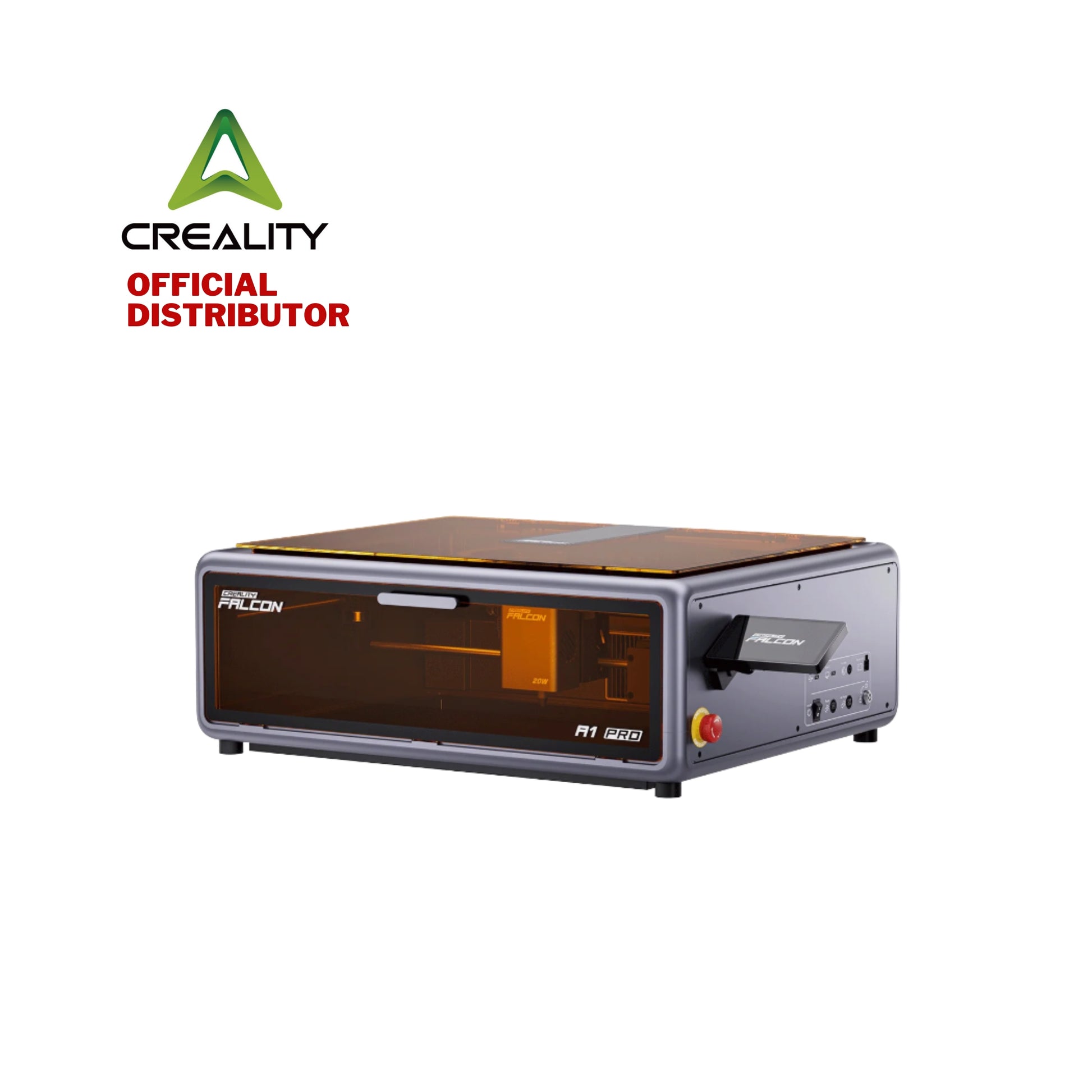

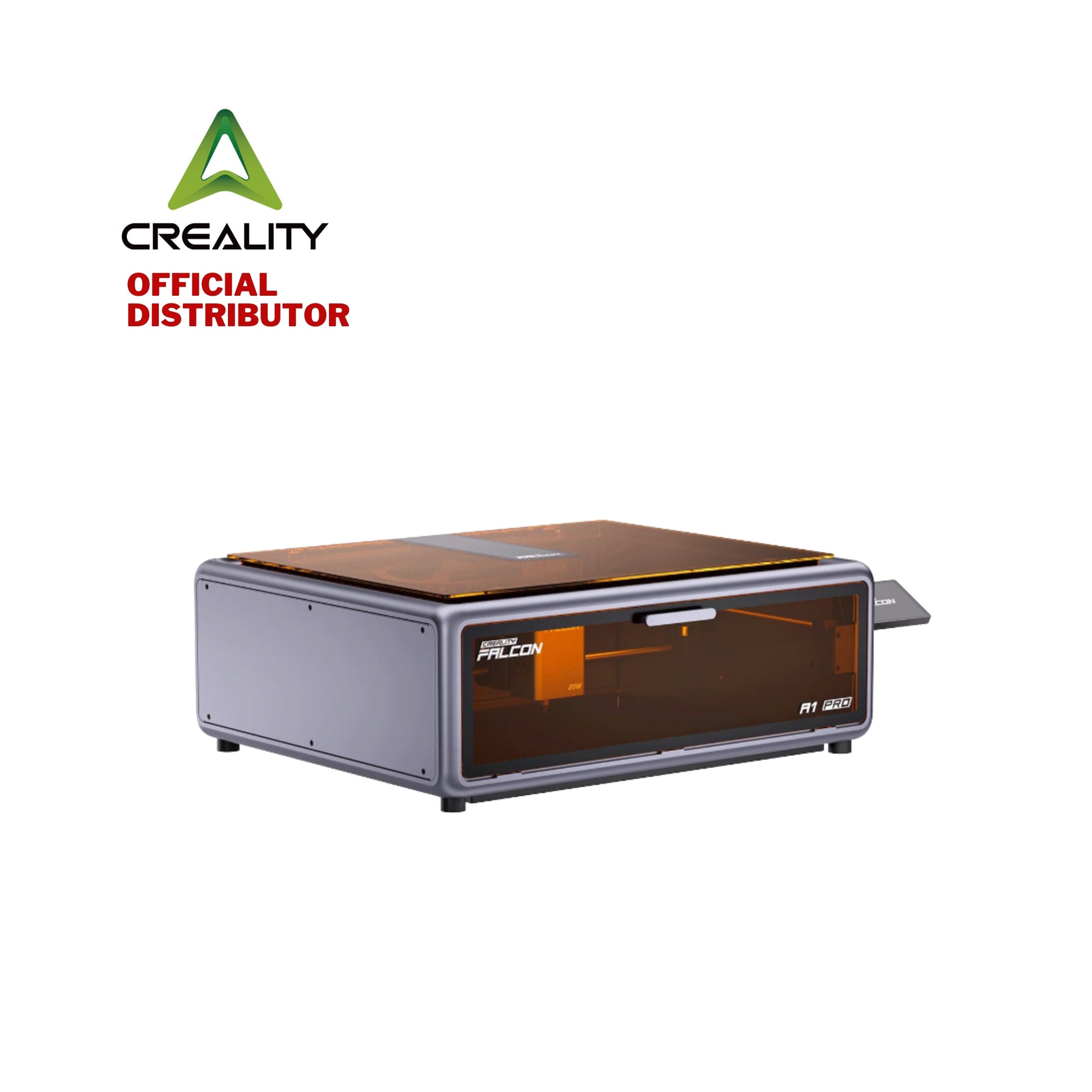

The Creality Falcon A1 Pro 20W is an advanced, fully enclosed laser engraving and cutting machine that combines a powerful 20W blue diode laser with an AI-supported vision system for exceptional speed, precision, and safety. Designed for experienced makers, small businesses, and entry-level DIYers, this machine simplifies complex workflows with features like instant autofocus, live camera preview for perfect positioning, and a smart touchscreen for standalone operation. Its Class 1 FDA-certified enclosed design, complete with an eye-protection cover and built-in smoke extraction, ensures a safe and clean workspace, allowing you to effortlessly cut and engrave over 350 materials, including wood, acrylic, stainless steel, leather, and more.
Features:
20W High-Power Blue Diode Laser: Enables fast cutting and deep engraving on a wide variety of materials.
Optional 2W Infrared (IR) Laser Module: The system is switchable and supports a separately purchased 2W IR module for detailed engraving on pure metals and certain plastics.
Intelligent Camera for Precise Positioning: Offers a full-frame, live preview on the touchscreen, allowing for drag-and-drop design placement and efficient one-click batch processing.
High-Speed Operation: Utilizes a CoreXY system to achieve a maximum working speed of up to 600 mm/s.

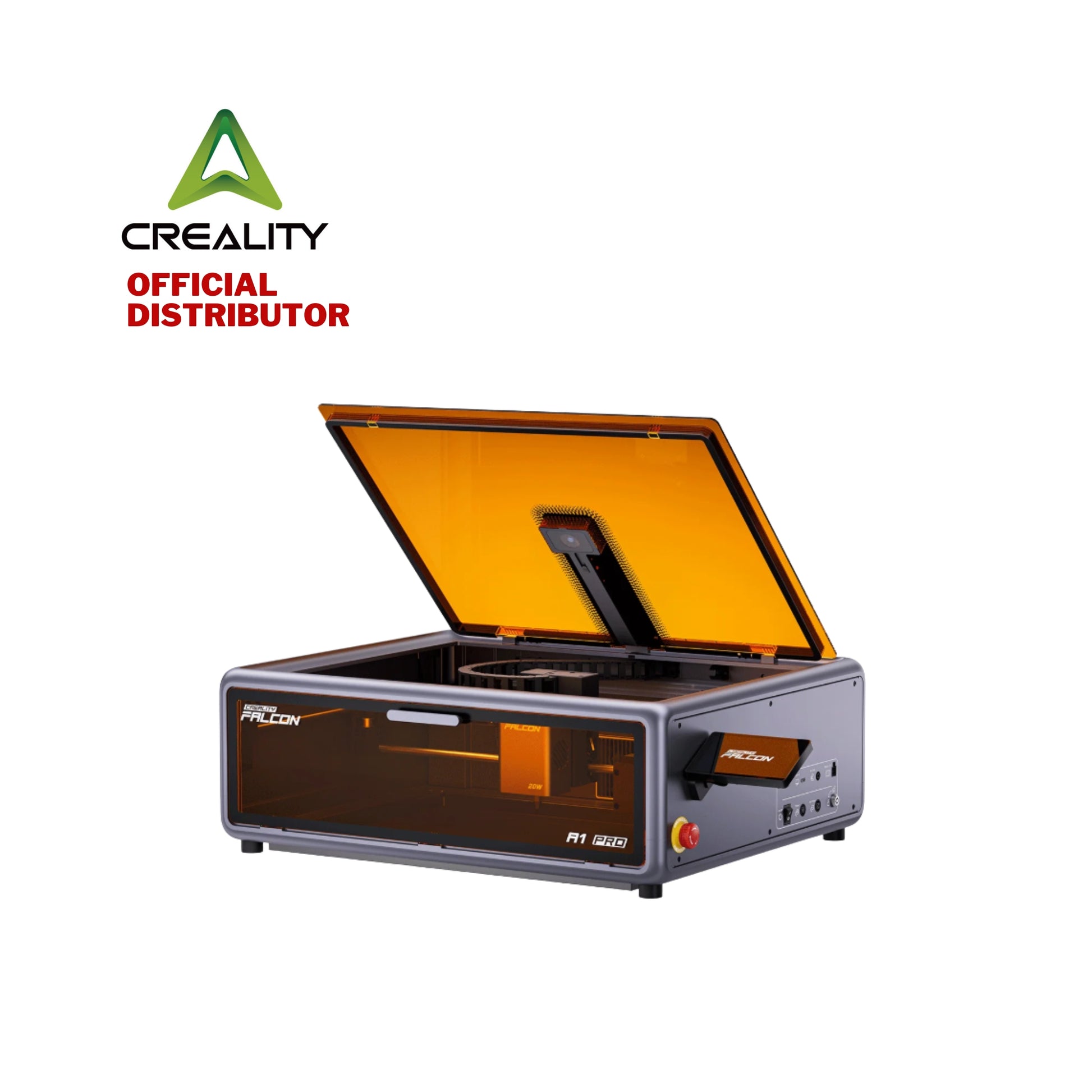

Class 1 Safety & Enclosed Design: Fully enclosed housing with an eye-protection cover, lid-open safety stop, emergency stop button, and built-in smoke extraction fan/filter for a safe, domestic operating environment.
4.3-Inch Smart Touchscreen: Provides an intuitive, smartphone-like interface for starting jobs, changing materials, and viewing previews directly on the device.
App & IoT Control: Full control via the Falcon Design app with real-time monitoring and fire hazard alerts.
AI-Supported Vision System & Autofocus: Integrated camera and laser rangefinder provide instant, high-precision autofocus (under 3 seconds with <0.012"
accuracy) and auto-material recognition.
Specifications:
Product Name: Creality Falcon A1 Pro Laser Engraver
Optical Power: 20W (Blue Diode Laser)
Optional Laser: 2W (IR Solid-state Laser, sold separately)
Engraving Area: 268×358 mm
Maximum Working Speed: 600 mm/s
Laser Spot Size: 0.08×0.1 mm (20W Blue Laser)
Laser Wavelength: 455±5 nm (20W Blue Laser)
Safety Class: Class 1 (FDA Certified)
Input Voltage: 100−240V∼50−60Hz
Output Voltage: DC 24V 7.5A
Max Machine Power: 240W
Connectivity: USB, Wi-Fi, App Control
Software Compatibility: Falcon Design Space, LightBurn, LaserGRBL
Supported Materials: Wood, Bamboo, Acrylic, Glass, Painted Metal, Stainless Steel, Leather, Fabric, Cardboard, etc. (2W IR supports Gold, Silver, Brass, Pure Metal, Plastic, etc.)
