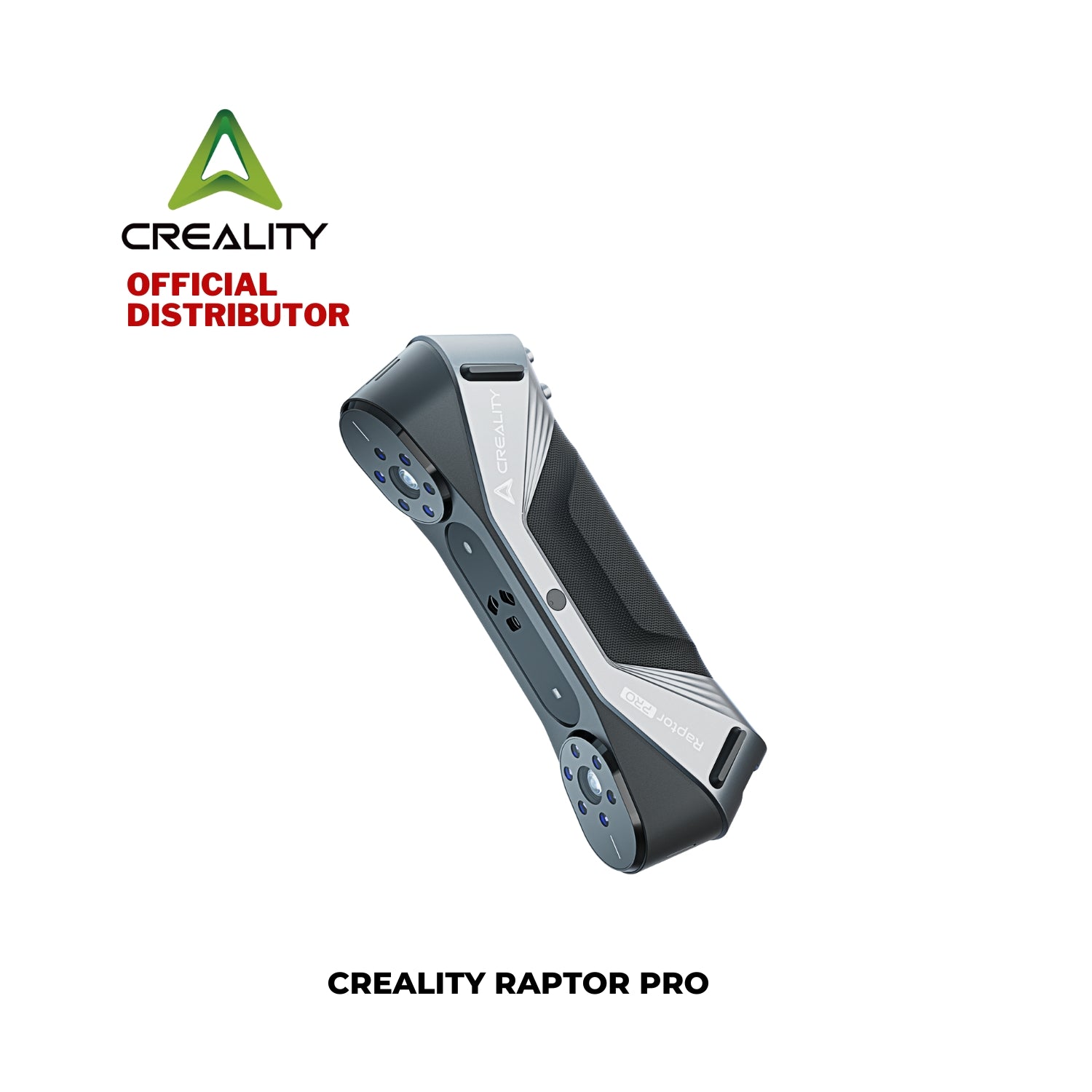

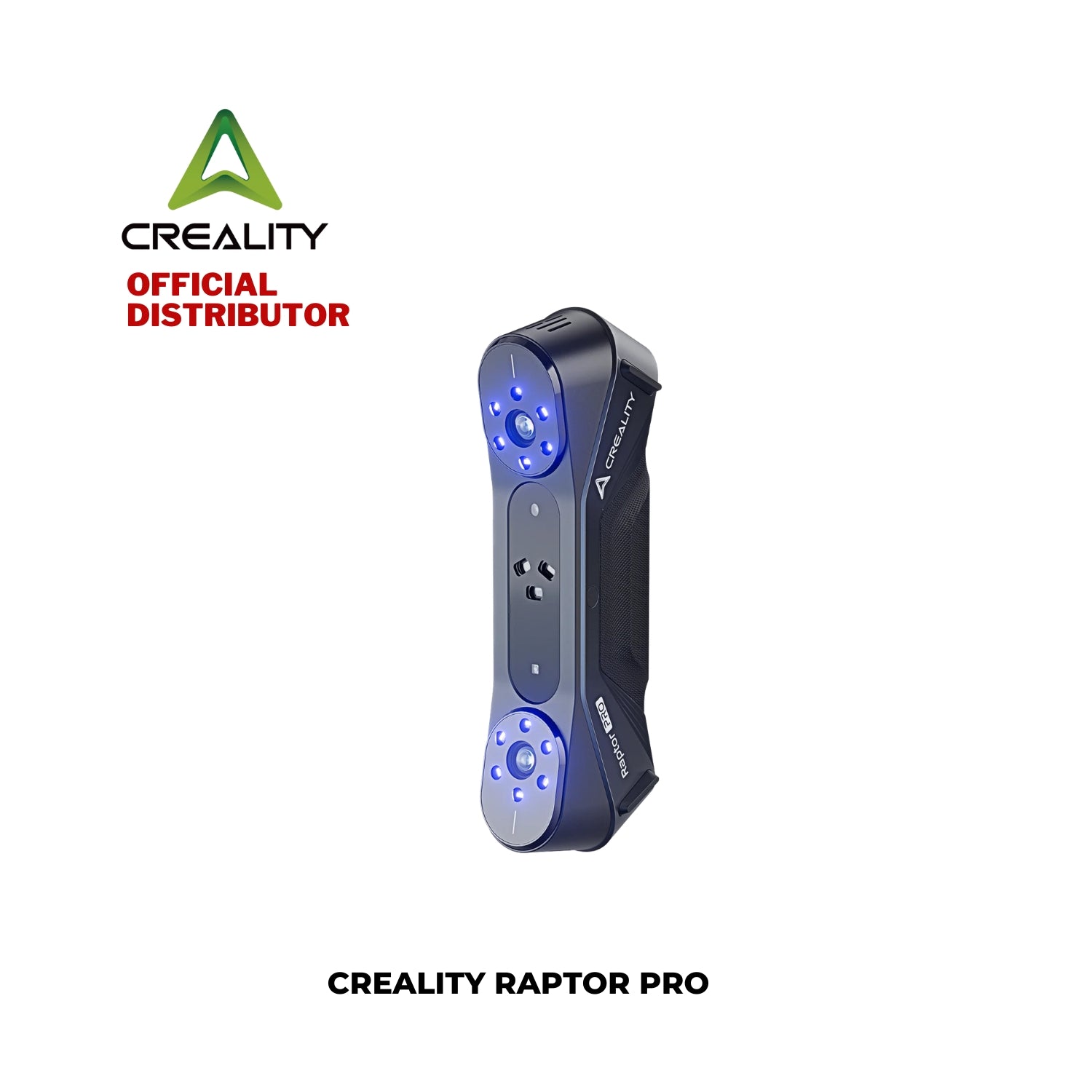

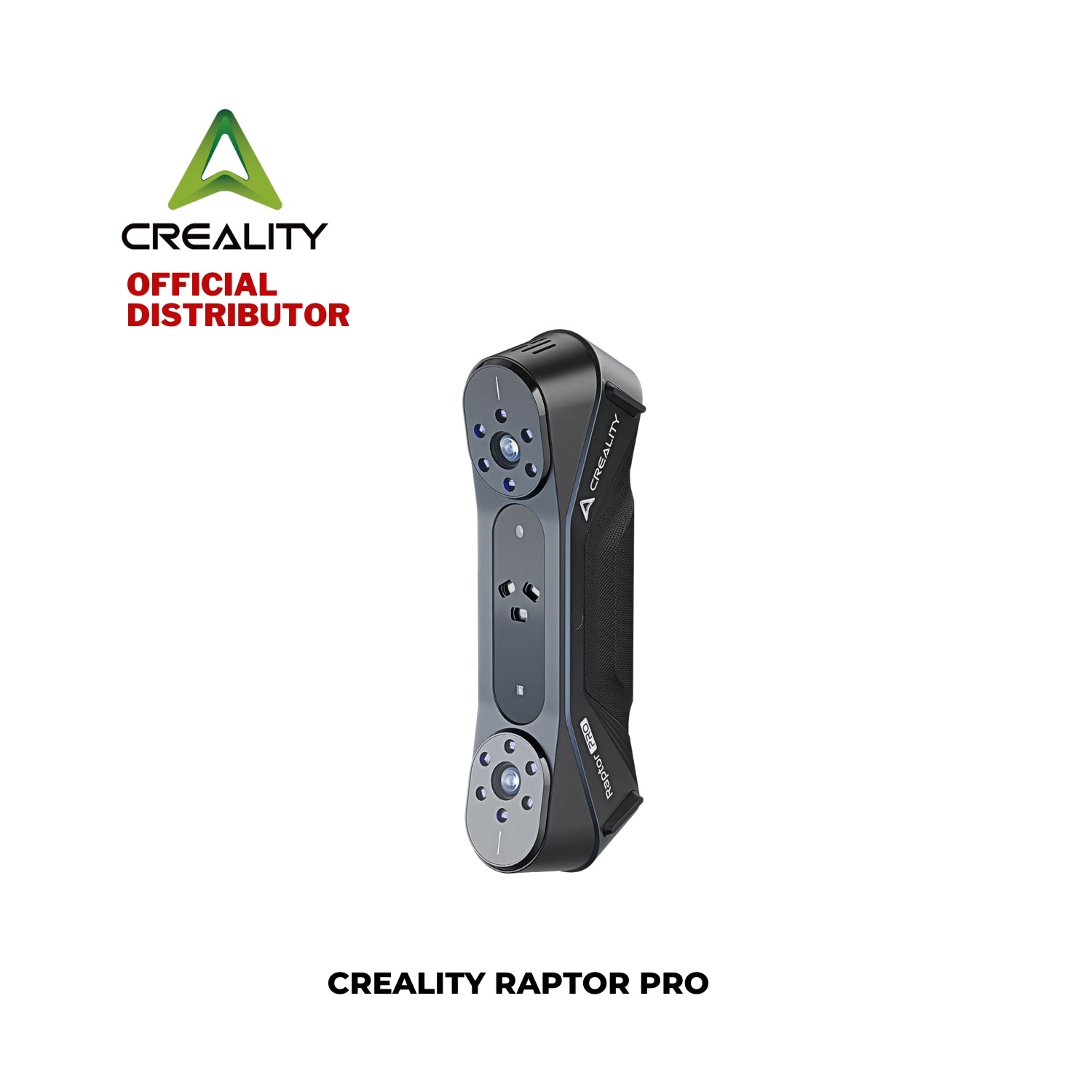

Creality Raptor Pro Scanner

Description

The Creality Raptor Pro is a professional-grade handheld 3D scanner that combines blue laser and near-infrared (NIR) structured light technologies to deliver high-precision, high-speed scanning for a wide range of applications. From intricate components to large-scale objects and full-body scans, the Raptor Pro is engineered for users who demand accuracy, flexibility, and portability.

Product Features

• Hybrid Light Technology: Combines blue laser and NIR structured light for versatile scanning across various materials and environments.
• Ultra‑High Accuracy: Achieves precision up to 0.02 mm in blue laser mode for metrology-grade results.
• High Scanning Speeds: Blue laser mode offers 660,000 points/sec at 60 fps; NIR mode delivers up to 3.58 million points/sec.
• Wide Scanning Range: Effectively scans objects as small as 5 mm to as large as 4 meters.
• No Spray Needed: Capable of scanning black, shiny, and metallic surfaces without requiring matte spray.
• Full-Color Texture Capture: 24-bit RGB camera provides vivid color texture mapping for lifelike 3D models.
• Stable Handheld Scanning: Equipped with IMU stabilization and One-Shot 3D imaging to reduce tracking loss.
• Ergonomic and Lightweight: Weighs only 405 g, making it easy to handle for extended periods.

Specifications

• Scanning Modes:
  - Blue Laser Mode: 22 cross + 7 parallel lasers, 660k points/sec, accuracy up to 0.02 mm
  - NIR Mode: Infrared structured light, 3.58M points/sec, accuracy approx. 0.075 mm
• Volumetric Accuracy: 0.02 mm + 0.08 mm/m
• Scan Range: 5 mm – 4 m
• Point Distance: 0.02–2 mm (laser), 0.10–2 mm (NIR)
• Color Capture: 24-bit RGB
• Camera Resolution: ~2.3 MP
• Weight: Approx. 405 g
• Connectivity: USB‑C (USB 3.2 Gen 1)
• Cooling & Protection: Passive cooling, aluminum housing, MIL‑STD‑810G drop-tested, IP67 carry case
• Lighting Tolerance:
  - Blue Laser: Up to 100,000 lux (cross-line), 50,000 lux (7-line)
  - NIR Mode: Up to 30,000 lux
