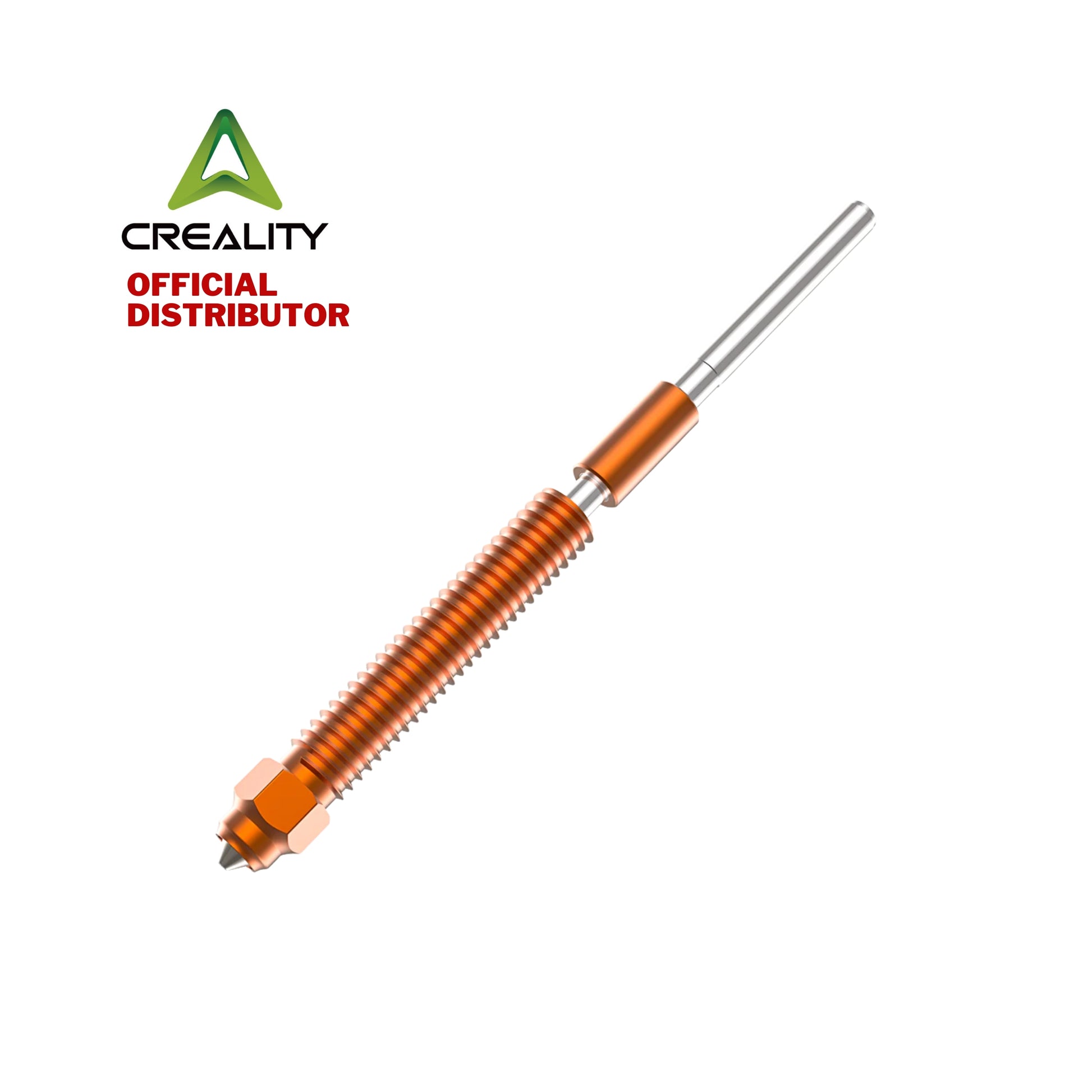

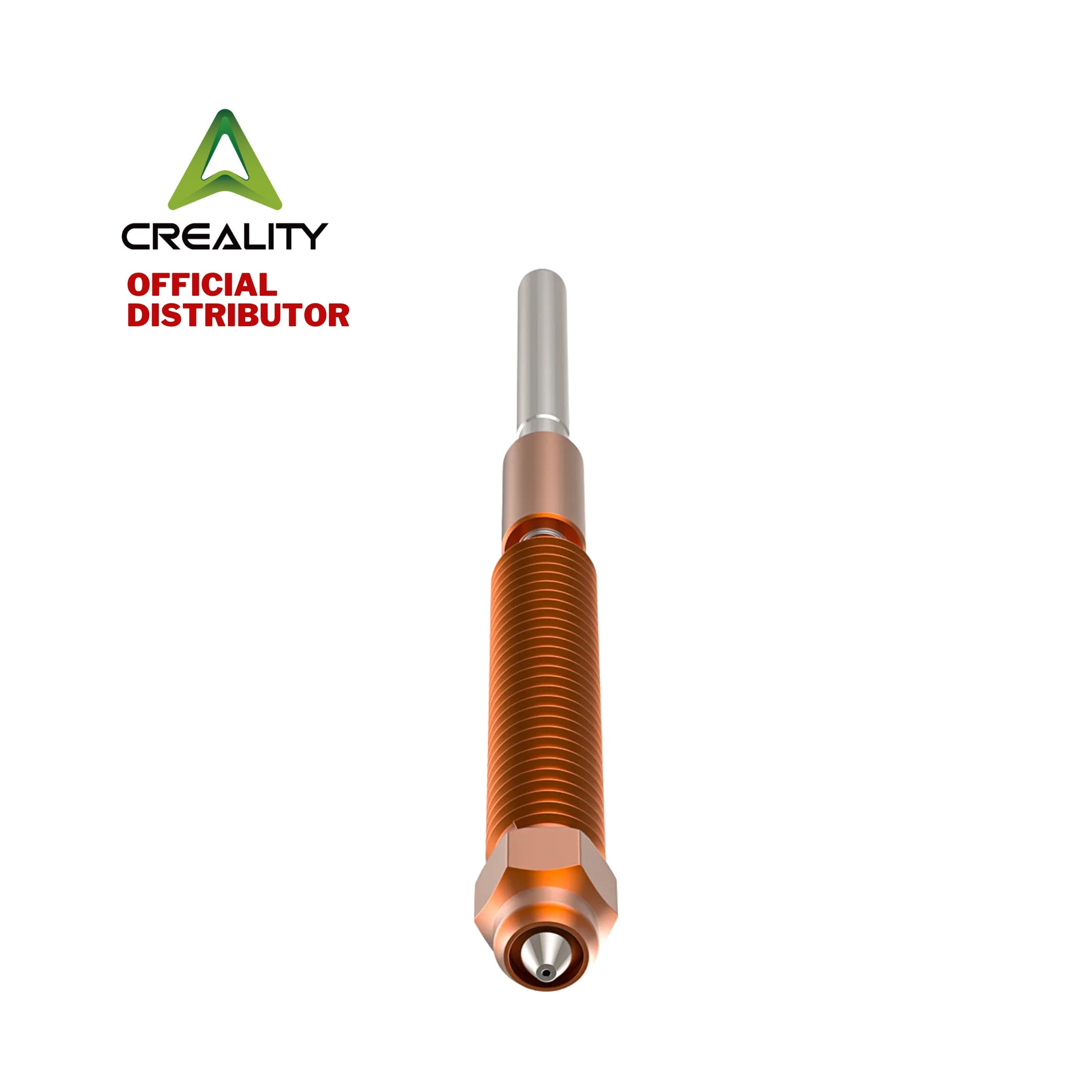

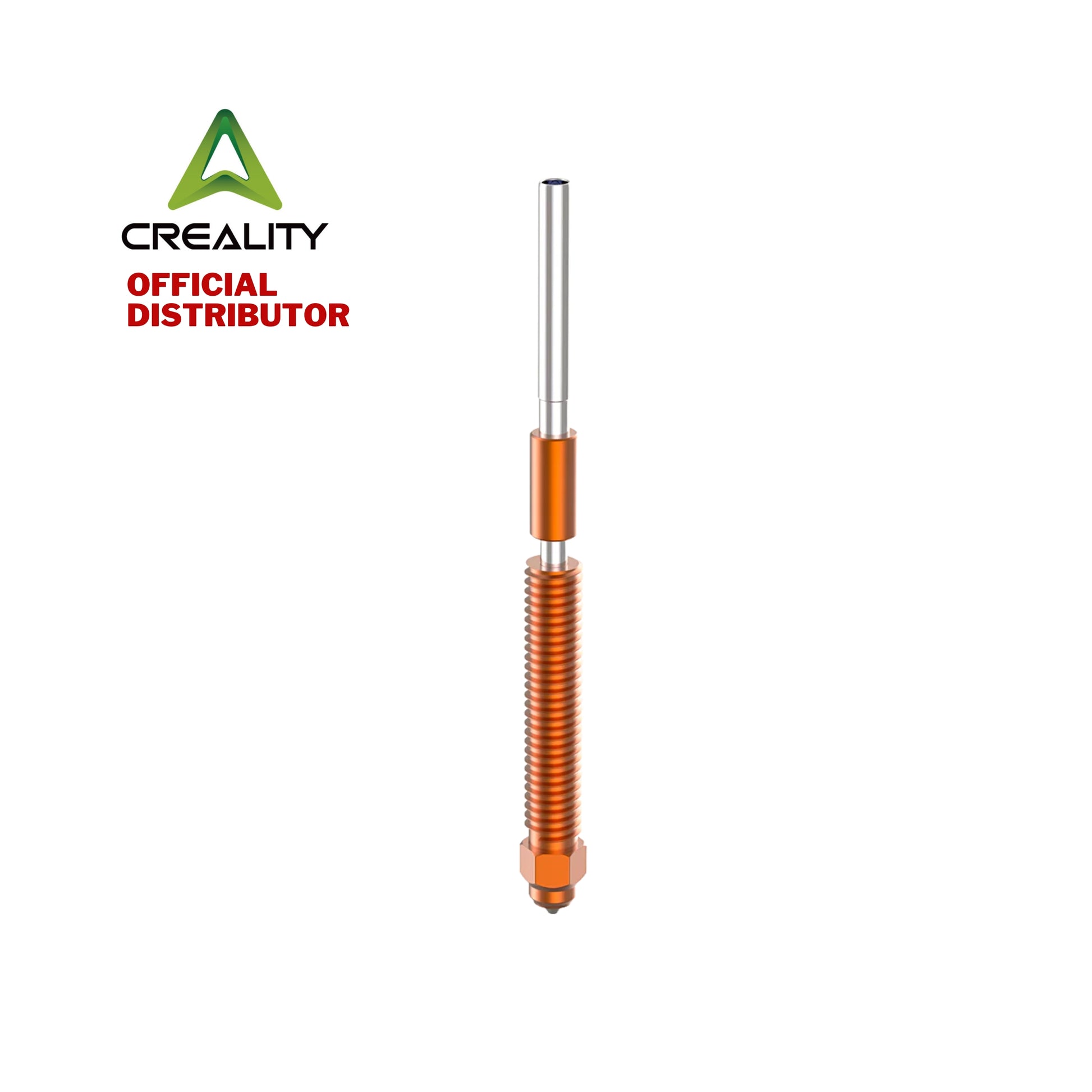

Creality "Unicorn" K2P Quick-Swap Nozzle-0.8mm

Description

The Unicorn Quick‑Swap Nozzle – 0.8 mm is part of Creality’s advanced tri‑material modular nozzle system, designed for the K2 Plus and Creality Hi printers. It replaces the older nozzle for faster filament transitions and cleaner extrusion. The entire module—nozzle, heatbreak, and tip—is integrated into a single snap‑in component, simplifying swaps without full hotend teardown .

Features

• Tri‑material construction:
  • Heatbreak: titanium alloy reduces thermal conduction
  • Nozzle body: copper alloy with excellent thermal conductivity (~330 W/m·K)
  • Tip: hardened steel (Mohs hardness ~7.8) for abrasion resistance—ideal for carbon‑fiber, PET‑CF, PC and others
• Precision manufacturing:
  • Inner walls polished to Ra < 0.4 for smooth filament flow
  • Tightly fitting threaded joints eliminate leakage or oozing
• Broad filament support: Compatible with PLA, ABS, PETG, TPU, PP, PC, and fiber‑filled variants
• Rapid swap mechanism: Snap-fit nozzle design reduces downtime during size changes; user feedback suggests swaps can be done in under ~2–3 minutes with careful prep

Specifications

• Nozzle diameter (selected part): 0.8 mm
• Compatibility: Exclusively for Creality K2 Plus and Creality Hi printer series
• Materials: Titanium alloy heatbreak, copper alloy nozzle body, hardened steel tip
• Max flow: Optimized for high extrusion rates, suitable for >30 mm³/s print speeds (especially with wider nozzles)
• Weight estimate: Entire kit (0.4/0.6/0.8 nozzles + packaging) approx. 60–70 g; single nozzle unit ~15–20 g
• Part number (kit): CRE‑4008030075 (includes one 0.8 mm)

Inclusions

• 1 × 0.8 mm Unicorn Quick‑Swap Nozzle module
