SKU:MLE00972

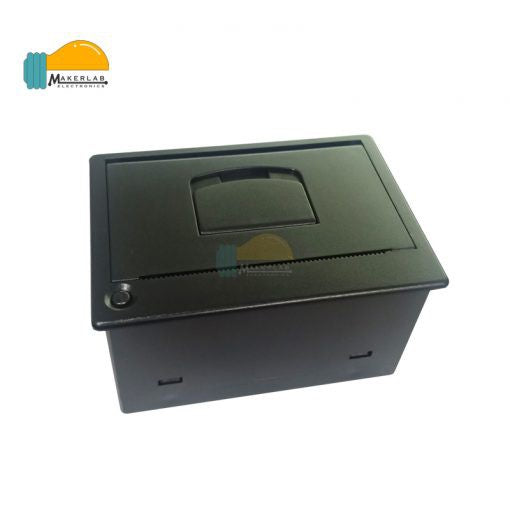

CSN-A4L 58mm Mini Panel Thermal Printer without Thermal Paper

₱1,990.00
₱1,990.00 ₱1,700.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.

About the Product

CSN-A4L 58mm Mini Panel Thermal Printer

Features:

  • Model: CSN-A4L
  • Interface:(RS232/TTL)+USB
  • Power supply: DC5-9V/12V
  • Color:Black
  • Smart Appearance
  • Easy Paper Loading
  • Low Noise Thermal Printing
  • Different interfaces optional
  • Front Panel make paper replacements easily.
  • Easily embedded to any kinds of instruments and meters.

Specifications:

Print

Printing Method

Thermal  Line

Printing Speed

50-80mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GB2312-80(Chinese)

Print Font

ANK:9x17,12×24,

GBK: 24×24

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Thickness

60-85µm

Paper Roll Diameter

Max: 30mm

Reliability

MCBF

5 million lines

Interface

(RS232/TTL)+USB

Insert Depth

43 mm

Power Supply (Adapter)

DC5V-9V / 12V

Physical

Outline Dimension (WxDxH)

82x58x45 mm

InstallationPortSize

77x53 mm

Color

Beige / black

Environment

Operating Temp

5°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%
