SKU:MLE00491

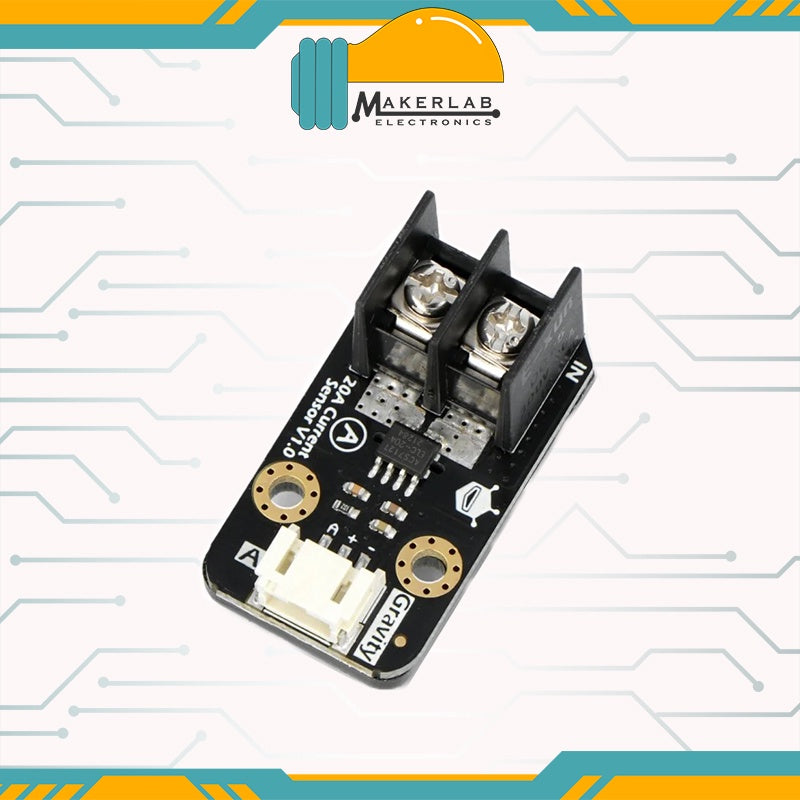

DFRobot Analog Current Sensor 20A Gravity Series

₱600.00
₱600.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Only 8 units left

About the Product

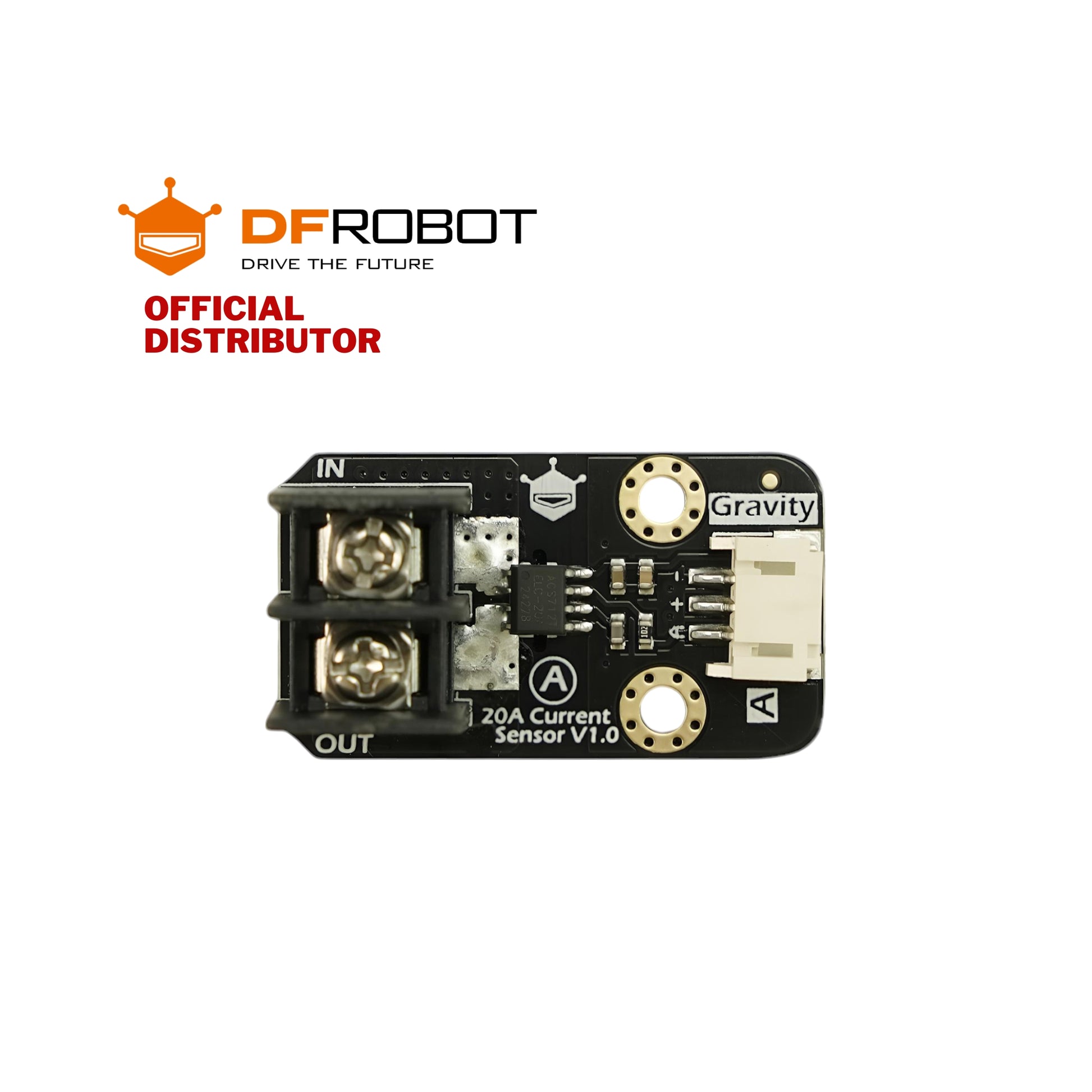

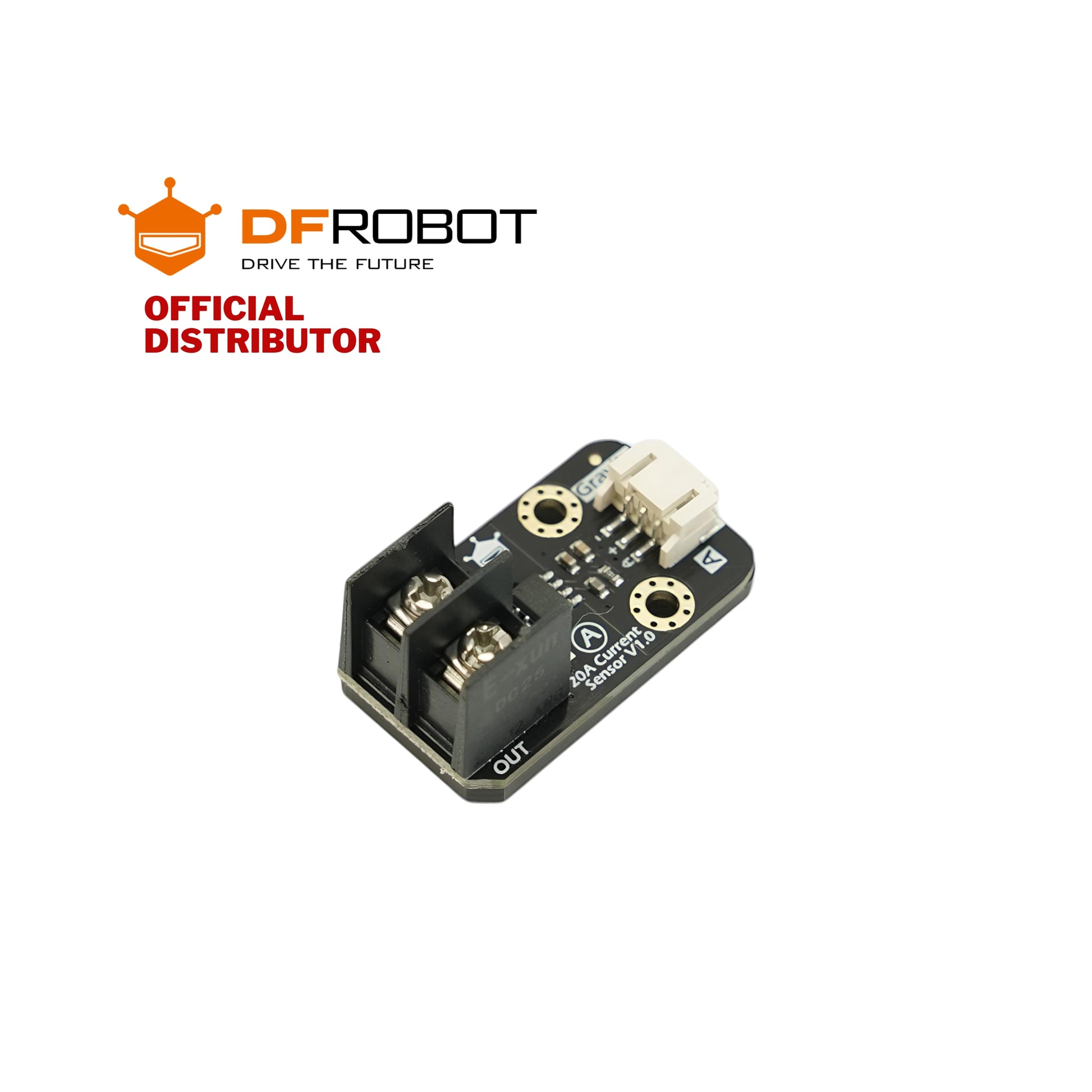

Analog Current Sensor 20A Gravity Series

This Gravity Analog 20A current sensor is based on the Hall current sensing principle. It can be used for either AC or DC current measurement, has a wide voltage range, a small footprint, requires no soldering and has a high level of precision.

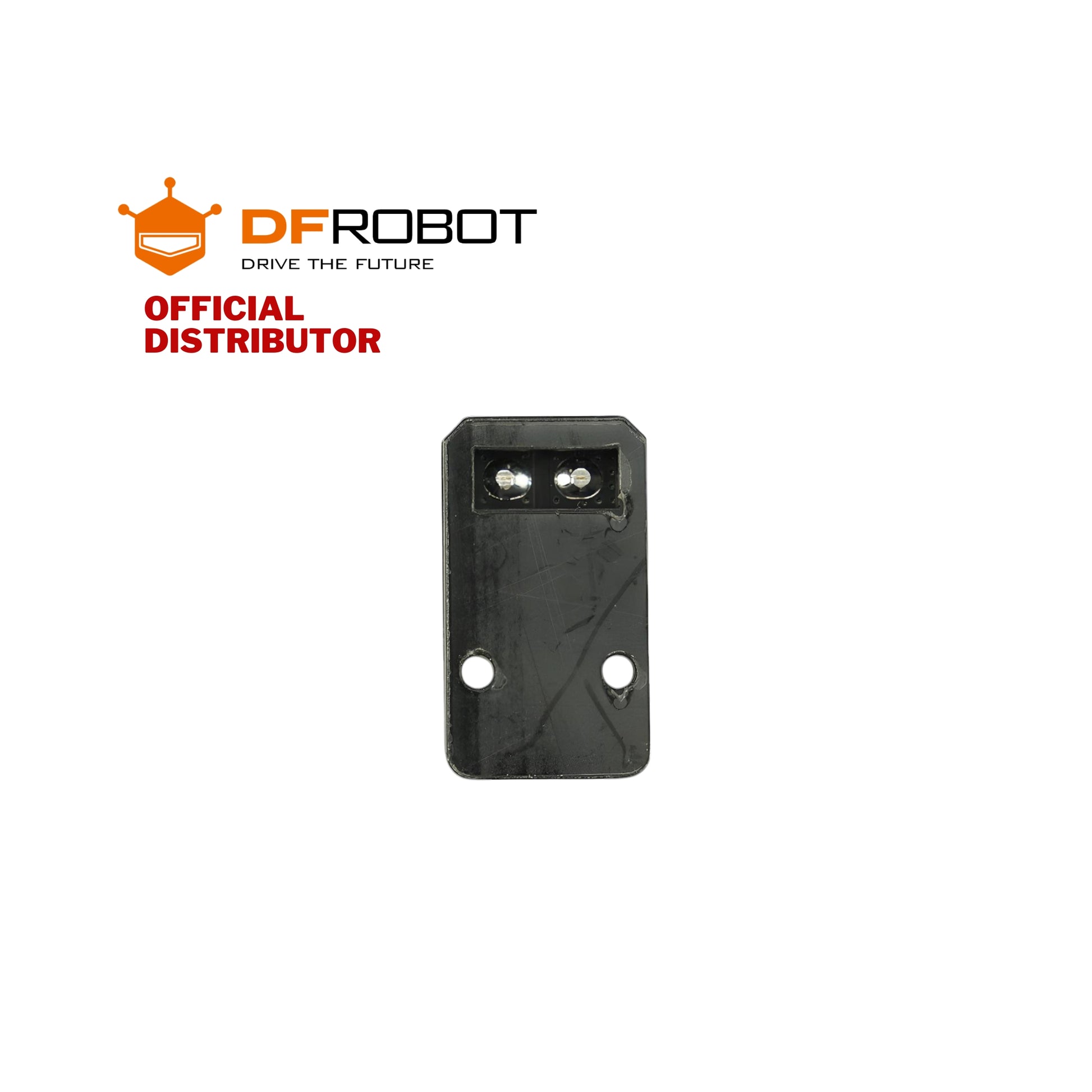

We have added high-voltage isolation in the circuit design for safety reasons and a non-conductive acrylic plate has been attached to the bottom of the PCB to prevent accidents such as short circuits, electric shocks and any other potential danger.

This component is the newest member of our Gravity series. All Gravity components include a standard 3-pin interface to make it simple to use and easy to connect to all Arduino compatible boards. It is ideal for any automation control applications.

FEATURES

  • Gravity 3 pin interface
  • Analog voltage output
  • High voltage isolation
  • Measures DC and AC current

SPECIFICATION

  • Power Supply: +5.0V
  • Current Range: 0 ~ ±20A DC?0 ~ 17A (RMS) AC
  • Measurement Endure: 220V AC, 311V DC
  • Relative Error: ±3%
  • Dimension: 39 * 22 * 17mm/ 1.53 * 0.87 * 0.67 inches
  • Interface: Gravity PH2.0-3P
  • Weight: 18g

DOCUMENTS

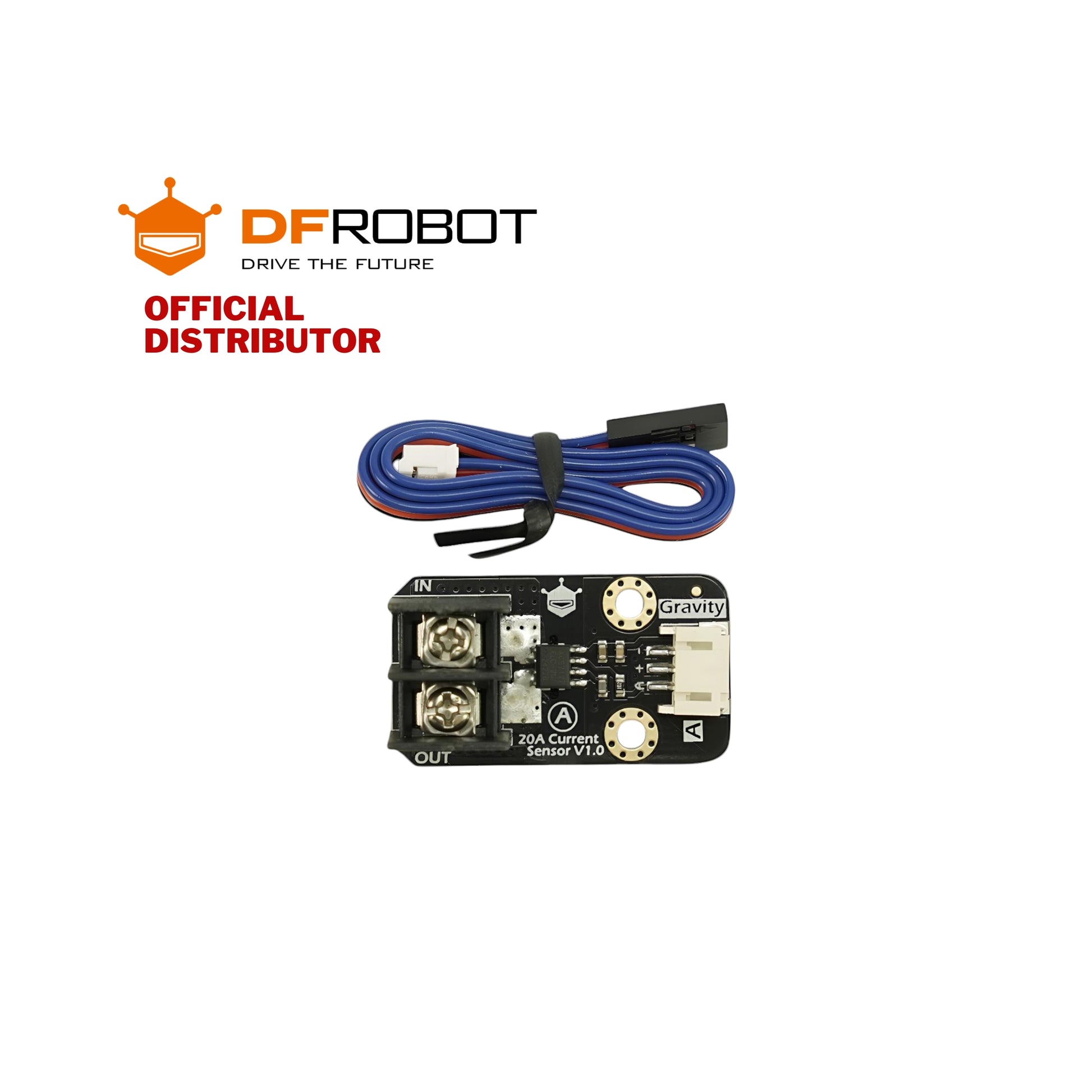

SHIPPING LIST

  • Gravity: Analog 20A Current Sensor x1
  • Gravity Analog Sensor Cable x1
