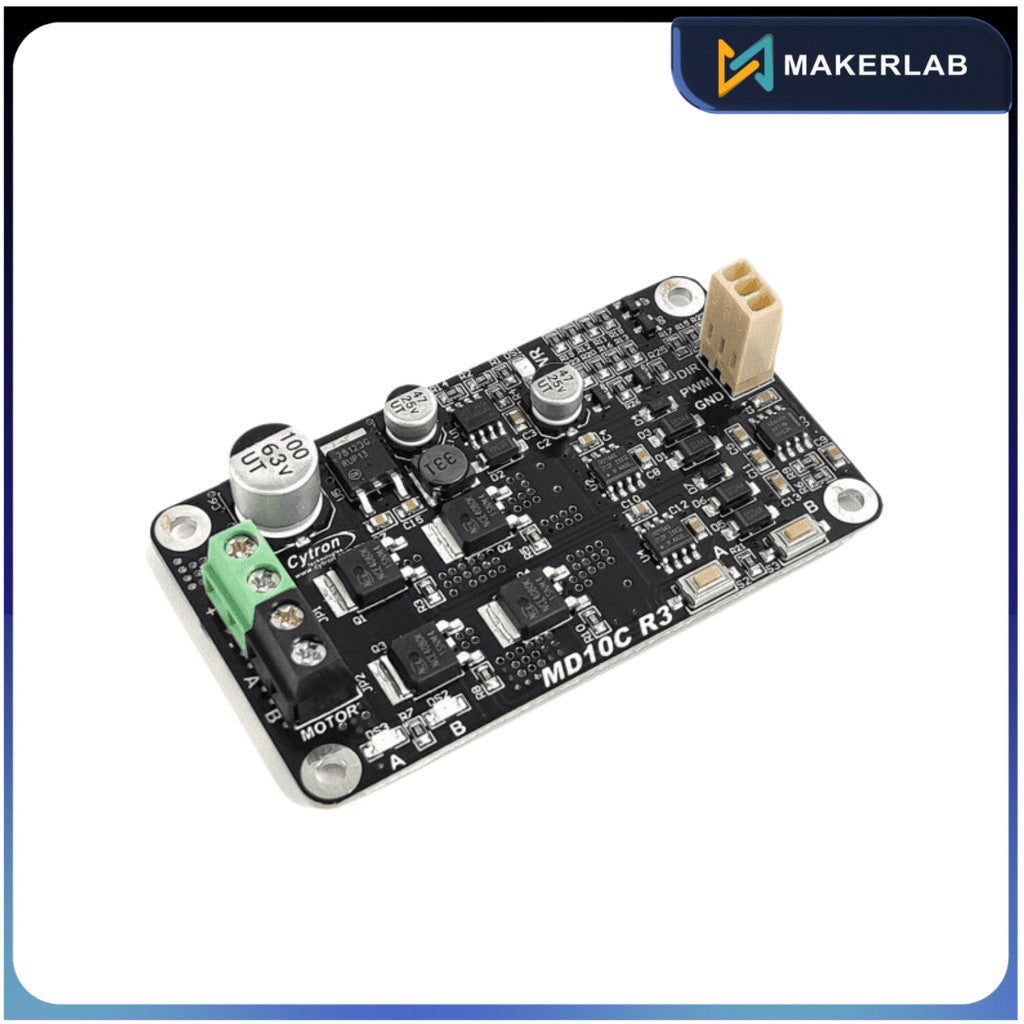

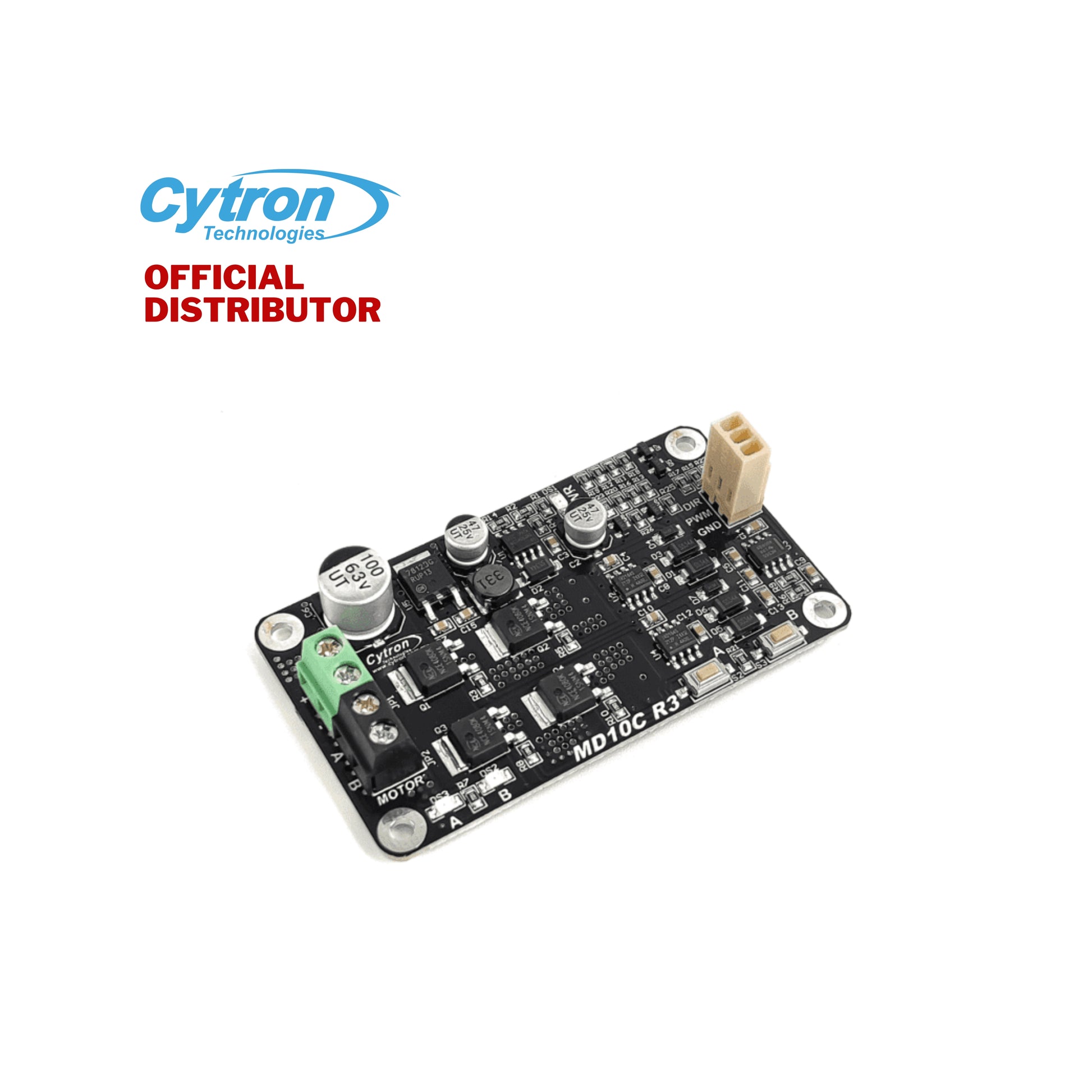

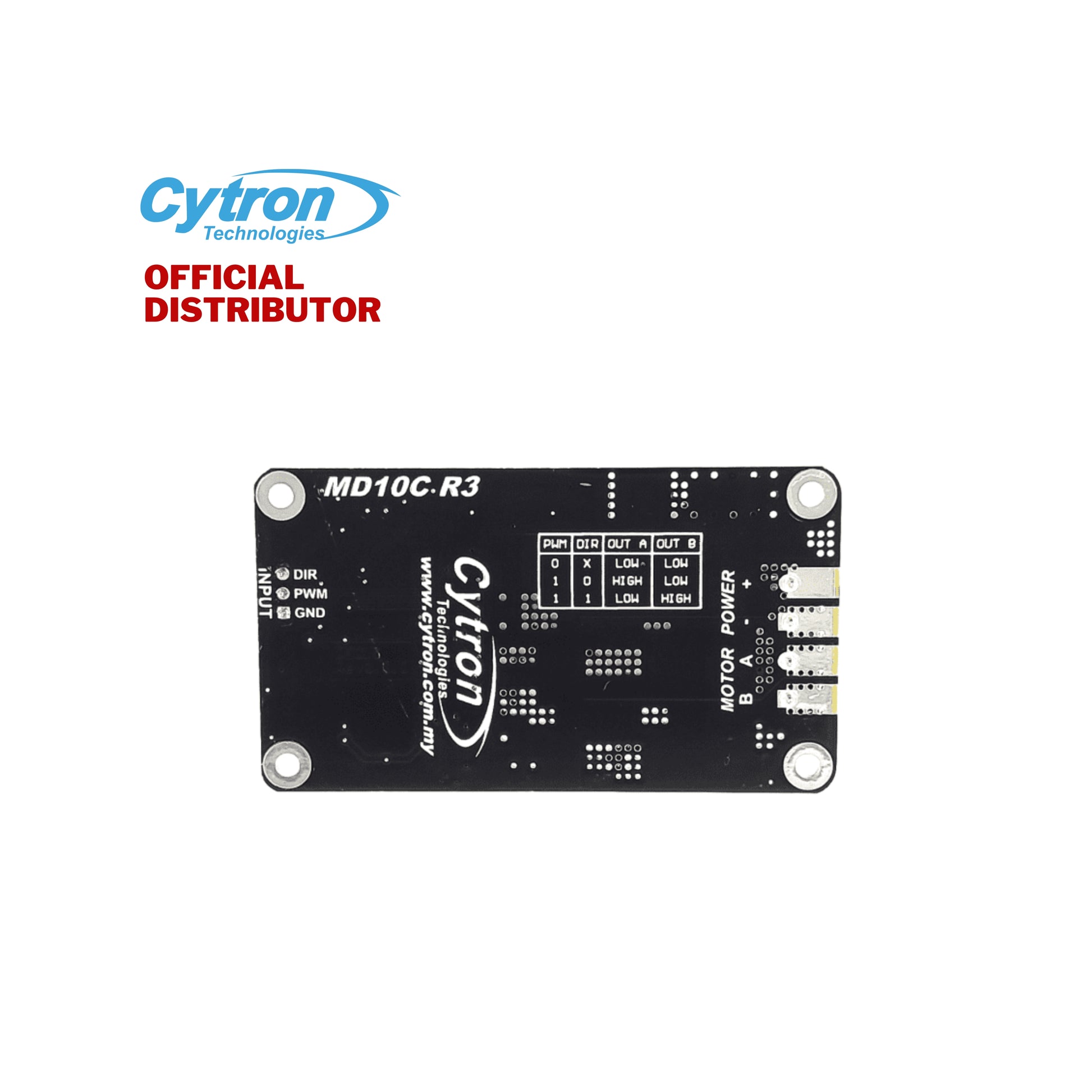

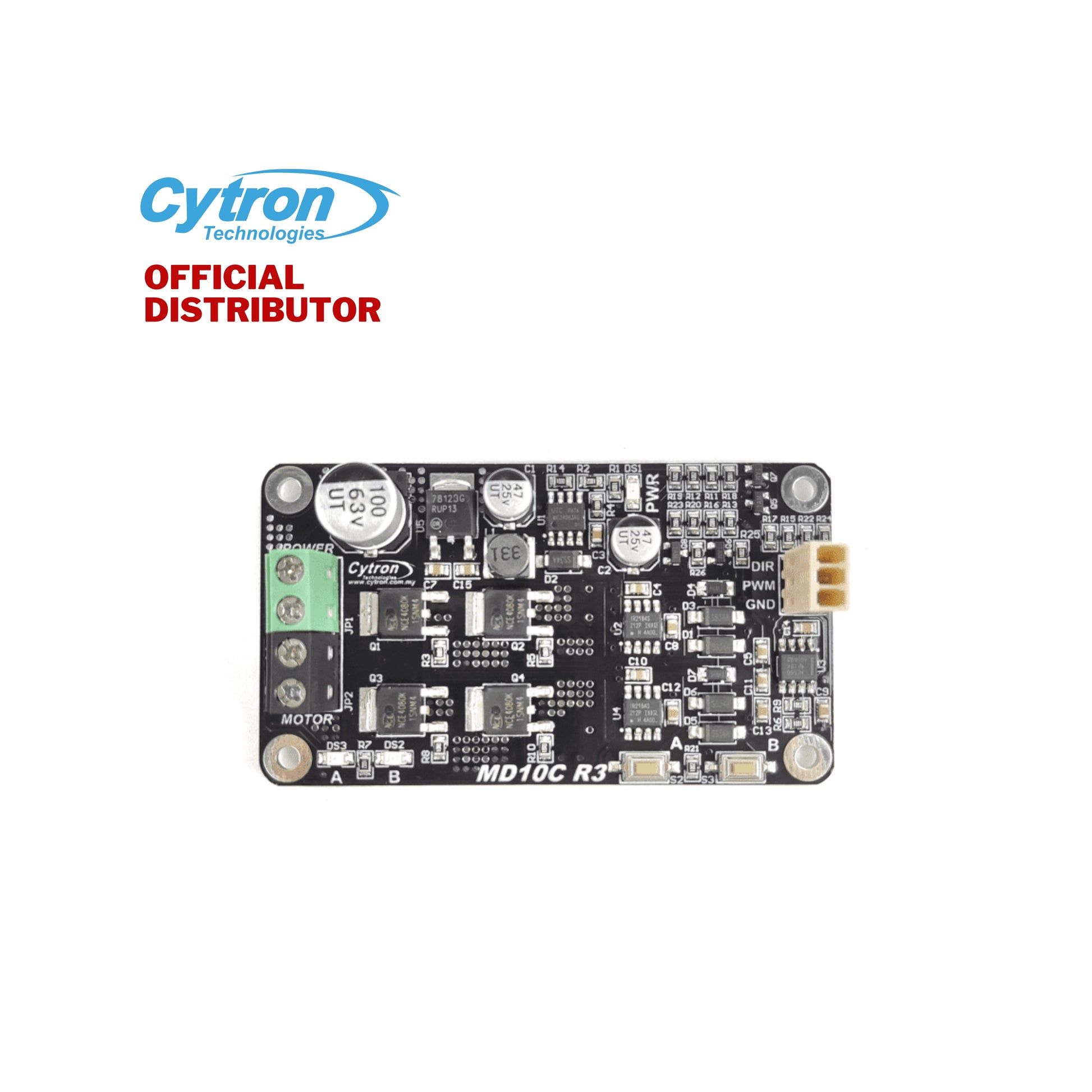

Cytron 10 Amp 5V-30V DC Motor Driver

Description:

MD10C is another version of the MD10B(Launched in 2008, uses mechanical relays) which is designed to drive high current brushed DC motor up to 13A continuously. It offers several enhancements over the MD10B such as support for both locked-antiphase and sign-magnitude PWM signal as well as using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay.

Features:

Bi-directional control for one Brushed DC motor (Single Channel).
Support motor voltage ranges from  5V to 30VDC.
No Reverse Polarity Protection at Vmotor, please double check the polarity before power up.
Regenerative Braking.
Maximum current up to 13A continuous and 30A peak (10 seconds).
3.3V and 5V logic level input, compatible with Arduino and Raspberry Pi.
Solid state components provide faster response time and eliminate the wear and tear of mechanical relay.
Fully NMOS H-Bridge for better efficiency and no heat sink is required.
Speed control PWM frequency up to 20KHz (output frequency is same as input frequency).
Support both Locked-Antiphase and Sign-Magnitude PWM operation. **Note that it is not "RC PWM"
The new MD10C can be powered from a single power source and NO additonal Vin is required.
Dimension: 75mm x 43mm

Specifications:

Power Input Voltage: 5-30V
IMAX (Maximum Continuous Motor Current)*: 13A
IPEAK – (Peak Motor Current) **: 30A
VIOH (Logic Input – High Level): 3-30V
VIOL (Logic Input – Low Level): 0.5V
Maximum PWM Frequency ***: 20KHz

*Tested under 25℃ (room temperature) environment, without airflow and heatsink.
** Must not exceed 10 seconds.
*** Actual output frequency is same as input frequency.

Packing List:

• 1 x MD10C Rev3.0
• 1 x 2510 PCB connector - 3 ways female
• 3 x 2510 terminal pin
• 4 x plastic spacer(~ 7mm)
