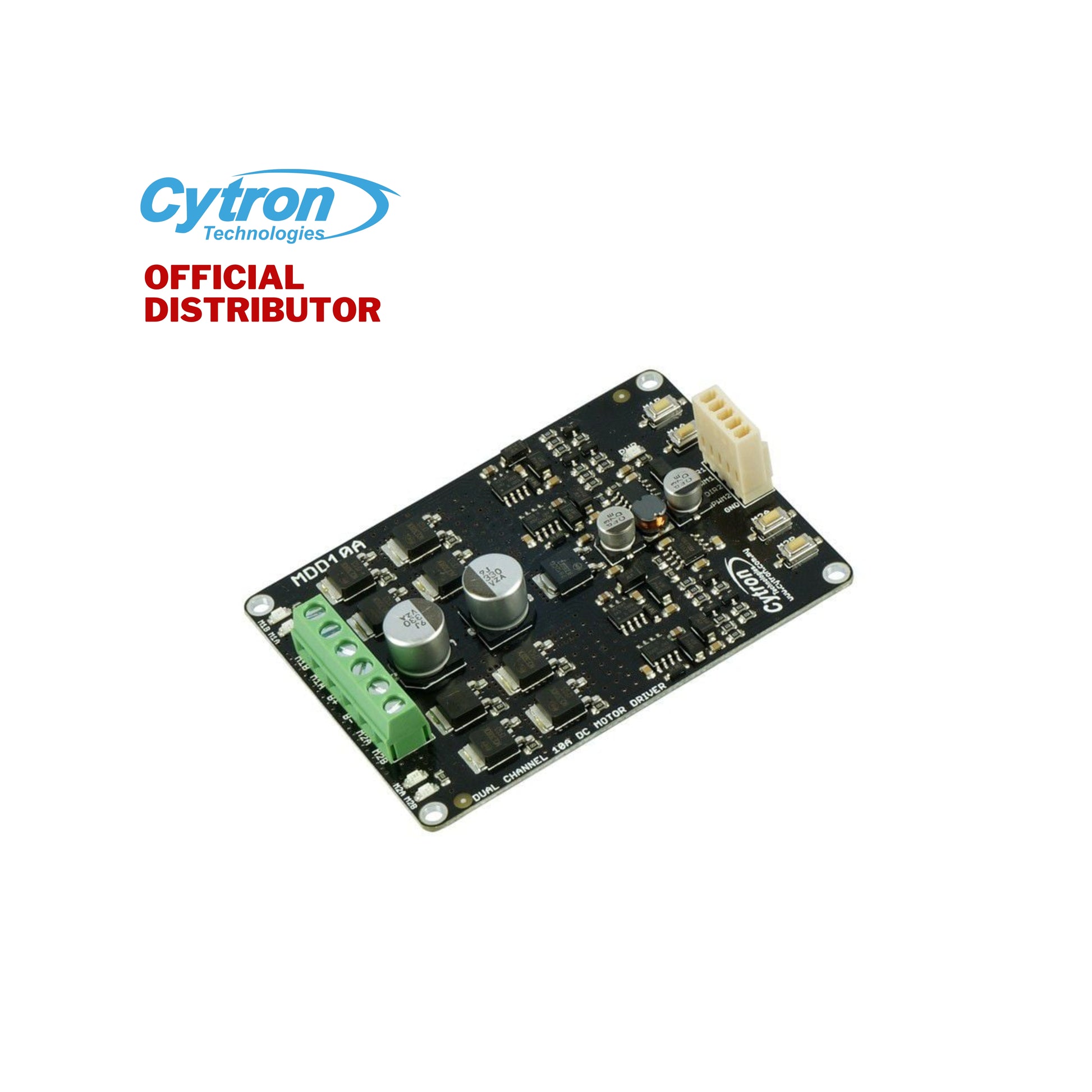

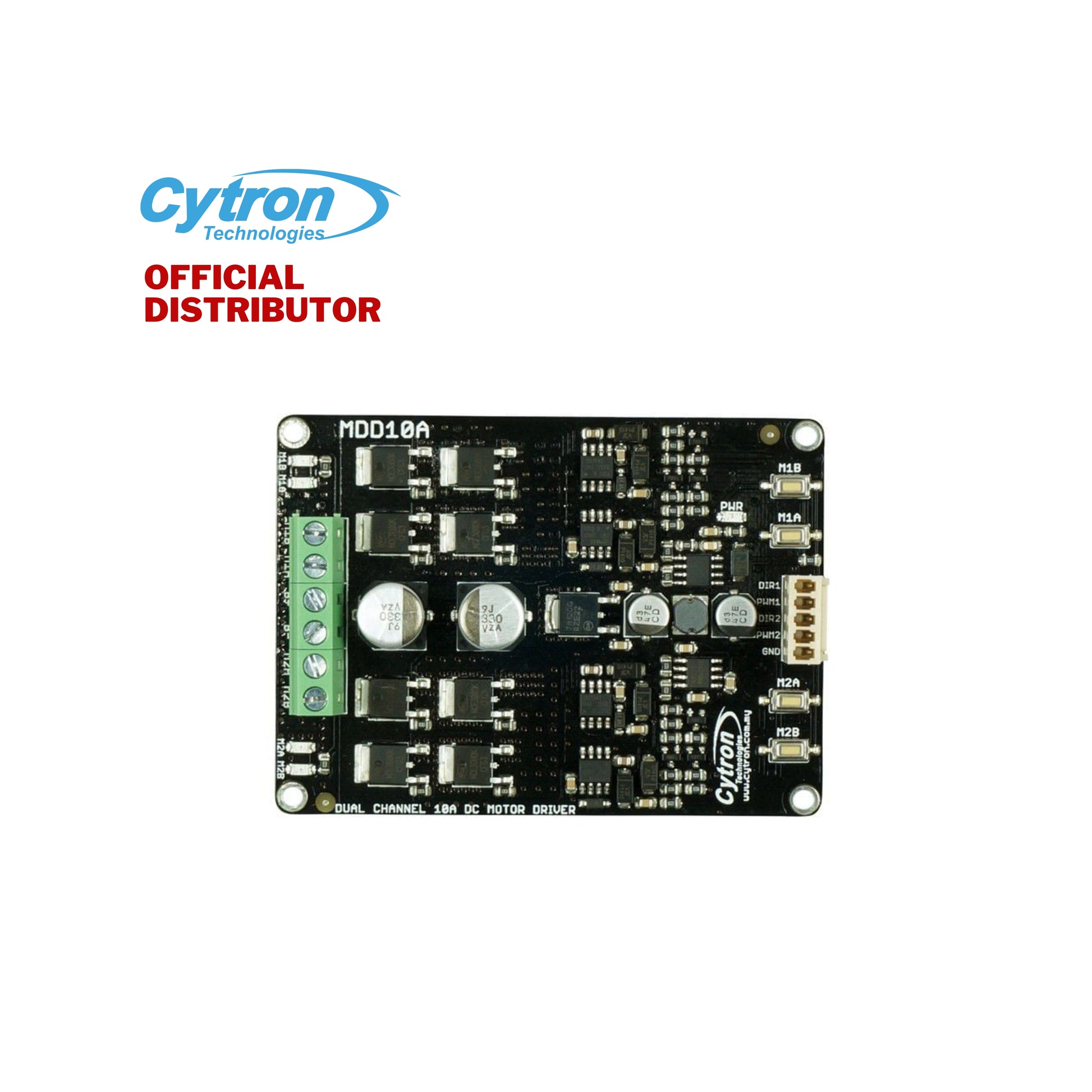

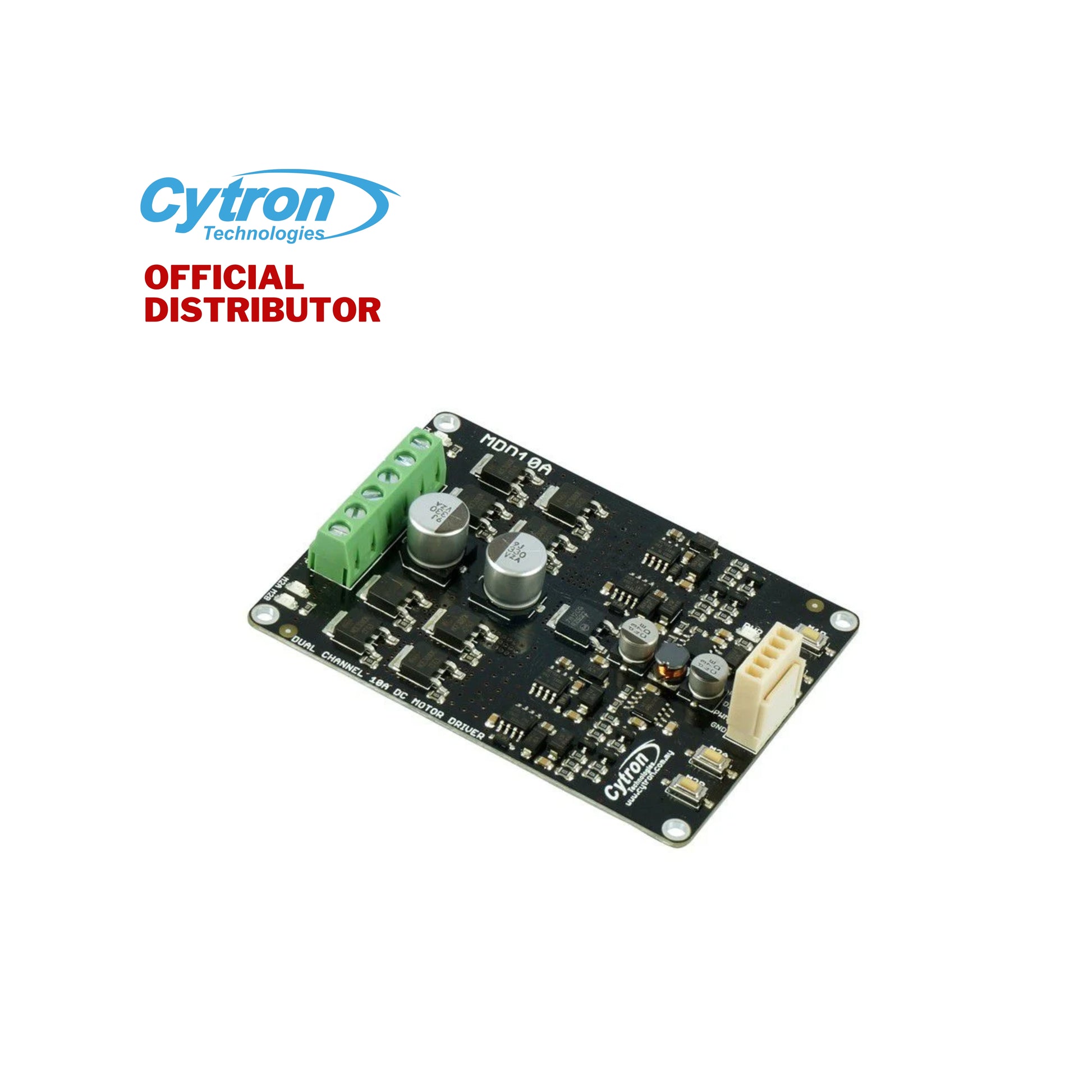

Cytron 10Amp 5V-30V DC Motor Driver (2 Channels)

₱1,499.00 PHP
₱1,499.00 PHP ₱1,875.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

DC brushed motor is the most commonly used and widely available motor in the market. Getting the motor to rotate is fairly easy, just connect the two terminals to a power source and it will start spinning, that's the beauty of a DC brushed motor.

Features:
Bi-directional control for two brushed DC motors.
Support motor voltage ranges from 5V to 30VDC (Rev2.0).
No Reverse Polarity Protection at Vmotor, please double-check the polarity before powering up.
Maximum current up to 10A continuous and 30A peak (10 seconds) for each channel.
Support 3.3V and 5V logic level input (for PWM and DIR), compatible with Arduino and Raspberry Pi.
Solid-state components provide faster response time and eliminate the wear and tear of mechanical relays.
Fully NMOS H-Bridge for better efficiency and no heat sink is required.
Regenerative Braking.
Speed control PWM frequency up to 20KHz (output frequency is same and input frequency).
Support both Locked-Antiphase and Sign-Magnitude PWM operation. ** Note this is not "RC PWM"
2 activation buttons for manual activation or fast test on each channel.

Operating Condition
Motor Channel: 2
Operating Voltage (VDC): 5 to 25 (Rev 1.0) 5 to 30 (Rev 2.0)
Peak Current (A): 30 (10 seconds)
Continuous Current (A): 10

Operating Modes
Arduino Shield: No- can be used with Wire connection
PWM (Lock-Antiphase and Sign-Magnitude): Yes
UART: NO
Analog: No
RC Servo Signal: NO

Special Protection
Polarity Protection: NO

Appearance
LEDs Indicator: Yes
Test/Manual Button: Yes
Cooling Fan: NO
