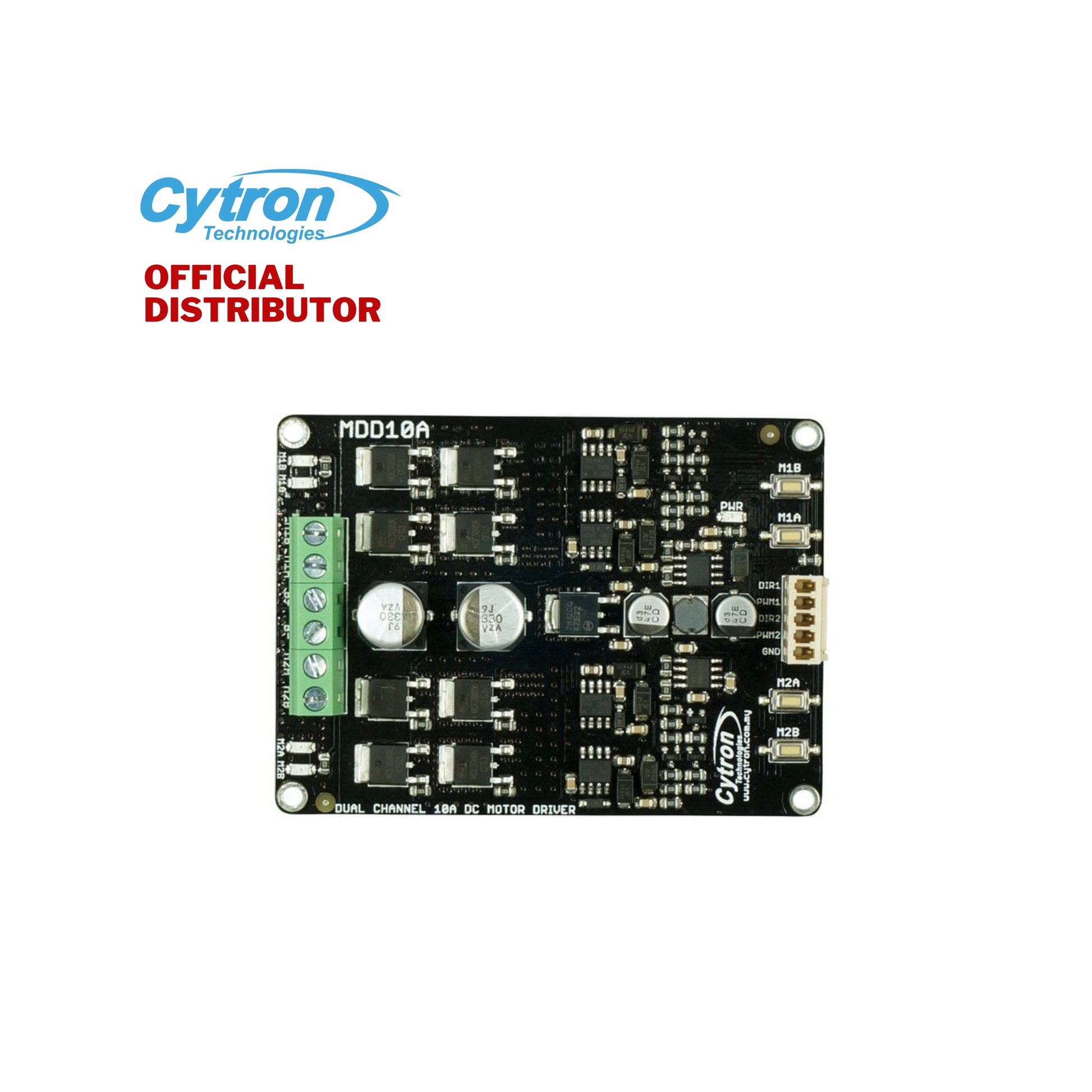

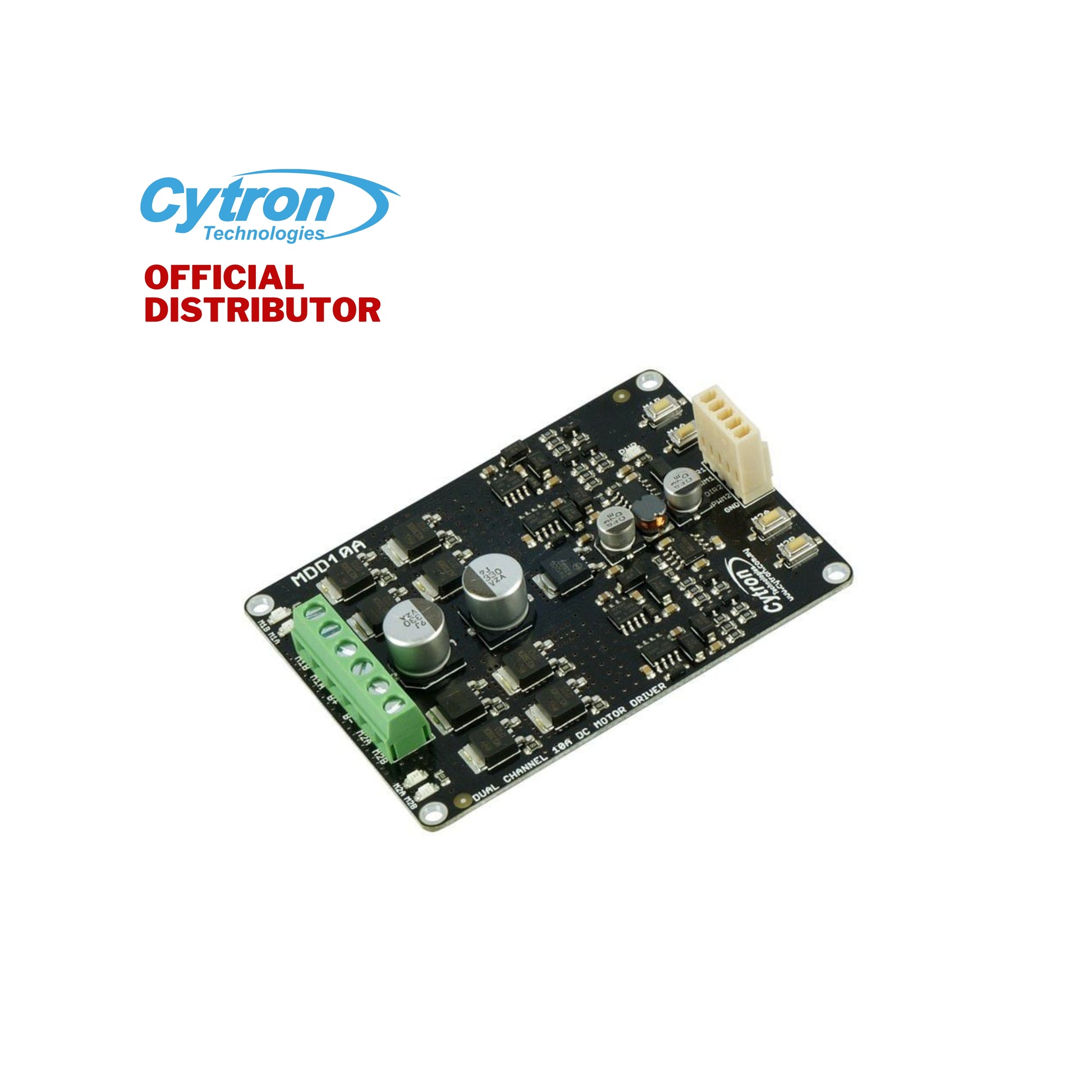

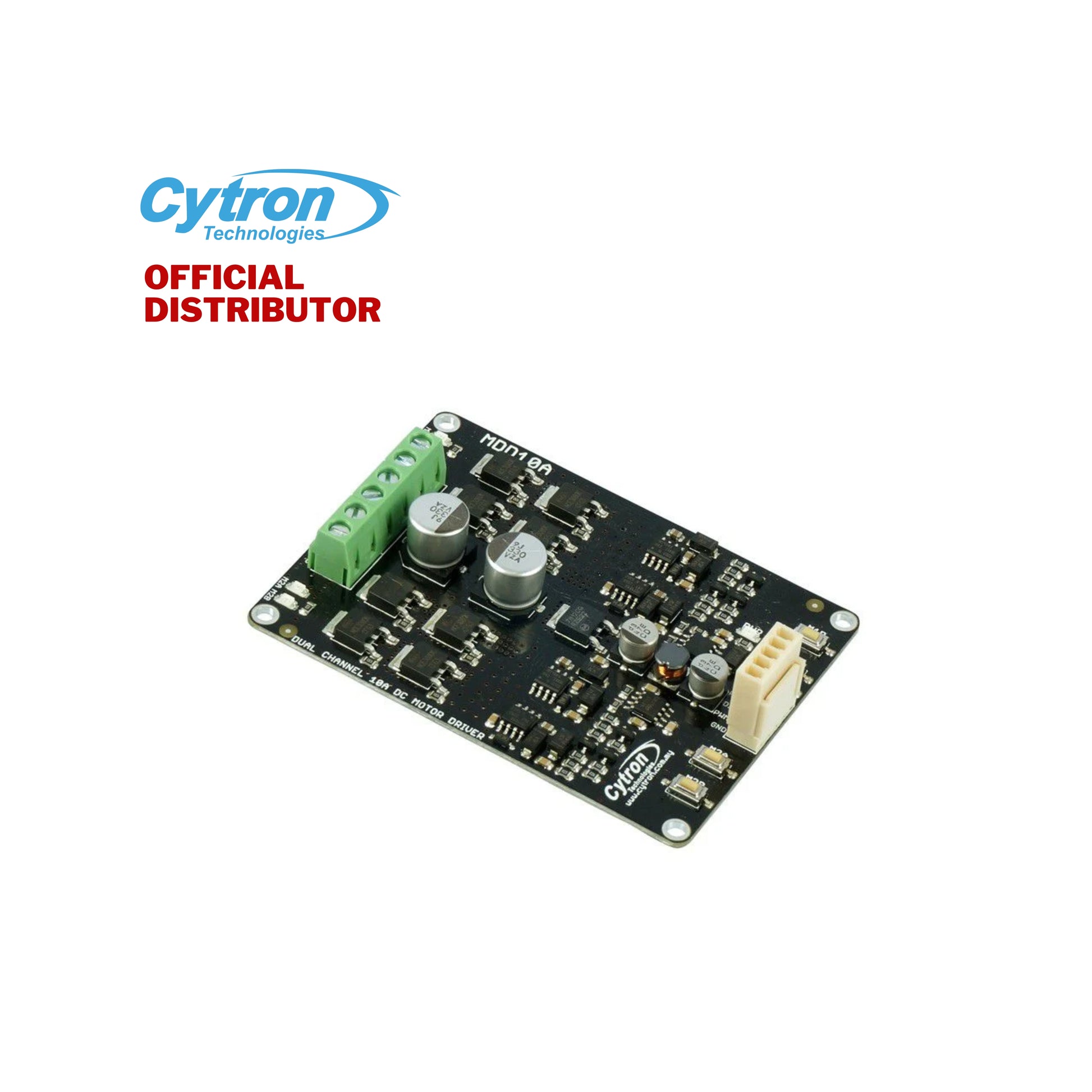

Cytron 10 Amp 5V-30V DC Motor Driver (2 Channels)

Description:

MDD10A is the dual channel version of MD10C which is designed to drive 2 brushed DC motors with high current up to 10A continuously. Just like MD10C, the MDD10A also supports locked-antiphase and sign-magnitude PWM signal. It also uses full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay.

Features:

Bi-directional control for two brushed DC motors.
Support motor voltage ranges from 5V to 30VDC (Rev2.0).
No Reverse Polarity Protection at Vmotor, please double check the polarity before power up.
Maximum current up to 10A continuous and 30A peak (10 seconds) for each channel.
Support 3.3V and 5V logic level input (for PWM and DIR), compatible with Arduino and Raspberry Pi.
Solid-state components provide faster response time and eliminate the wear and tear of mechanical relay.
Fully NMOS H-Bridge for better efficiency and no heat sink is required.
Regenerative Braking.
Speed control PWM frequency up to 20KHz (output frequency is same and input frequency).
Support both Locked-Antiphase and Sign-Magnitude PWM operation. ** Note this is not "RC PWM"
2 activation buttons for manual activation or fast test on each channel.
Dimension: 84.5mm x 62mm

Specifications:

Power Input Voltage***: 5-30V
IMAX (Maximum Continuous Motor Current)*: 10A
IPEAK – (Peak Motor Current) **: 10A
VIOH (Logic Input – High Level): 3-5.5V
VIOL (Logic Input – Low Level): 0.5V
Maximum PWM Frequency: 20KHz

* Tested in room temperature at 25°C
** Must not exceed 10 seconds.
*** Rev2.0 has upgraded to support 30V maximum power input voltage

Packing List:

• 1 x MDD10A Rev2.0
• 1 x 2510 PCB connector - 5 ways female
• 5 x 2510 terminal pin
