Description:
Looking for a suitable micro:bit expansion board to build a robot with 12V DC Motors and Servo Motors?

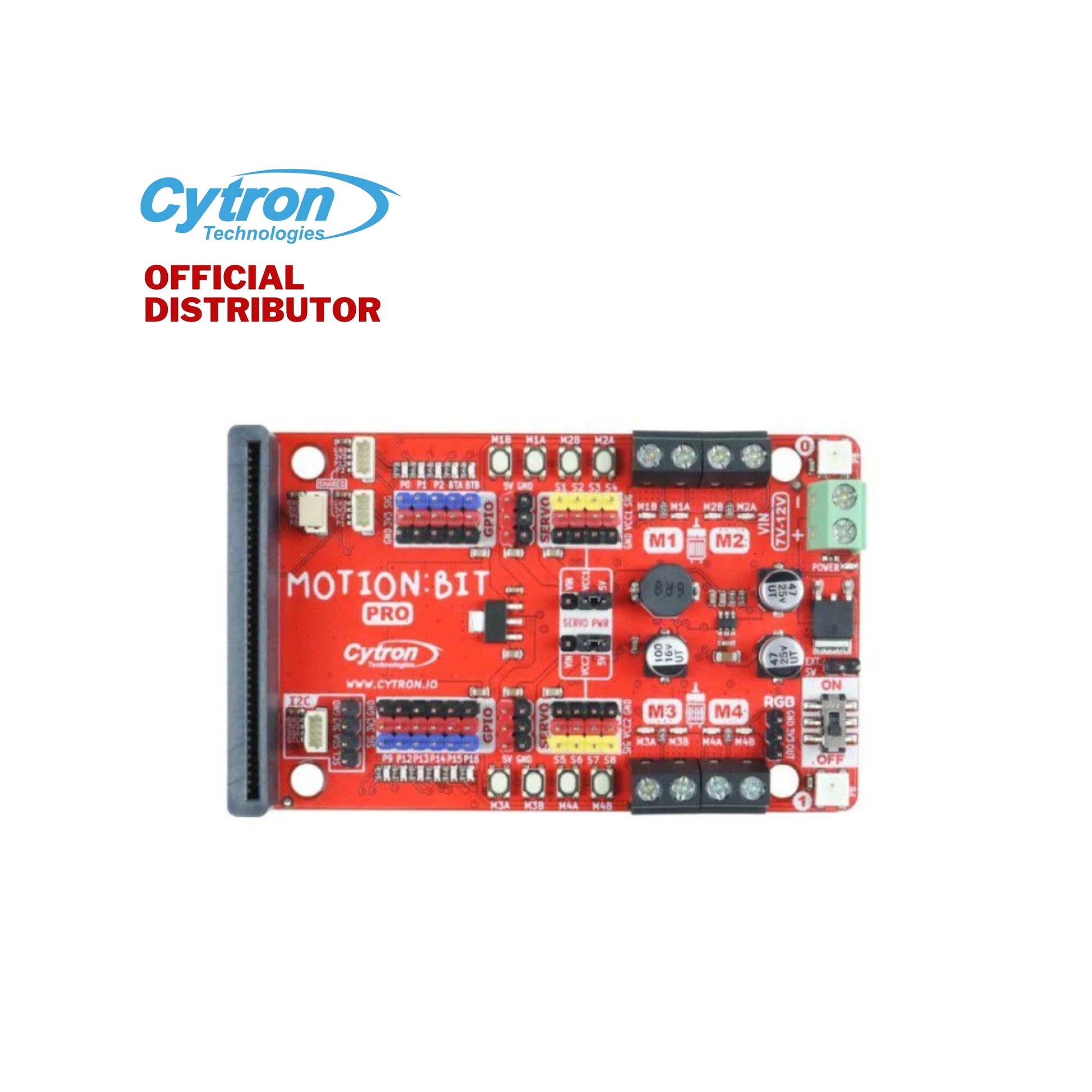

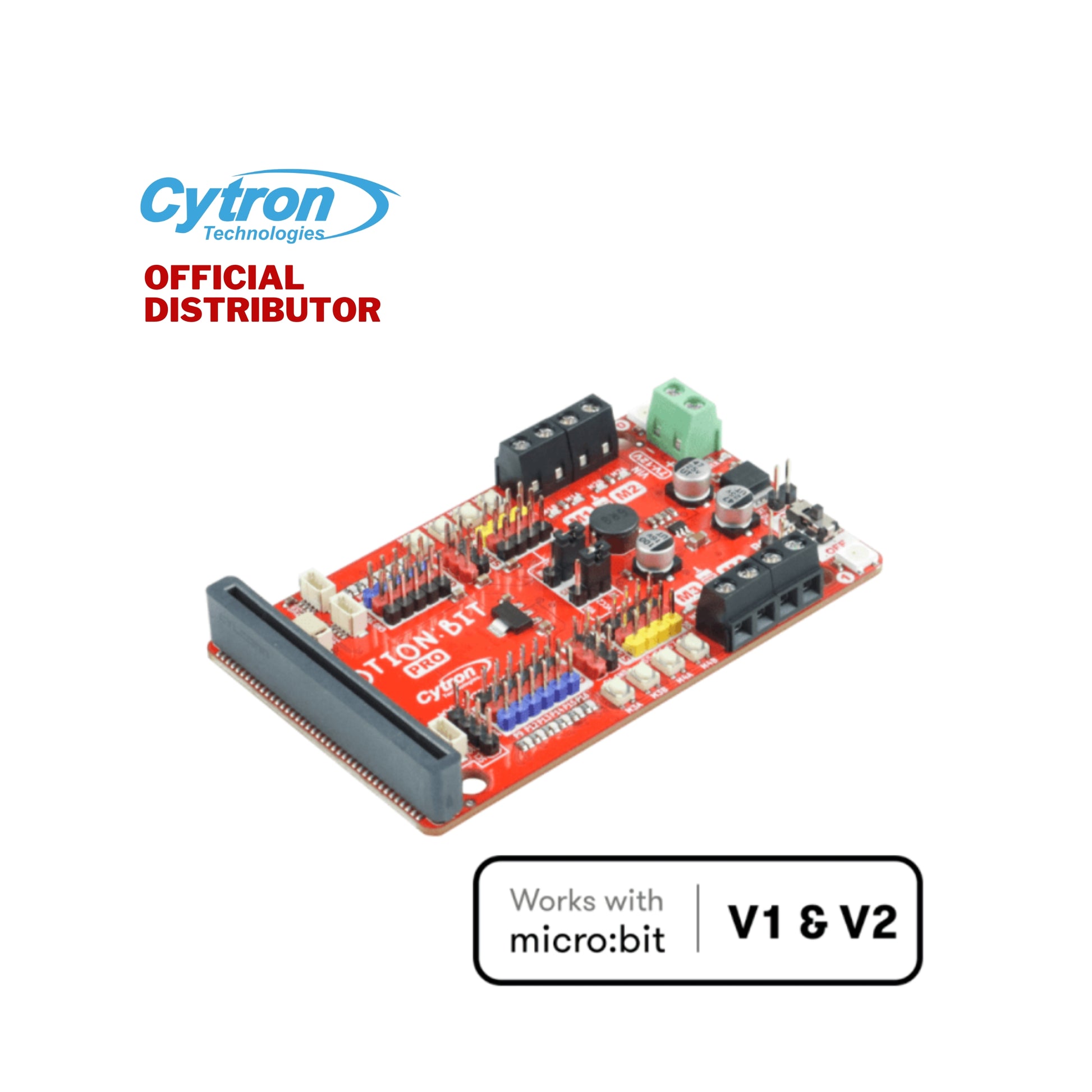

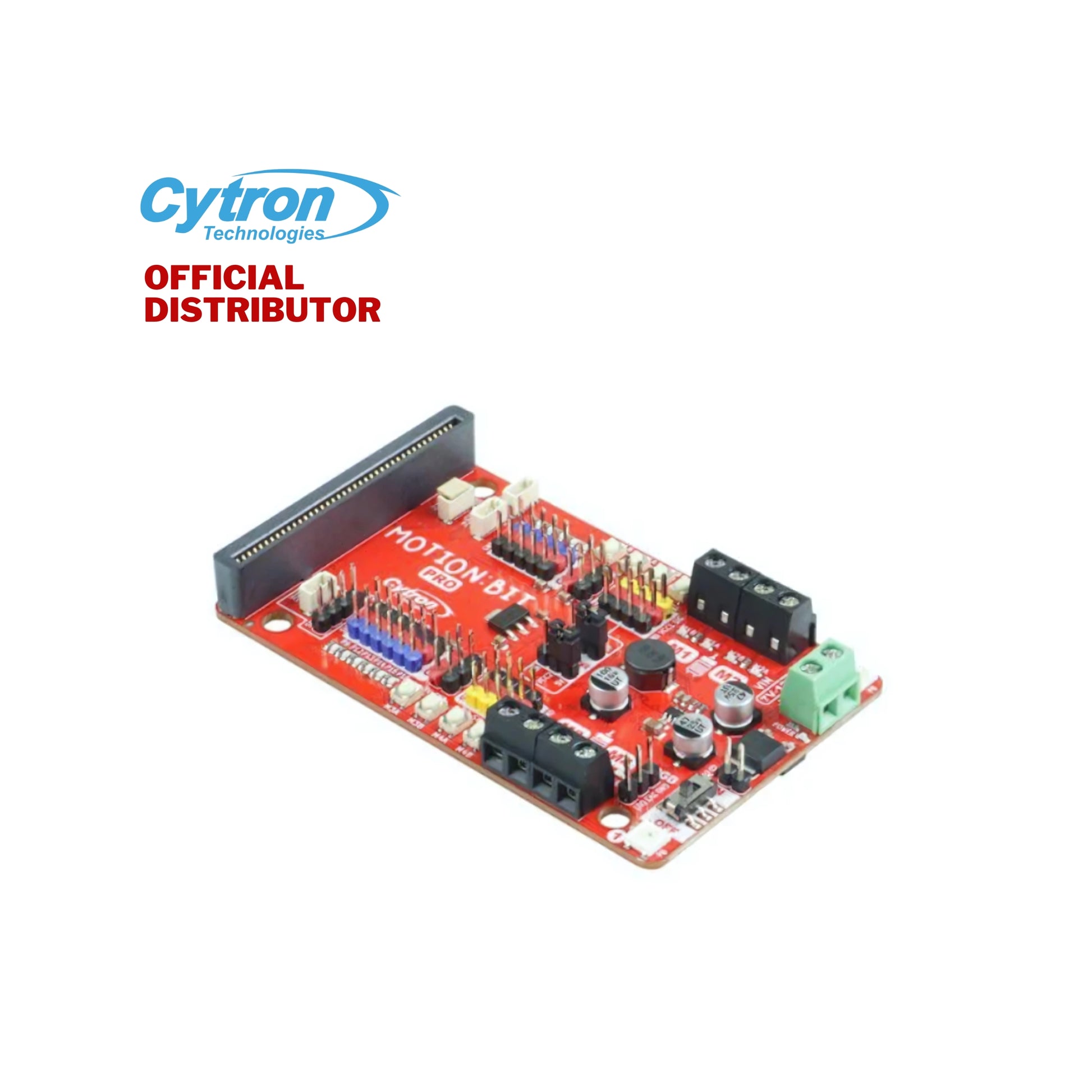

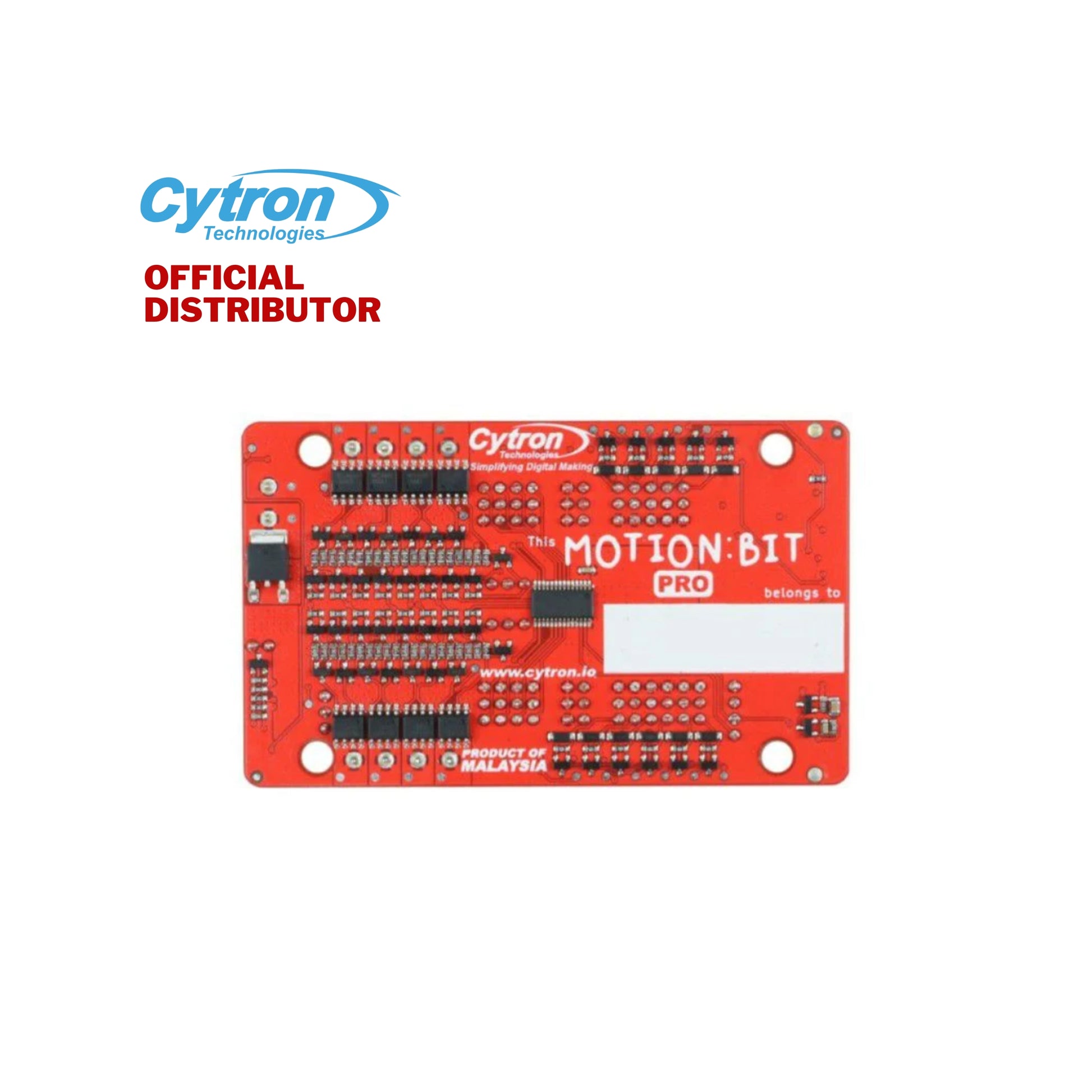

Tiny brains, big muscles! People often perceive the micro:bit controller as small and suitable mainly for beginners, not capable of handling powerful motors. However, we are challenging this perception with our new product, the MOTION:BIT Pro. Do you believe that this small and compact board can effectively drive heavier robots?
This is a brainchild of makerspace.UTHM & Cytron Technologies, in collaboration with ISOBOT and Elvira Systems.
Pick your power! This gadget lets you choose between regular 5V power for most electronics and a stronger option for heavy-duty motors. That means you can use cool, powerful 12V servo motors!
Program your MOTION:BIT with Microsoft MakeCode Editor graphical programming interface. Just install MOTION:BIT MakeCode Extension and you may start to code your projects. If you’re a beginner, you can start with the block programming mode; simply drag, drop & snap the coding blocks together. For more advanced users, you can easily switch into JavaScript or Python mode on MakeCode Editor for text-based programming.
Features:
Specifications:
Power Input Voltage: 6-16V
Analog Input Voltage: 0-3.3V
Total +3V3 Output Current ((GPIO Breakout & Grove Ports): 200mA
Total +5V Output Current: 3A
Max DC Motor Current Continuous: 3A
Max DC Motor Current Peak (< 5 seconds): 5A
Packing List:
1x MOTION:BIT Pro
1x Tiny Phillips Screwdriver
3x Grove to JST-SH(qwiic) Cable
4x Silicone Bumper
4x Building Block Pin with Friction Ridges
