DC-DC Buck Converter 12V/24V to 5V 5A/25W Step-Down Waterproof IP68 HN25-1224-5 stabilizier 25W 5A

DC-DC Buck Converter 12V/24V to 5V 5A/25W Step-Down Waterproof IP68 HN25-1224-5 stabilizier 25W 5A

In stock

SKU:MLE03278

Regular price ₱449.00
Regular price ₱565.00 Sale price ₱449.00
Sale Sold out
Model:
View full details

HN25-1224-5 Constant Voltage DC-DC step down converter stabilizier 25W 5A

Product description

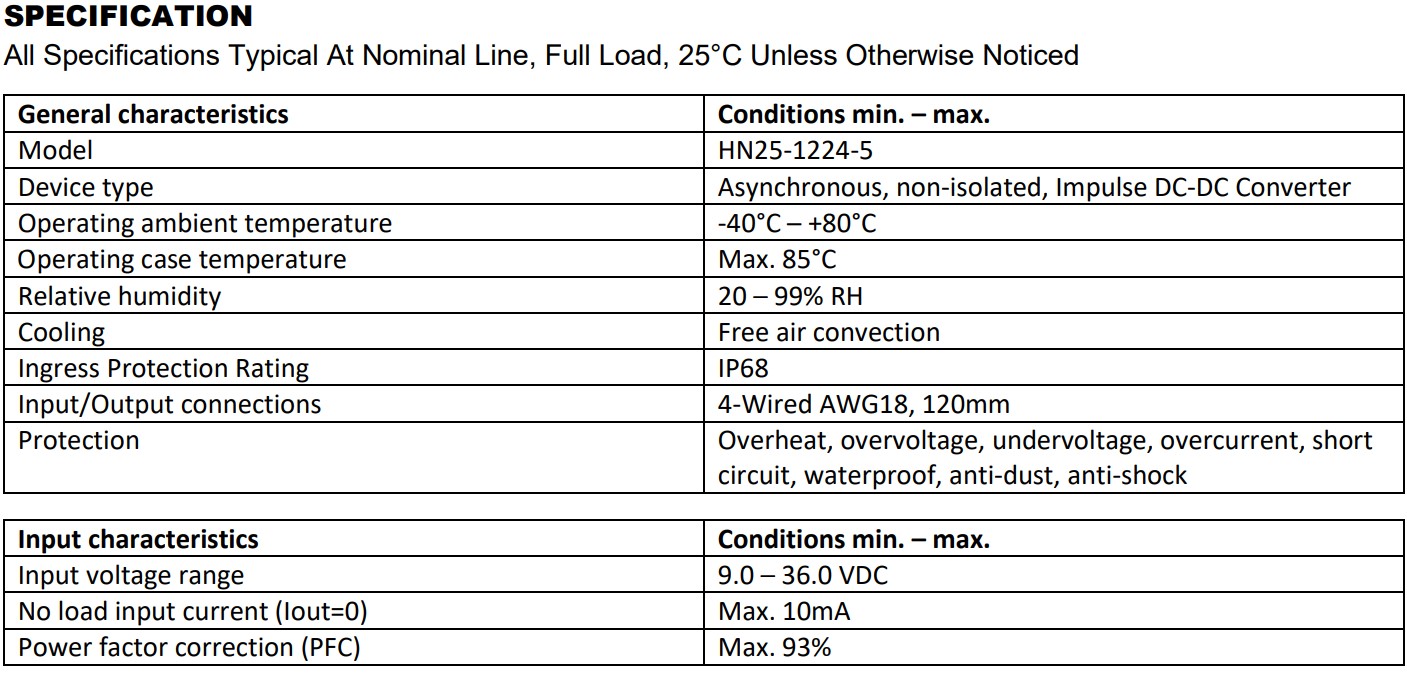

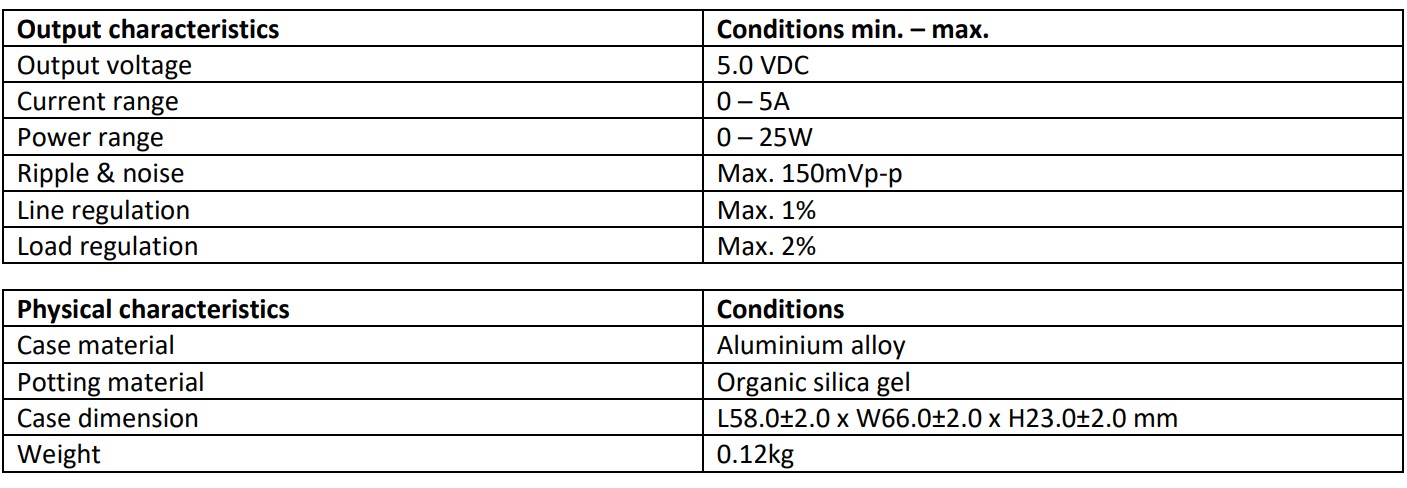

Specifications

Model: HN25-1224-5 / WG-1224S0505 / analog

Type of converter: step-down, pulse, non-isolated, asynchronous, voltage stabilizer

Input voltage: 9-36V DC

Output voltage: 5V DC

Output current: up to 5A

Current consumption without load: up to 10 mA

Maximum output power: 25W

Output ripple: up to 150mV

Output voltage instability: less than 1%

Output power instability: less than 2%

Conversion efficiency (COP), max: 93%

Control, indication: no

Protection against: short circuit, overload, overheat, undervoltage input, overvoltage output

Cooling: natural air convection

Connection terminals: cable 18 AWG, length 120mm

Dust and moisture protection class: IP68

Mounting holes: 2 x ⌀6.5mm

Operating temperature: -40°C ~ +80°C

Dimensions: 66 x 58 x 23mm

Net weight: 120 gr
