SKU:MLE05822

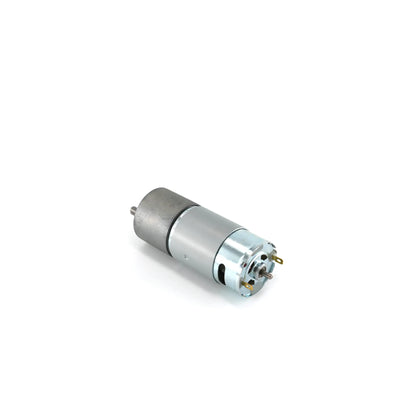

DC Gear Motor 12V 525RPM - SGM37-550

₱699.00
₱699.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.

Loading locations...

About the Product

The DC Gear Motor 12V 525RPM - SGM37-550 is a high-power motor designed for various applications requiring substantial torque. It operates optimally at 12V but can function at voltages as low as 6V, with a corresponding decrease in performance. Due to its higher current requirements, it's recommended to use a robust motor driver, such as the VNH2SP30, as standard drivers like the L298 or TB6612FNG may not suffice. Caution is advised to avoid stalling or overloading the motor, as this can significantly reduce its lifespan or cause immediate damage.

Specifications:
Gearbox: Spur Gear
Rated Voltage: 12V (operational range: 6V to 12V)
No-Load Current: 0.8A
Rated Current: 3A
No-Load Speed: 526 RPM
Rated Speed: 462 RPM
Rated Torque: 9 Kg-cm
Stall Torque: 36 Kg-cm
Max Power: 50W
Weight: 350g
