SKU:MLE00375

DC Gear Motor 6V 12RPM | 77RPM | 133RPM | 176RPM | 12V 188RPM | 250RPM | 399RPM | 915RPM - SGM25-370

₱299.00
₱299.00 ₱420.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
RPM: 6V 77RPM

Loading locations...

About the Product

DC Gear Motor 6V 12RPM – SGM25-370

Specifications:

  • Gearbox: Spur Gear
  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • No-load speed: 12 RPM @ 6 v
  • Weight: 90 g

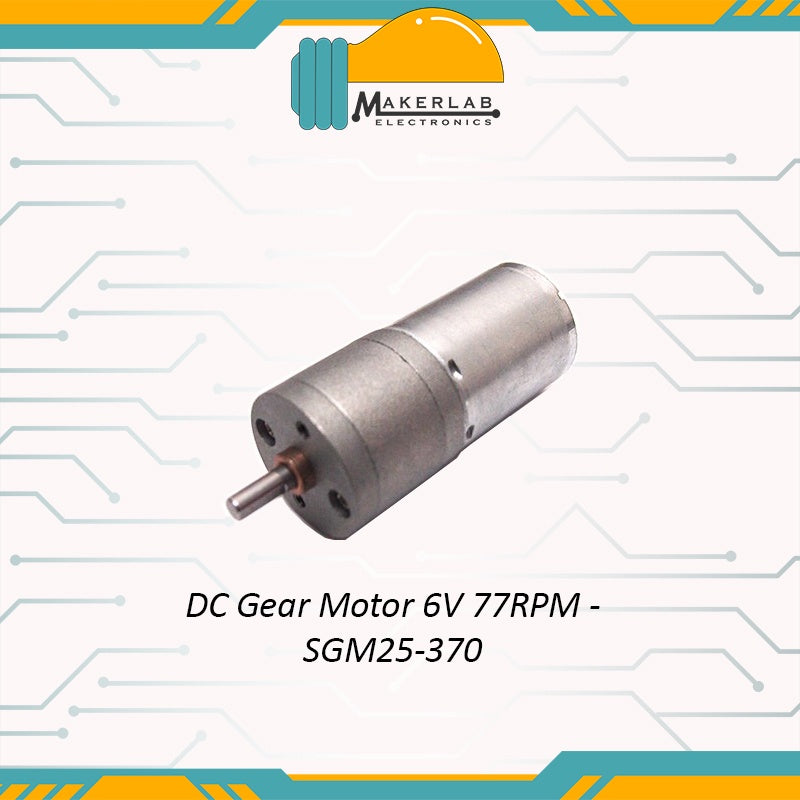

DC Gear Motor 6V 77RPM – SGM25-370

Specifications:

  • Gearbox: Spur Gear
  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • No-load speed: 77 RPM @ 6 v
  • Weight: 90 g


DC Gear Motor 6V 133RPM - SGM25-370

Specifications:

  • Gearbox: Spur Gear
  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • Gear reduction ratio: 45:1
  • D output shaft diameter: 4 mm
  • No-load speed: 133 RPM @ 6 v
  • No-load current: 0.13 A
  • Locked-rotor torque: 4.5 kg.cm
  • Locked-rotor current: 2.3 A
  • Operating Temperature: -20?60?
  • Weight: 90 g

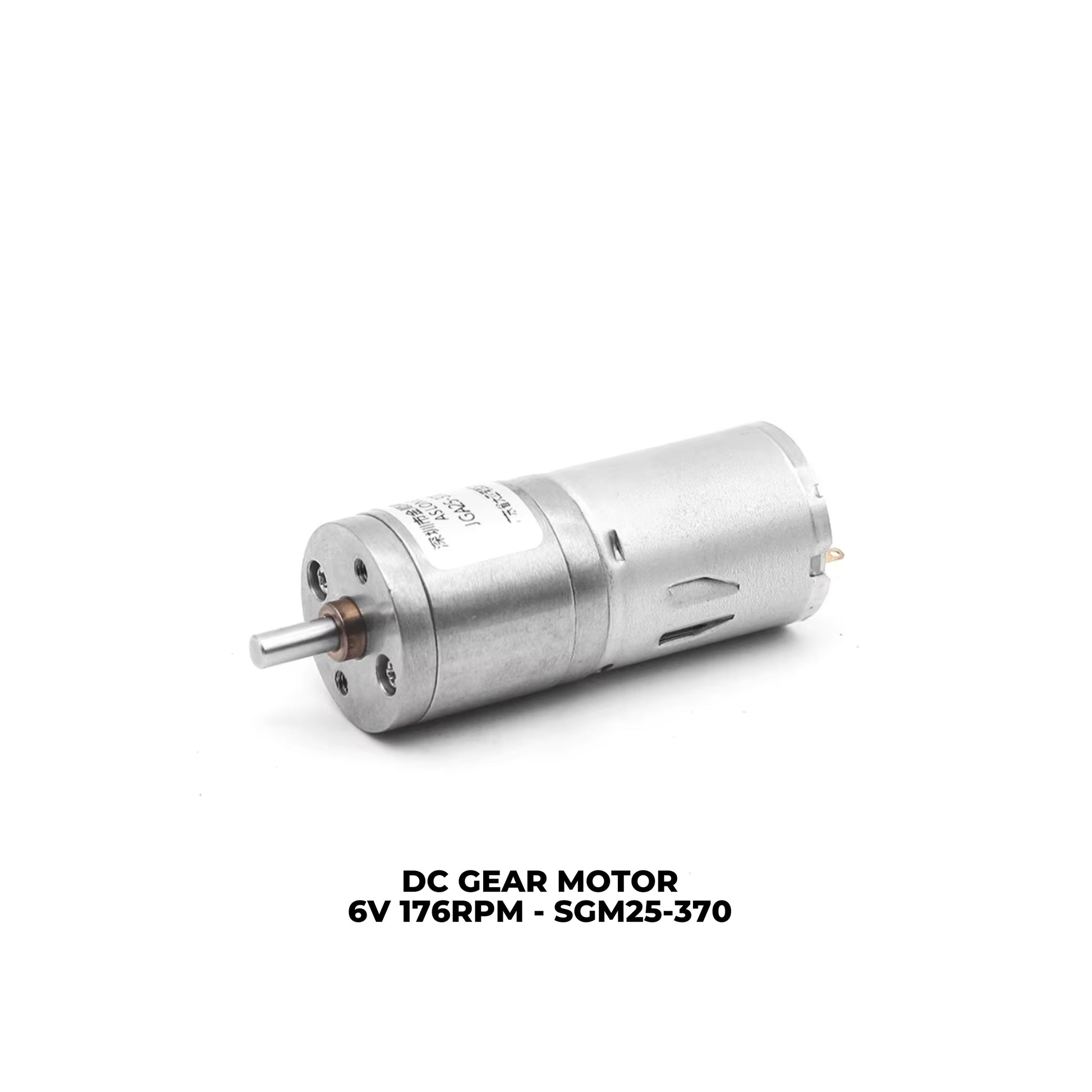

DC Gear Motor 6V 176RPM - SGM25-370

Specifications:

  • Gearbox: Spur Gear
  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • No-load speed: 176 RPM @ 6 v
  • Weight: 90 g

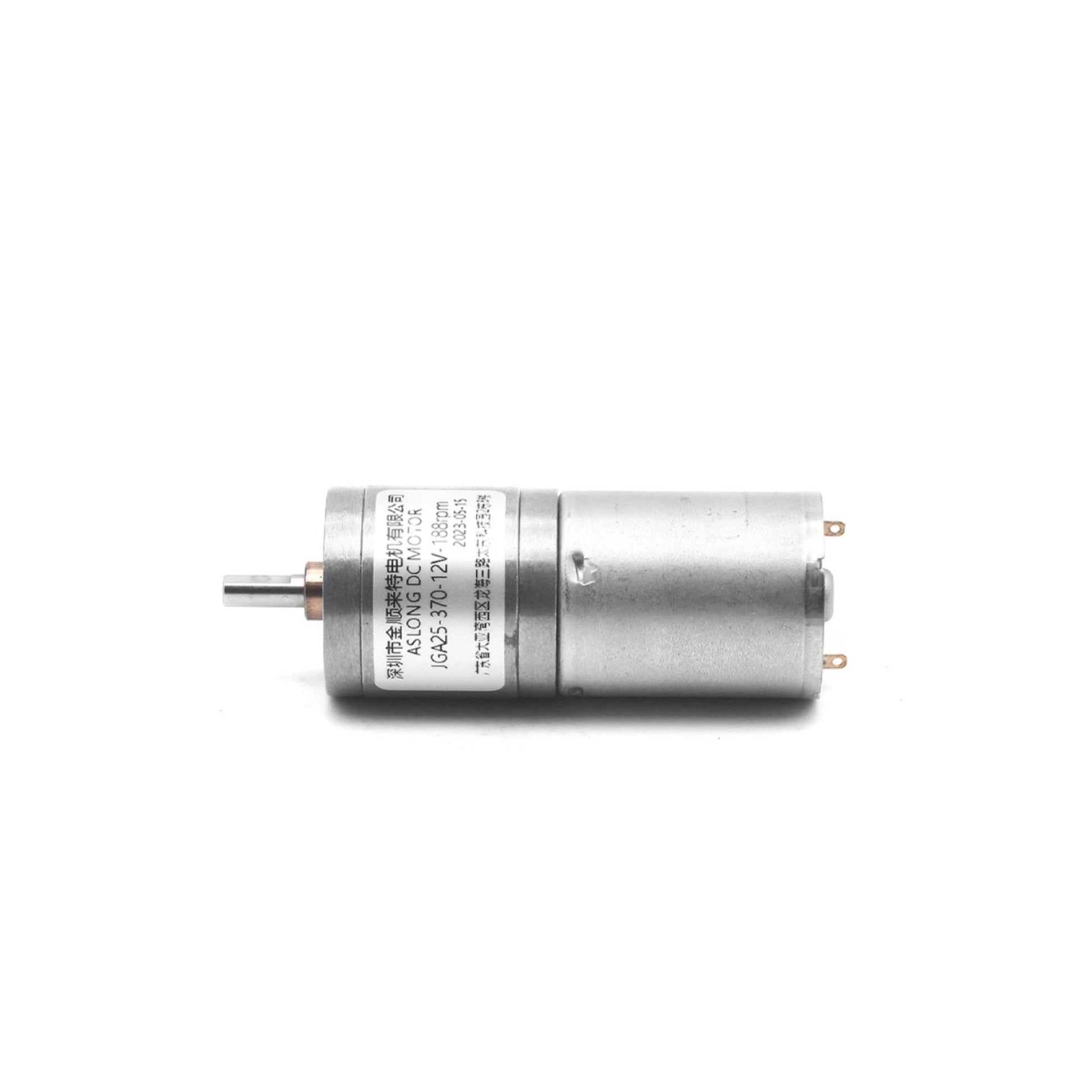

DC Gear Motor 12V 188RPM - SGM25-370

Specifications:

  • Operating voltage: between 6 V and 18 V
  • Nominal voltage: 12 V
  • Free-run speed at 12 V: 188 RPM
  • Free-run current at 12 V: 50 mA
  • Stall current at 12 V: 1200 mA
  • Stall torque at 12 V: 5 kg.cm
  • Gear ratio: 1:45
  • Reductor size: 21 mm


DC Gear Motor 12V 250RPM- SGM25-370

Specifications:

  • Operating voltage: between 6 V and 18 V
  • Nominal voltage: 12 V
  • Free-run speed at 12 V: 250 RPM
  • Free-run current at 12 V: 50 mA
  • Stall current at 12V: 1200 mA
  • Stall torque at 12V: 38 kg.cm
  • Gear ratio: 1:35
  • Reductor size: 21 mm
  • Weight: 85 g


DC Gear Motor 12V 399RPM - SGM25-370

Specifications:

  • Operating voltage: between 6 V and 18 V
  • Nominal voltage: 12 V
  • Free-run speed at 12 V: 399 RPM
  • Free-run current at 12 V: 50 mA
  • Stall current at 12V: 1200 mA
  • Stall torque at 12V: 2.2 kg.cm
  • Gear ratio: 1:21
  • Reductor size: 19 mm
  • Weight: 84 g


DC Gear Motor 12V 915RPM - SGM25-370

Specifications:

  • Operating voltage: between 6 V and 18 V
  • Nominal voltage: 12 V
  • Free-run speed at 12 V: 915 RPM
  • Free-run current at 12 V: 50 mA
  • Stall current at 12 V: 1200 mA
  • Stall torque at 12 V: 1 kg.cm
  • Gear ratio: 1:9.6
  • Reductor size: 17.5 mm
  • Weight: 82 g
