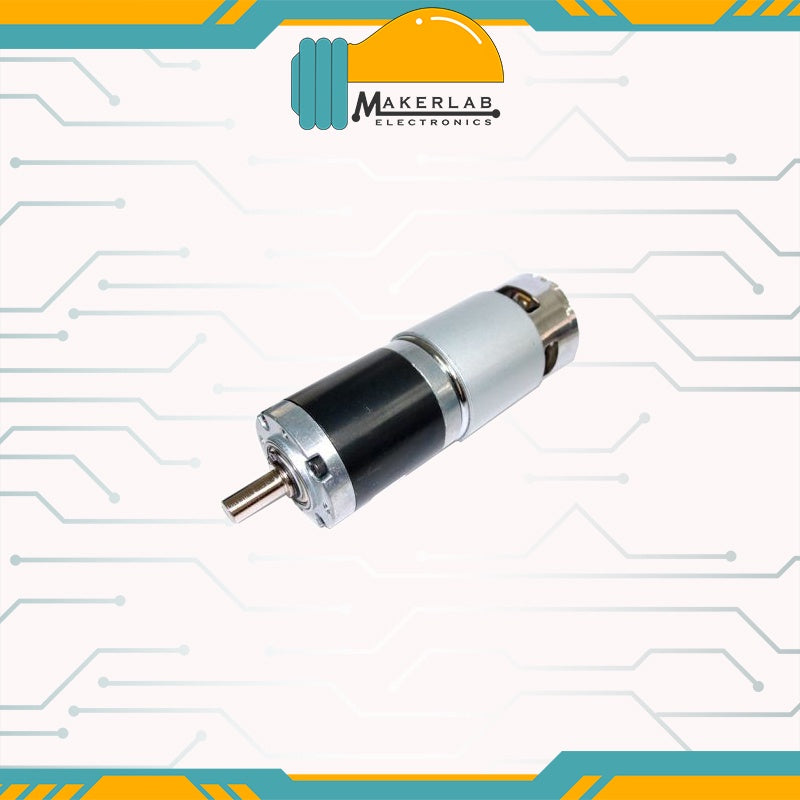

DC Planetary Gear Motor SGM42-775 24V 112RPM
₱2,000.00
₱2,000.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Only 10 units left
Couldn't load pickup availability
About the Product
Product Description
DC Planetary Gear Motor SGM42-775 24V 112RPM
This high power DC Planetary Gear Motor SGM42-775 24V 112RPM is intended to run at 24V but can be driven with lower voltage up to 12V at the expense of power. To control the speed and direction of the motor you will need a motor driver, this particular model SGM42-775 will require a lot of current to operate, we recommend a high power motor driver such as VNH2SP30.
Note: Popular Motor driver such as L298, and TB6612FNG are not sufficient for this motor.
Warning: Stalling or overloading gear motors can greatly decrease their lifetimes and even result in immediate damage.
Spur Gear vs. Planetary Gear
The two most common setup of DC motor gearbox are spur and planetary. Spur type gearbox are simpler, less expensive, and work best for low torque applications. Torque capacity of spur type gearbox is limited because each gear in the train bears different load. Planetary gearboxes, in contrast, share equal load over multiple gears, making them more durable for high torque application.
Specification:
● Using Range Voltage: – 12-24V
● Nominal Voltage: 24V
● No Load Speed 112 r/min
● No Load Current: 500 mA
● Max. EfficiencySpeed: 112 r/min
● Max. Efficiency Current: 3.5A
● Max. ETorque: kg. cm-27 Power: W- 35
● StallTorque: 135kg. cm
● Stall Current: 20A
● Reduction Ratio: 1:00 – 91
● Weight: 775g
