MLE00400

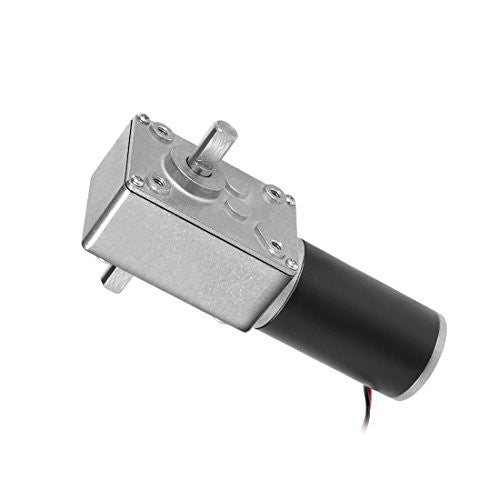

DC Worm Gear Motor SGM-A58SW31ZYS 12V 16RPM 80RPM | SGM-370 12V 40rpm 160rpm DC Motor

₱1,249.00
₱1,249.00 ₱2,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Type:: Single Shaft 16RPM
Loading locations...
Product Description

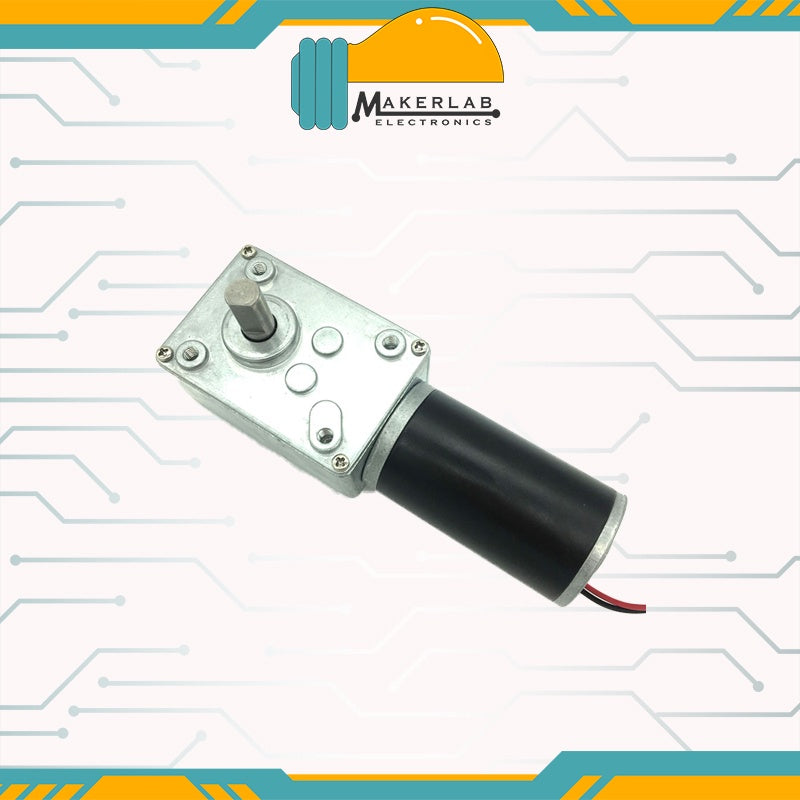

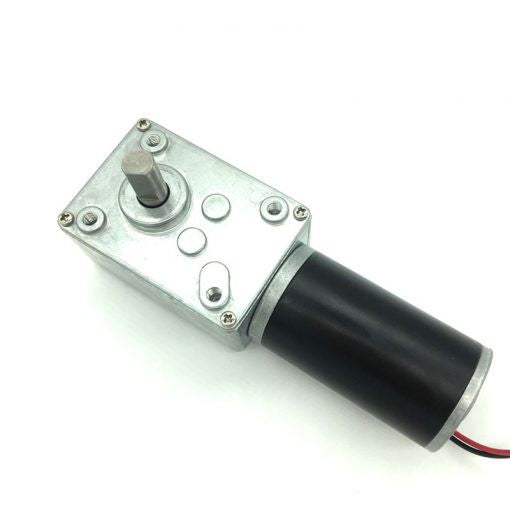

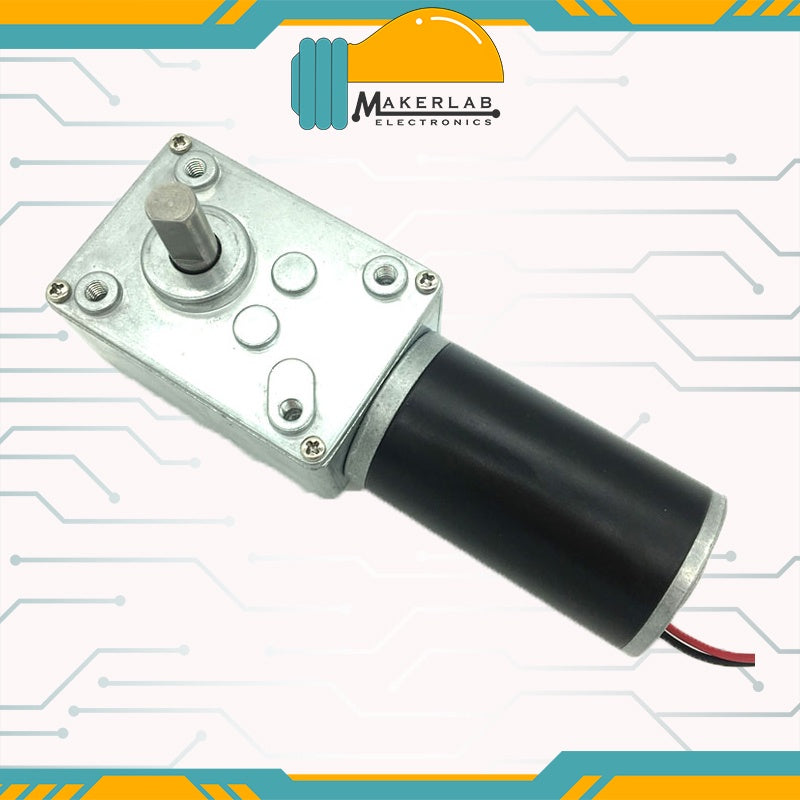

DC Worm Gear Motor SGM-A58SW31ZY 12V 16RPM

Specifications:

  • Model: SGM-A58SW31ZY
  • Voltage range: 6-12V
  • Voltage Test: 12V
  • No Load Speed: 16 RPM
  • No Load Current: 240 mA
  • Rated Load Speed: 11 RPM
  • Rated Load Current: 1.2A
  • Rated Load Torque: 60kg.cm
  • Rated Load Power: 6.9W
  • Stall Torque: 70kg.cm
  • Stall Current: 3.5A
  • Reduction Ratio: 505
  • Weight: 357 g
  • Product Dimension: 115mm x 40mmx 35.7mm
  • Shaft Diameter: 8mm
  • Shaft Length: 15mm

DC Worm Gear Motor SGM-A58SW31ZY 12V 80RPM

Specifications:

  • Model: SGM-A58SW31ZY
  • Voltage range: 6-12V
  • Voltage Test: 12V
  • No Load Speed: 80RPM
  • Weight: 363 g
  • Product Dimension: 115mm x 40mmx 35.7mm
  • Shaft Diameter: 8mm
  • Shaft Length: 15mm

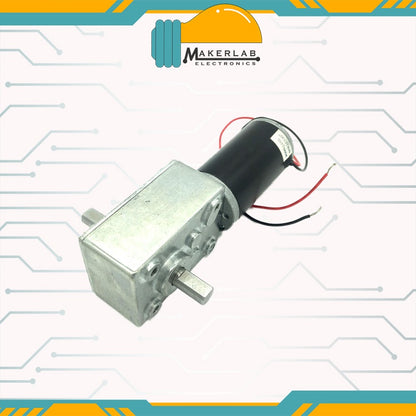

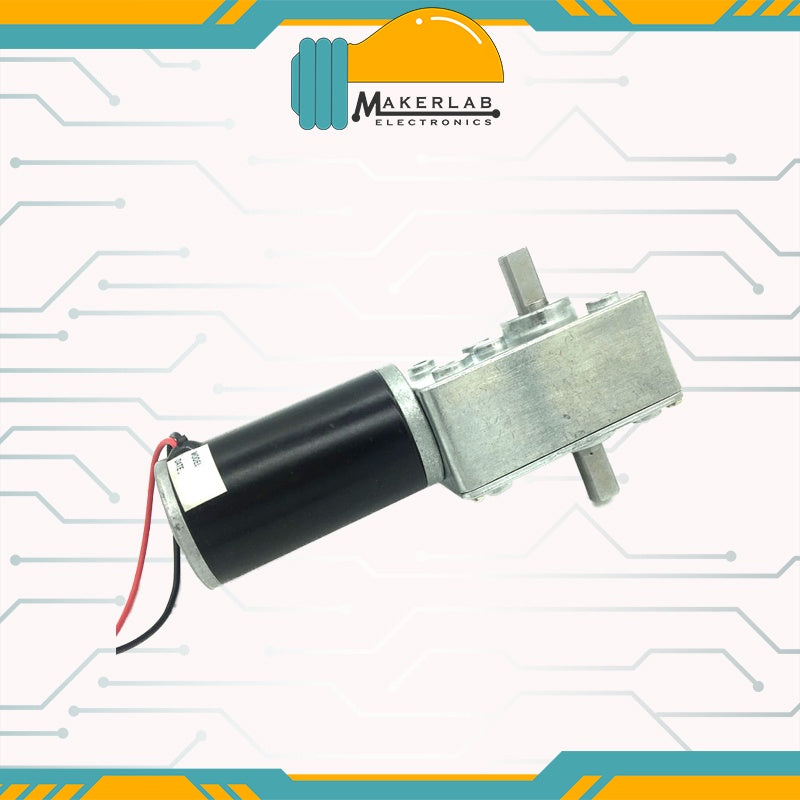

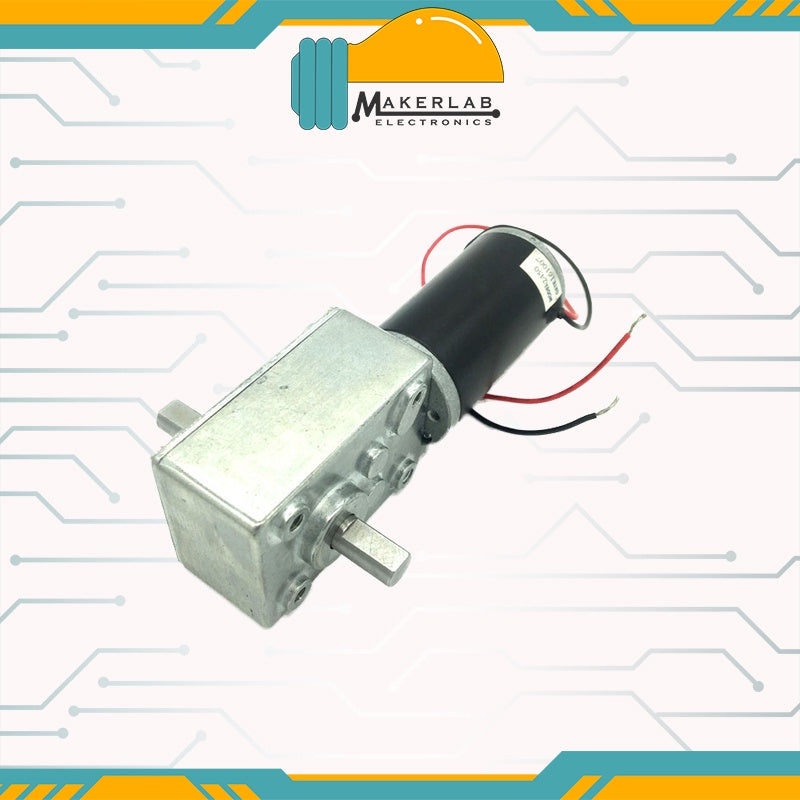

DC Worm Gear Motor SGM-A58SW31ZYS 12V 16RPM Dual Shaft

Specifications:

  • Workable Voltage: 6-12V
  • Rated Voltage: 12V
  • No Load Speed: 16RPM
  • No Load Current: 240mA
  • Rated Load Speed: 11RPM
  • Rated Load Current: 1A
  • Rated Load Torque: 60kg.cm
  • Rated Load Power: 14.4W
  • Stall Torque: 100kg.cm
  • Stall Current: 3.5A
  • Reduction Ratio: 505 1:00
  • Weight: 363 g
  • Product Dimension: 115mm x 40mmx 35.1mm
  • Shaft Diameter: 8mm
  • Shaft Length: 15mm

DC Worm Gear Motor SGM-A58SW31ZYS 12V 80RPM Dual Shaft

Specifications:

  • Model: A58SW31ZYS
  • Workable Voltage: 12-24V
  • Rated Voltage: 12V
  • No Load Speed: 80RPM
  • Rated Load Speed: 11RPM
  • Rated Load Torque: 60kg.cm
  • Weight: 363 g
  • Product Dimension: 115mm x 40mm x 34mm
  • Shaft Diameter: 8mm
  • Shaft Length: 15mm

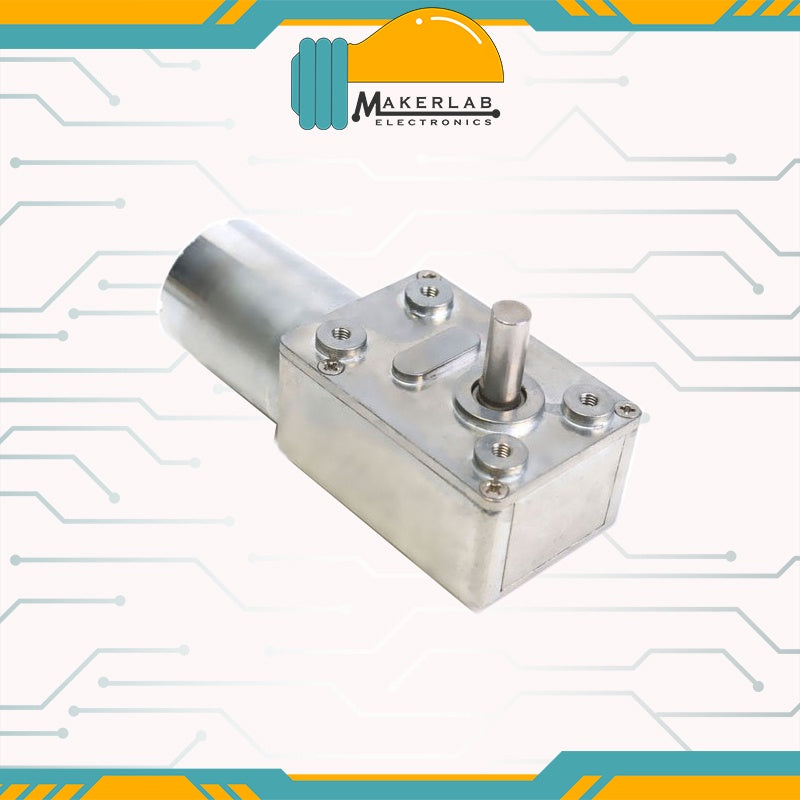

DC Worm Gear Motor SGM-370 12V 40rpm

Specifications:

  • Workable Range:6-15V
  • Rated Volt:DC12V
  • No load speed: 40rpm
  • Load Torque speed:32rpm
  • Output torque: 8kg.cm
  • Rated current: 1A
  • Reducer: Ratio(01:00) 150
  • Weight: 163g
  • Application: open the window, door, Mini winch. Etc.
  • Product Dimension: 76.8mm x 32mm x 24mm
  • Shaft Diameter: 6mm
  • Shaft Length: 12mm

DC Worm Gear Motor SGM-370 12V 160rpm

Specifications:

  • Operating Voltage: 6 – 15 V
  • Rated Voltage: 12V
  • No-load Speed: 160 RPM
  • No-load Current: 35 mA
  • Rated Torque: 128 RPM
  • Rated Current: 180 mA
  • Rated Torque: 0.55 kg.cm
  • Rated Power: 1.1 W
  • Stall Torque: 2.2 kg/cm
  • Stall Current: 1 A
  • Product Dimension: 76.8mm x 32mm x 24mm
  • Shaft Diameter: 6mm
  • Shaft Length: 12mm
