DFRobot Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor | SEN0564

Features:

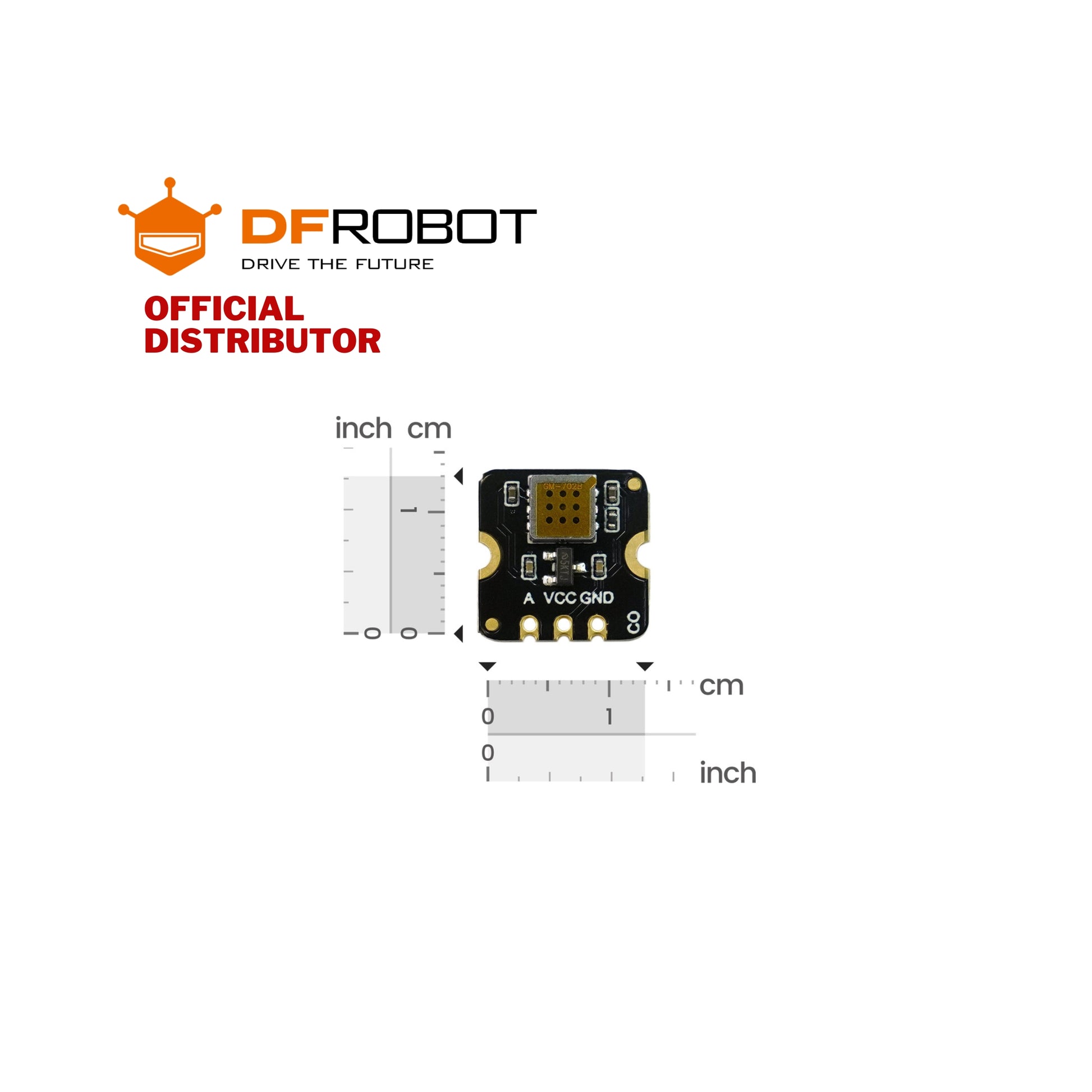

Compact size, measuring only 13*13*2.5mm
Low power consumption
High sensitivity and rapid response recovery
Advanced MEMS technology

Specification:
Gas detected: CO
Detection range: 5-5000ppm
Operating voltage: 3.3-5V
Operating current: ＜20 mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs (in 150ppm CO) ≥ 3
Operating temperature: -10-50℃
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

Inclusions:

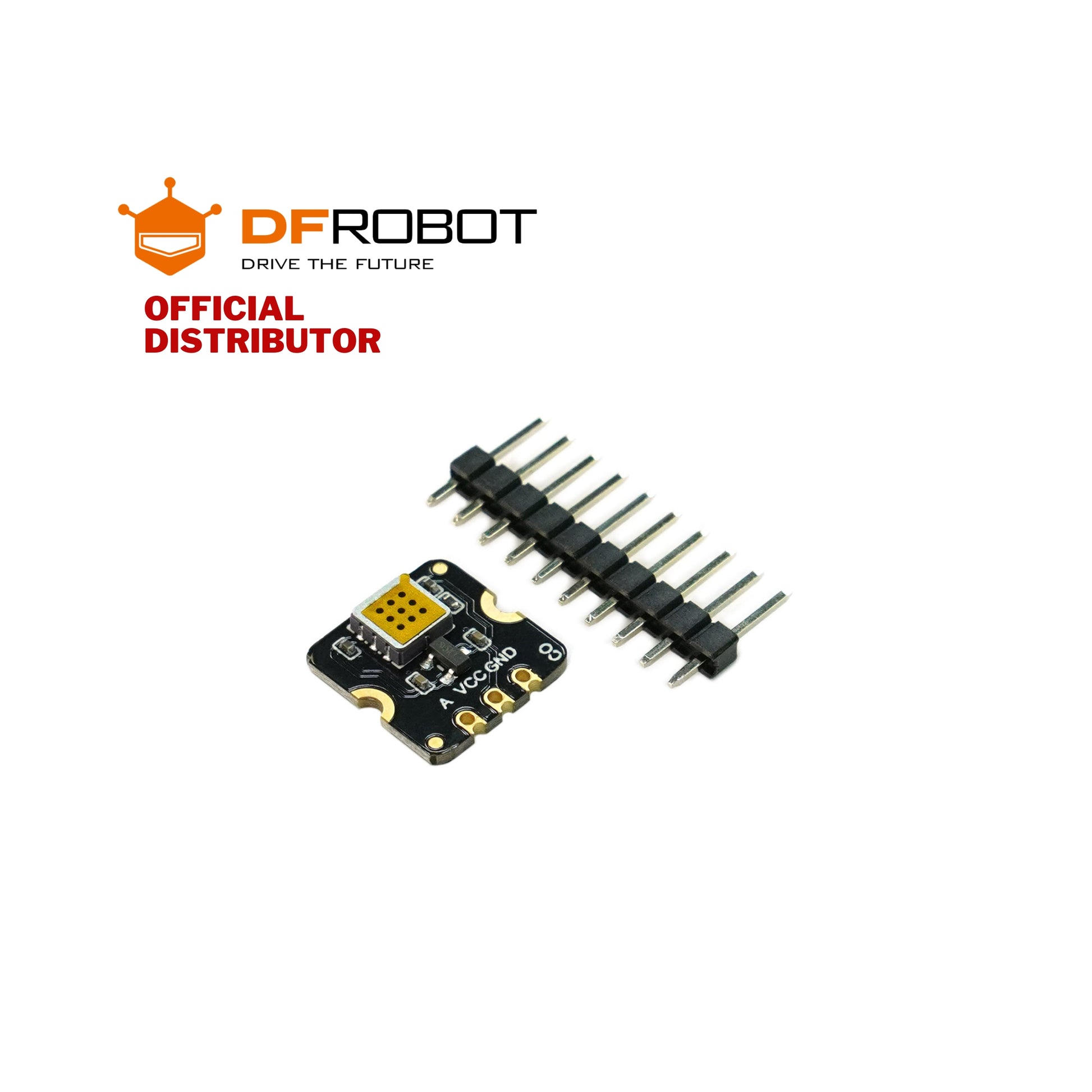

1x Fermion: MEMS Carbon Monoxide CO Sensor (breakout)
1x 2.54mm pitch header pin

Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor employs state-of-the-art micro electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20 mA), minimal heat generation, a short preheating time, and swift response recovery. The sensor can measure carbon monoxide gas concentrations qualitatively and is suitable for carbon monoxide leak alarms and portable carbon monoxide detectors.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).
