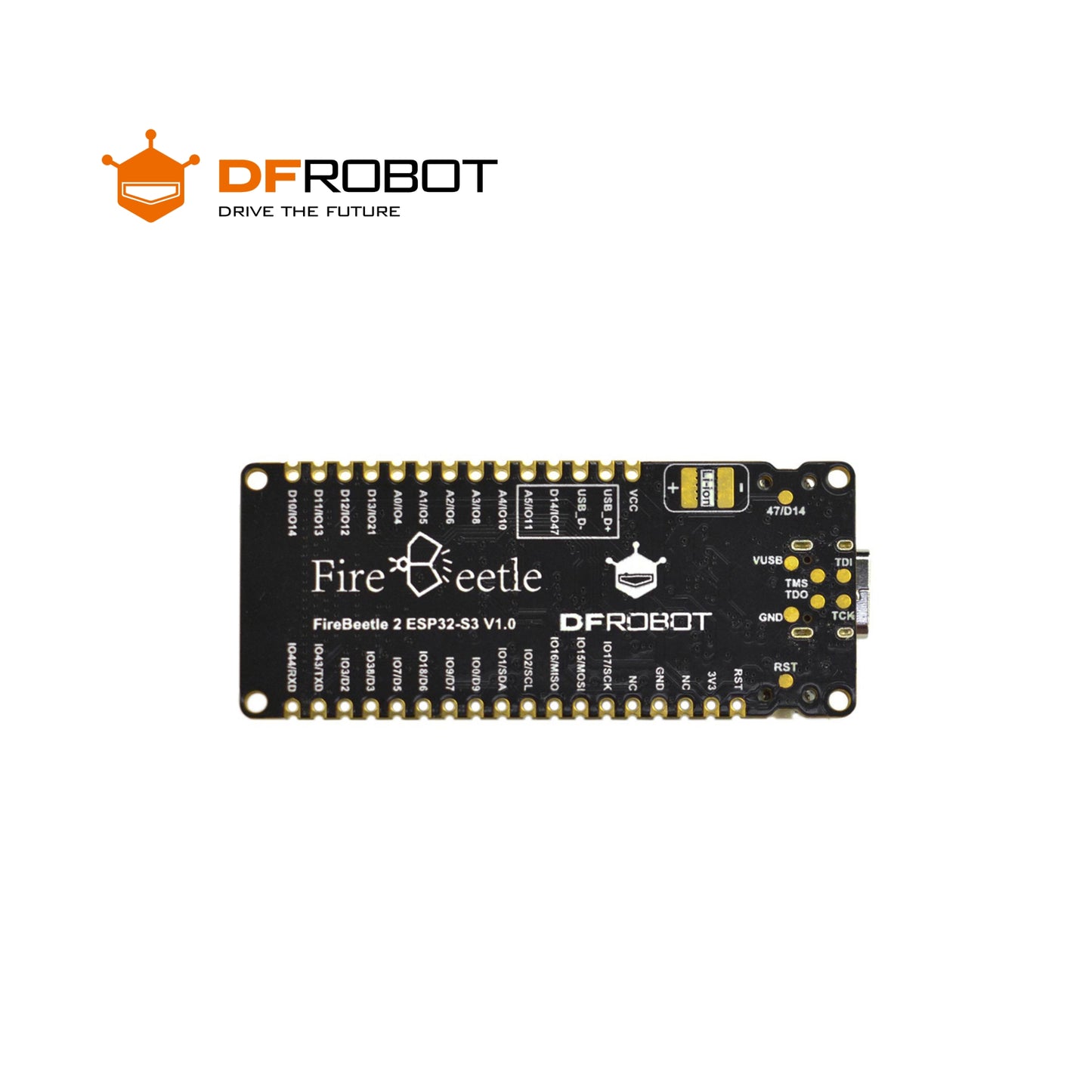

DFRobot FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller with Camera (16MB Fl., 8MB PS., Wi-Fi & BT on Board) | DFR0975

Features:
Image Recognition: Onboard GDI for easy connection with screens
Powerful Chips: ESP32-S3 module with AI Acceleration
More storage space: 16MB Flash & 8MB PSRAM
Onboard camera interface & independent camera power supply, easy to connect and strong anti-interference
Power management integrated, support Li-ion battery charging and hardware On/OFF controlling
Wi-Fi and Bluetooth 5 dual-mode communication

Specification:
Basic Parameters
Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VCC Input Voltage: 5V DC
Max Charging Current: 1A
Operating Temperature: -20 to 70℃
Dimension: 25.4x60mm/1x2.36”

Hardware Information
Processor: Xtensa® dual-core 32-bit LX7 microprocessor
Main Frequency: 240 MHz
SRAM: 512KB
ROM: 384KB
Flash: 16MB
PSRAM: 8MB
RTC SRAM: 16KB
USB: USB 2.0 OTG full-speed

WIFI
WIFI Protocol: IEEE 802.11b/g/n
Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
WIFI Frequency: 2.4GHz
Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth
Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

Ports
Digital I/O x26
LED PWM Controller 8 Channels
SPI x2
UART x3
I2C x2
I2S x2
IR Transceiver: transmit channel x5, receive channel x5
2×12-bit SAR ADC, 20 Channels
DMA Controller: transmit channel x5, receive channel x5

Inclusions:
1x FireBeetle 2 Board ESP32-S3 (N16R8) AIoT Microcontroller (Supports Wi-Fi & Bluetooth)
1x OV2640 Camera
1x 18pin-2.54mm Pin Header
1x 18pin-2.54mm Female Header
1x 14pin-2.54mm Pin Header
1x 14pin-2.54mm Female Header
