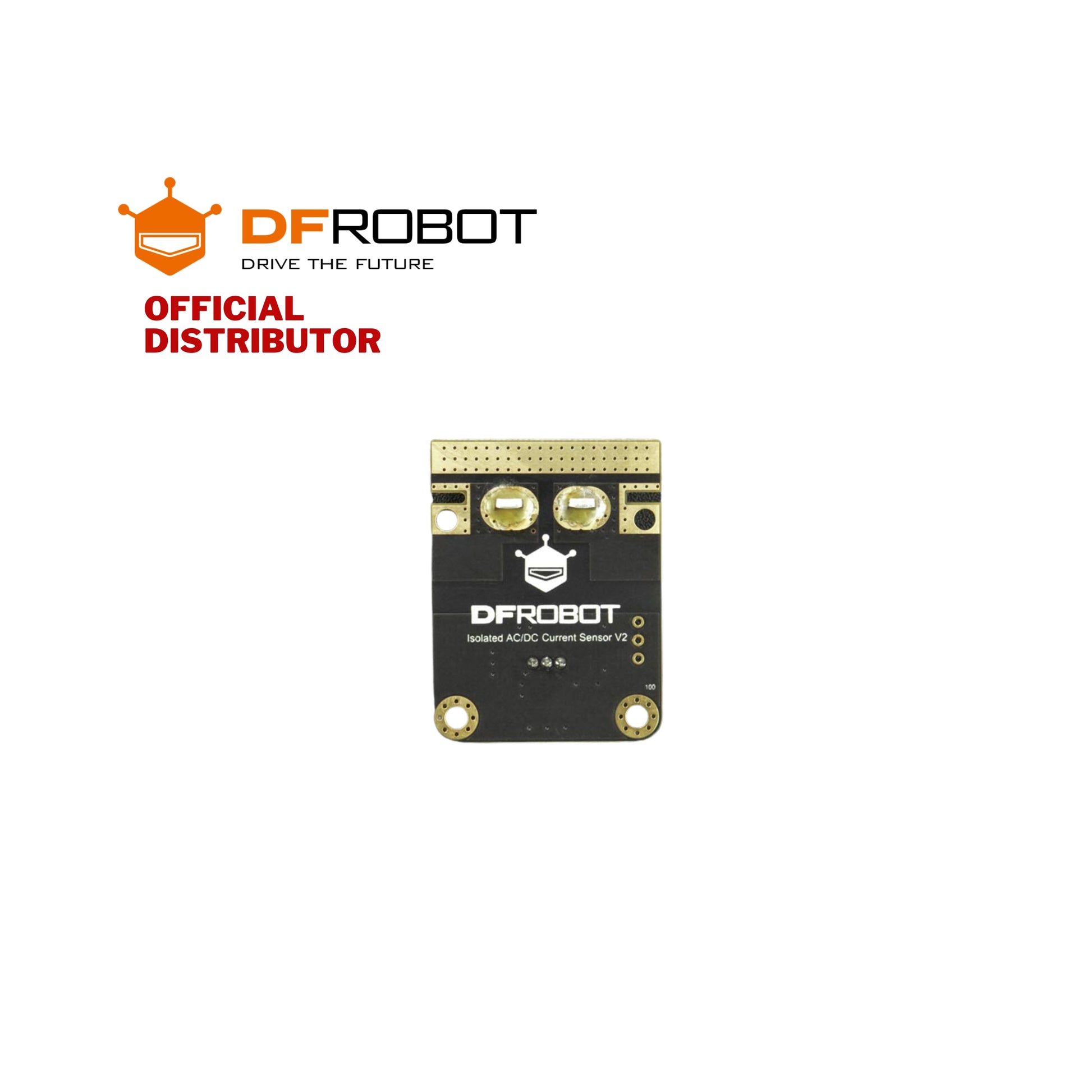

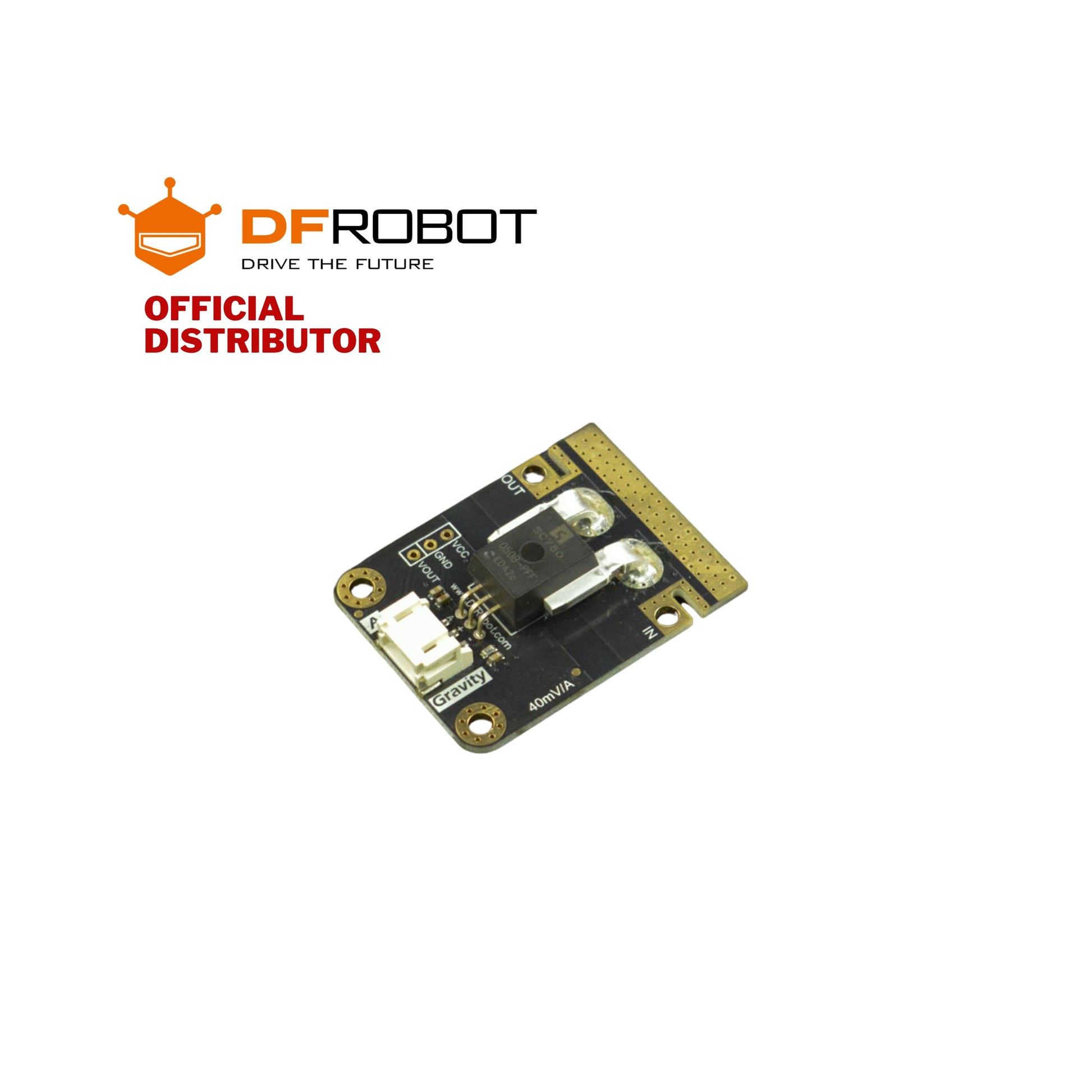

DFRobot Gravity: Analog 50A Current Sensor (AC/DC) | SEN0098-V2

Description:

Current Sensor - 50A (AC/DC)

This fully integrated Hall Effect-based linear STK-600/M current sensor gives precise measurement for both AC and DC currents up to 50A. The thickness of the copper conductor allows the survival of the device at high over-current conditions.

The STK-600/M can output an analog voltage signal that varies linearly with sensed current.

Features:

• Gravity Interface
• Compatible with T-shaped plug of aeromodelling
• Capable of measuring AC and DC currents
• Hall current sensor
• Isolated current measurement
• The low current impedance of 0.08m?
• Low-hysteresis magnetic core
• Interference-free for magnet wire, external magnetic field, and geomagnetic field

Specifications:

• Operating Voltage(analog): 5V
• Signal Type: Analog
• Withstand Voltage in Measuring: 50V(AC) / 120V(DC)
• Current Measurement Range: -50A to 50A
• Signal Bandwidth: 120kHz
• Response Time: 4.6µs
• Operating Temperature: -40°C to 125°C
• Dimension: 32×42mm/1.26×1.65"

Documents:

• Wiki
• STK-600 Datasheet

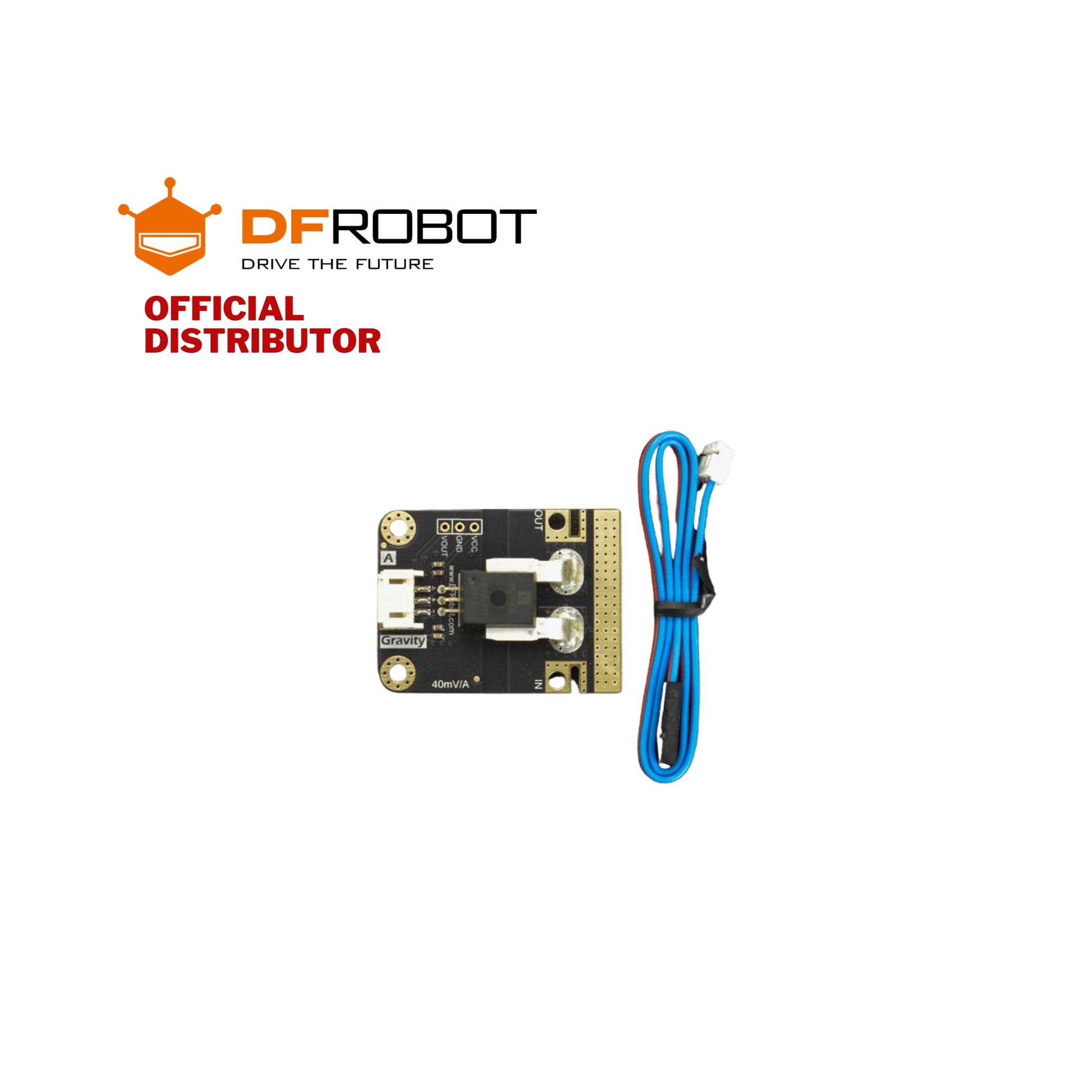

Part List:

• Gravity: Analog Current Sensor 50A (AC/DC) ×1
• Gravity 3P Connector ×1
