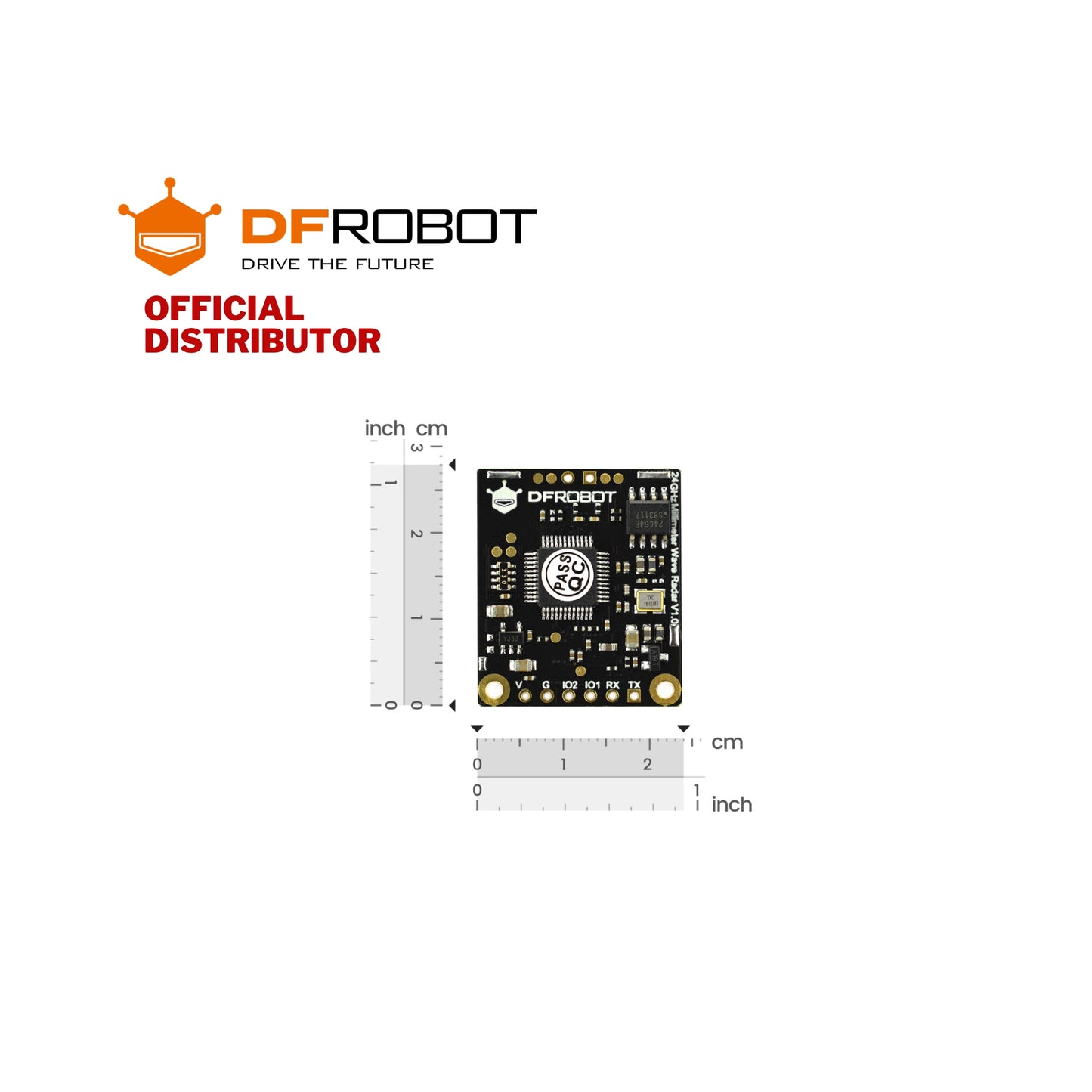

DFRobot mmWave Radar - 24GHz Human Presence Detection Sensor (9 Meters) | SEN0395

₱1,990.00
₱1,990.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

Millimeter-wave radar technology is a contactless sensing technology for detecting objects and providing the range, velocity and angle of those objects (in our case humans). mmWave sensors transmit signals with a wavelength in the high frequency spectrum between 24GHz and 300GHz, also called the millimeter (mm) range.

Features:

  • Human presence detection: Both Stillness and Motion Detection
  • Strong anti-interference ability, not to be affected by snow, haze, temperature, humidity, dust, light, noise, etc.
  • Small Size and Easy Integration
  • I/O port switch quantity input and output control
  • Serial port input and output control

Specifications:

  • Power Supply: 3.6~5V
  • Operating Current: 90mA
  • Detection Distance: 9m
  • Equivalent Transmit Power: 9-12dBM
  • Beam Angle: 100*40°
  • Modulation Mode: FMCW, CW
  • Operating Frequency: 24GHz
  • Operating Temperature Range: -40~85℃
  • Baud Rate: 115200
  • Dimension: 24*28mm/0.94*1.10"

Part List:

  • mmWave - Human Presence Detection Sensor (9 Meters) ×1
