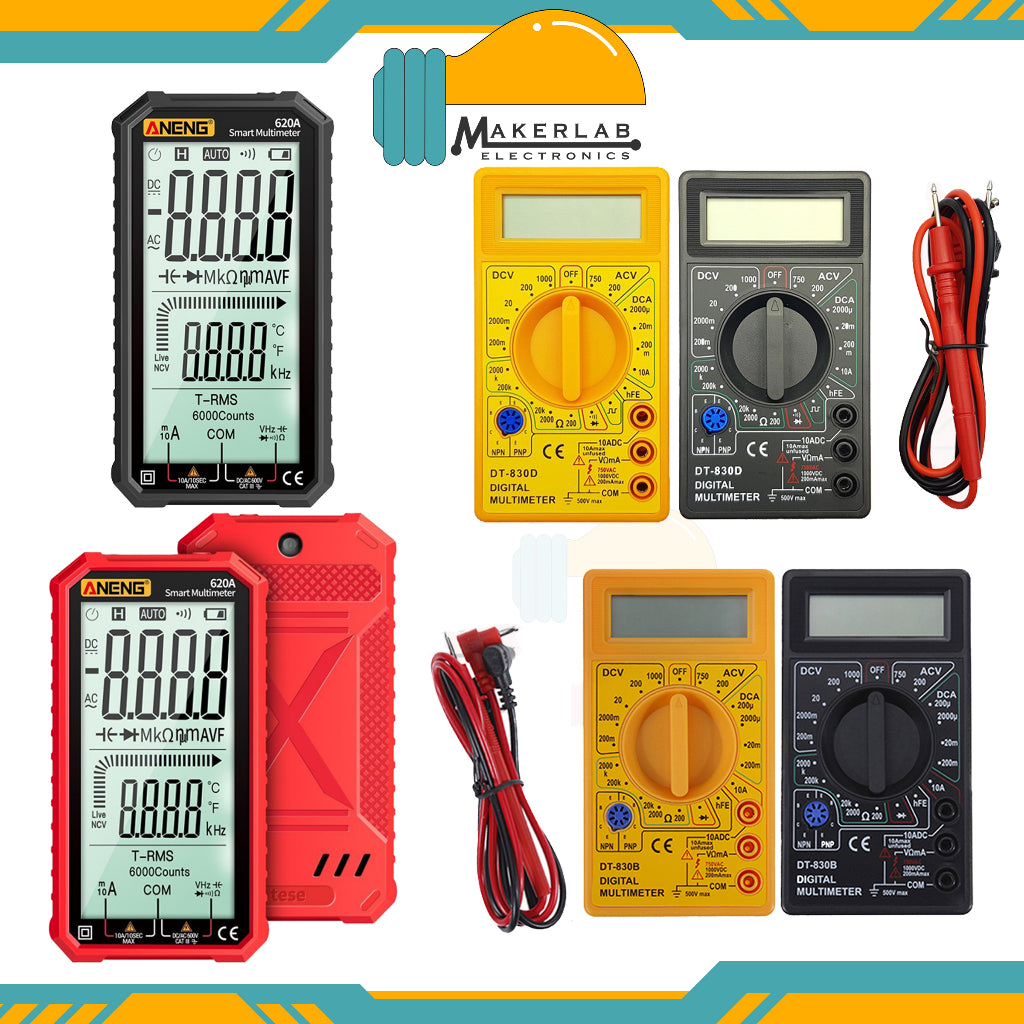

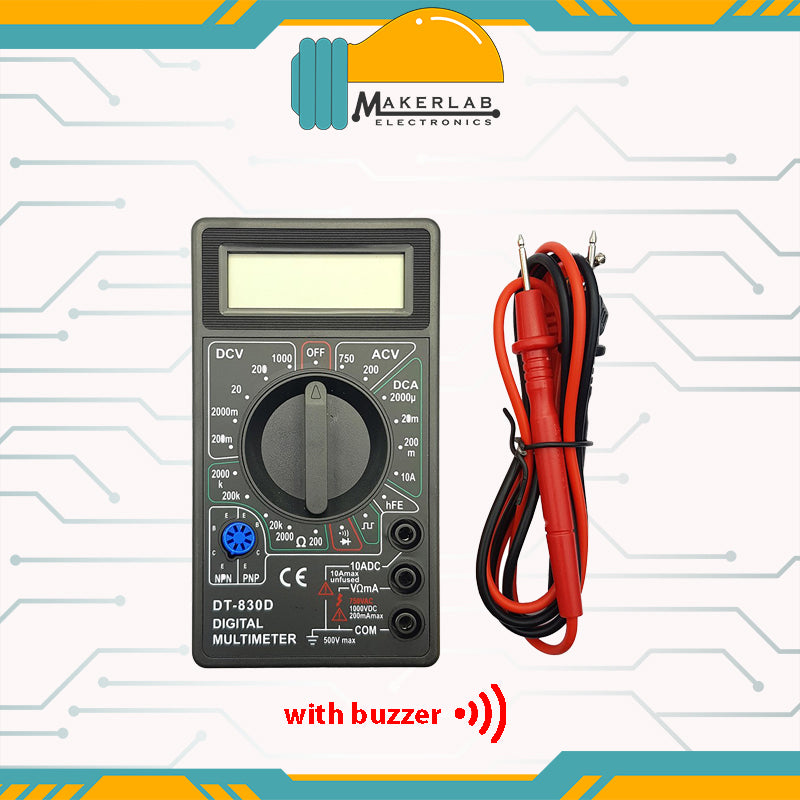

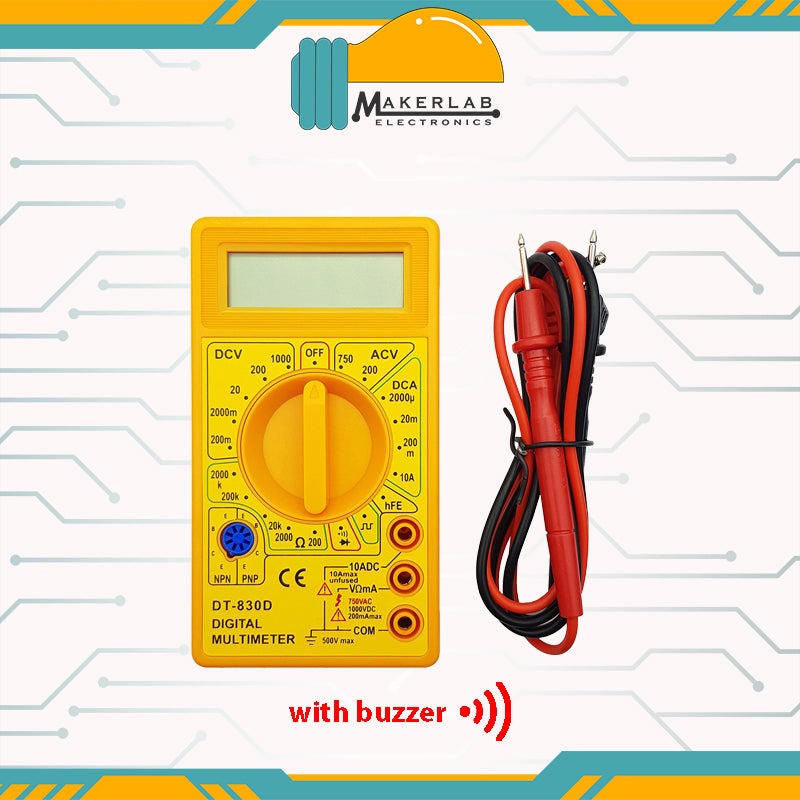

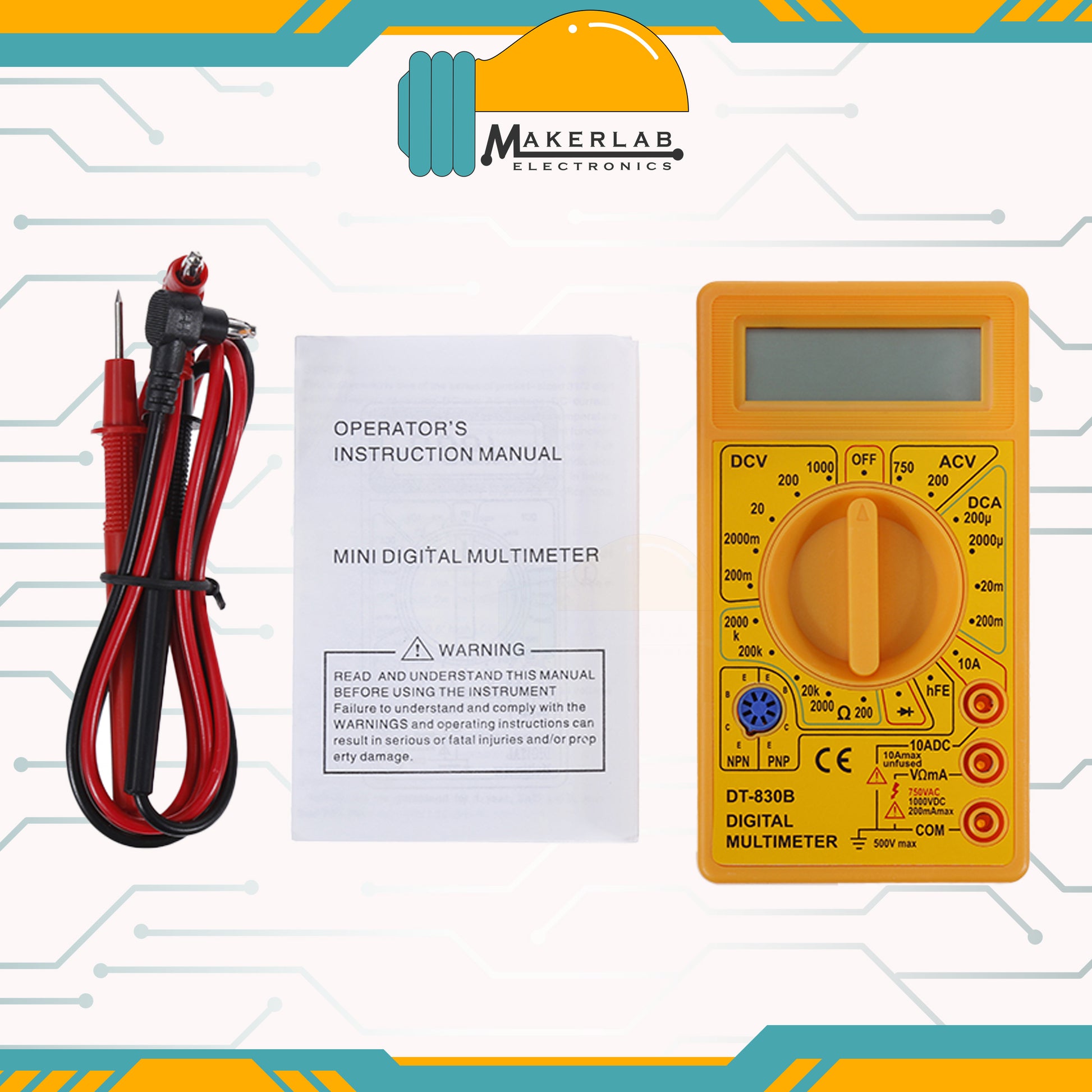

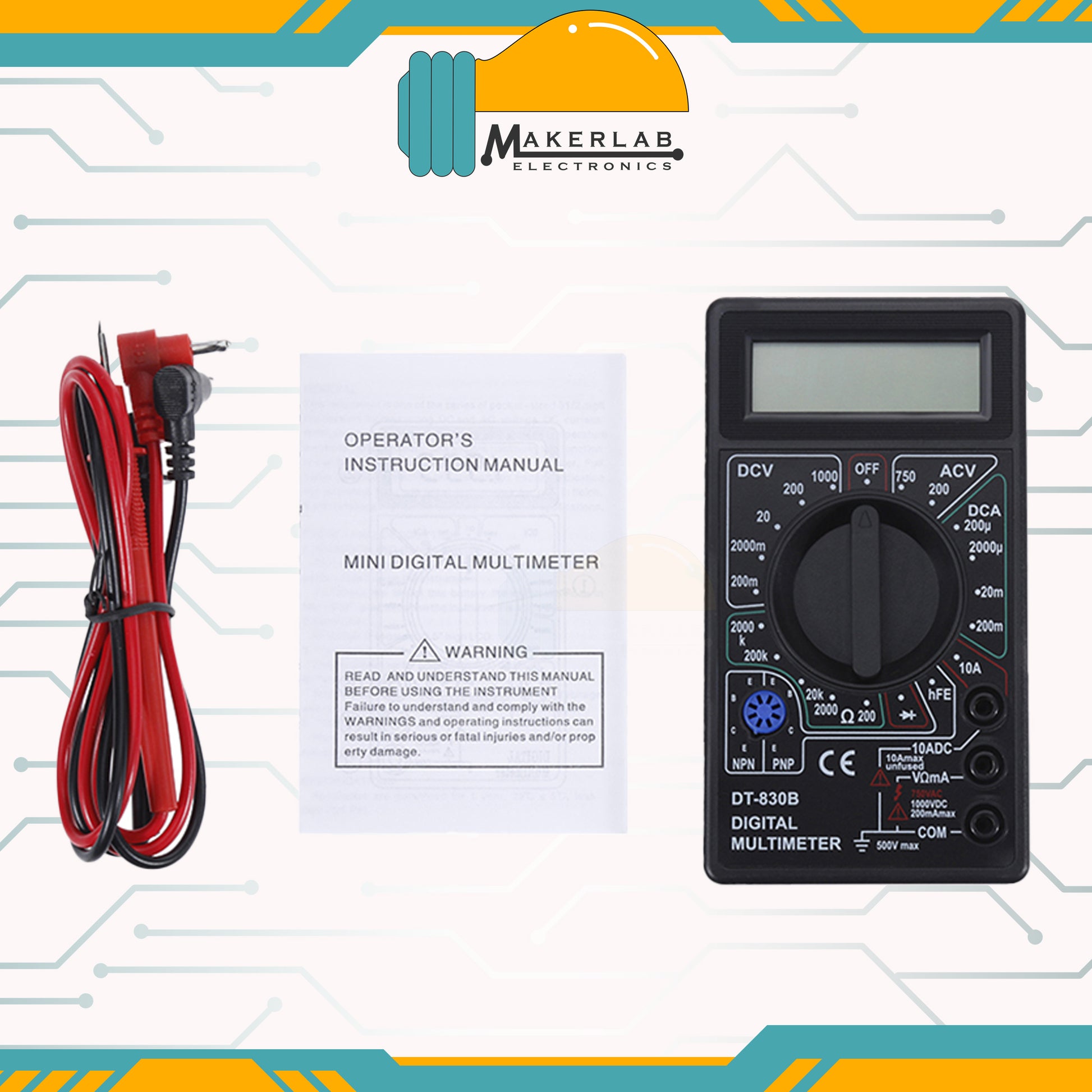

DT-830B / DT-830D Digital Multimeter LCD AC/DC 750/1000v Mini Portable Multimeter for OHM Voltmeter

DT-830B / DT-830D Digital Multimeter LCD AC/DC 750/1000v Mini Portable Multimeter for OHM Voltmeter

In stock

SKU:MLE02868

Regular price ₱140.00
Regular price Sale price ₱140.00
Sale Sold out
Model
View full details
Product Description
NOTE:
***Battery might already be installed inside the product***

Description:
A practical tool for electrician use. It is easy to operate and readings displayed directly on the screen. Can be used to overhaul all types of circuit boards. It is also an ideal teaching tool for students.

Features:
3 1/2 digits, 7 segments, 0.5" high lcd display.
Maximum display: 1999, auto polarity display.
Small and compact design.
Overload protection in all ranges.
Sampling 2 3 3 times readings per second.
Test diode mounting test/temperature test/hfe transistor test
Low battery voltage indication.

Specification:
Model: DT-830B
Measuring range:
Max ac current: 10a
Max ac
voltage range: 1000v Max dc voltage range: 750v
Resistance measurement: 200 Ohm-2000K ohm range
Power supply: 9v battery ( not included here)
Color: Black, Yellow
Size: Approx. 123x67x20mm/4.84x2.63x0.78 '' (l * w * h)
Degree of scale & accuracy:
dc voltage: 200mv 100uv ±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv 1000v
1v ±(0.8% + 2)
AC voltage: 200V ± 100mV (1.2% + 10)
750v 1V
dc current: 2000ua 1ua ± (1% + 2)
20ma 10uA
200mA 100uA ± (1.2% + 2)
10a ± 10mA (2% + 2)
Resistance: 200Ω0.1Ω ±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω ±(1% + 2)

Notes: Please allow 1-3mm error due to manual measurement and there will be different color as different display, please understand . Thanks.
