Description:

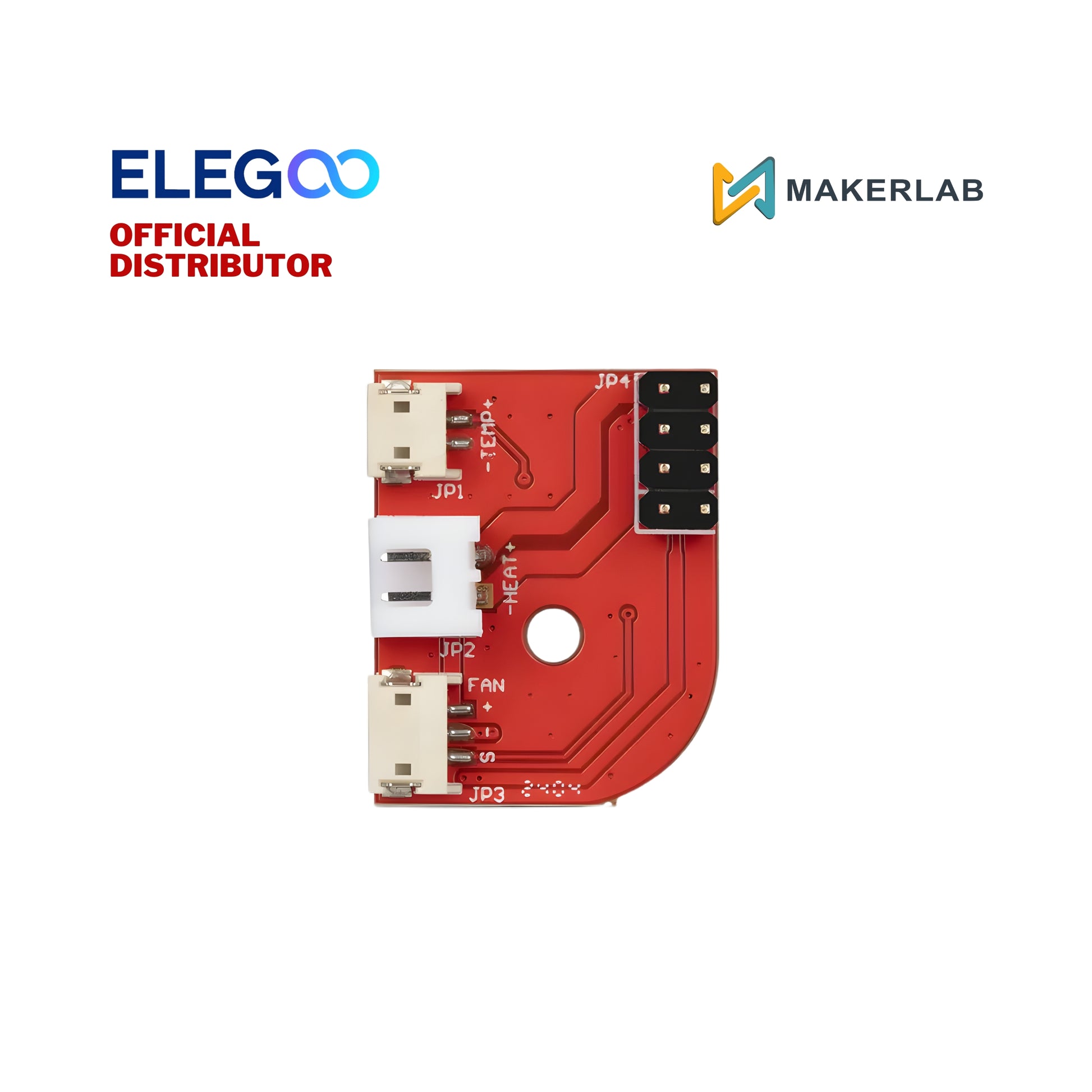

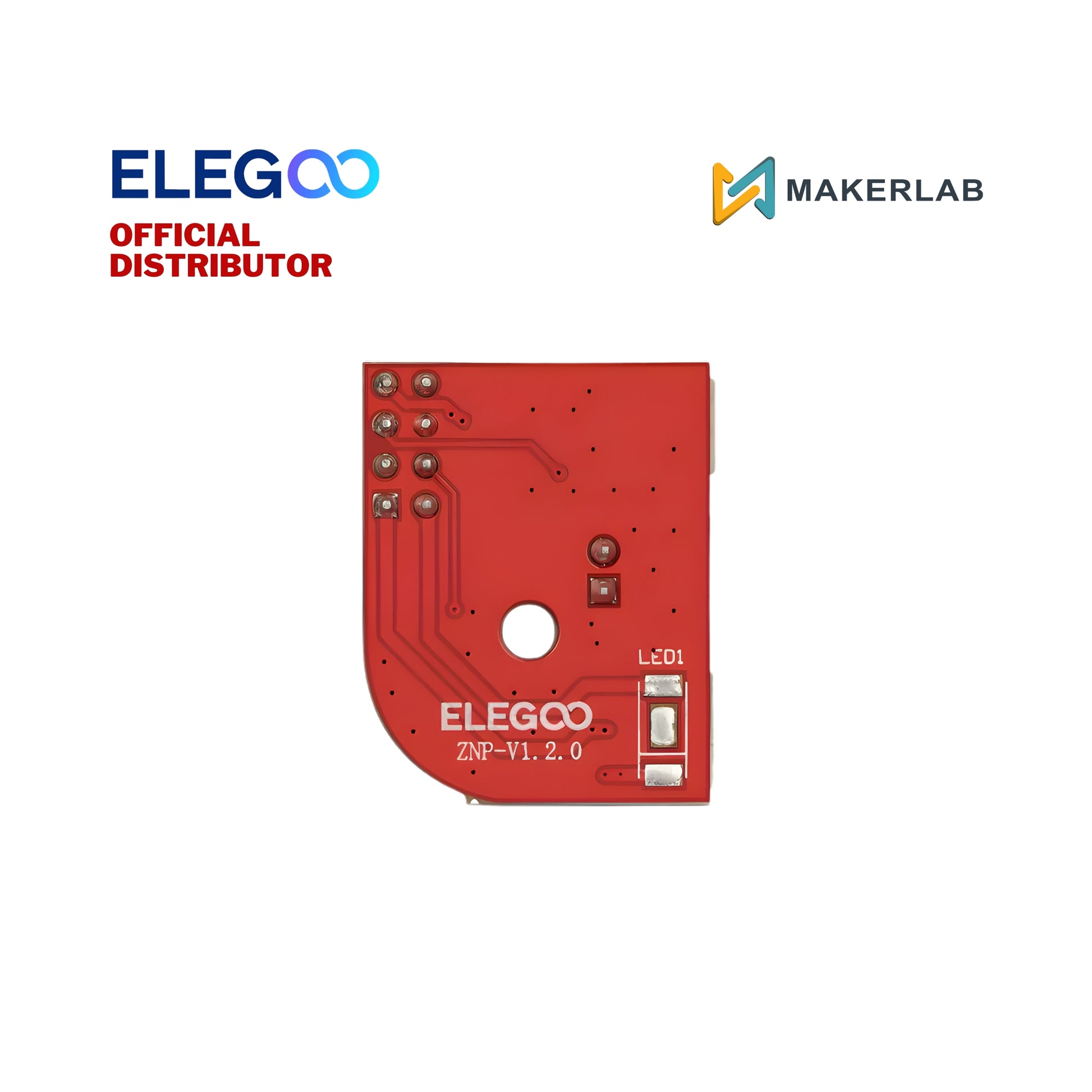

The Nozzle Heating Interface Board is a secondary daughterboard that connects directly to the main toolhead communication board. Its primary role is to bridge the power from the main umbilical cable to the heating element and the thermistor of the nozzle assembly.
This board is designed for quick-swap functionality. By isolating the heating electronics onto this small interface, Elegoo allows users to replace the heating block or the entire nozzle assembly without needing to disturb the more complex sensors on the primary communication board. It is built with thickened copper traces to handle the high amperage required for rapid nozzle heating.
Features:
High-Current Handling: Engineered to safely manage the 60W+ power draw required to reach 320°C quickly.
Modular Design: Facilitates the "Quick-Swap" nozzle system, allowing for faster maintenance and less downtime.
Heat-Resistant Substrate: Uses high-tg (Glass Transition Temperature) PCB material to prevent warping or delamination near the hotend.
Secure Locking Connectors: Features vibration-resistant JST-style headers to ensure consistent electrical contact during high-speed printing.
Clean Signal Routing: Minimizes electrical noise in the thermistor circuit, ensuring accurate temperature readings and preventing "Thermal Runaway" errors.
Specifications:
Model Number: 04.210.0016
Compatible Printer: Elegoo Centauri Carbon
Component Type: Hotend Interface PCBA
Voltage: 24V DC
Max Current: Optimized for high-wattage ceramic heaters
