Description:

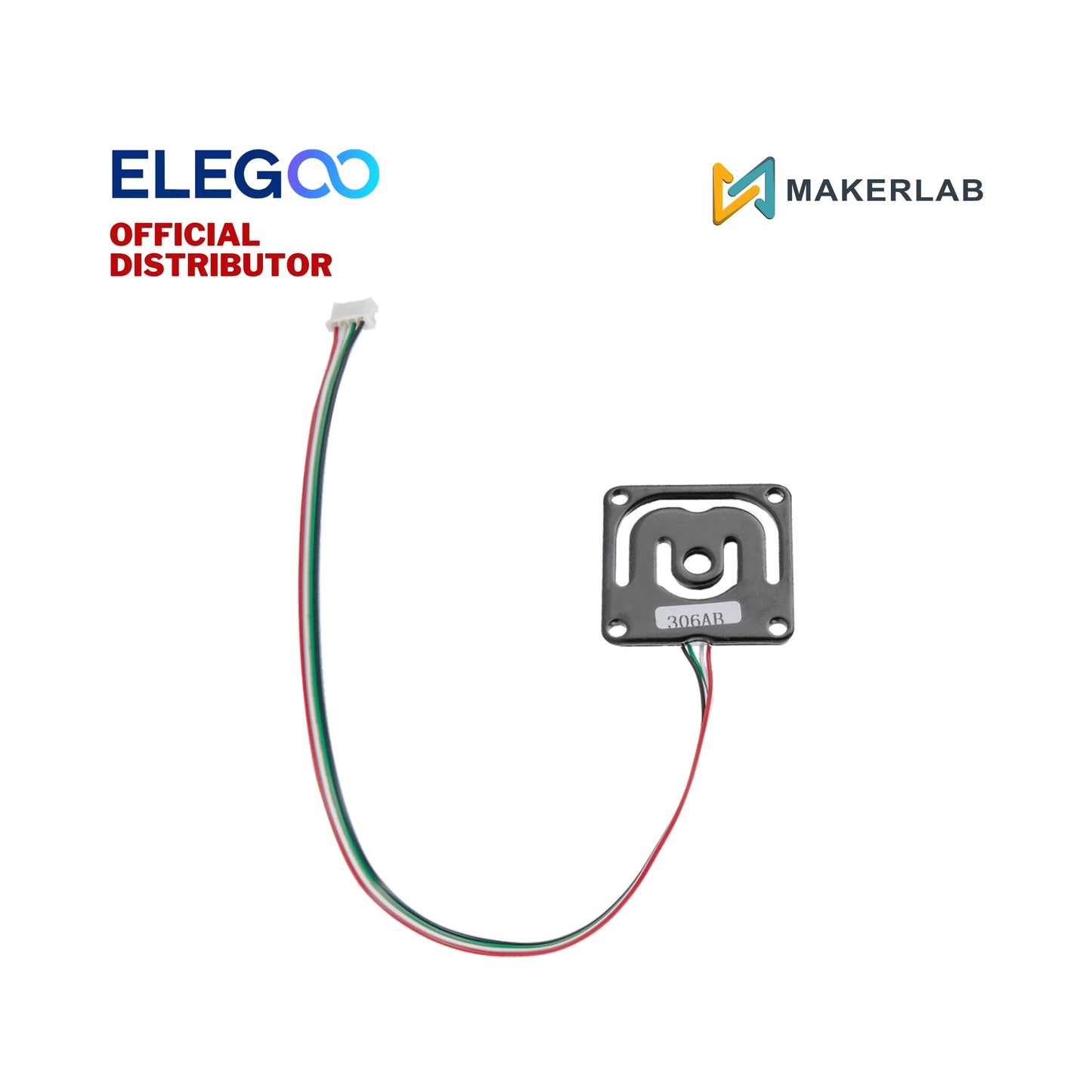

The Centauri Carbon uses a multi-point pressure sensing system located under the heated bed assembly. Unlike traditional inductive probes, these sensors detect the physical contact of the nozzle against the bed.
The Short Line (04.210.0020) and Long Line (04.210.0025) sensors are identical in their sensing mechanism but differ in cable length to accommodate their specific positions relative to the printer's internal adapter board. They work in tandem to create a high-density 121-point (11x11) bed mesh, ensuring the first layer is perfectly uniform across the entire building surface without any manual "paper-method" leveling.
Features:
Full-Auto Calibration: Enables hands-free bed leveling and Z-offset adjustment by sensing actual physical contact.
Precise Mesh Mapping: Allows the printer to compensate for microscopic variances in the build plate flatness at 121 different points.
Plug-and-Play Connectors: Equipped with pre-installed ribbon cables and JST-style connectors for a solder-free replacement process.
High Thermal Stability: Designed to operate accurately even while the heated bed reaches temperatures up to 110°C
Optimized Wiring: The short and long variants ensure that internal cable management remains tidy and free from interference with moving parts.
Specifications:
Device Compatibility: Elegoo Centauri Carbon
Sensor Type: Pressure / Load Cell
Cable Type: Flexible Ribbon Cable
Cable Length
Short Line: ∼60mm - 80mm
Long Line: ∼120mm - 150mm
Application: Bed Leveling & Homing
Mounting: 4-hole screw configuration
