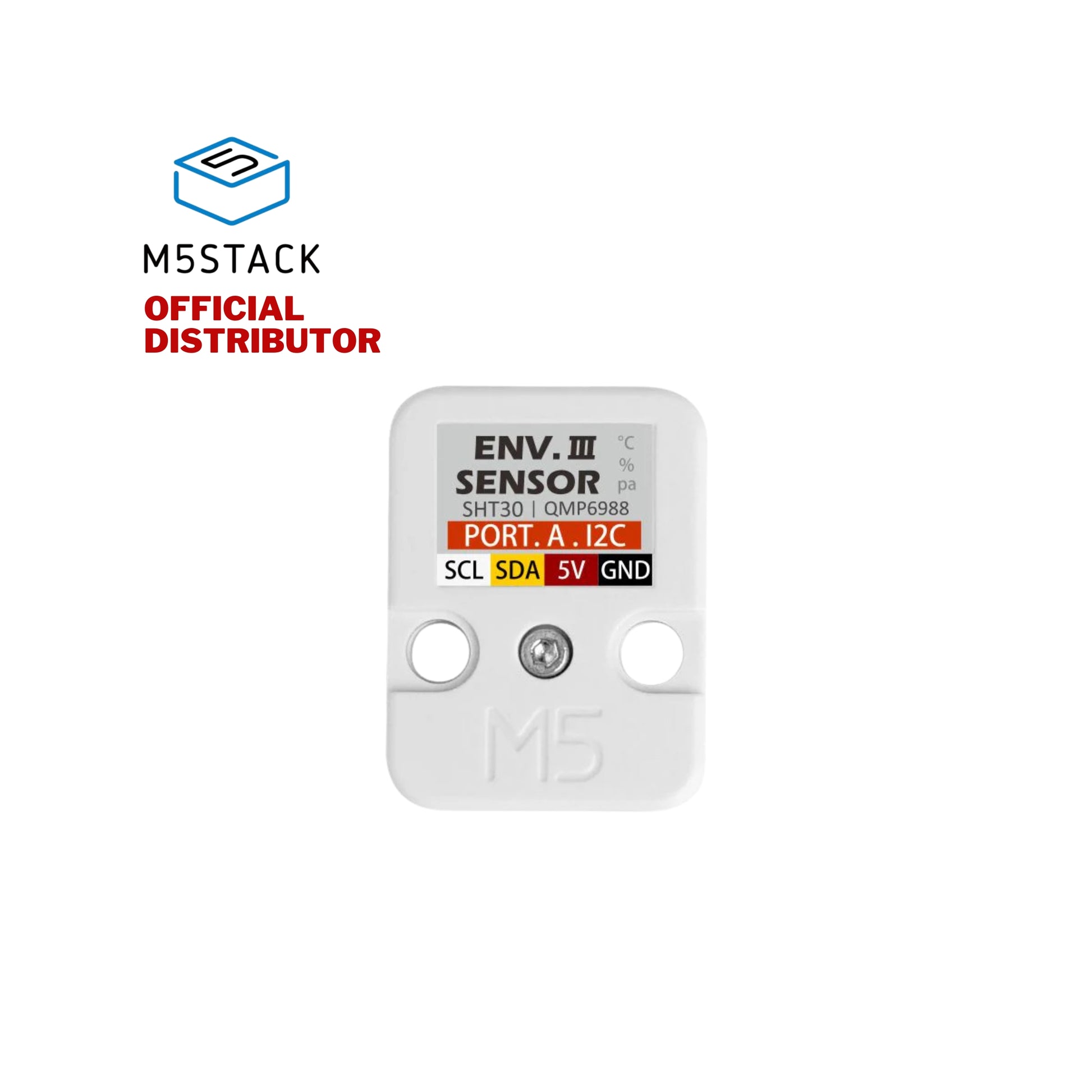

M5Stack ENV III Unit with Temperature Humidity Pressure Sensor

Description:

ENV III is an environmental sensor that integrates SHT30 and QMP6988 internally to detect temperature, humidity, and atmospheric pressure data. SHT30 is a high-precision and low-power digital temperature and humidity sensor, and supports I2C interface (SHT30:0x44 , QMP6988:0x70).QMP6988 is an absolute air pressure sensor specially designed for mobile applications, with high accuracy and stability, suitable for environmental data collection and detection types of projects.

Features:

• Simple and easy to use
• High accuracy
• I2C communication interface
• HY2.0-4P interface, support platform UIFlow , Arduino
• 2x LEGO compatible holes

Specifications:

• Product Code: U001-C
• Maximum temperature measurement range: -40 ~ 120 ℃
• Highest measurement accuracy: 0 ~ 60 ℃/±0.2℃
• Humidity measurement range/error: 10 ~ 90 %RH / ±2%
• Maximum measured value of air pressure/resolution/error: 300 ~ 1100hPa / 0.06Pa / ±3.9Pa
• Communication protocol: I2C: SHT30(0x44), QMP6988(0x70)
• Working temperature: 32°F to 104°F (0°C to 40°C )
• Net weight: 5g
• Gross weight: 17g
• Product Size: 24.2*32.2*8.1mm
• Package Size: 67*53*12mm
• Case Material: Plastic ( PC )

Applications:

• Weather station
• Storage barn environment monitoring

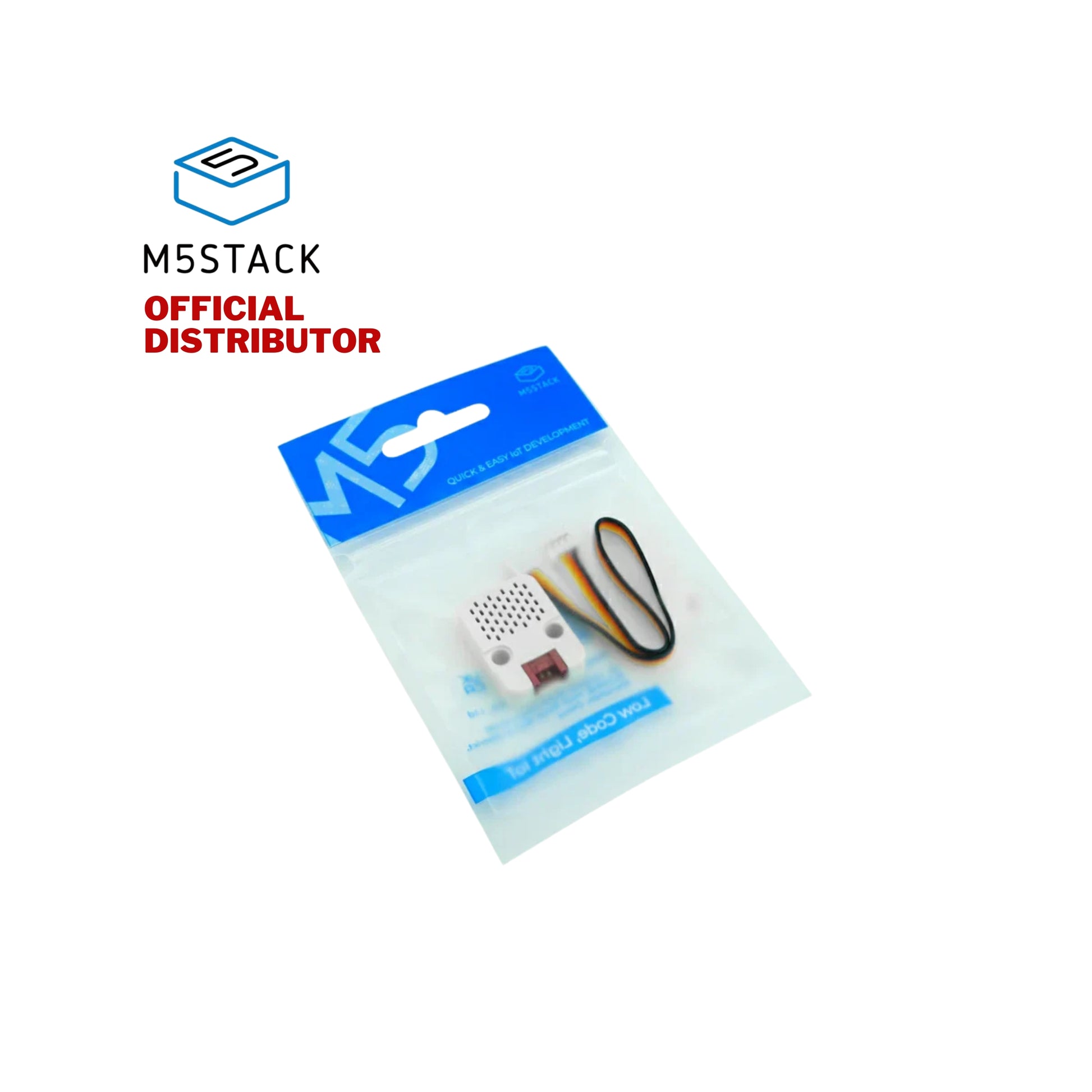

Part List:

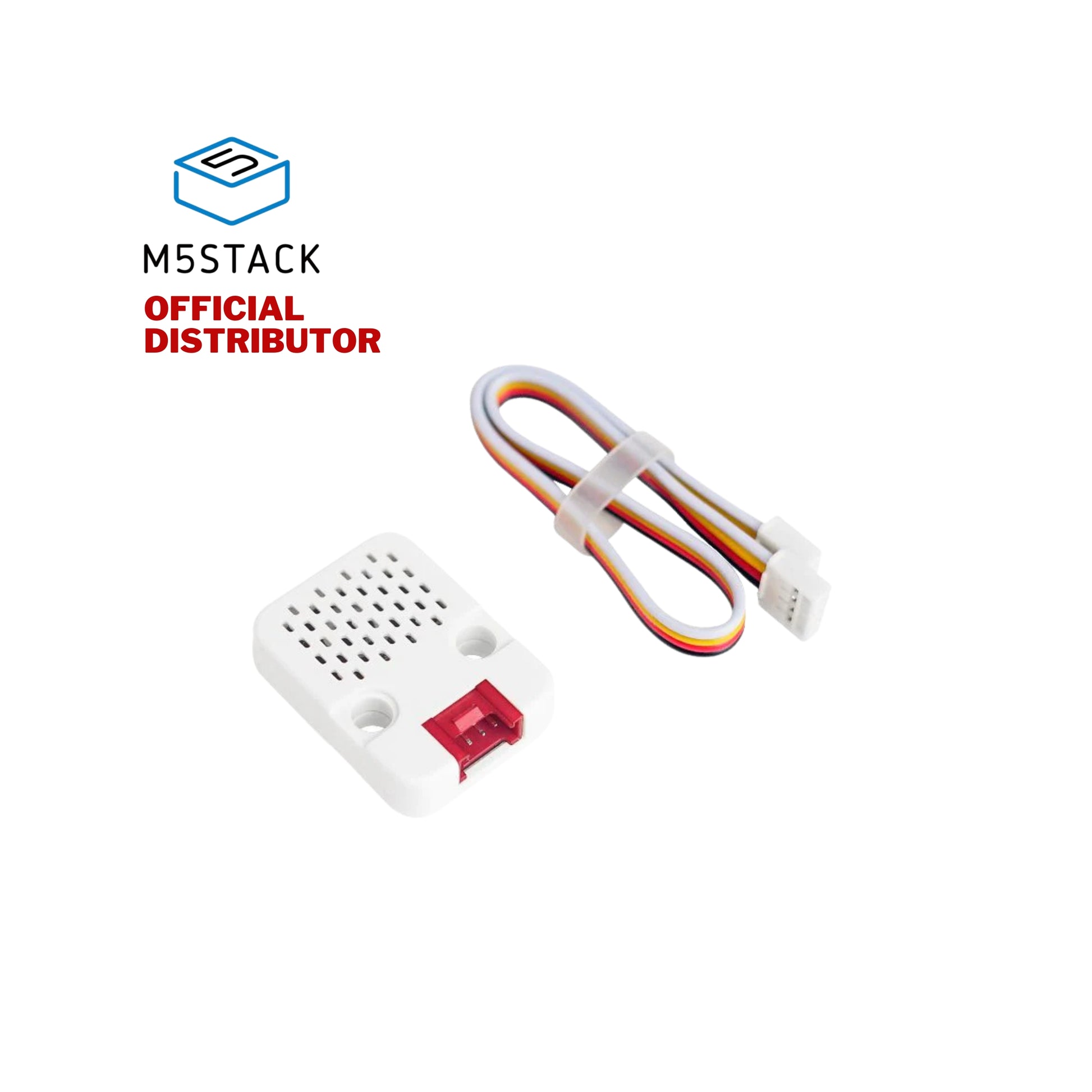

• 1x ENV-III Unit
• 1x HY2.0-4P Cable
