Description:

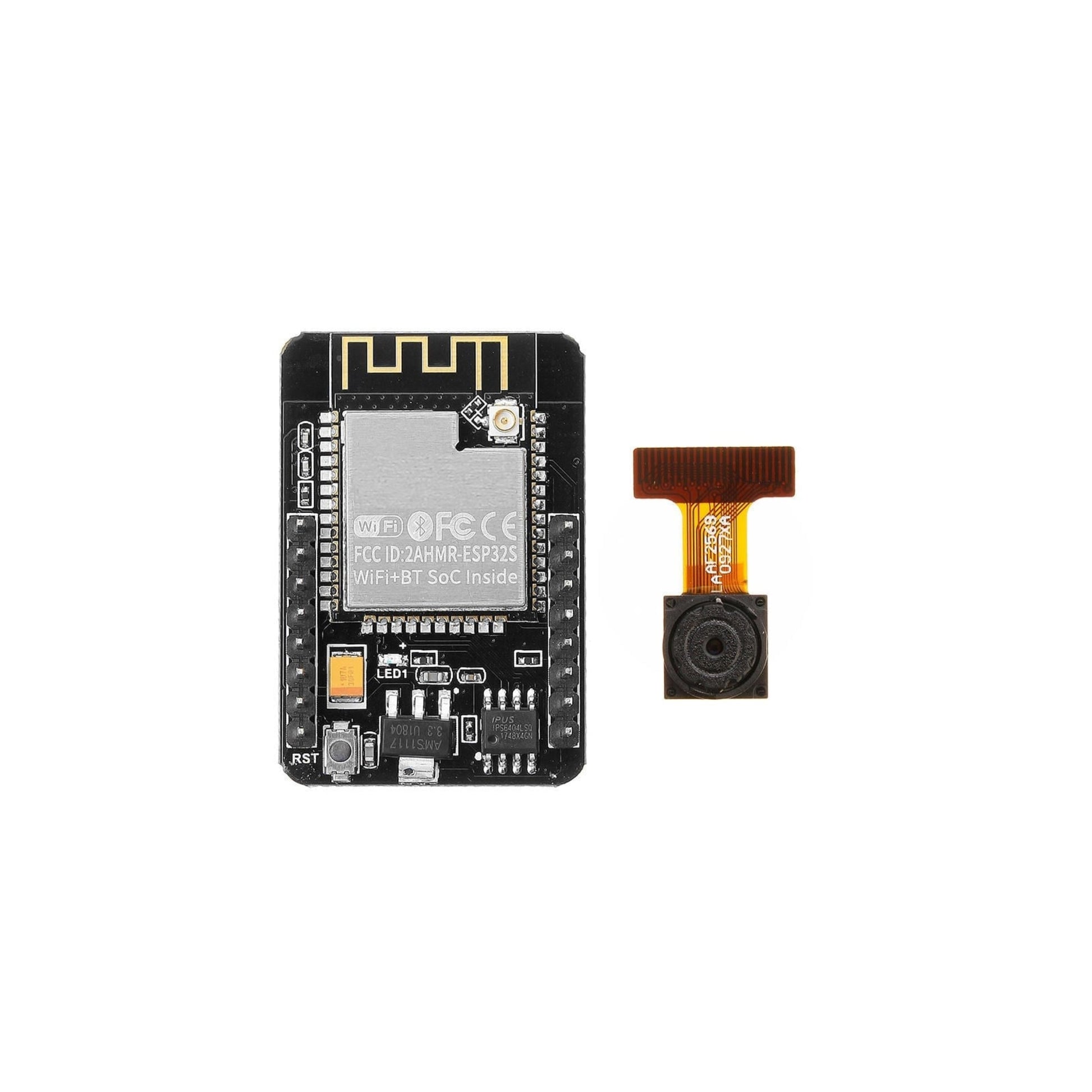

This is an ESP32-CAM module, a compact development board that combines the popular ESP32 chip with a camera. It includes built-in WiFi and Bluetooth, allowing it to connect to networks and other devices wirelessly.
The board features an OV2640 camera, which can capture images and video. It also has a slot for a MicroSD card to store your captured data. This module is easy to program using environments like the Arduino IDE.
It's a good choice for projects that need both connectivity and camera capabilities, such as smart home systems, simple security cameras, or remote monitoring setups.
Features:
Integrated Camera: Includes an OV2640 camera sensor for photos and video.
WiFi Connectivity: Connects to wireless networks.
Bluetooth Connectivity: For short-range wireless communication.
MicroSD Card Slot: Allows for image/video storage on an SD card.
ESP32 Processor: Handles WiFi, Bluetooth, and camera functions.
Compact Size: Small design for easy integration into projects.
Specifications:
Microcontroller: ESP32-S series
Color: Black
Camera Sensor: OV2640, built-in flash
SPI Flash: Default 32Mbit
RAM: 520KB SRAM, 4MB PSRAM
Serial Port Rate: Default 115200 bps
Image Output Format: JPEG (Only OV2640 support), BMP.Grayscale
Spectrum Range: 2412-2484MHz
Antenna Form: Onboard PCB Antenna, gain 2dBi
External Storage: MicroSD card slot
Safety: WPA/WPA2/WPA2-Enterprise/WPS
Power Supply Range: 5V
Dimensions: 27mm x 40.5mm x 4.5mm
