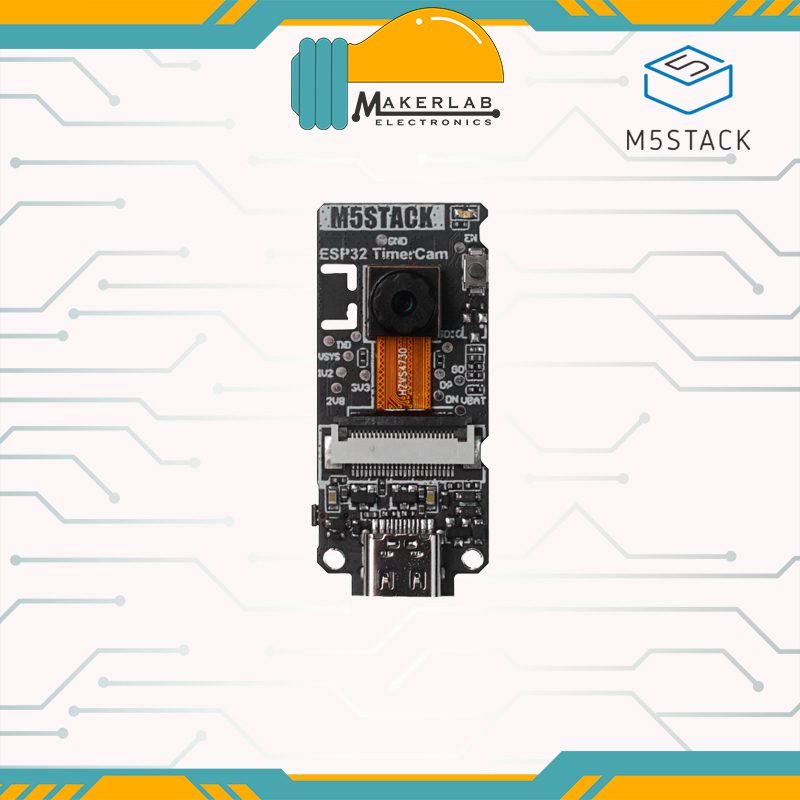

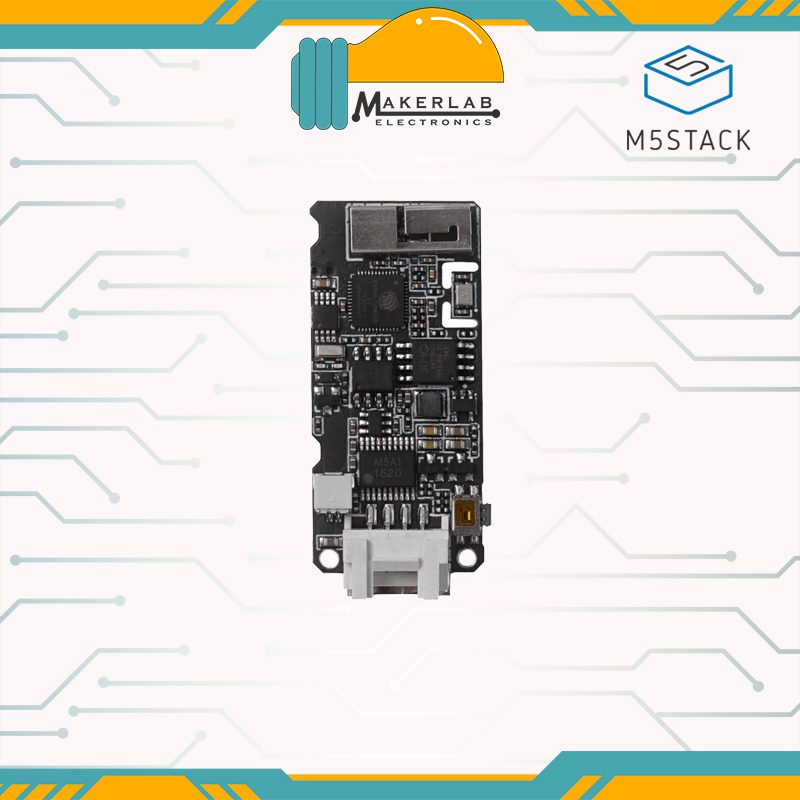

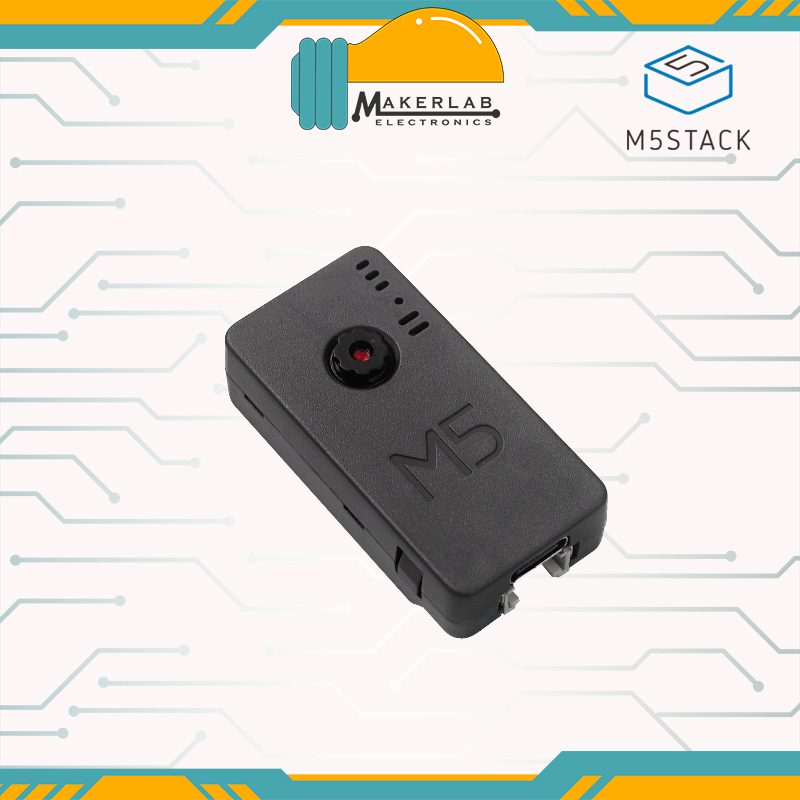

Timer Camera X is a camera module based on ESP32, integrated with ESP32 chip and 8M-PSRAM. The camera (ov3660) with 3 million pixels , DFOV 66.5 ° and shoot 2048x1536 resolution photo, built-in 140mAh battery and LED status indicator, featuring ultra-low power consumption design. There is a reset button under the LED. Through RTC (BM8563), timing sleep and wake-up can be realized. The standby current is only 2?A. After timing photo taking function(one photo per hour) is turned on, the battery can work continuously for more than one month. The module supports WiFi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. Through M5Burner burning firmware, Timer Camera X can be set directly with Camera-Tool, and Timer Camera X data can be processed in UIFlow.
The low-power power management solution adopted by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the Reset button on the PCB.When using external power supply, the device will remain powered on.
- Design based on esp32
- WiFi image transmission
- Timed sleep wake up
- Status indicator
- Ultra low power design
- Built-in 140mAh battery
- Programming platform?ESP-IDF/Arduino/UIFlow
- 1x Timer Camera X
- 1x LEGO Adapter
- 1x Wall-1515
- 1x Type-C USB(20cm)
- Take pictures regularly
- Remote video monitoring
TimerCAM may not work without drive in some systems. Users can manually install FTDI Driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually
USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).
|Maximum resolution||300w pixels|
|Output format||8-/10-Bit RAW, RGB and YCbCr output, compression.|
|Maximum image transmission rate (OV3660)||2048x1536: 15fps / 1080p: 20fps / 720p: 45fps / XGA(1024x768) : 45fps / VGA(640x480) : 60fps / QVGA(320x240) : 120fps|
