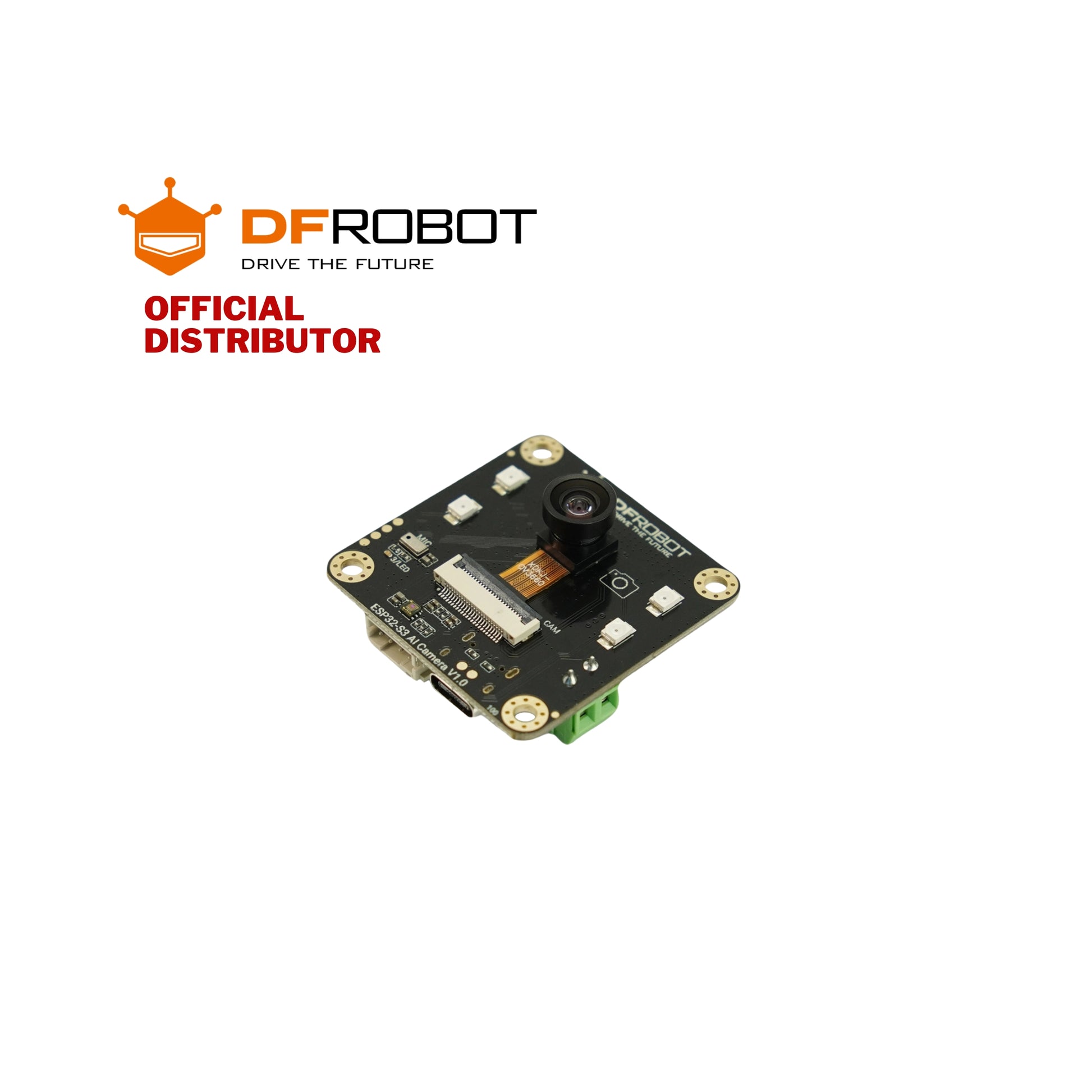

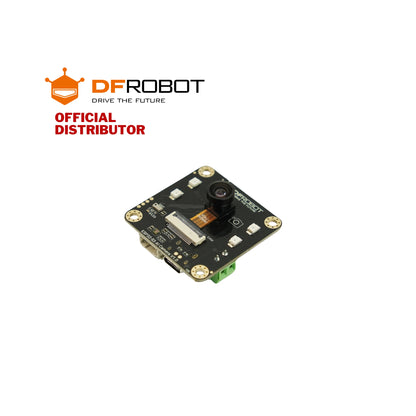

DFRobot ESP32-S3 AI Camera Module (Edge Image Recognition, Night Vision, ChatGPT Voice Interaction) | DFR1154

₱1,490.00
₱1,490.00 ₱0.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

The ESP32-S3 AI Camera is a cutting-edge intelligent camera module built around the high-performance ESP32-S3 chip, designed for efficient video processing, edge AI, and voice interaction. Featuring a wide-angle infrared camera, onboard microphone, and speaker, it is ideally suited for applications such as electronic peepholes, baby monitors, and license plate recognition. With powerful AI processing capabilities, it integrates seamlessly into IoT ecosystems, supporting edge image recognition and online AI model interaction through Wi-Fi connectivity, making it an essential component for IoT applications, from security surveillance to AI assistants.

Features:

  • Various AI capabilities
    • Edge image recognition (based on EdgeImpulse)
    • Online image recognition (openCV, YOLO)

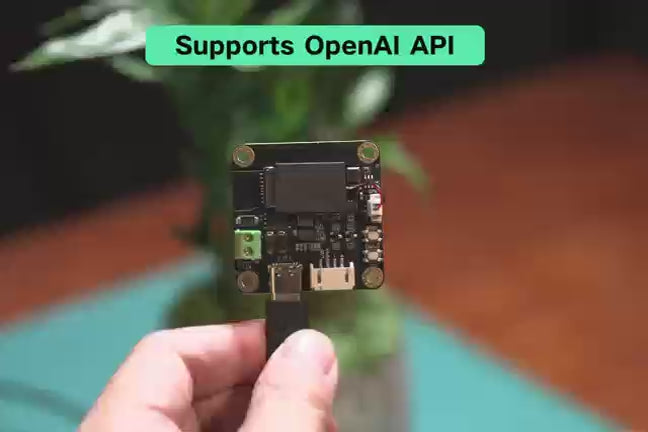

    • Online large models for voice and image (ChatGPT)
  • Equipped with a wide-angle night vision camera, infrared illumination, and all-day usability
  • Onboard microphone and amplifier for voice interaction
  • Offers a variety of AI models, with tutorial support for quick learning

Applications:

  • Electronic peepholes
  • License plate recognition
  • AI Robot Toy
  • Smart Glasses

Specifications:

Basic Parameters

  • Operating Voltage: 3.3V
  • Type-C Input Voltage: 5V DC
  • VIN Input Voltage: 5-12V DC
  • Operating Temperature: -10~60°C

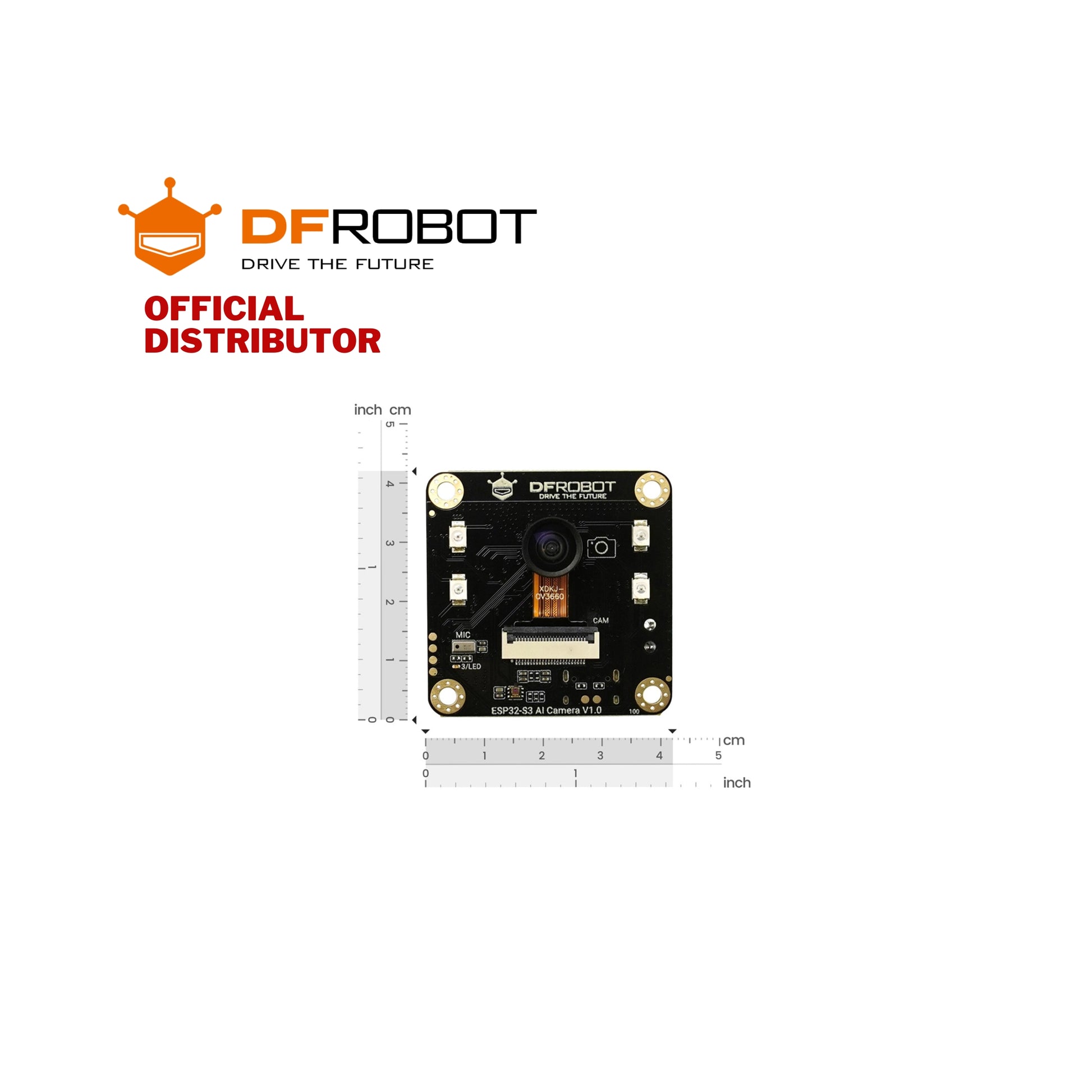

  • Module Size: 42*42mm

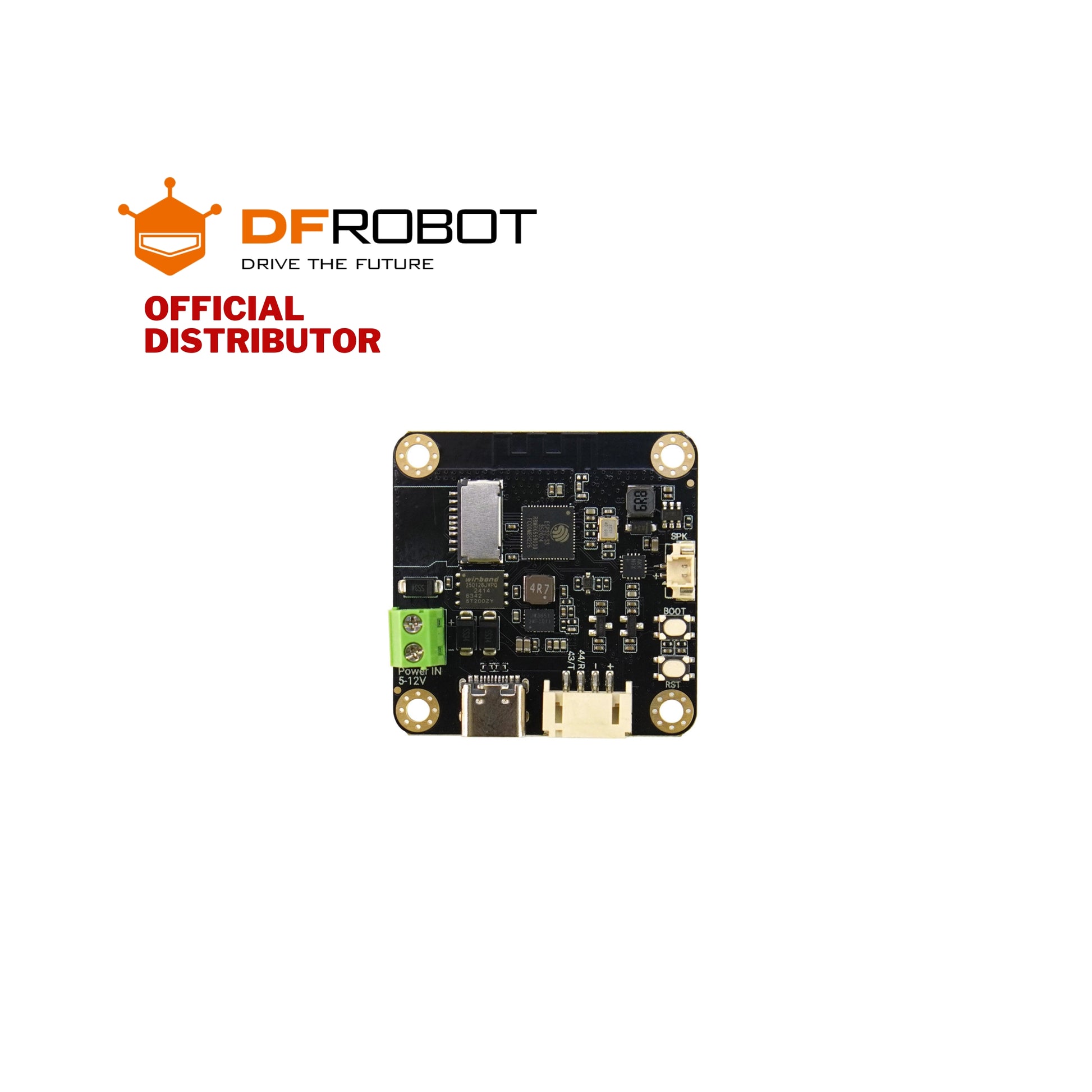

Functional Indicators

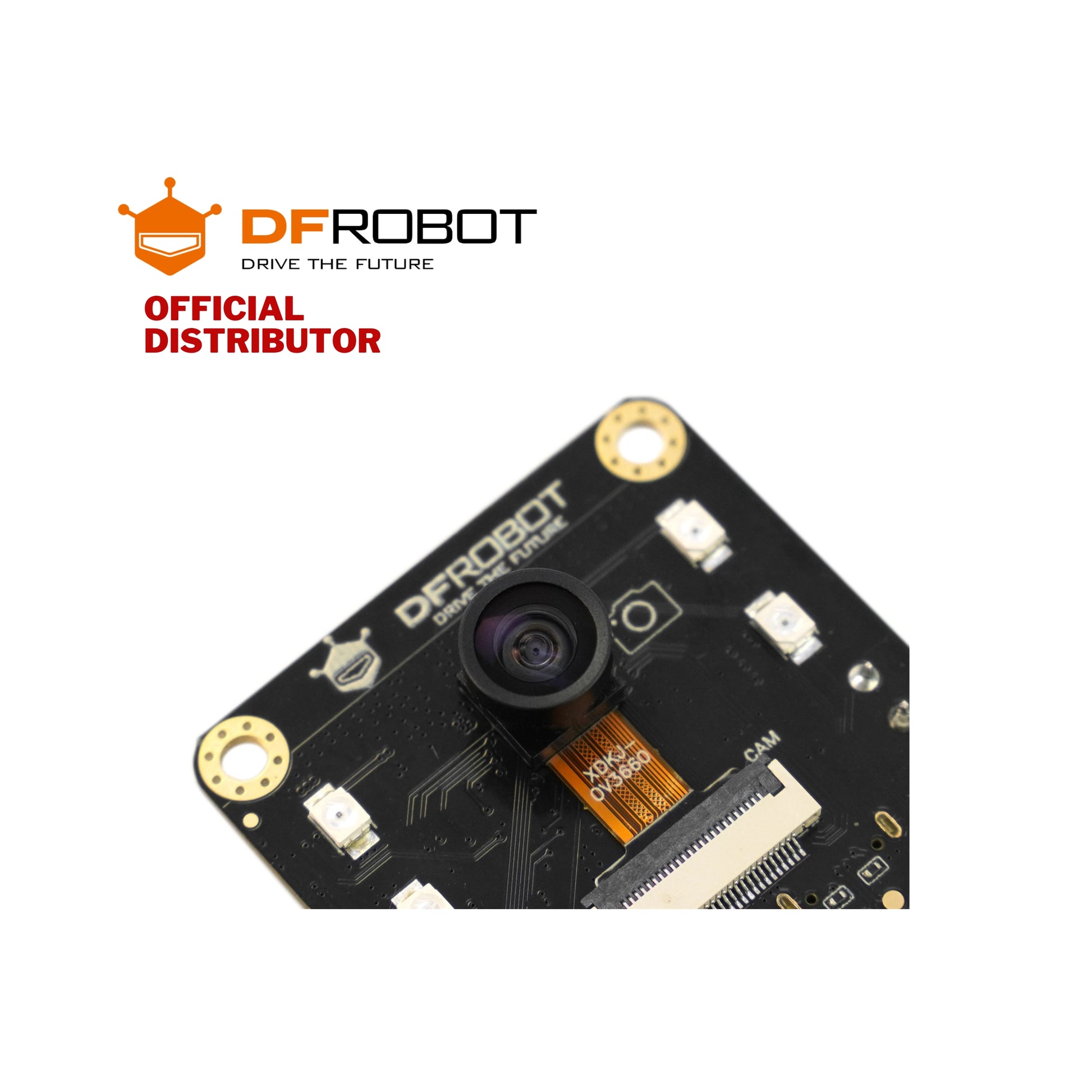

  • OV3660: 160° wide-angle infrared camera
  • IR: Infrared illumination (IO47)
  • MIC: I2S PDM microphone
  • LED: Onboard LED (IO3)
  • ALS: LTR-308 ambient light sensor
  • ESP32-S3: ESP32-S3R8 chip
  • SD: SD card slot
  • Flash: 16MB Flash
  • VIN: 5-12V DC input
  • HM6245: Power chip
  • Type-C: USB Type-C interface for power and code uploading
  • Gravity
              +: 3.3-5V
              -: GND
              44: IO44/TX
              43: IO43/RX
  • RST: Reset button
  • BOOT: BOOT button (IO0)
  • SPK: MX1.25-2P speaker interface
  • MAX98357: I2S amplifier chip

Camera Specifications

  • Sensor Model: OV3660
  • Pixels: 2 Megapixels
  • Sensitivity: Visible light, 940nm infrared
  • Field of View: 160°
  • Focal Length (EFL): 0.95
  • Aperture (F/No.): 2.0±5%
  • Distortion: ＜8%

Documents:

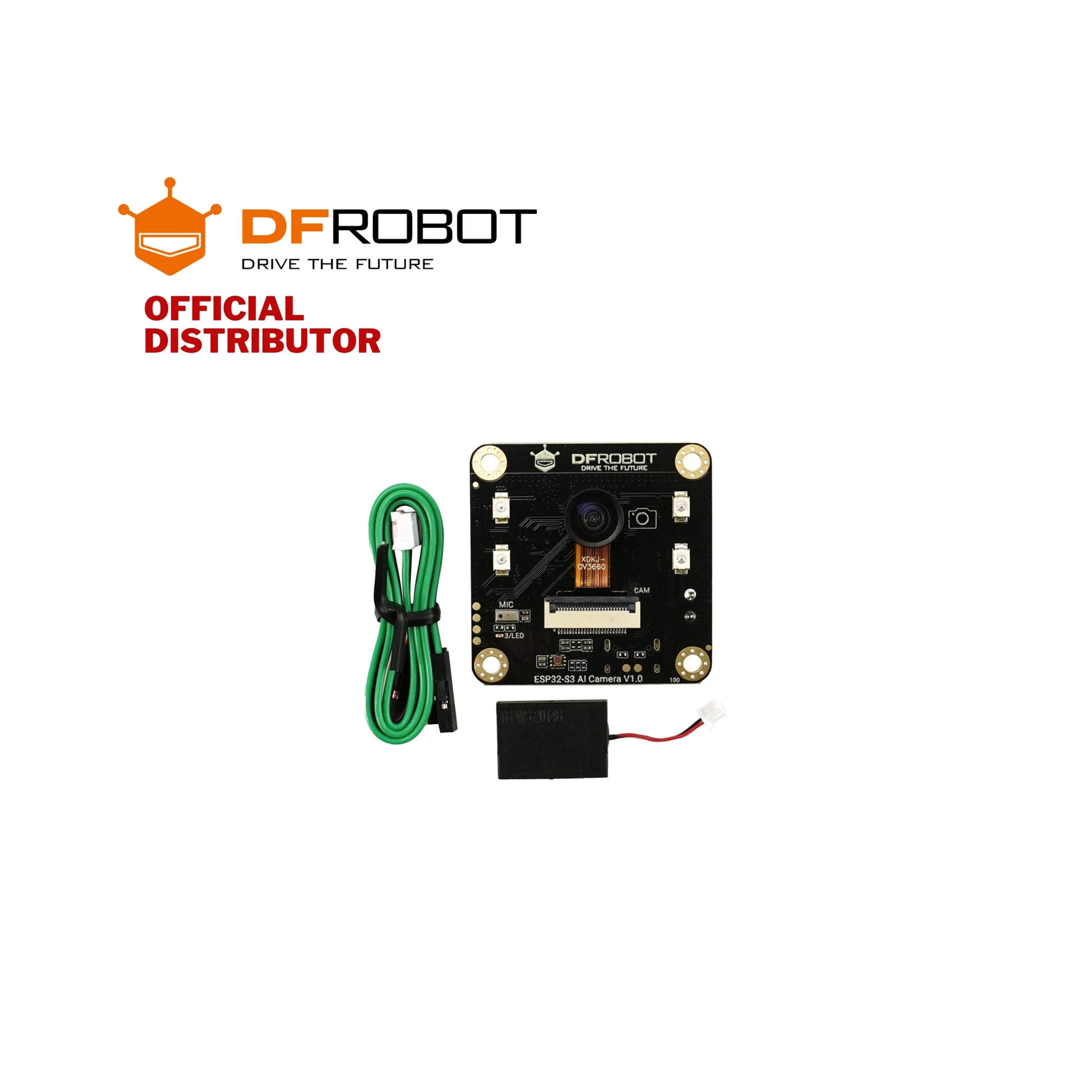

Part List:

  • ESP32-S3 AI CAM development board (with camera) x1
  • Speaker x1
  • Gravity-4P I2C/UART sensor connection cable x1
