Esun HT100 High Temperature Magpie Grey 3D Printer Resin

Description:

The eSun HT100 High Temperature Resin in Magpie Grey is a high-performance UV-curing resin designed for applications demanding superior heat resistance, rigidity, and dimensional stability. Once printed and fully post-cured with heat treatment (typically in an oven at 150∘C for 30 minutes), this resin exhibits an extremely high thermal deformation temperature, making it suitable for functional prototypes and end-use parts in high-heat environments. Its high hardness, strength, and precision also make it a popular choice for specialized applications in dental and mechanical fields.

Features:

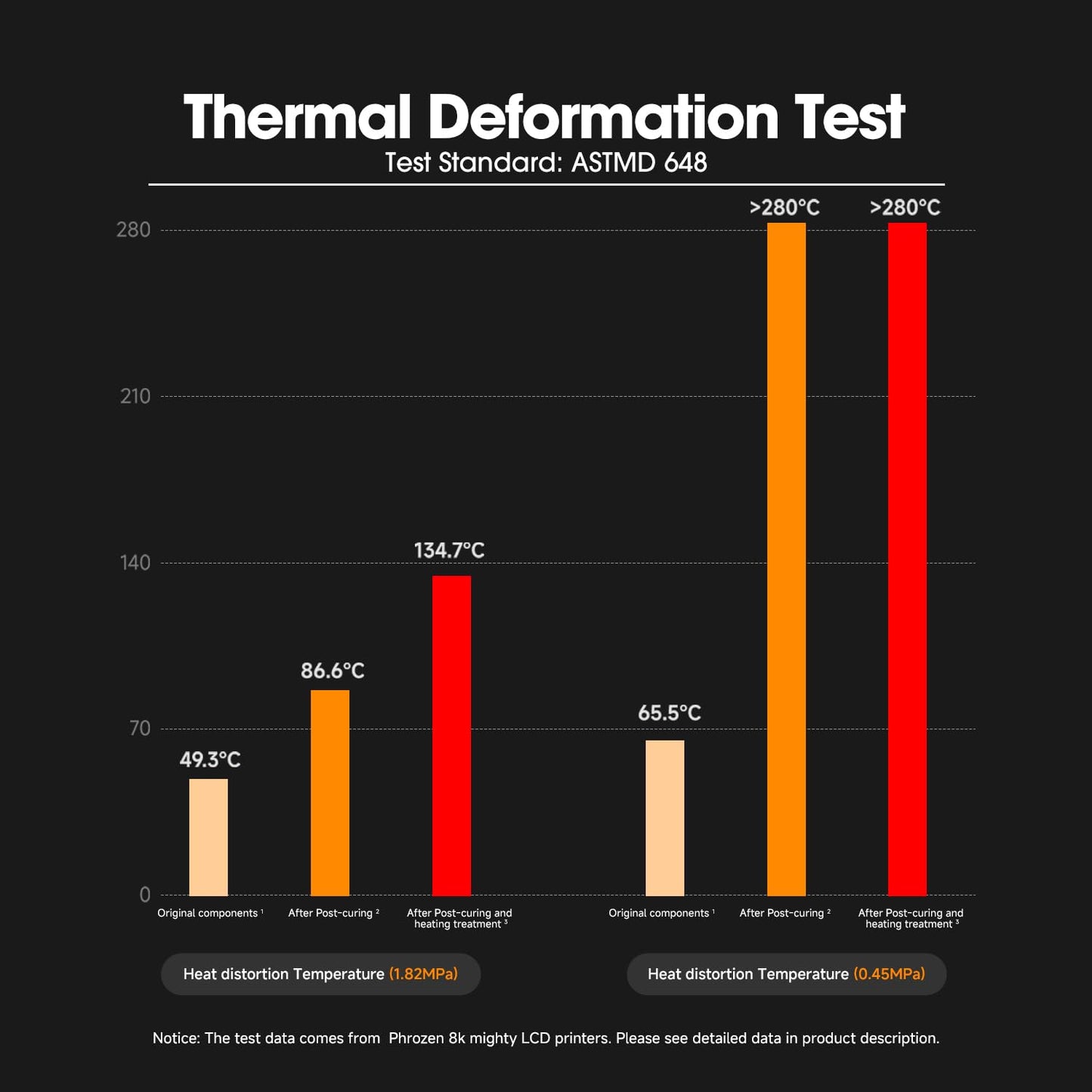

Exceptional High Temperature Resistance: Thermal deformation temperature can reach over 280∘C at 0.45MPa after post-curing and heating treatment.
High Mechanical Properties: Offers high hardness, high strength, high modulus, and high rigidity.
High Precision and Detail: Achieves excellent molding effect with high accuracy and resolution, resulting in smooth and delicate model surfaces.
Stable Physical Properties: Fully cured material has stable mechanical properties, weather resistance, and temperature resistance, ensuring high thermal stability.
Professional for LCD: Optimized for LED light sources (405nm UV) used in LCD/DLP 3D printers for better printing quality.
Color and Net Weight: Magpie Grey, 0.5kg and 1kg net weight.

Specifications:

Density: 1.09−1.10 g/cm 3
Viscosity: 180−220 mPa⋅s or 650 mPa⋅s
Hardness (Shore D): 82−84
Heat Distortion Temp (HDT) at 0.45MPa: >280 ∘C
Tensile Strength: 70−85 MPa or 53.3 MPa
Flexural Strength: 95−105 MPa or 92.7 MPa
Elongation at Break: 35−40% or 6.4%
Application Fields: Mechanical, Dental, Automobile, Engineering

Safety Data Sheet

Esun HT100 High Temperature
