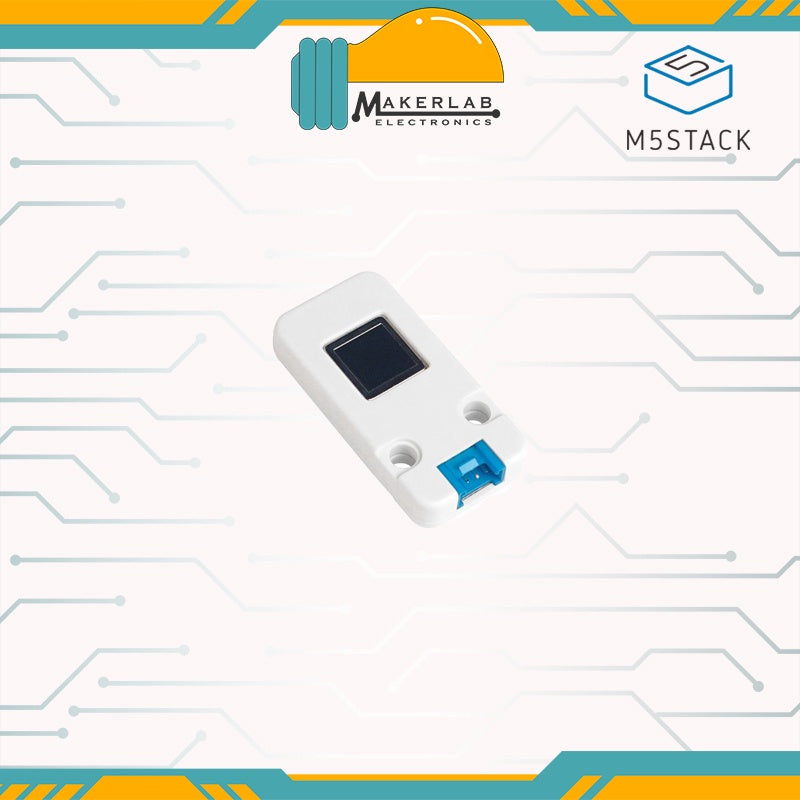

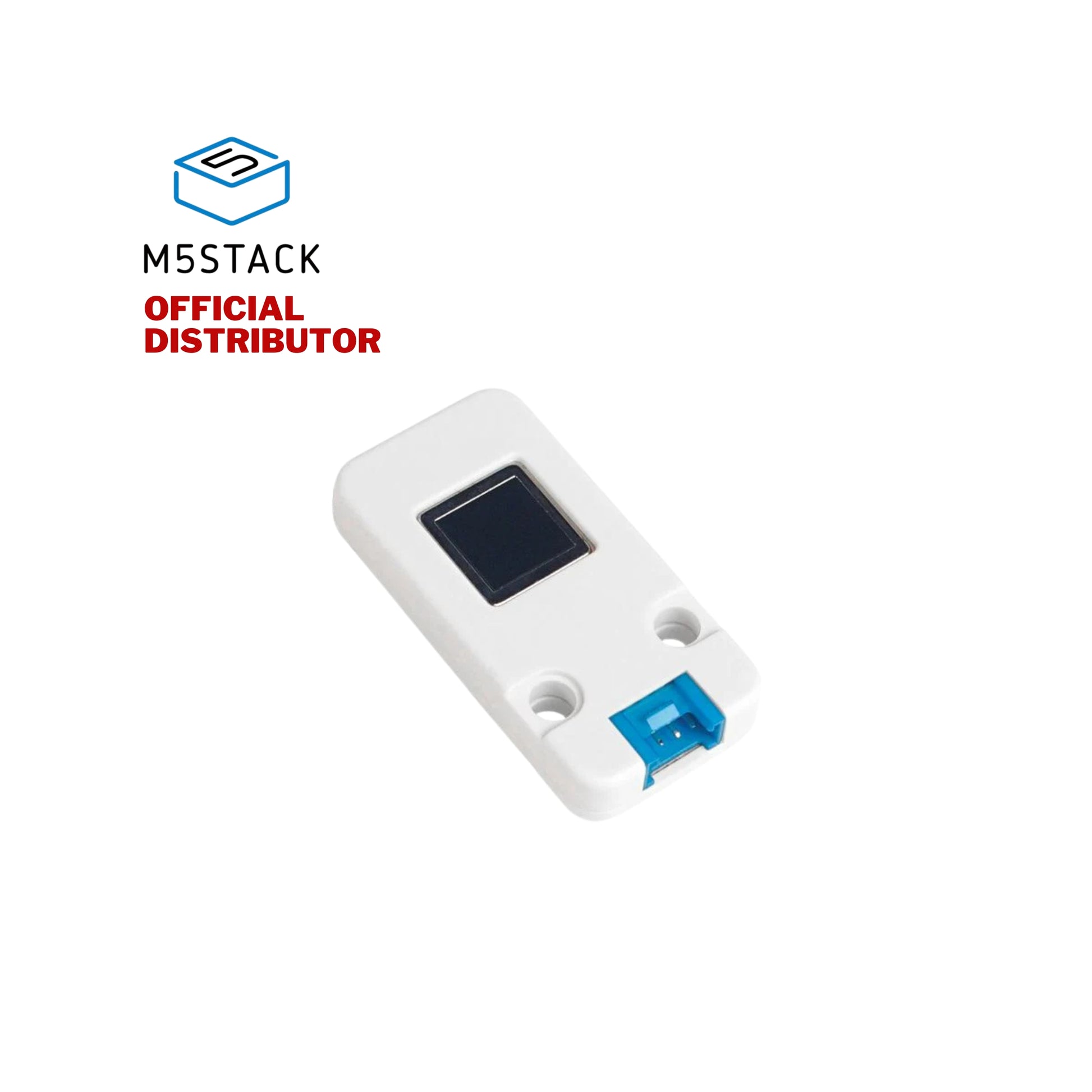

M5Stack Finger Print Unit (FPC1020A)

Description:

FINGER is a fingerprint recognition sensor designed to provide reliable and convenient biometric fingerprint recognition capabilities. It features the integrated FPC1020A capacitive fingerprint recognition module, which enables functions such as multi-fingerprint enrollment, image processing, feature extraction, fingerprint matching, and searching.

Utilizing the UART communication protocol, FINGER ensures secure and efficient data transmission. Its compact design and low-power operation make it suitable for various projects, offering both reliable security levels and optimal user convenience. If you are looking to incorporate biometric fingerprint recognition into your project and require a stable and dependable mechanism for enrollment, verification, and management, FINGER Unit provides an excellent solution.

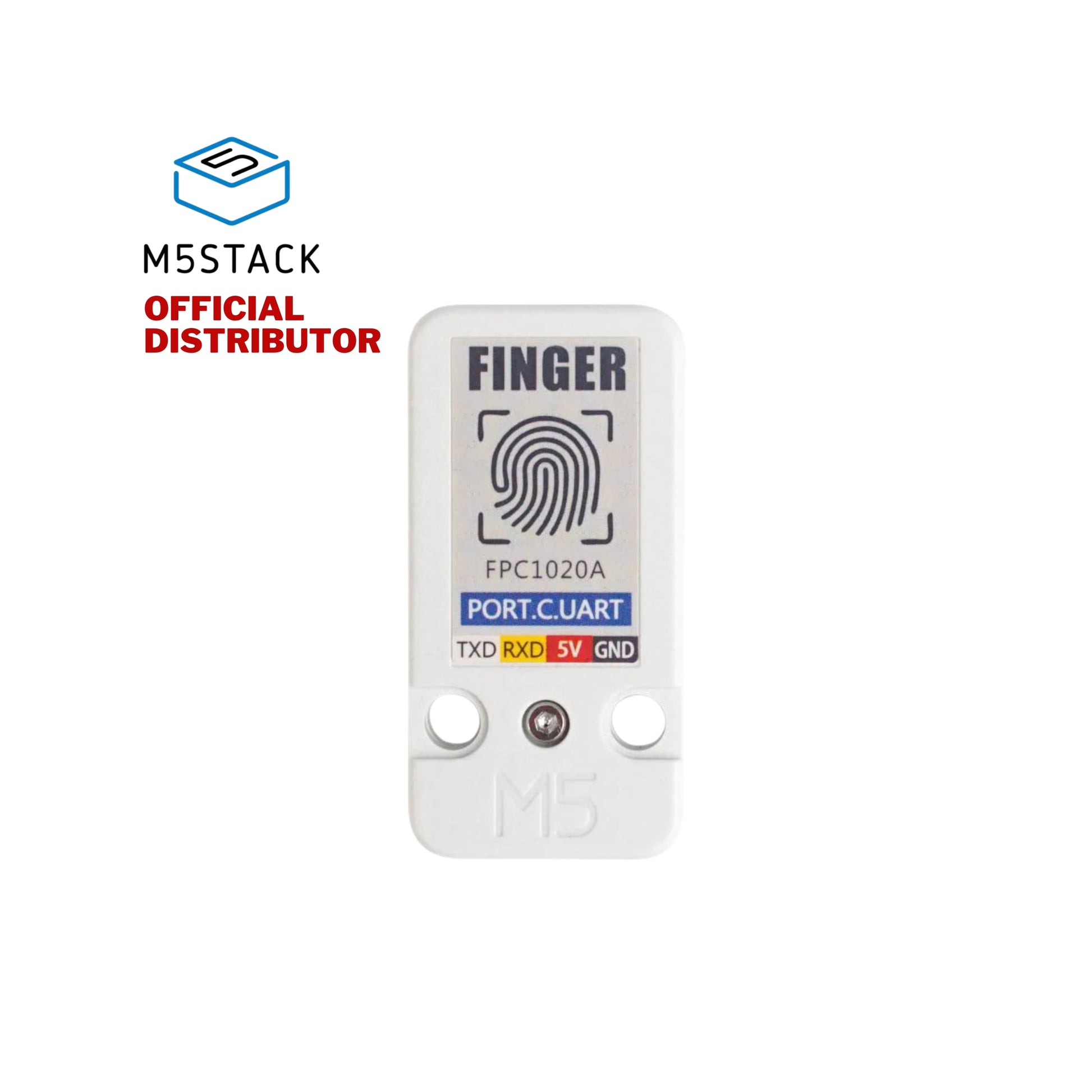

To use FINGER, simply connect it to PORT C, and it will communicate with the M5Core device via UART protocol.

UART settings:

• Baudrate(default: 19200bps)
• Start bits(1 bit)
• Stop bits(1 bit)
• Parity(no)

Features:

• Use capacitive area array semiconductor fingerprint sensor
• Each pixel of the sensor has a pixel quality of 256 gray levels
• 1: N recognition and 1: 1 verification function
• Support finger 360 rotation recognition
• Fingerprint comparison and search function

Specifications:

• Product Code: U008
• Fingerprint capacity: 150
• Security level: 0-9, default 5
• Output format: User name, image, feature value
• Characteristic value size: 193Byte
• Communication method: UART (9600-115200)
• Working temperature: -10 °C-60 °C
• Relative humidity: 20% -80%
• Net weight: 7g
• Gross weight: 20g
• Product Size: 48*24*8mm
• Package Size: 67*53*12mm

Applications:

• Fingerprint Attendance Machine
• Fingerprint Locker

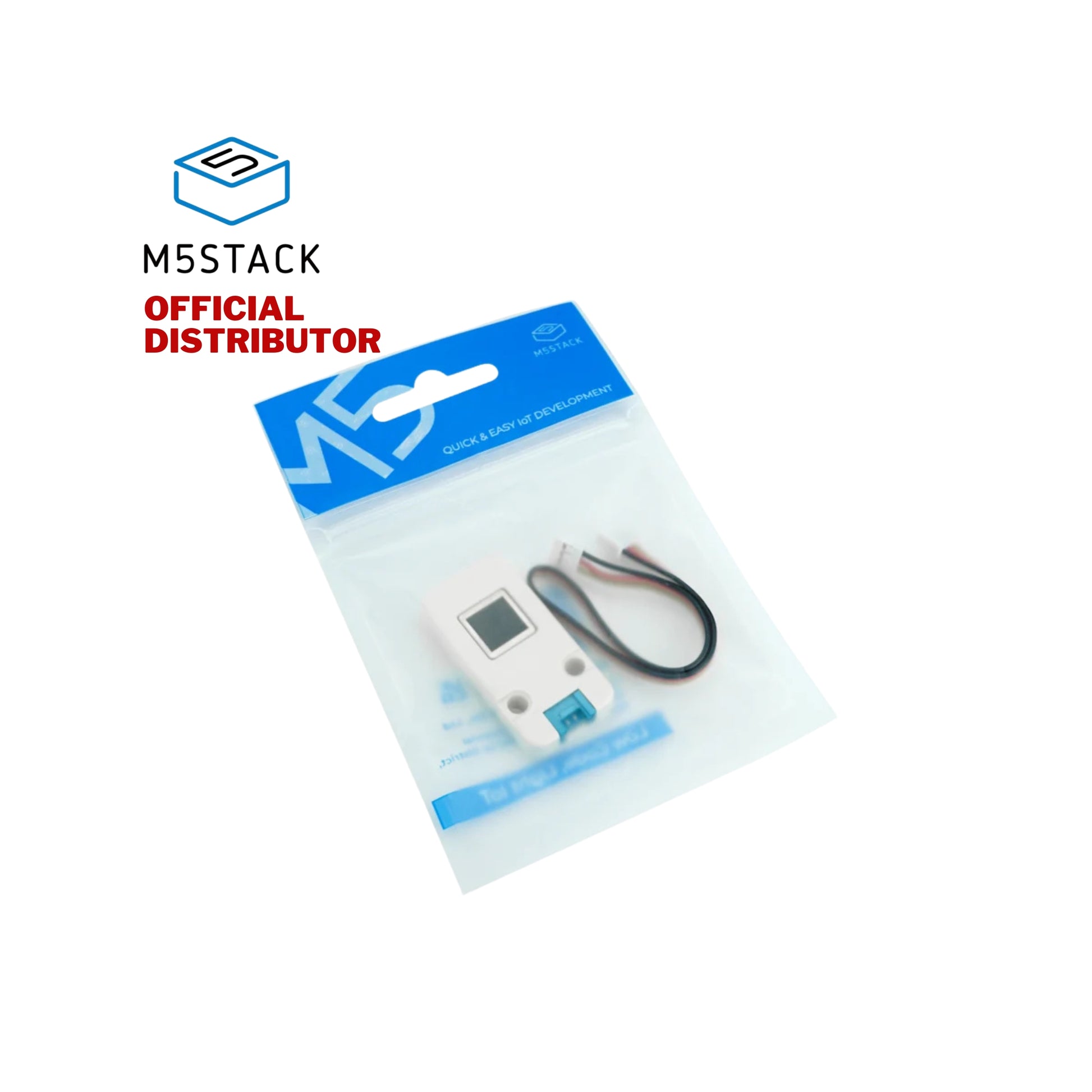

Part List:

• 1x FINGER Unit
• 1x Grove Cable
