DFRobot Gravity: Analog AC Current Sensor (5A) | SEN0287
₱1,200.00
₱1,200.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
//www.makerlab-electronics.com/cdn/shop/files/MLE01256_2_medium.jpg?v=1749000142
05:42 AM
Couldn't load pickup availability
Product Description
Description:

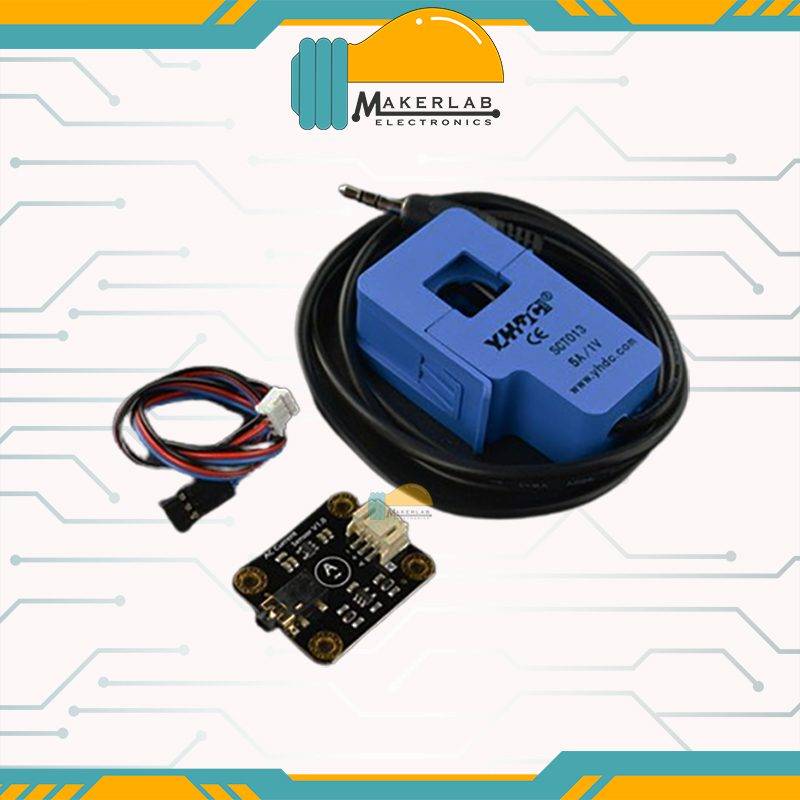

When you want to measure the AC current, are you still having trouble cutting the wires, wiring or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits. Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value. The analog output is designed to be compatible with 3V3/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.

Gravity: Analog AC Current Sensor connection diagram (Arduino UNO)
Measure and display household appliances AC current
Features:
- Non-contact measurement, high safety
- Multiple ranges for various measurement scenarios
- Compatible with 3V3/5V micro-controller
Applications:
- AC motor automatic monitoring
- Lighting and electrical equipment measurement
Specifications:
- AC Current Signal Conversion Module
-
- Input Voltage (VCC): 3.3V-5.5V
- Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.2-2.8V DC)
- AC Voltage Input Range: 0-1V (AC RMS)
- Relative Error: ±4%
- Dimension: 32 × 27 mm /1.26 × 1.06 in
- Weight: 5 g
- Open Type AC Transformer Probe
-
- AC Current Range: 0-5 A
- Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-5A
- Accuracy: ±1%
- Non-linearity: ≤±0.2%
- Frequency Range: 50Hz ~ 1kHz
- Cable Length: 1 m
- Working Temperature: -25 ℃ ~ +70 ℃
- Opening Size: 13 × 13 mm / 0.51 × 0.51 in
- Weight: 50 g
Documents:
Part List:
- AC Current Signal Conversion Module x1
- Open Type AC Transformer Probe (5A) x1
- Gravity-3P Analog Sensor Cable x1
