SKU:MLE01080

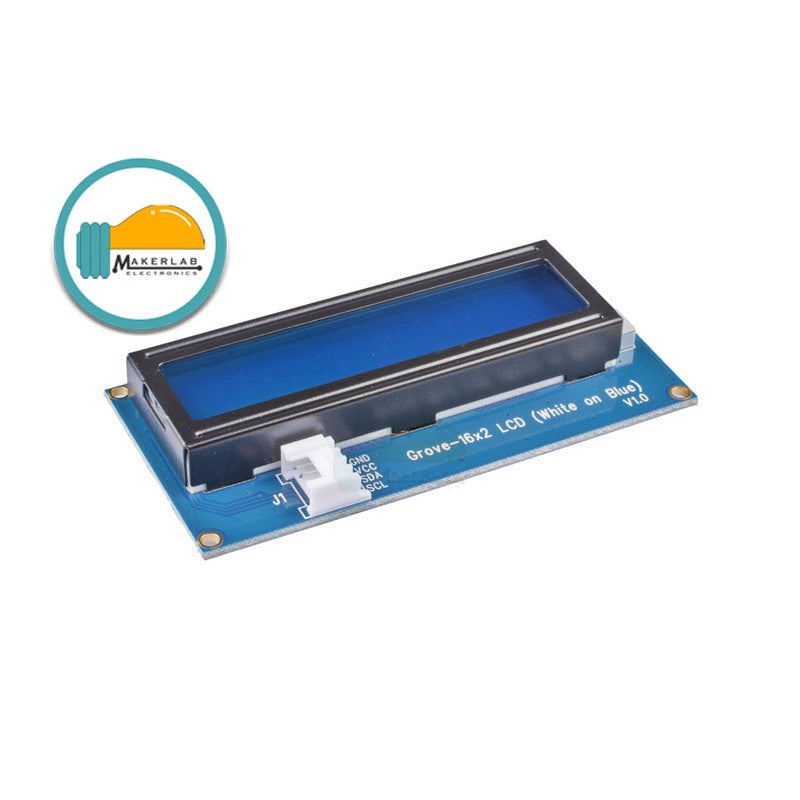

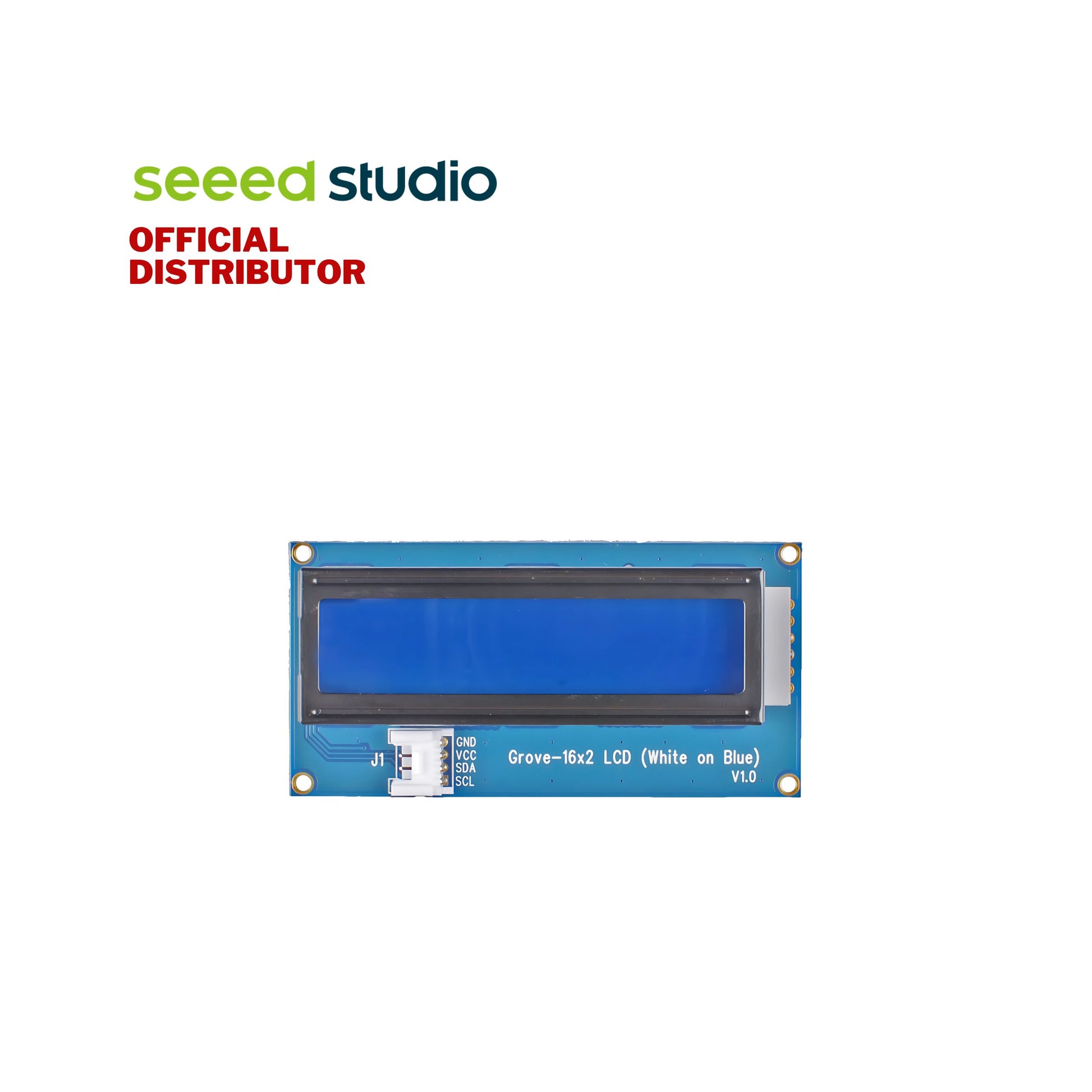

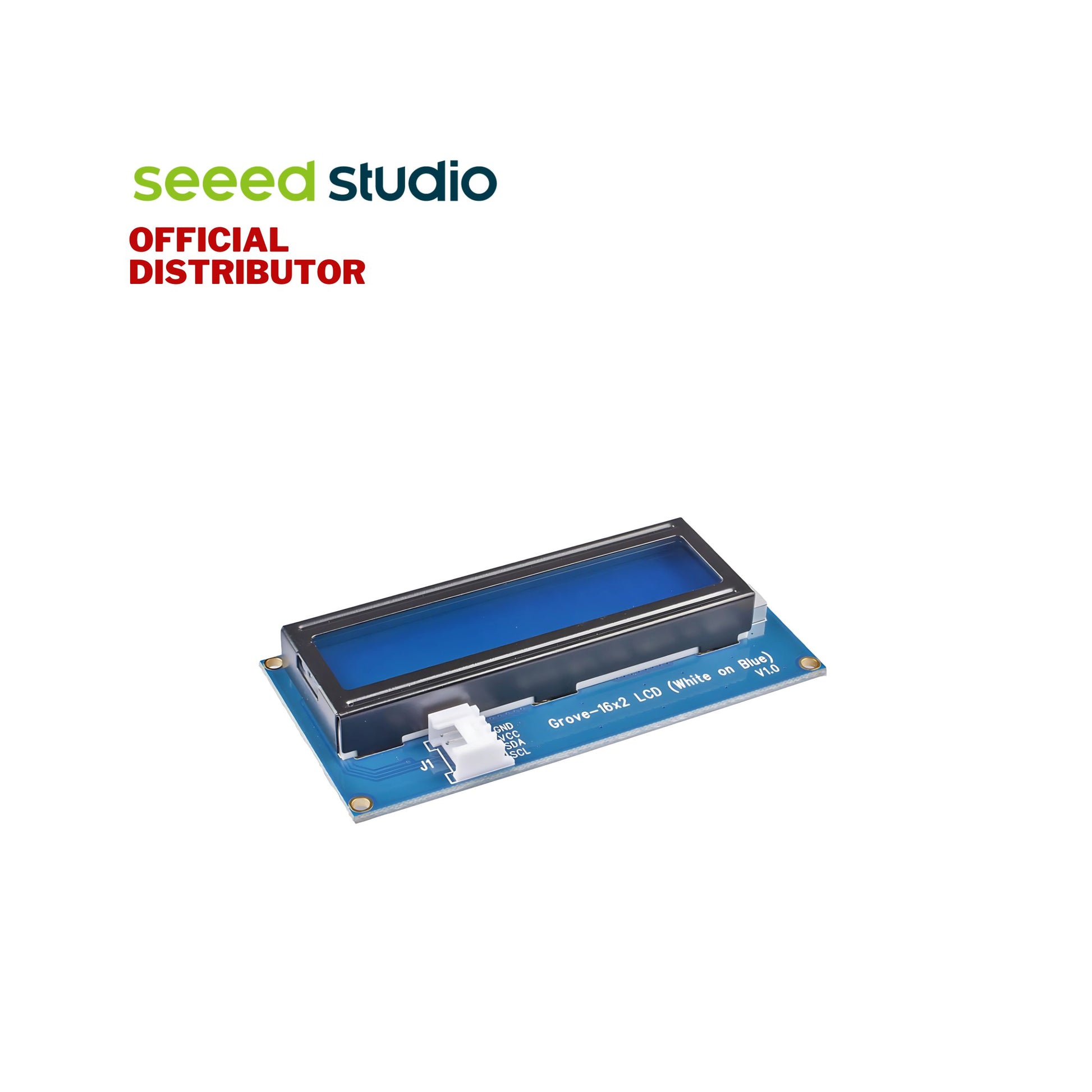

Grove - 16x2 LCD (White on Blue)
₱179.00
₱179.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
//www.makerlab-electronics.com/cdn/shop/files/MLE01080_2_medium.jpg?v=1749089308
06:30 PM
Couldn't load pickup availability
Product Description
Description:
The Grove - 16 x 2 LCD is a perfect I2C LCD display for Arduino and Raspberry Pi with high contrast and easy deployment. 16x2 means it's a display that covers two lines, and each line has 16 columns, having 32 characters in total. With the help of the Grove I2C connector, only 2 signal pins and 2 power pins are needed. You don't even need to care about how to connect these pins. Just plug it into the I2C interface on Seeeduino or Arduino/Raspberry Pi+ base shield via the Grove cable. There won't be complicated wiring, soldering, or worrying about burning the LCD caused by the wrong current-limiting resistor.
Features:
High-Quality Display Panel: Using an STN panel, which is high yield, relatively inexpensive, and ideal for use in scenarios with strong and fast response times for screen transitions.
Accommodates a Large Number of Characters: The display construction is 16 Characters * 2 Lines.
Multiple Language Support: Includes the English, Japanese, and Greek alphabets.
Grove Unified Socket: The product ensures "Plug and Play" and could be versatile for various applications.
Specifications:
Dimensions: 40mm x 80mm x 13mm
Weight: 42.9g
Operating Voltage: 3.3V / 5V
Operating Temperature: 0 to 50℃
Storage Temperature: -10 to 60℃
Driving Method: 1/16 duty, ⅕ bias
Interface: I2C
I2C Address: 0X3E
Application:
- Temperature Display
- Time Display
- Any project that requires a simple display
Documents:

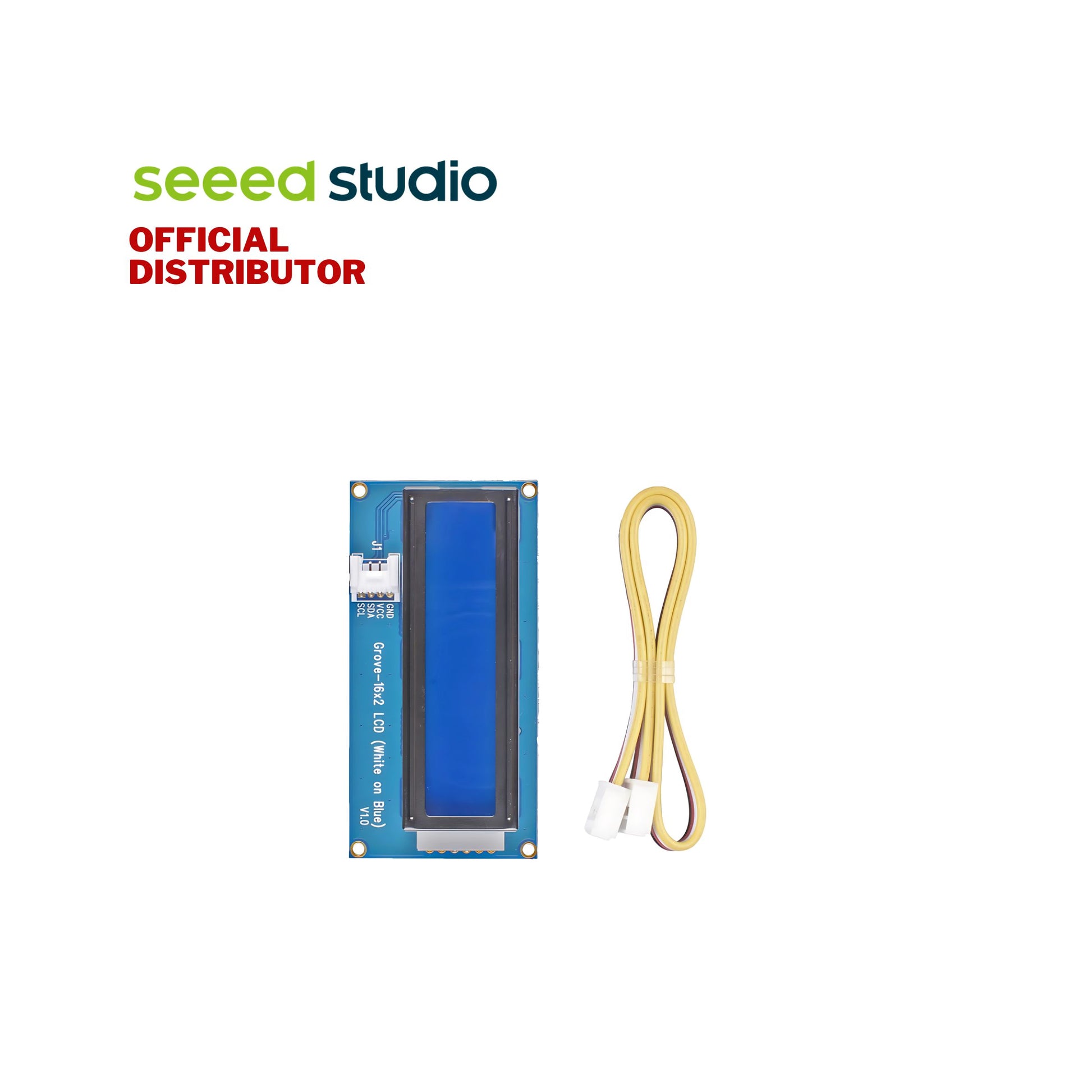

Part List:
1x Grove - 16x2 LCD (White on Blue)
1x Grove Cable
