Description:

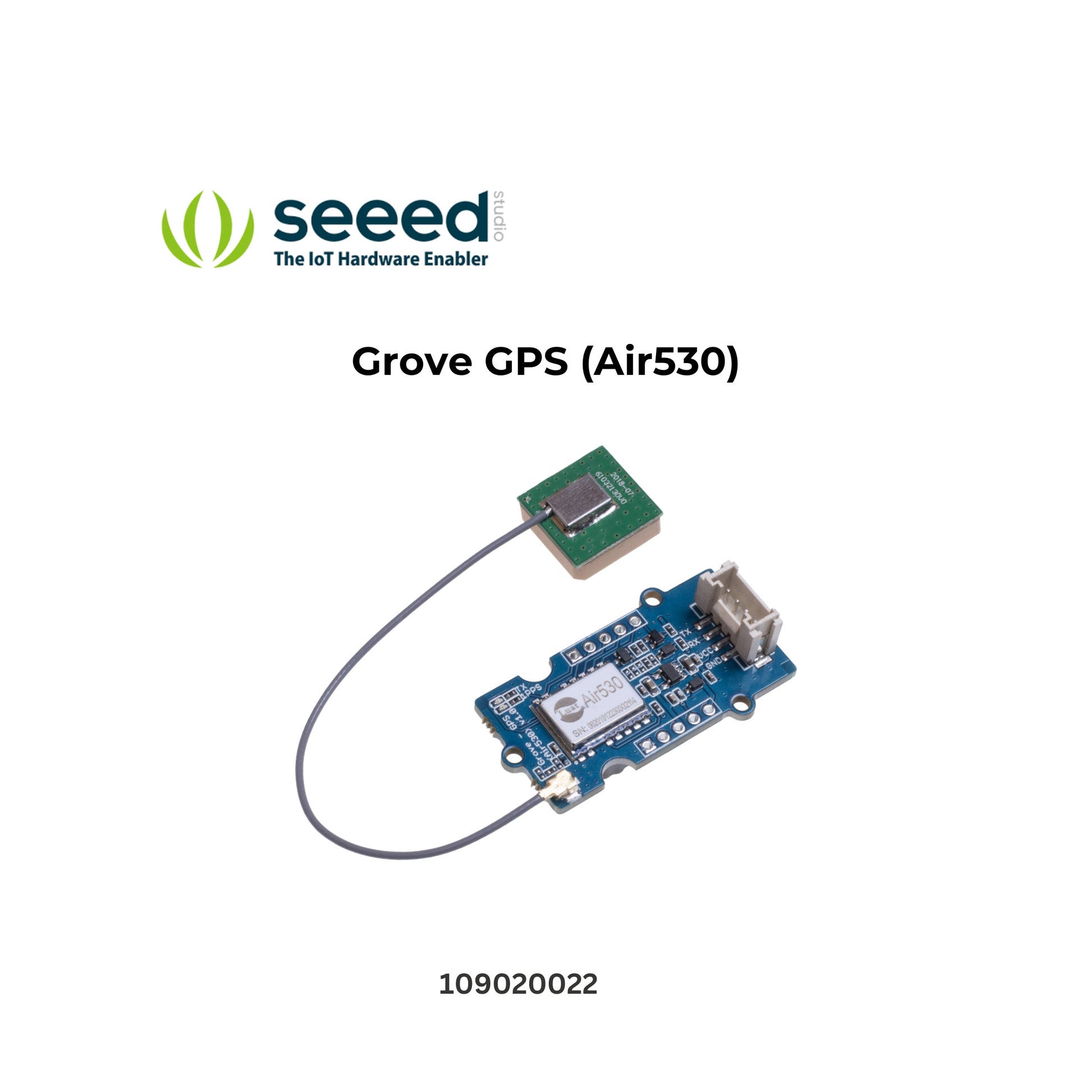

Confused about your GPS not working well in urban areas or outside under only one or a few satellite modules? Then you should not miss our new Grove-GPS (Air530). The Grove-GPS (Air530) is a high-performance, highly integrated, multi-mode satellite positioning and navigation module to use with Arduino. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drones. Meanwhile, this module is capable of receiving more than 6 satellites at the same time and can work excellently even if there's a very bad signal.
Features:
Highly Integrated Multi-mode Satellite Positioning: Multi-mode satellite positioning and navigation support more than 6 satellites at the same time.
High precision Positioning: Positioning error within 10 meters, and the position is still quickly and accurately under the condition of a bad signal.
The Integrated Design of RF Baseband: Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC-based chip, RAM, FLASH storage, RTC, and power management functions.
Low Power Consumption: Low power consumption at only 31uA.
High Compatibility: Compatible hard/soft interface for other modules.
Specifications:
Size: 40mm x 20mm x 13mm
Baud Rate: 9600 – 921600
Supply Voltage: 3.3V/5V
Working Current: up to 60mA
Interface: UART
Time of Warm Start: 4s
Time of Cold Boot: 30s
Working Temperature: -35°C - 85°C
Storage Temperature: -55°C - 100°C
Humidity: 5%-95%
Time of Positioning
-
Pure Hardware Cold Start: 27.5s
-
Pure Hardware Hot Start: <1S
-
Pure Hardware Recapture: <1S
-
Software-Assisted A-GNSS: <5S
Sensitivity
-
Cold Start: -148 dBm
-
Hot Start: -162 dBm
-
Recapture: -164 dBm
-
Track: -166 dBm
Accuracy
-
Horizontal Positioning Accuracy: 2.5m
-
High Positioning Accuracy: 3.5m
-
Speed Accuracy: 0.1m/s
-
Time Transfer Accuracy: 30ns
Consumption
-
Capture Current Value@3.3V: 42.6mA
-
Tracking Current Value@3.3V: 36.7mA
-
Ultra Low Power Mode@3.3V: 31uA

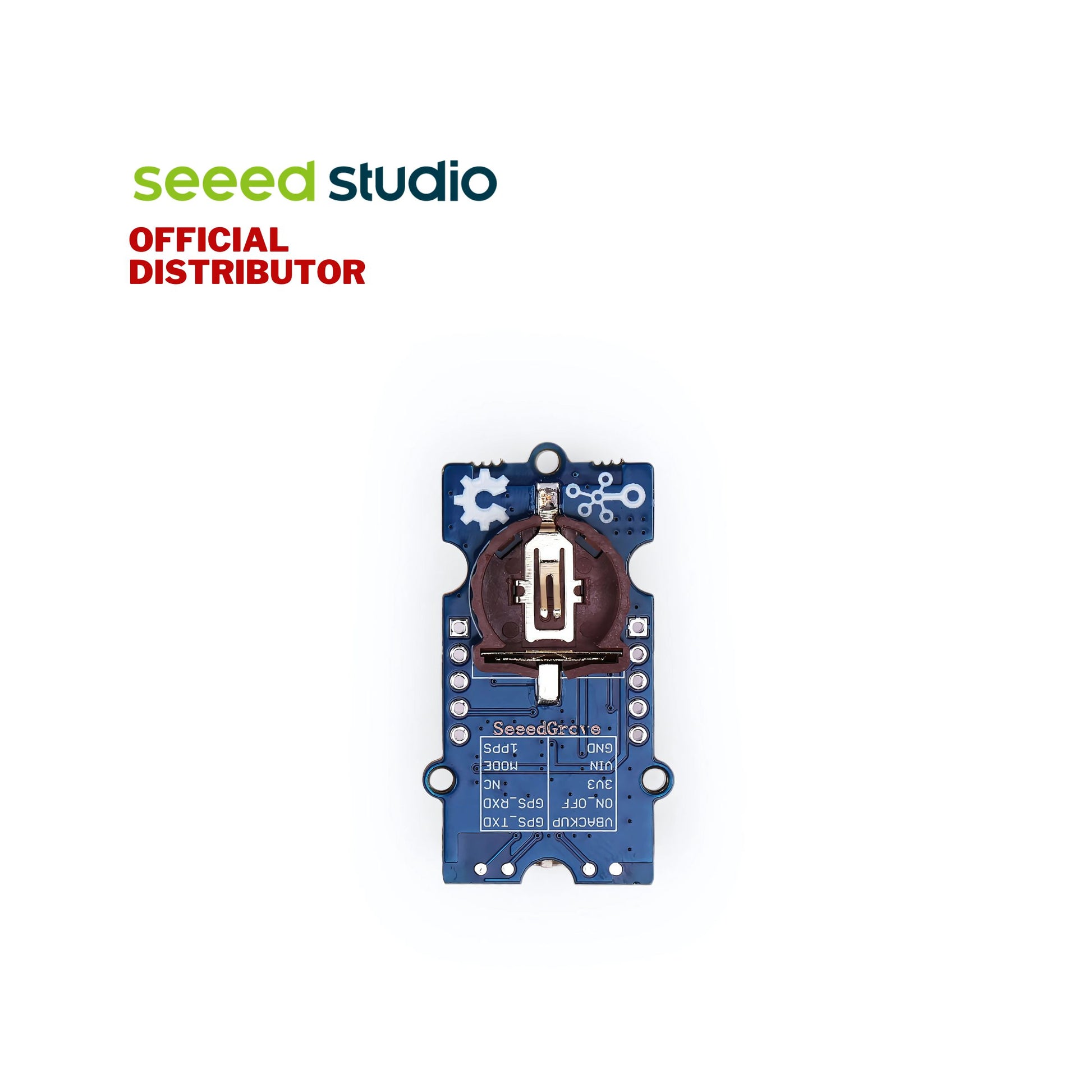

Pinout Diagram:
Application:
- GPS tracker
- GPS navigation
- Distance measurement
- Car navigation
- Drone
Cautions:
- The input power supply voltage of the Grove power supply interface should not exceed 5.6V, otherwise, it may damage the device.
- The voltage of the selected button battery should not exceed 3V, or it will probably damage the device.
Part List:
1x GPS (Air530)
1x Grove - Cable
