SKU:MLE01073

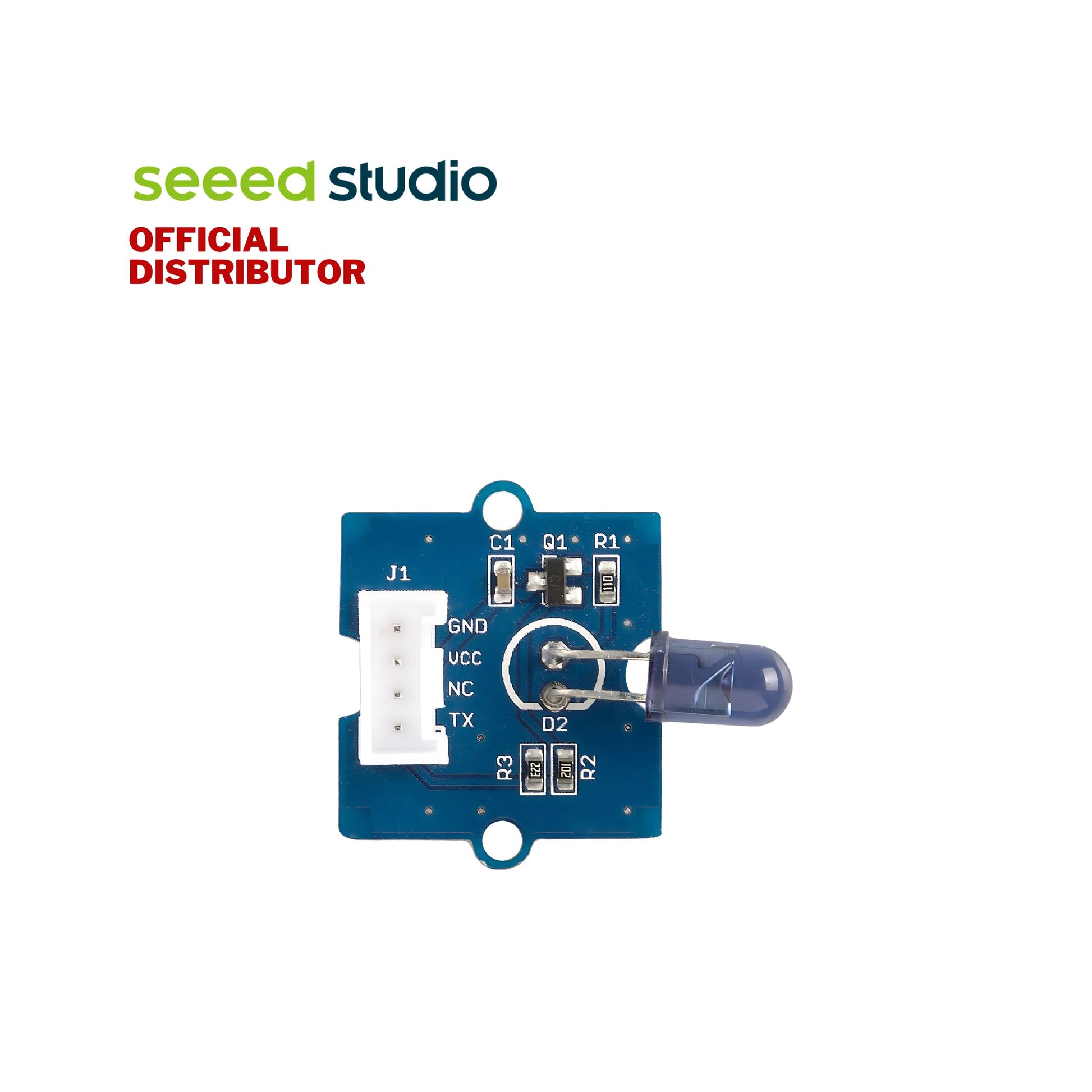

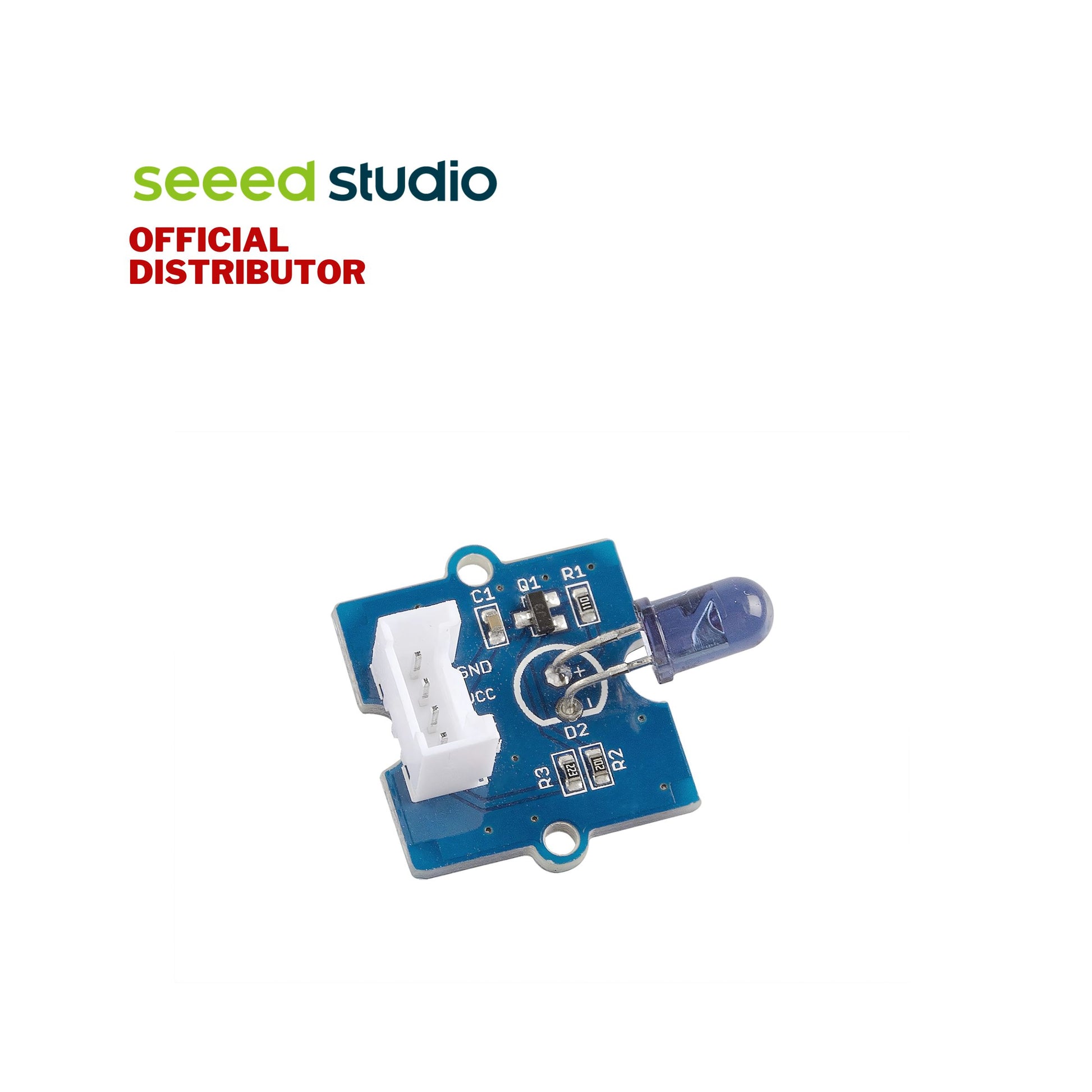

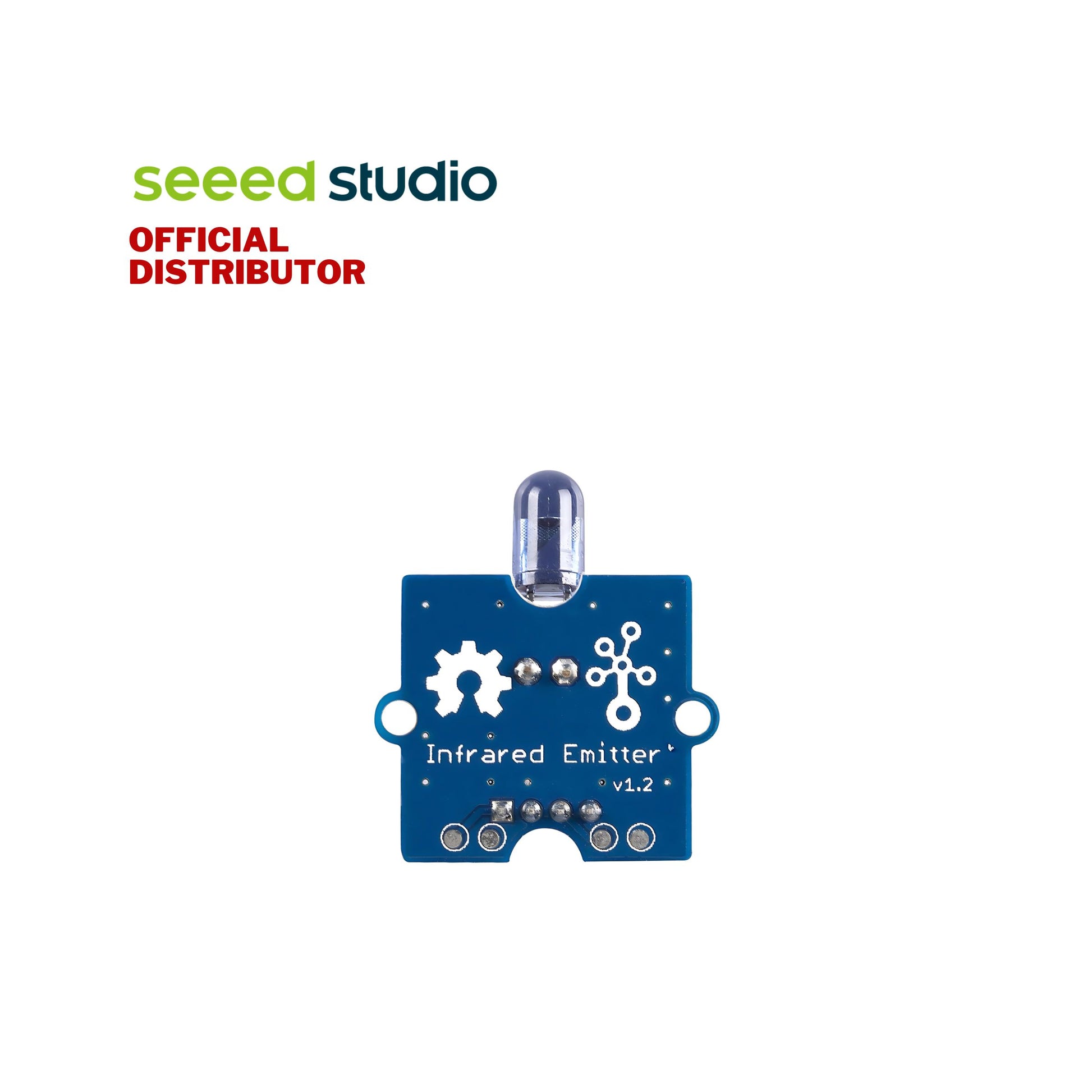

Grove - Infrared Emitter

₱299.00
₱299.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Loading locations...
Product Description

Description:

The Grove - Infrared Emitter is used to transmit infrared signals through an infrared LED, while there is an Infrared receiver to receive the signals on the other side. An infrared LED is like any other LED, with its color centered around 940nm. We can use the emitter not only to transmit data or commands, but also to emulate remotes to control your home appliances using an Arduino. The Infrared Emitter can transmit reliable signals up to 10 meters. Beyond 10 meters, the receiver may not get the signals.


Features:

  • High reliability
  • High radiant power
  • High radiant intensity
  • Low forward voltage
  • Suitable for high pulse current operation
  • Good spectral matching with Si photodetectors


Specifications:

Dimensions: 20mm x 20mm x 18mm
Weight: G.W. 9g
Operating Voltage: 3.3/5V
Package Type: Leaded
Package Form: T-1¾
Dimensions (in mm): Ø 5
Peak Wavelength: λp = 940 nm
Angle of Half Intensity: ϕ = ± 17°
Radiant Intensity: 72 mW/sr
Operation Temperature: -40℃ to +80℃
Distance: 10 meters (max.)


Application:

  • Infrared remote control units with high power requirements
  • Free air transmission systems
  • Infrared source for optical counters and card readers


Documents:


Part List:

1x Grove - Infrared Emitter
