MLE01055

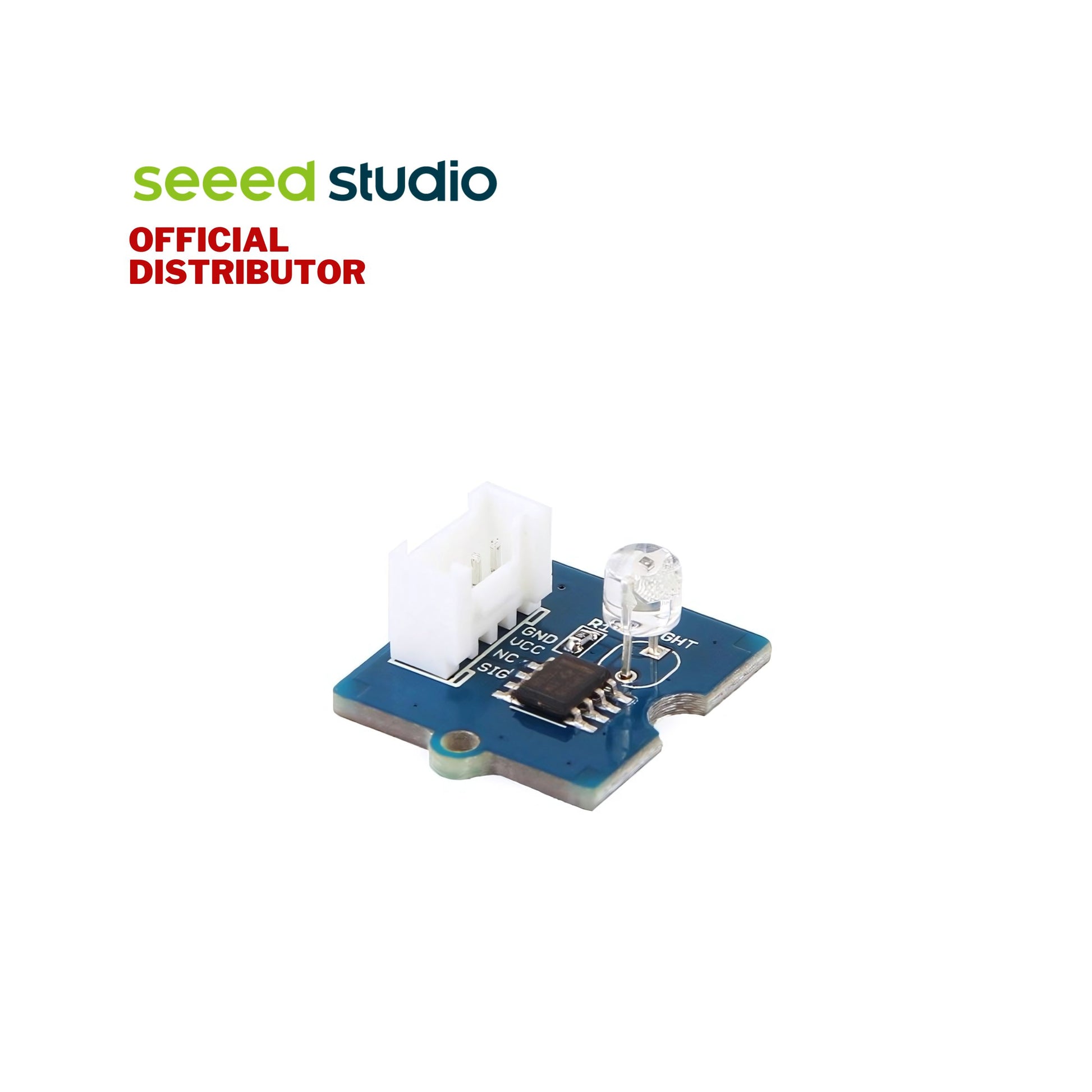

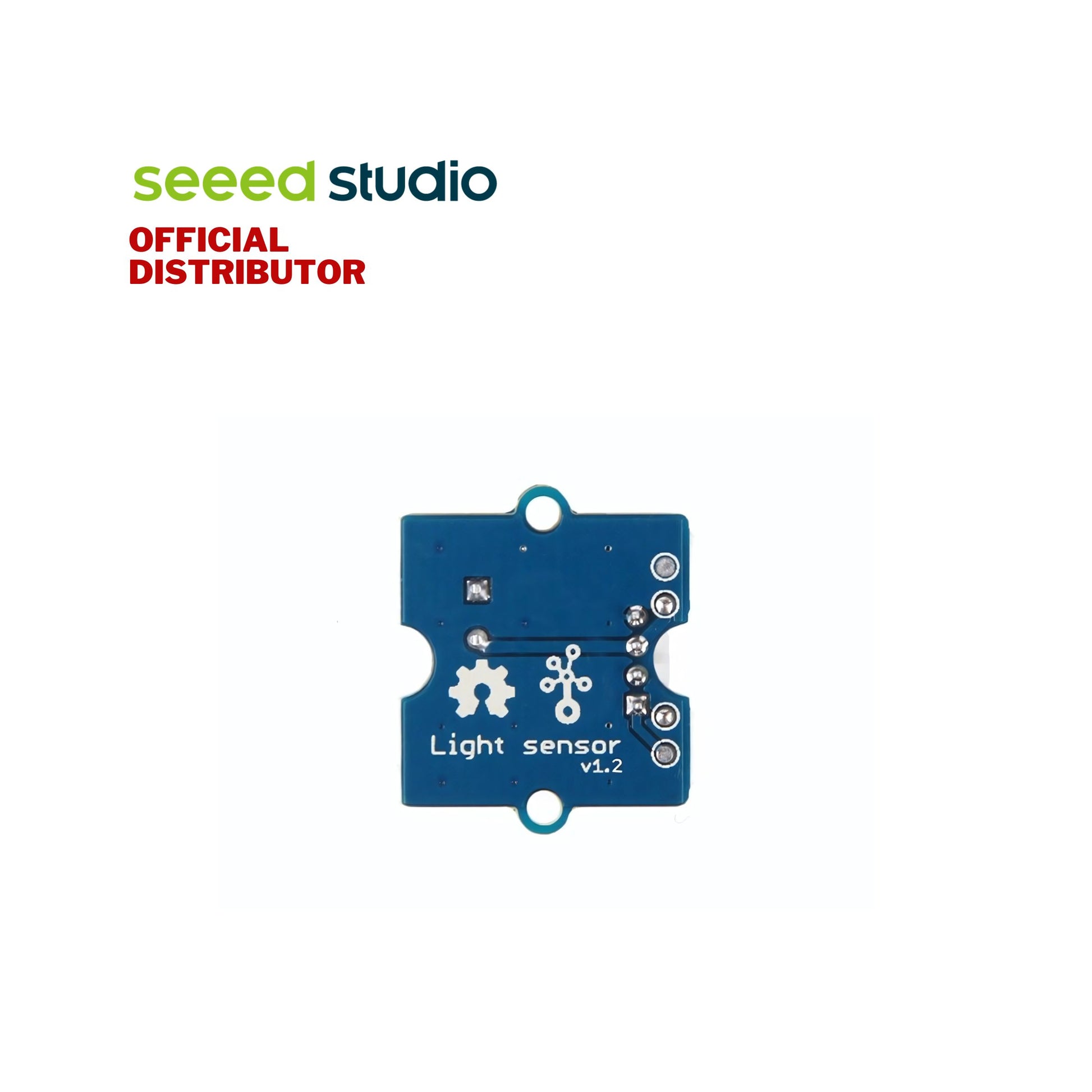

Grove - Light Sensor v1.2

₱119.00
₱119.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

The Grove - Light Sensor v1.2 is an updated version of Grove - Light Sensor 1.0. It is an analog module and can output various electrical signals, which can be converted to different ranges (It depends on the Analog-to-Digital Converter on your controller board. For example, it can output 0-255 for an 8-bit ADC). It is a perfect Arduino light sensor module for light measurement, light detection, and a light-controlled switch.

Compared with Grove - Light Sensor 1.0, the Grove - Light Sensor v1.2 is also aimed at measuring light levels, but with higher reliability and sensitivity. It replaced the traditional LDR GL5528(light-dependent resistor) with an LS06-S photoresistor, a highly sensitive and reliable photodiode, to detect the intensity of light in the environment. The resistance of photoresistors decreases when the intensity of light increases. Also, a dual OpAmp chip LM358 on board produces a voltage corresponding to the intensity of light (i.e, based on resistance value). The output signal from this module will be HIGH in bright light and LOW in the dark.

And just like other Grove modules, it is interfaced with the Grove port, which can save you a lot of work in wiring. It will be a perfect choice if you are looking for a plug-and-play Arduino light sensor apart from the traditional LDR Arduino sensor and Arduino photocell sensor.


Features:

Recognize Wider Spectrum: With a light detection range of up to 540 nm, it can detect a much wider spectral range.
Quick Response: Up to 20 ~ 30 milliseconds response time to detect light intensity.
Higher Reliability and Sensitivity: Based on the LS06-S photoresistor, a highly sensitive and reliable photodiode that can quickly detect the intensity of light in the environment.
Low Power Consumption: 3.3/5V Supply, suitable for many microcontrollers and SBCs.
Grove Unified Socket: The sensor ensures "Plug and Play" and could be versatile for various applications.


Specifications:

Dimensions: 20mm x 20mm x 10mm
Weight: G.W. 8g
Operating Voltage (V): 3V - 5V
Operating Current (mA): 0.5mA - 3mA
Response Time: 20 ~ 30 milliseconds
Peak Wavelength: 540 nm
Phototdiode: LS06-S
Input interface: Analog


Application:

  • Light measurement
  • Light detector
  • Light-controlled switch
  • Smart home device

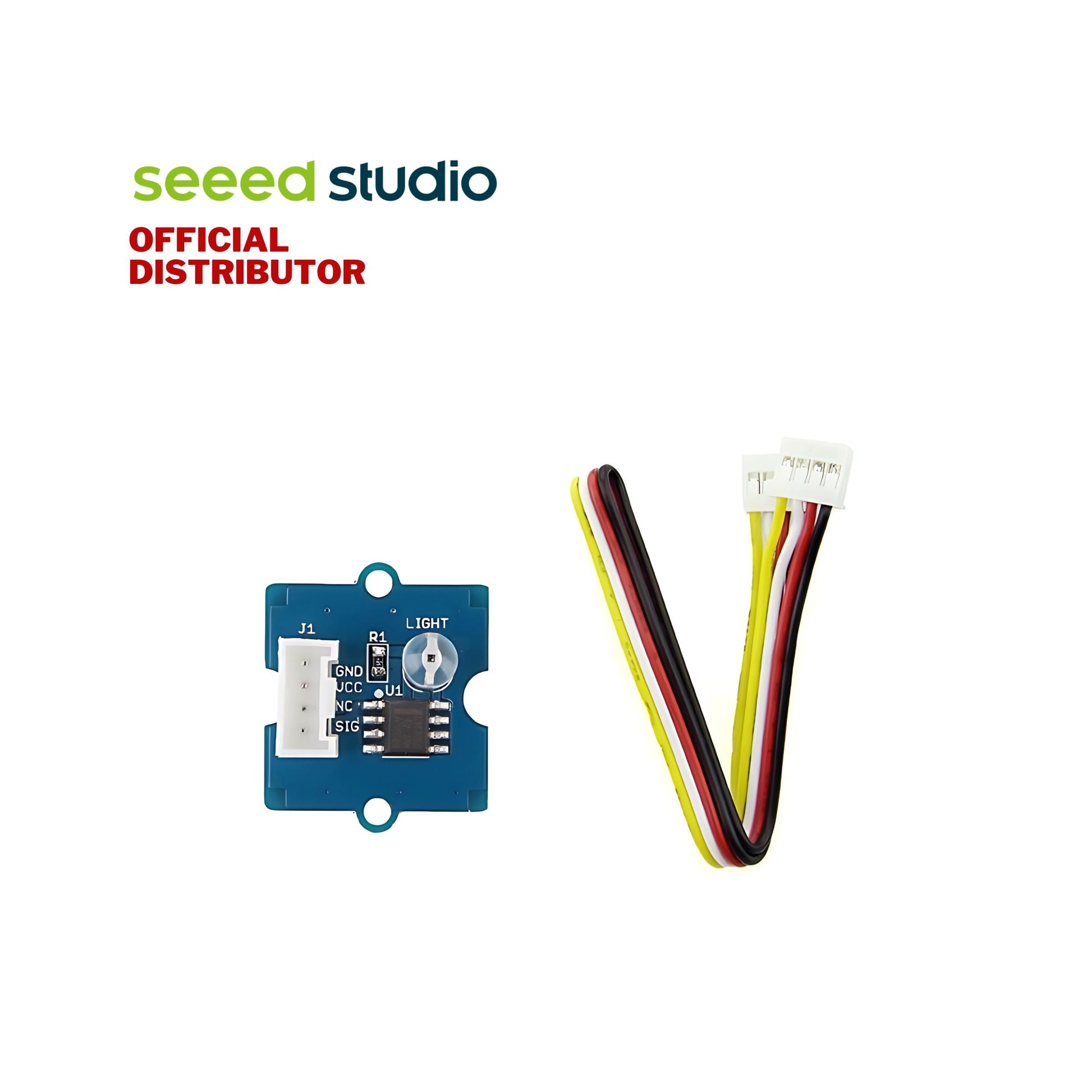

Part List:

1x Grove - Light Sensor v1.2
1x Grove Cable
