SKU:MLE01079

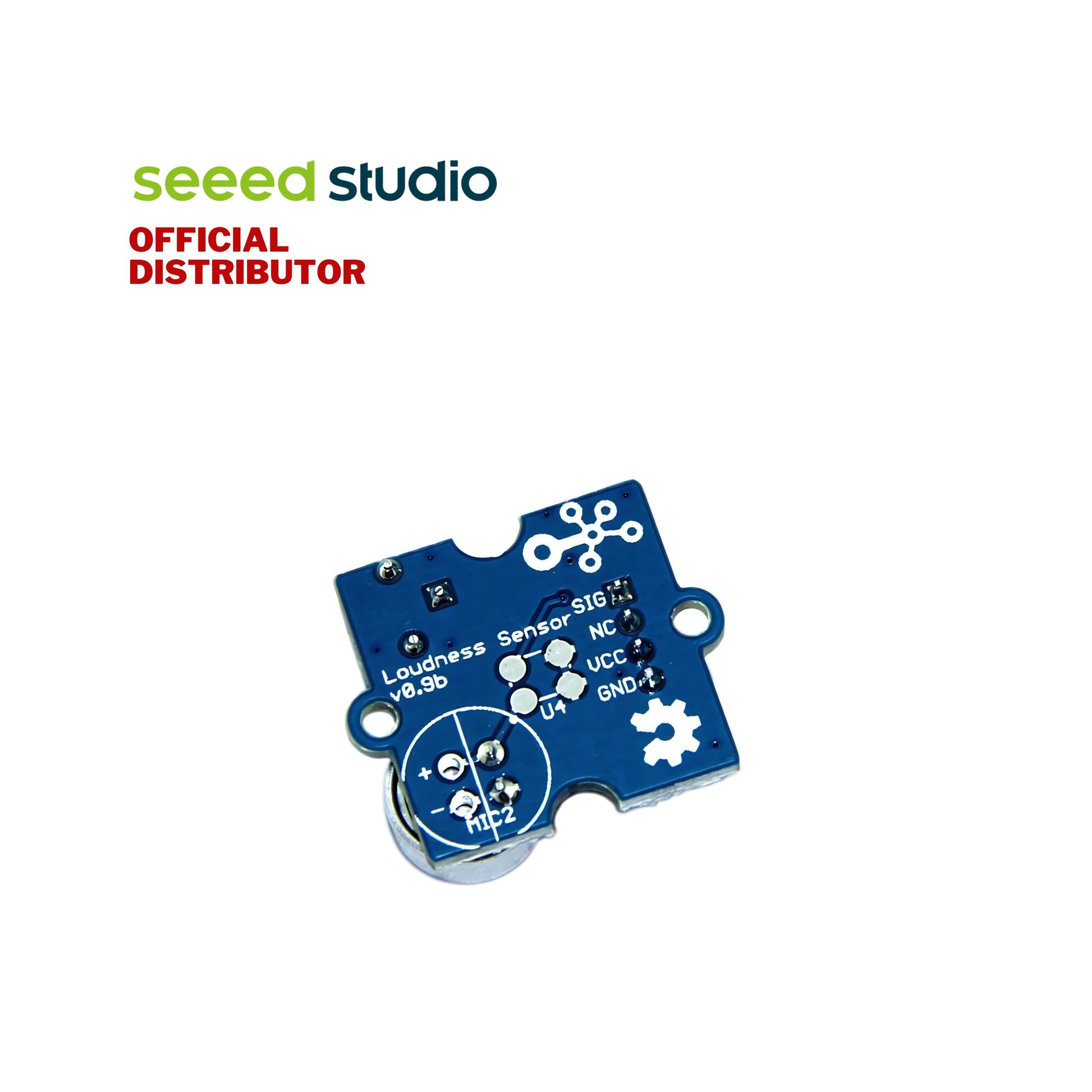

Grove - Loudness Sensor
₱379.00
₱379.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
Couldn't load pickup availability
Product Description
Description:

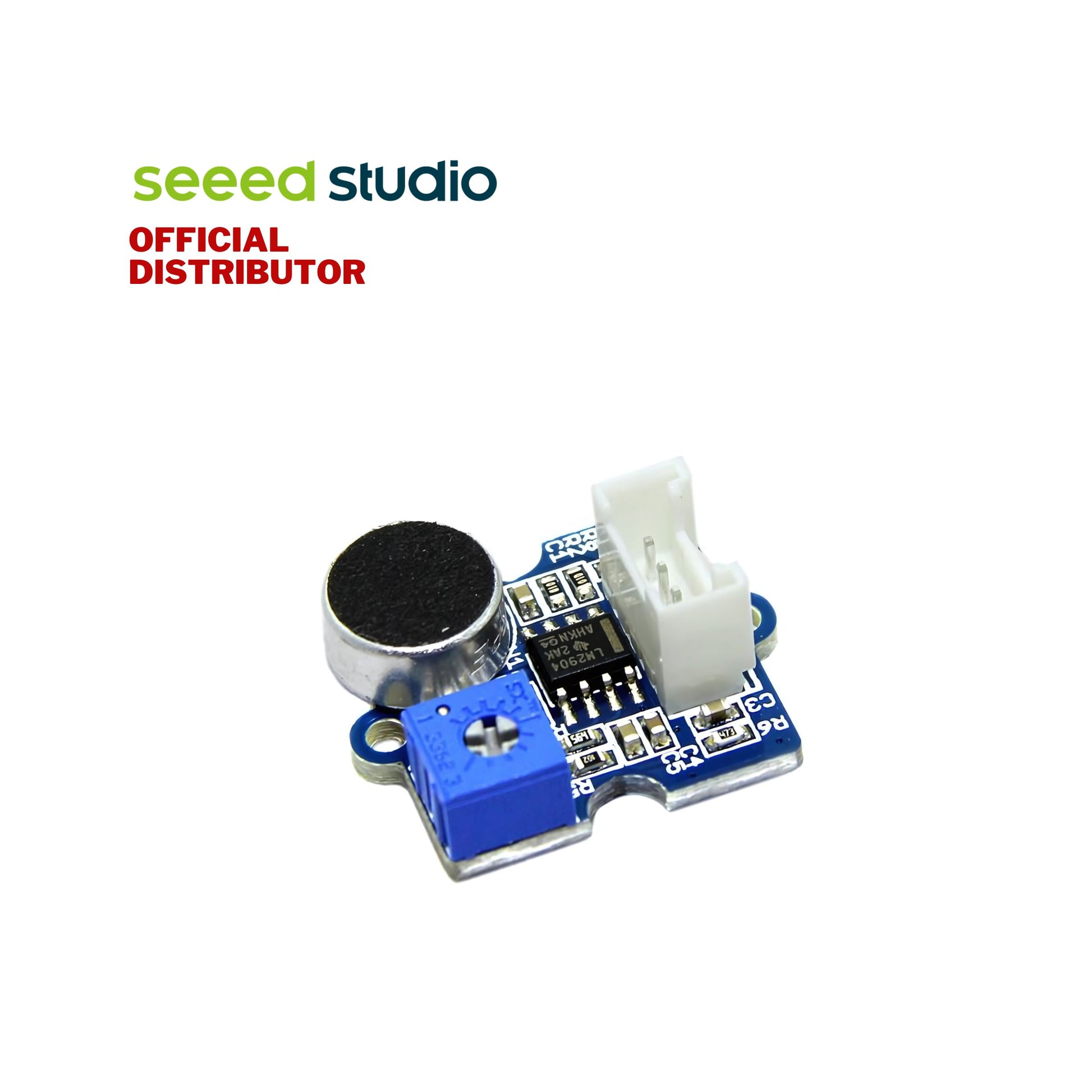

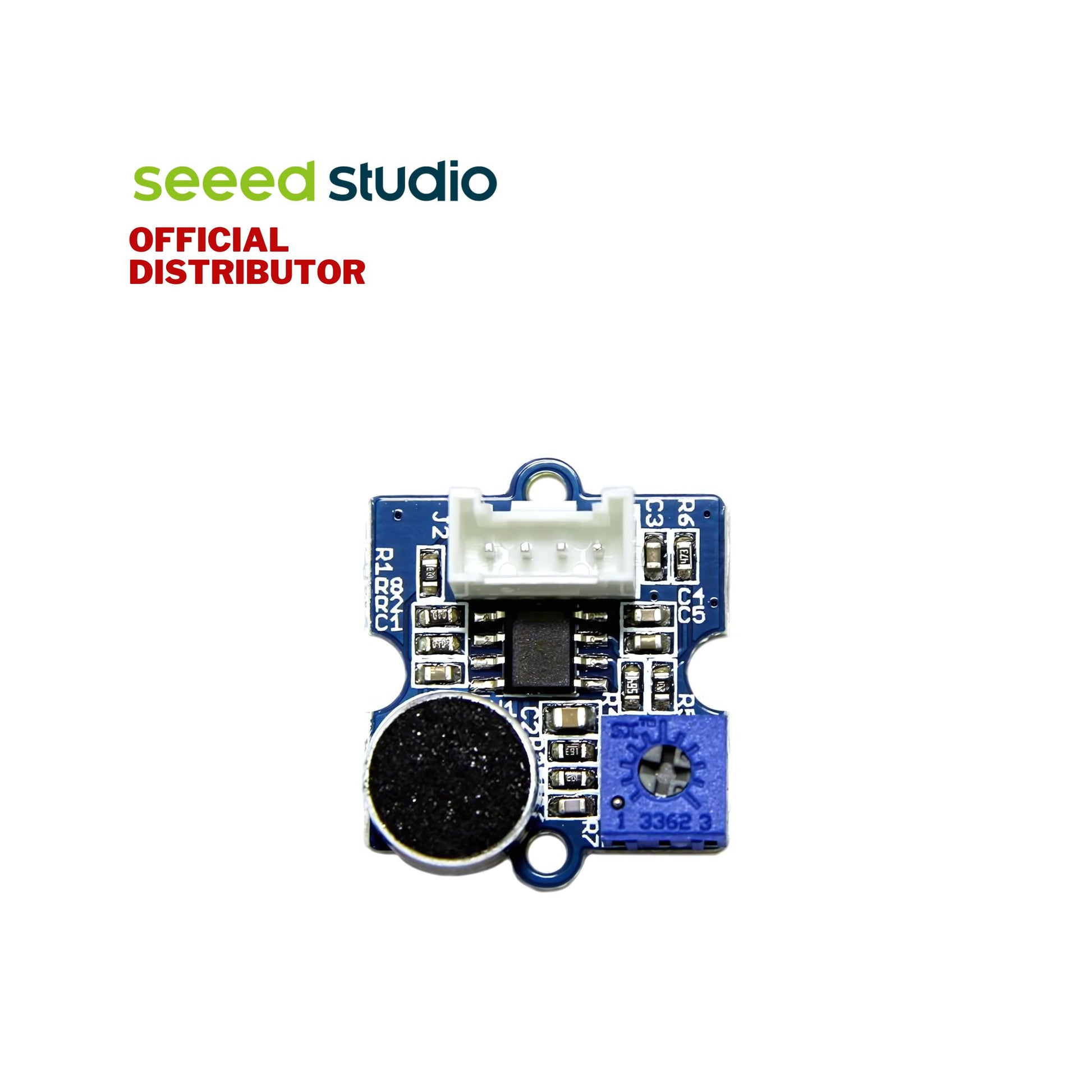

The Grove - Loudness Sensor is designed to detect the loudness of environmental sound. Based on the LM2904 amplifier and with a built-in microphone, it amplifies and filters the high-frequency signal that is received from the microphone and outputs a positive envelope. This will make for Arduino's signal acquisition. The output value depends on the level of the sound input. In order to avoid unnecessary signal disturbances, the input signal will go through filtering twice inside the module. Lastly, there is a screw potentiometer that enables manual adjustments to the output gain.
Features:
Upgraded Functionality: Based on LM2904 - Dual, 36-V, 1.2-MHz operational amplifier with -40°C to 125°C operation.
Wide Supply Voltage Range: In the range of 3.2V~5.2V.
Built-in Signal Filtering: Input signals will go through filtering twice inside the module.
Adjustable Output Gain: It has a screw potentiometer that enables manual adjustments to the output gain.
Grove Unified Socket: The product ensures "Plug and Play" and could be versatile for various applications of Grove.
Specifications:
Voltage: 3.5 ~ 10 VDC
Working Frequency: 50 ~ 2000 Hz
Sensitivity: -48 ~ 66 dB
Signal-to-Noise Ratio: >58 dB
Output Signal Range: Analog Signal (0 - 1023)
Microphone: Electret Condenser Microphone
Amplifier: LM2904
Dimensions: 24mm x 20mm x 9.8mm
Weight: 9g
Documents:
Part List:
1x Grove - Loudness Sensor
