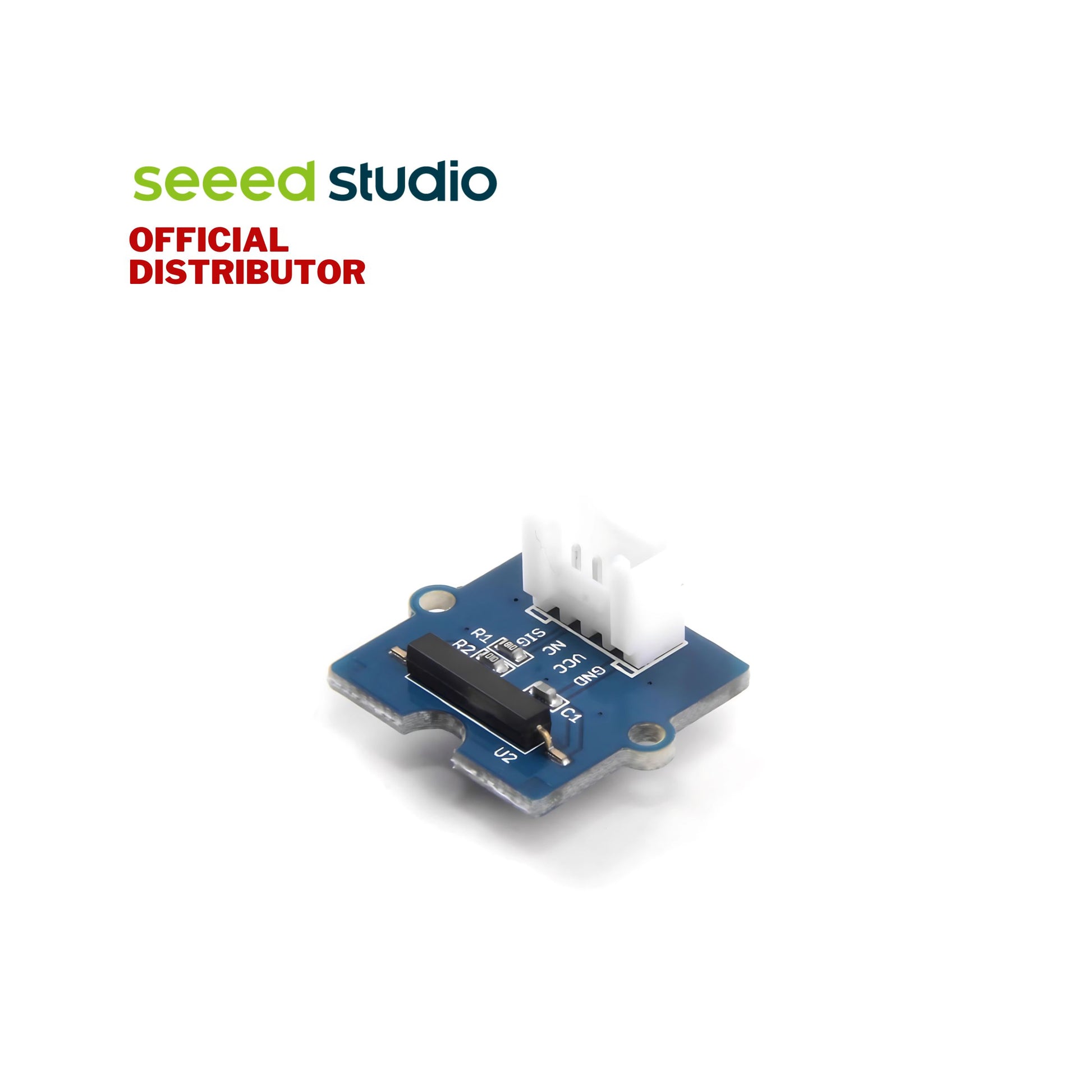

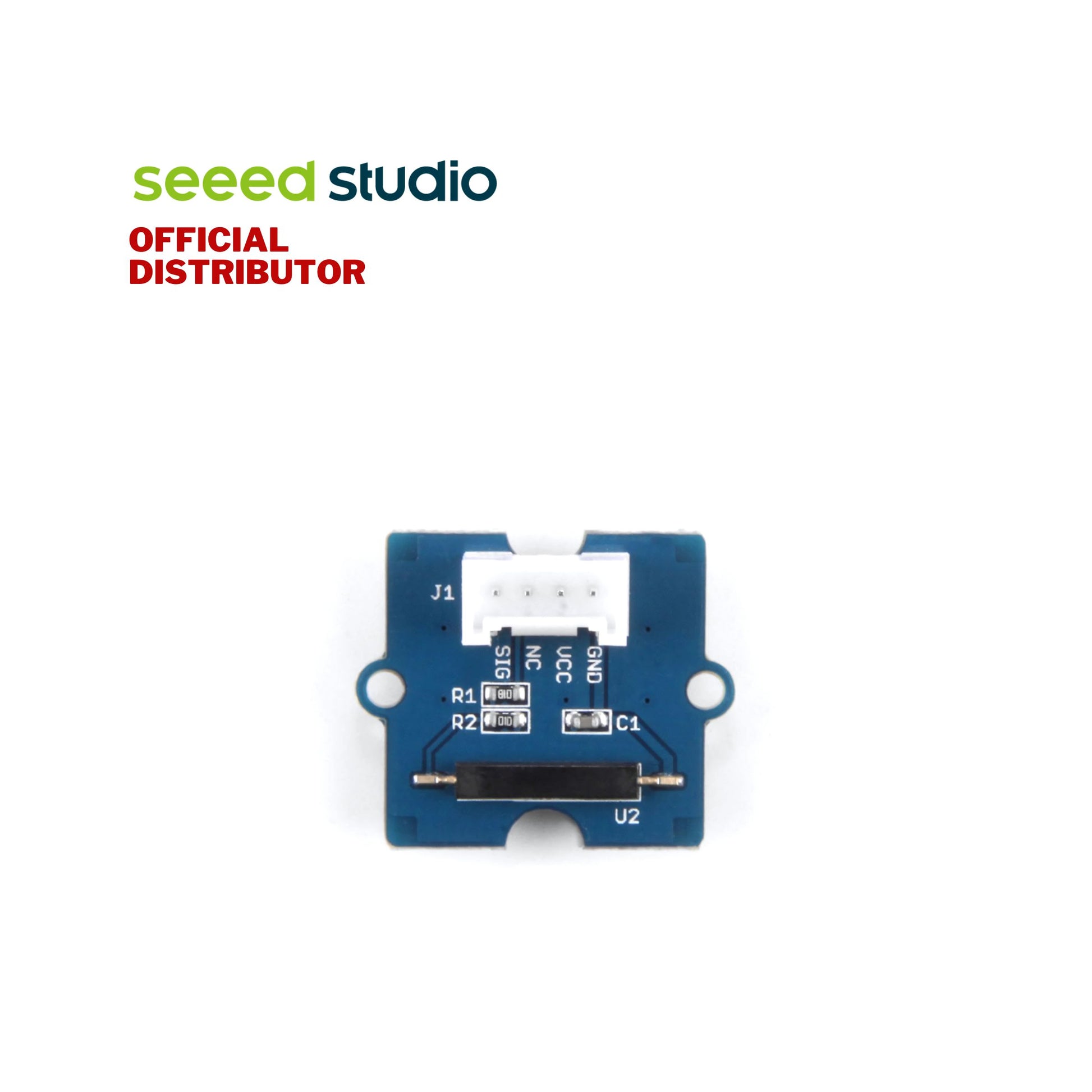

Grove - Magnetic Switch
This is a Grove interface compatible Magnetic switch module. It is based on encapsulated dry reed switch CT10. CT10 is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The magnetic switch is a wonder tool for designers who would like to turn a circuit on and off based on proximity.
- Grove compatible interface
- 2.0cm x 2.0cm twig module
- Minimum external parts
- 10W rating
- Rugged encapsulation
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
|Dimensions||90mm x50mm x12mm|

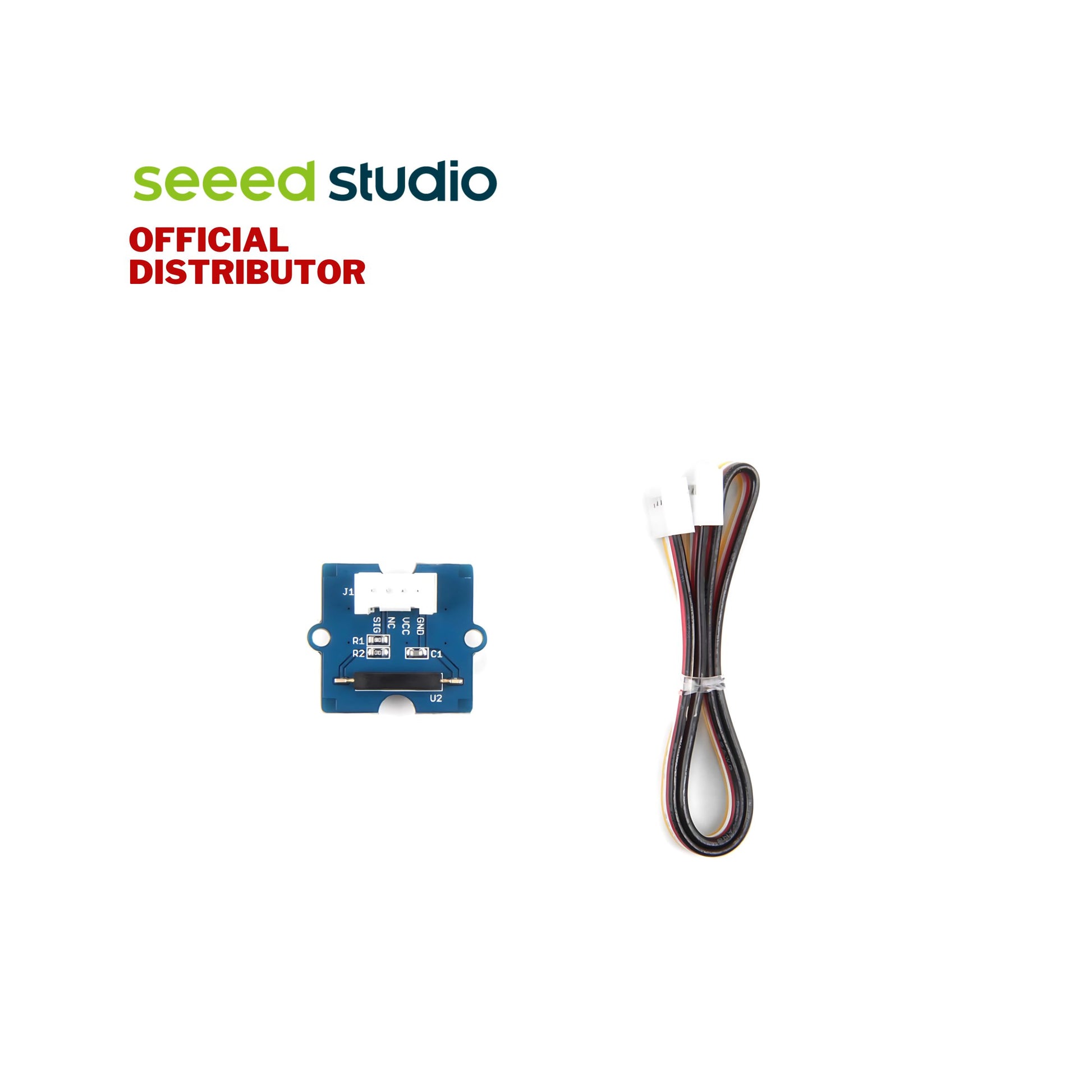

|Grove - Magnetic Switch||1|
- Magnetic Switch v0.9 Schematic
- Magnetic Switch v1.3 Schematic
- Magnetic Switch v1.3 PDF File
- CT10 Datasheet
- CDC File
These are the types of Grove Cables for other applications.
More information about how to choose a cable, please refer to this manual.
