Description:

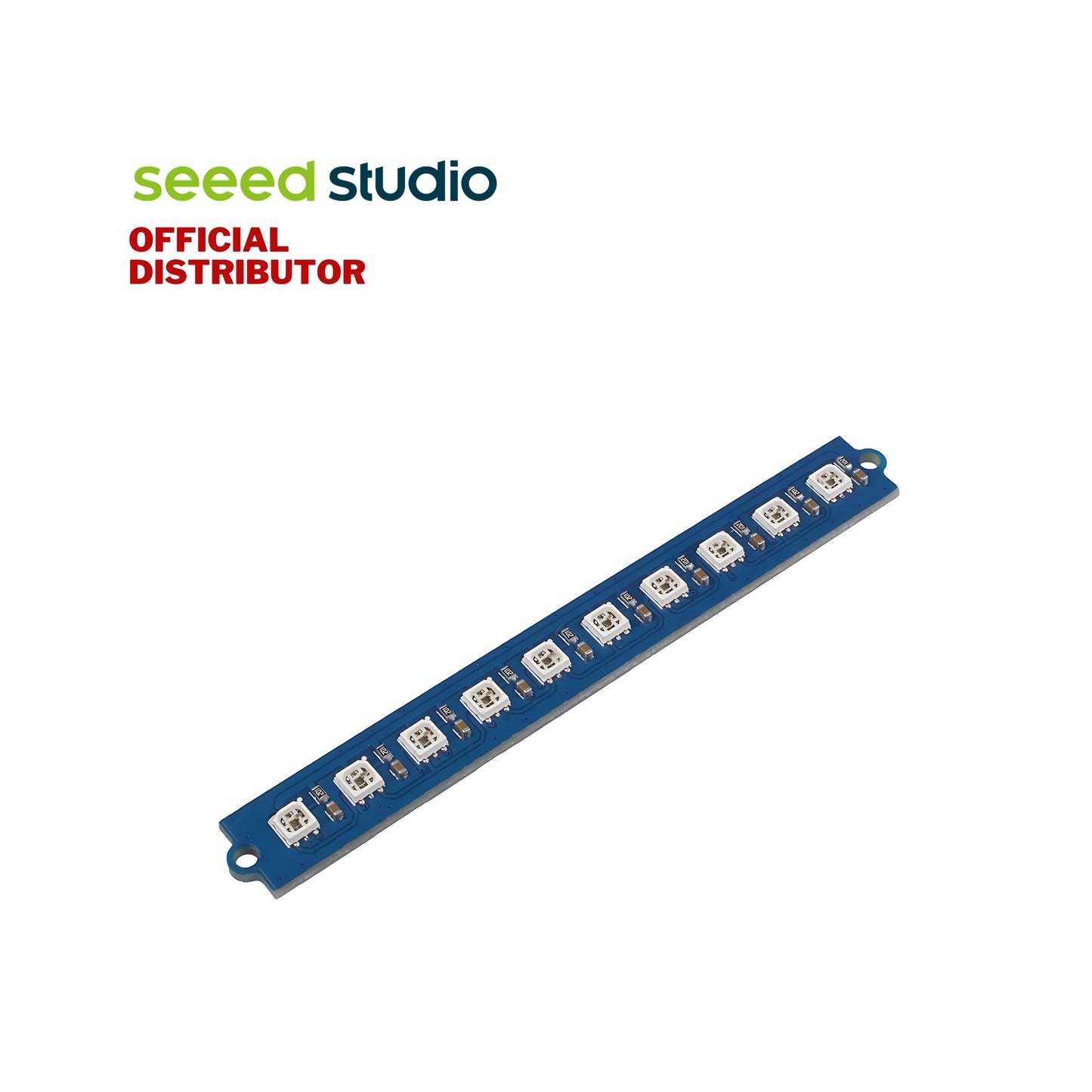

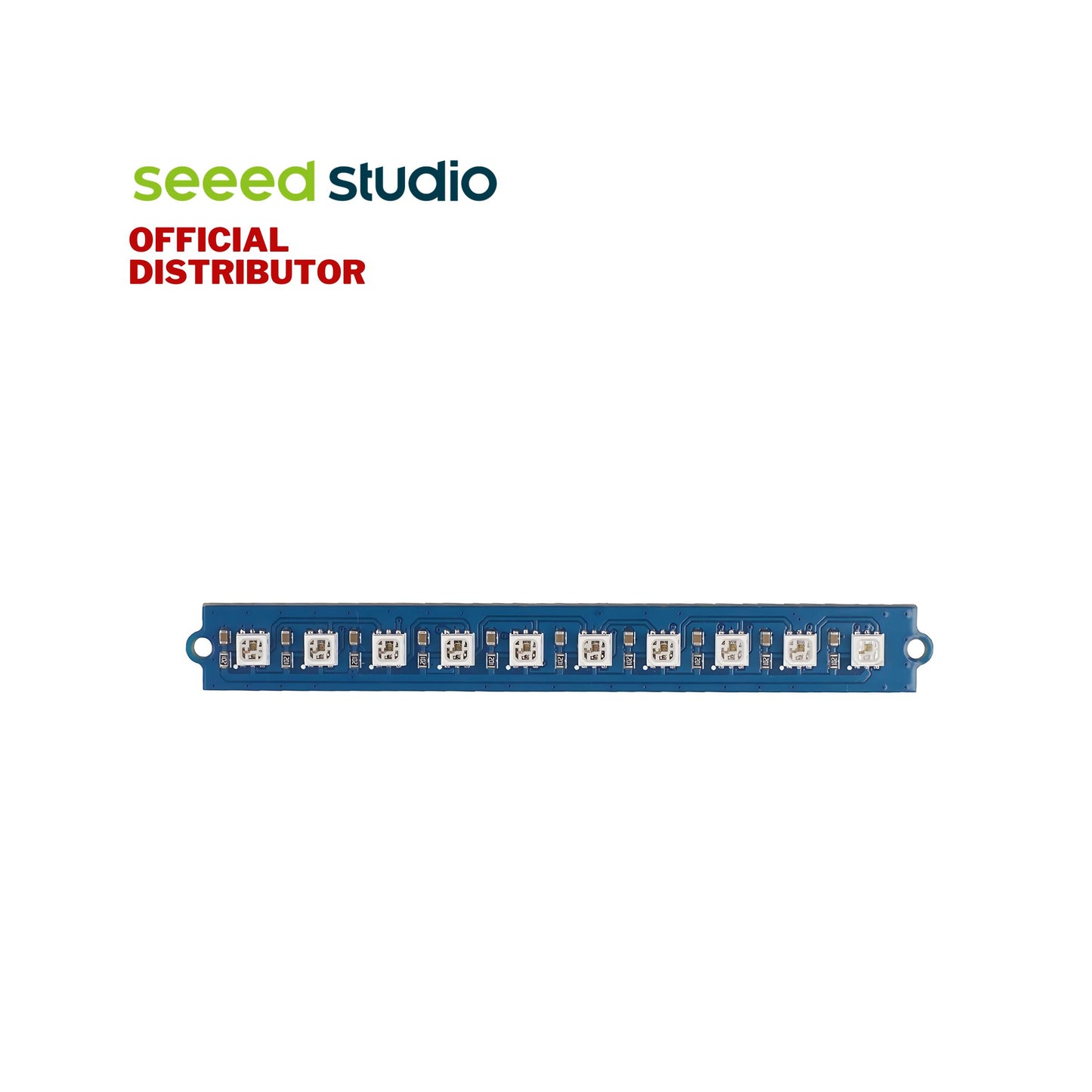

The Grove - RGB LED Stick is integrated with 10 full-color RGB LEDs with a 2 KHz refresh frequency, and each pixel's gray level is 256 on the stick. All the LEDs are WS2813 Mini, which are intelligent control and highly cost-effective LEDs. The WS2813 supports signal break-point continuous transmission, which means you can continue to use other LEDs with one LED being broken.
WS2813-Mini is an intelligent control LED light source that integrates the control circuit and RGB chip into a package of 3535 components. Its internal includes an intelligent digital port data latch and signal reshaping amplification drive circuit. It also includes a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves a highly consistent color effect. Dual-signal wires version, any pixel’s failure won't affect signal transfer or the total emitting effect. You can use this little stick to create hundreds and thousands of light effects. You can use it on Christmas or Halloween decorations, even your light shows!
Features:
Full Color RGB: Each pixel gray level is 256, which achieves a 16777216 full-color display, 10 LED beads operate independently, and the refresh frequency reaches 2 KHz.
Multi-Component Combination: WS2813B LED with 5050 components to display different lighting effects.
Breakpoint Resume: In the transmission of dual-signal wires, when a LED or LED group fails, it will not cause the other LED to not light up.
High Transmission Performance: Any two-point distance of more than 5M transmission signal without any increase in circuit and data transmitting at speeds of up to 800 Kbps.
Grove Compatible: You can just plug your LED stick into Seeedunio or Arduino+BaseShild via Grove Cable, with no soldering and complicated wiring.
Specifications:
Operating Voltage: 3.3V / 5V
Operating Temperature: -25℃ ~ +85℃
Storage Temperature: -40℃ ~ +105℃
RGB Channel Constant Current: 16mA
Interface: Digital
Size: L: 80mm W: 10mm H: 10mm
Weight: 3.7g
Gross Weight: 13g

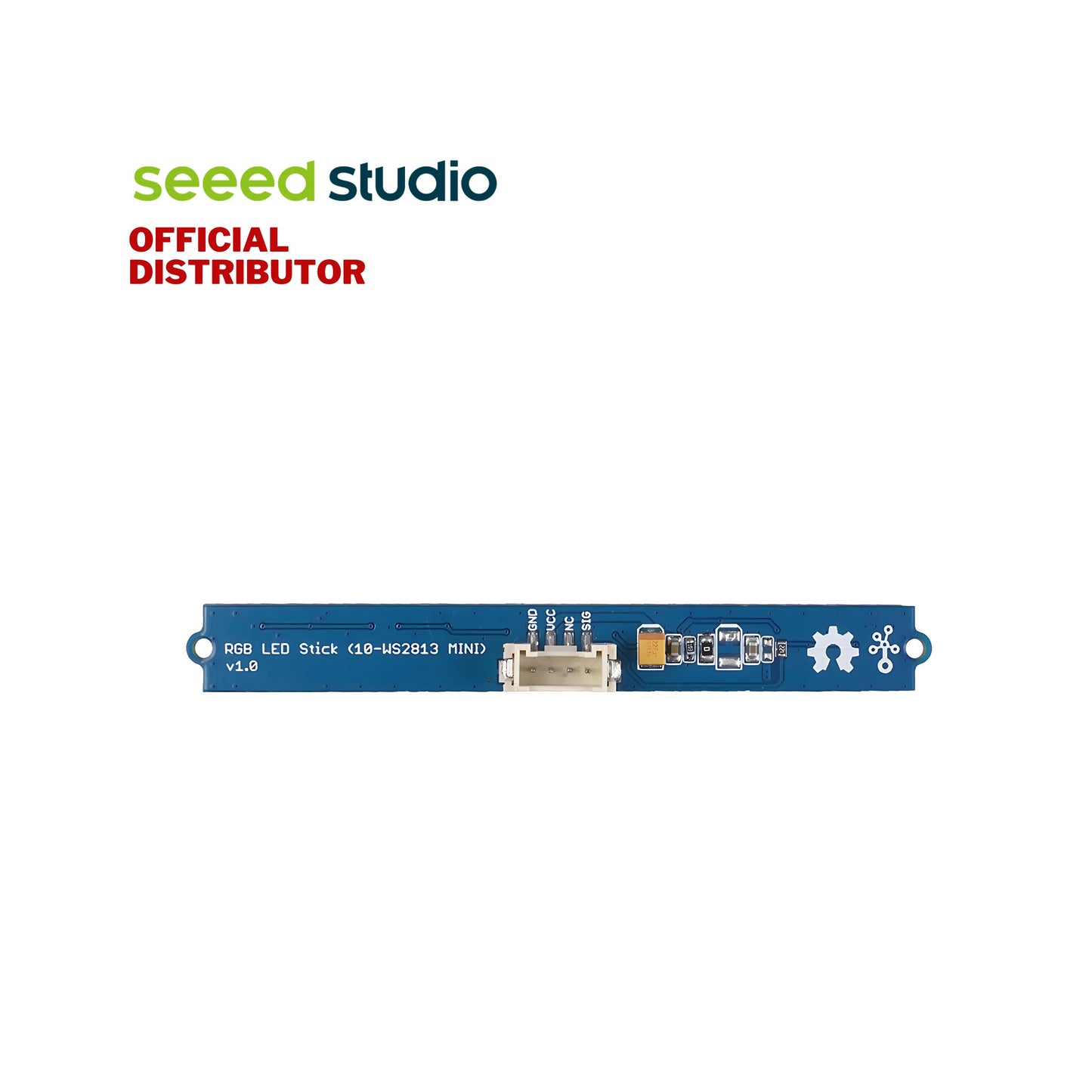

Hardware Overview:
Application:
- Guardrail tube series, point light display series, flexible/rigid strips series, module series applications.
- Lighting stage costumes, innovative gadgets or any other electronic products.
Documents:
Part List:
1x Grove - RGB LED Stick (10 - WS2813 Mini)
1x Grove - Cable
