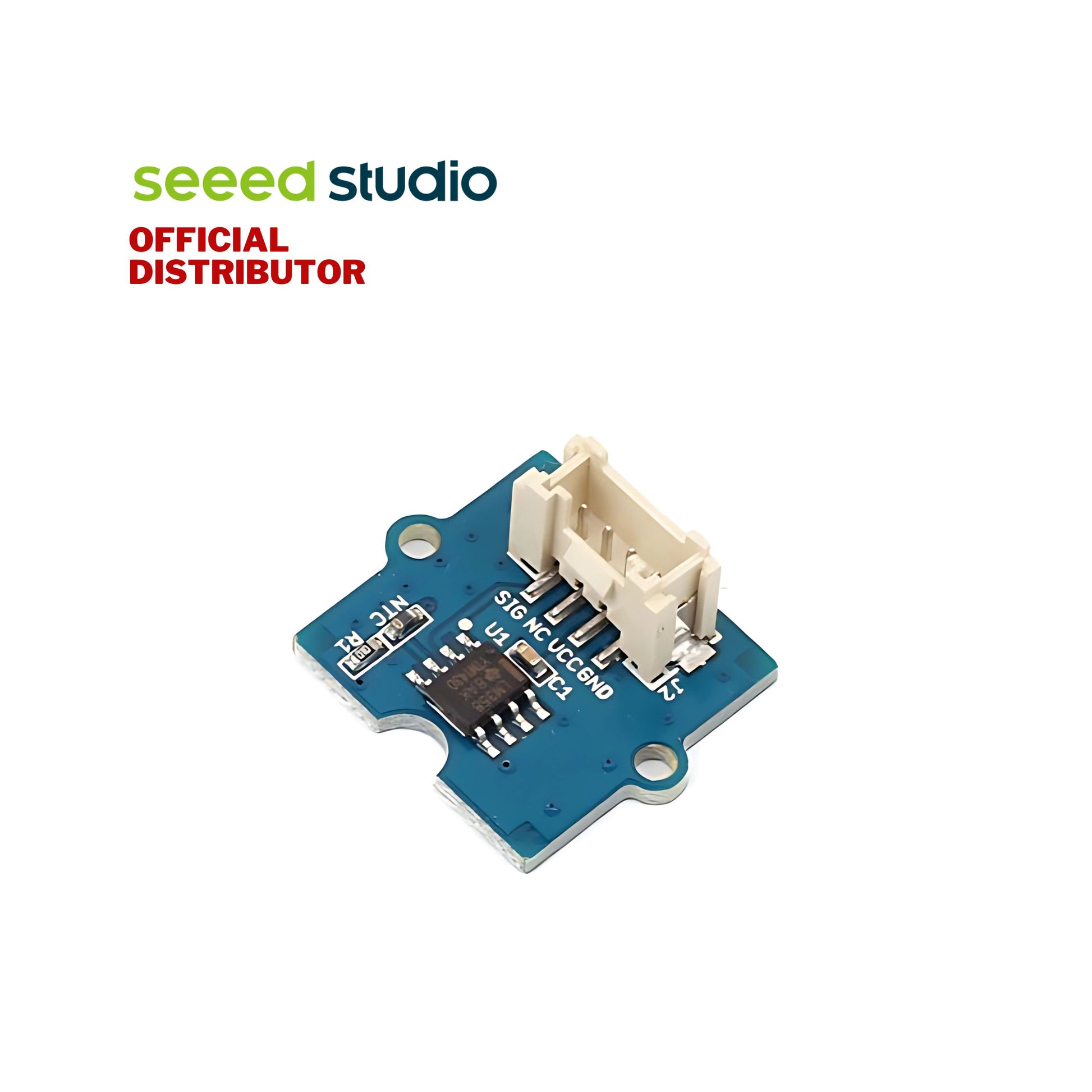

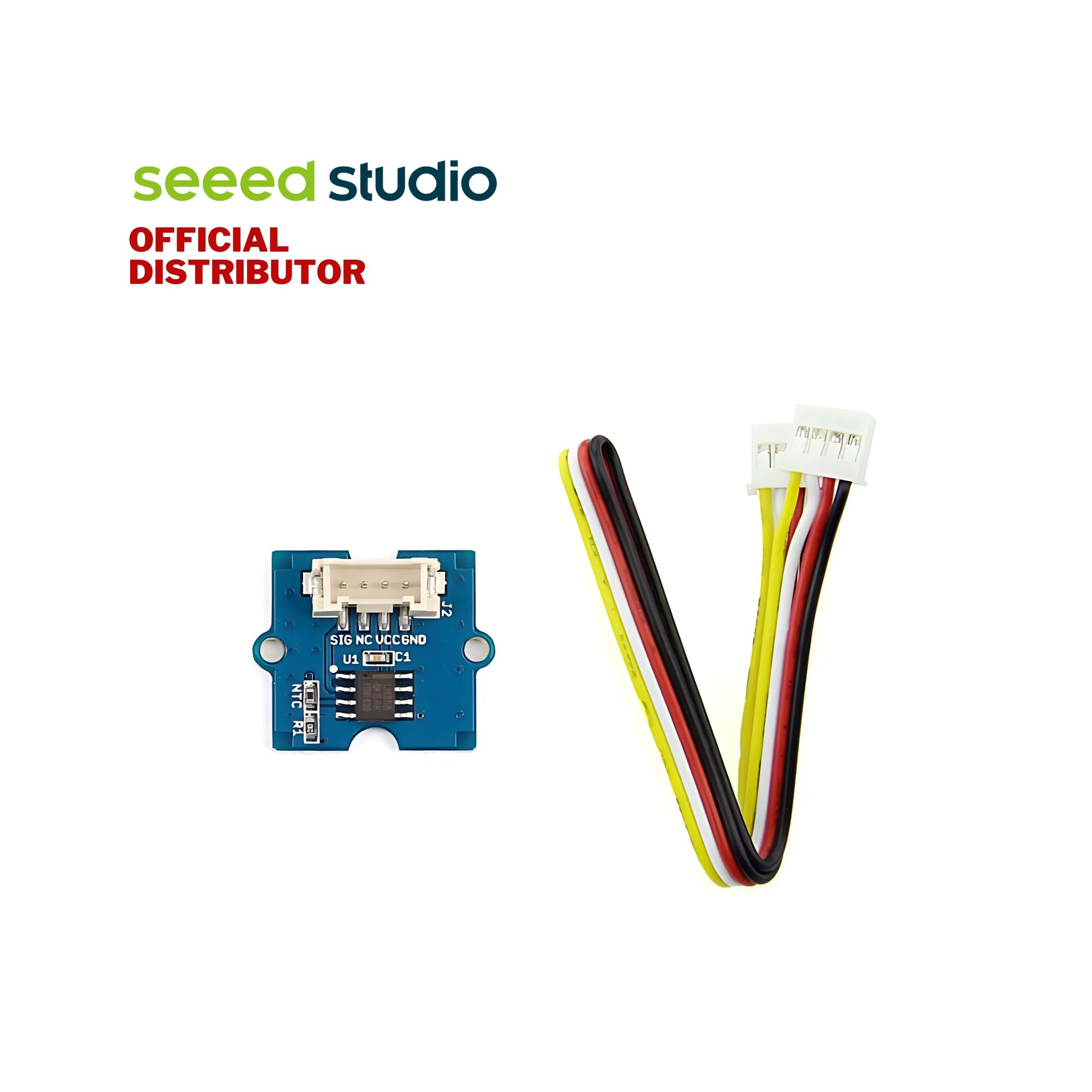

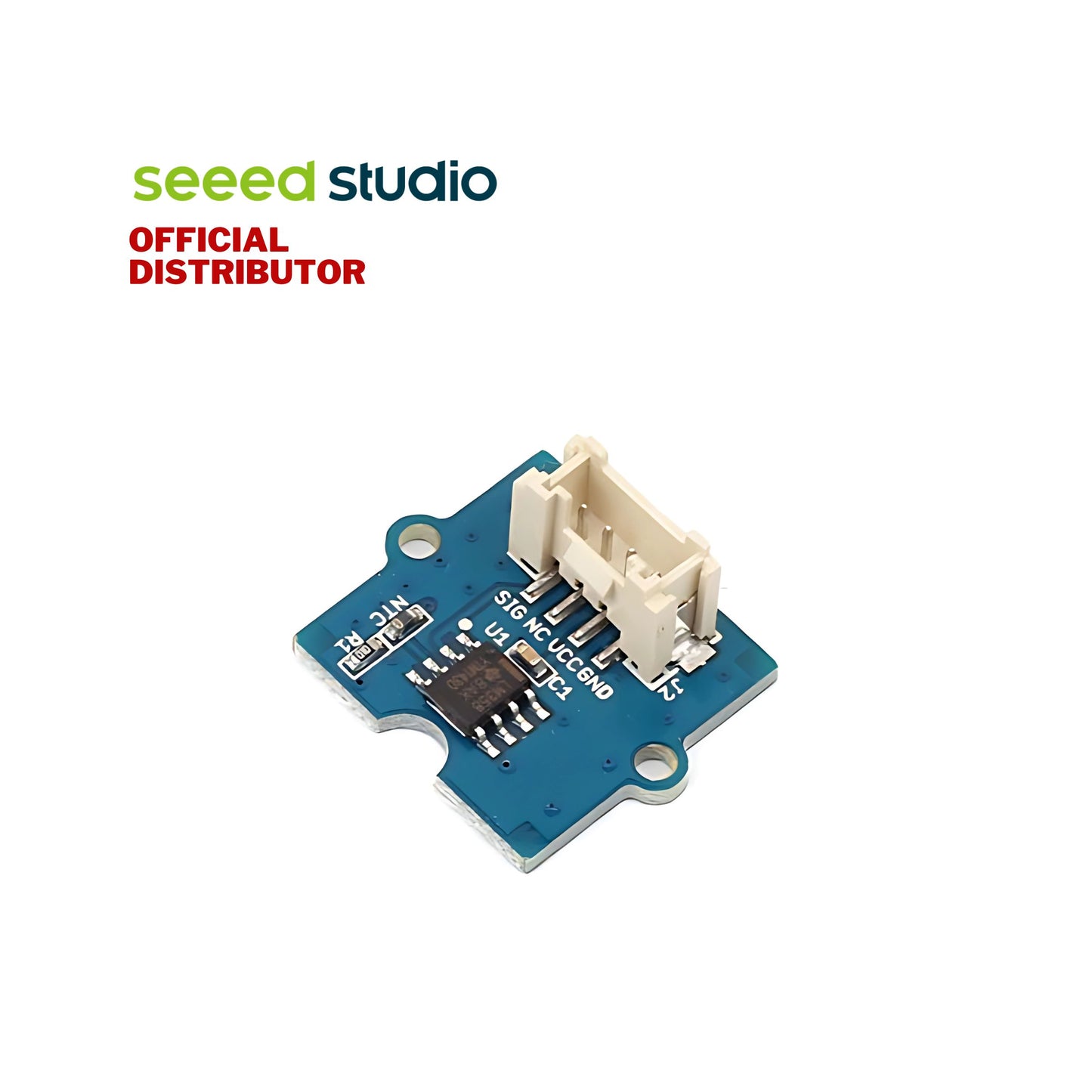

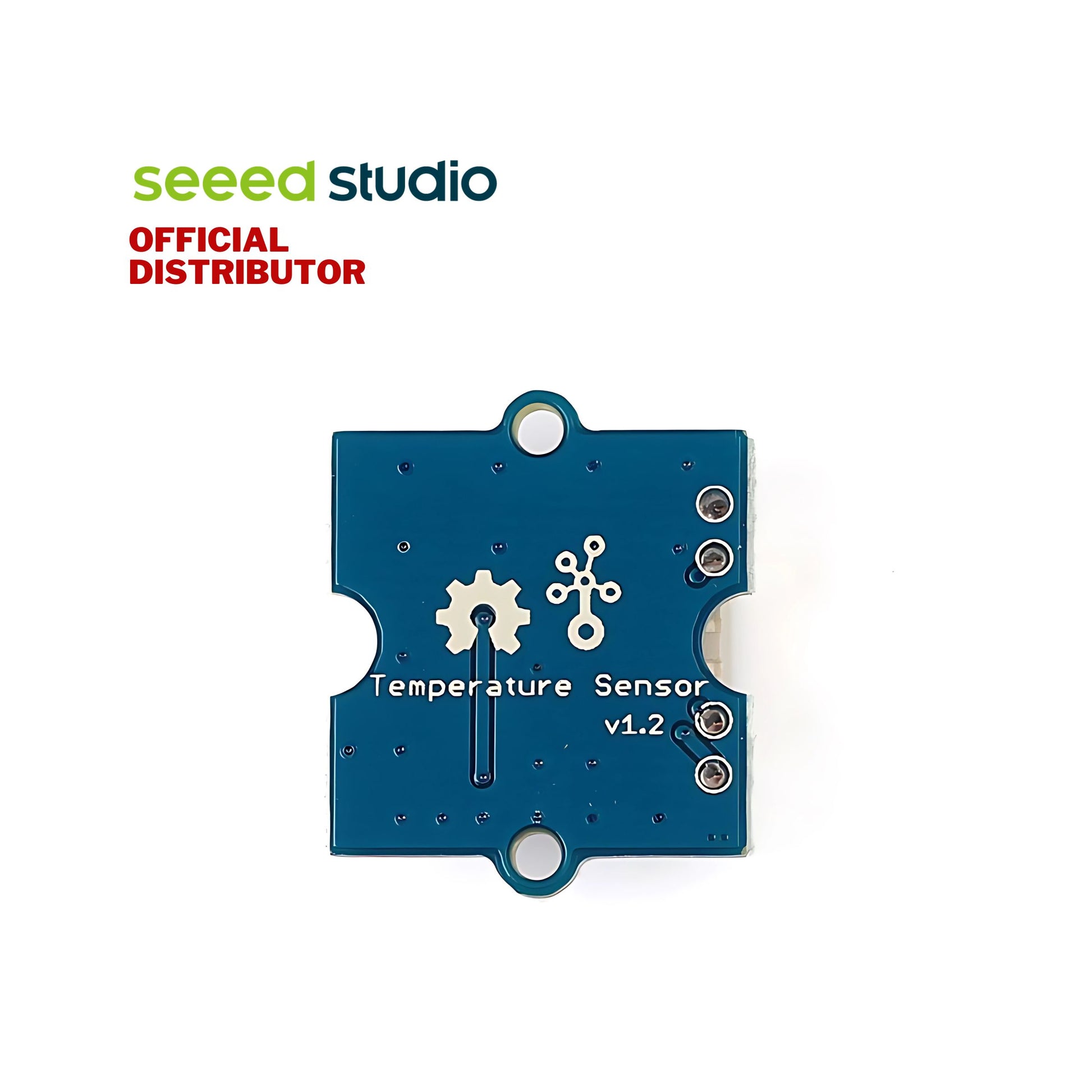

Grove - Temperature Sensor
Grove - Temperature Sensor uses a thermistor to measure ambient temperature. The resistance of thermistor changes based on ambient temperature. This resistance value alters the output of a voltage divider which is measured by an analog input pin and converted to a temperature value. The operating range is -40 to 125°C , with an accuracy of 1.5°C .
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
|Dimensions||24mm x20mm x9.8mm|
|Thermistor Zero power resistance||100 K?|
|Nominal B-Constant||4250 ~ 4299K|
|Operating temperature range||-40°C to 125°C|
|Grove - Temperature Sensor||1|
These are the types of Grove Cables for other applications.
More information about how to choose a cable, please refer to this manual.
