Grove Tilt Switch

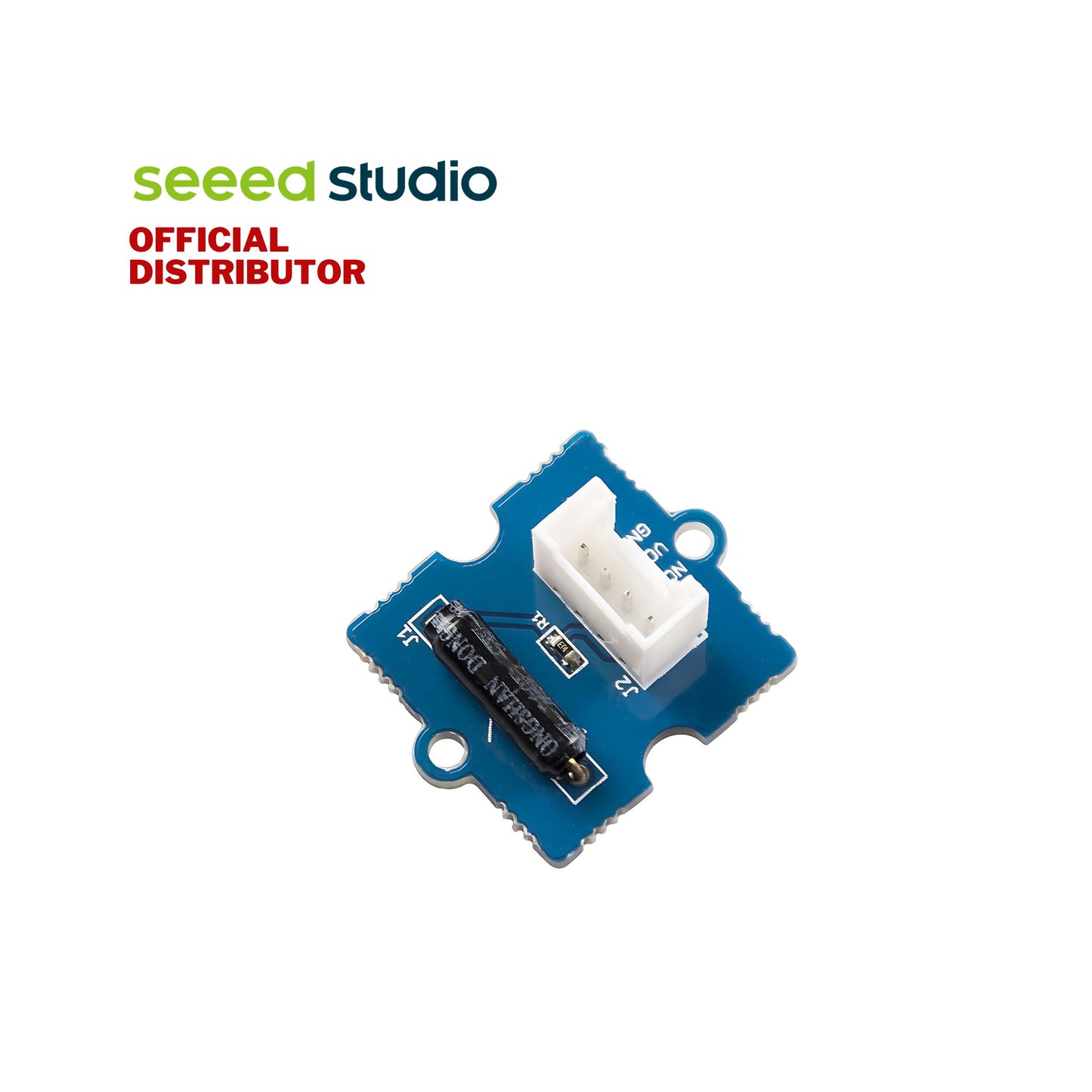

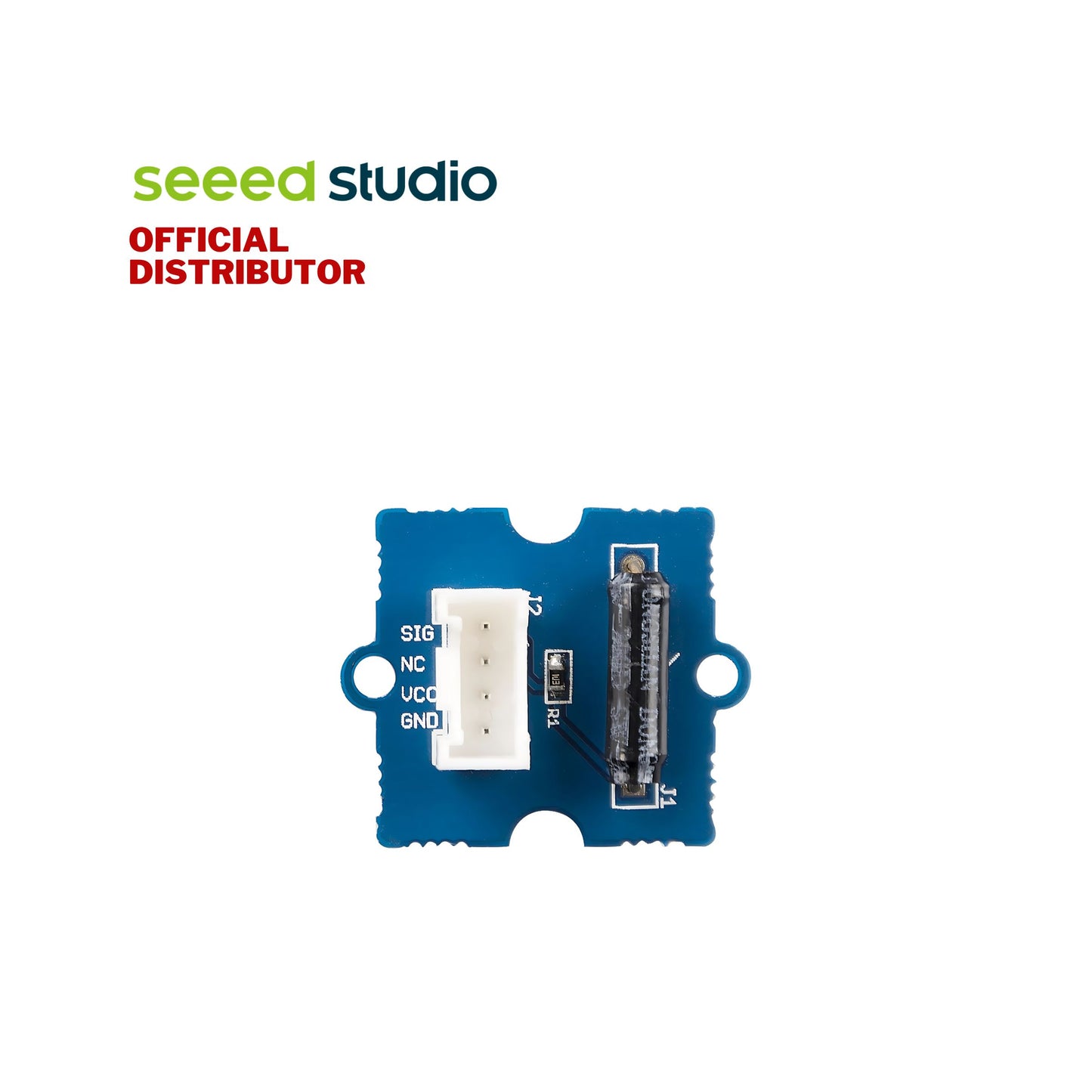

The tilt-switch twig is the equivalent of a button, and is used as a digital input. When the switch is level it is open, and when tilted, the switch closes. It is wired to the SIG line, NC is not used on this twig. There's a surface-mount resistor .
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
|Dimensions||130mm x90mm x10mm|
|Input Voltage||3.3V / 5V|
|Grove - Tilt Switch||1|
- Tilt Switch v1.0 Eagle File
- Tilt Switch v1.1 PDF File
- Tilt Switch v1.1 Eagle File
- SW200D Datasheet
- Codecraft CDC File
