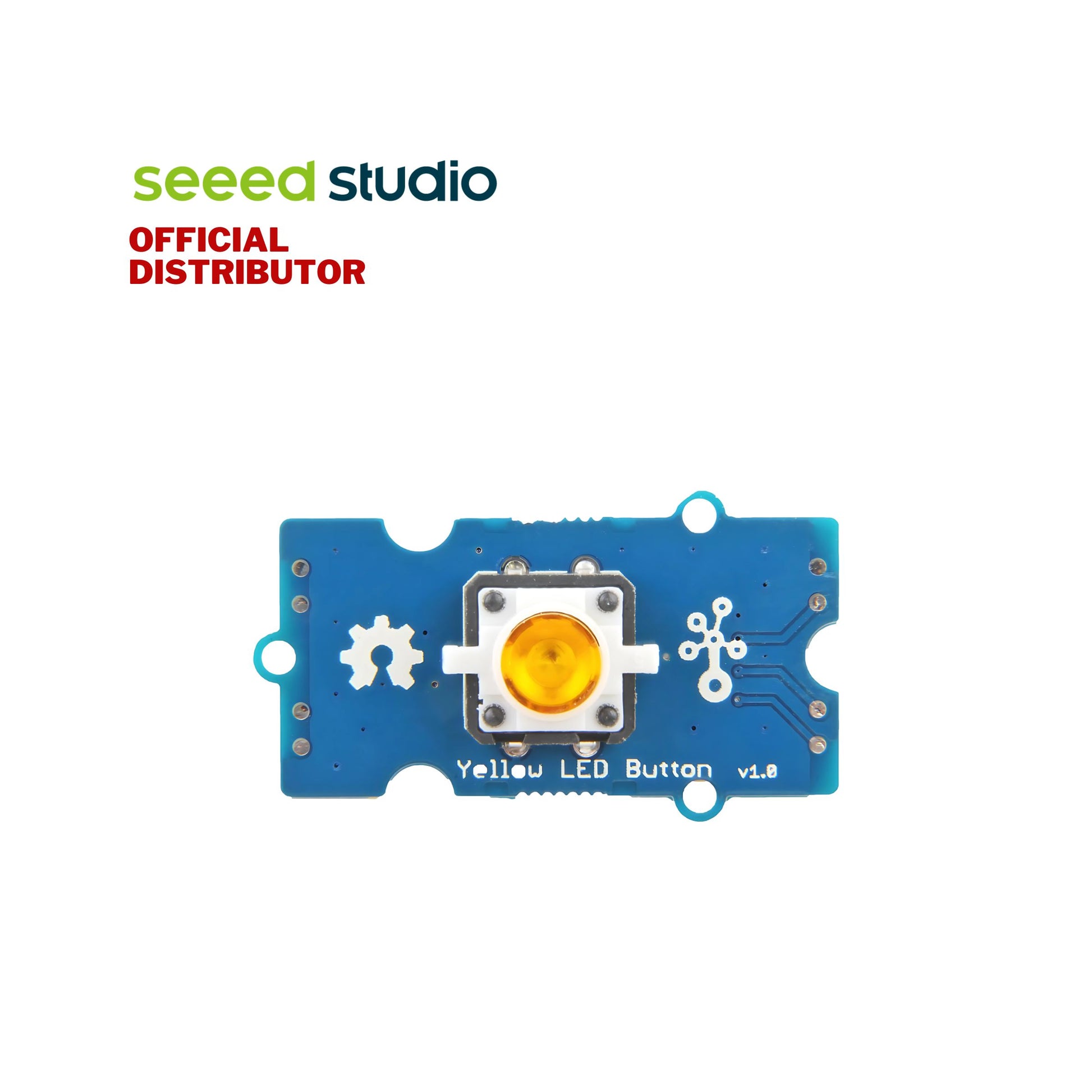

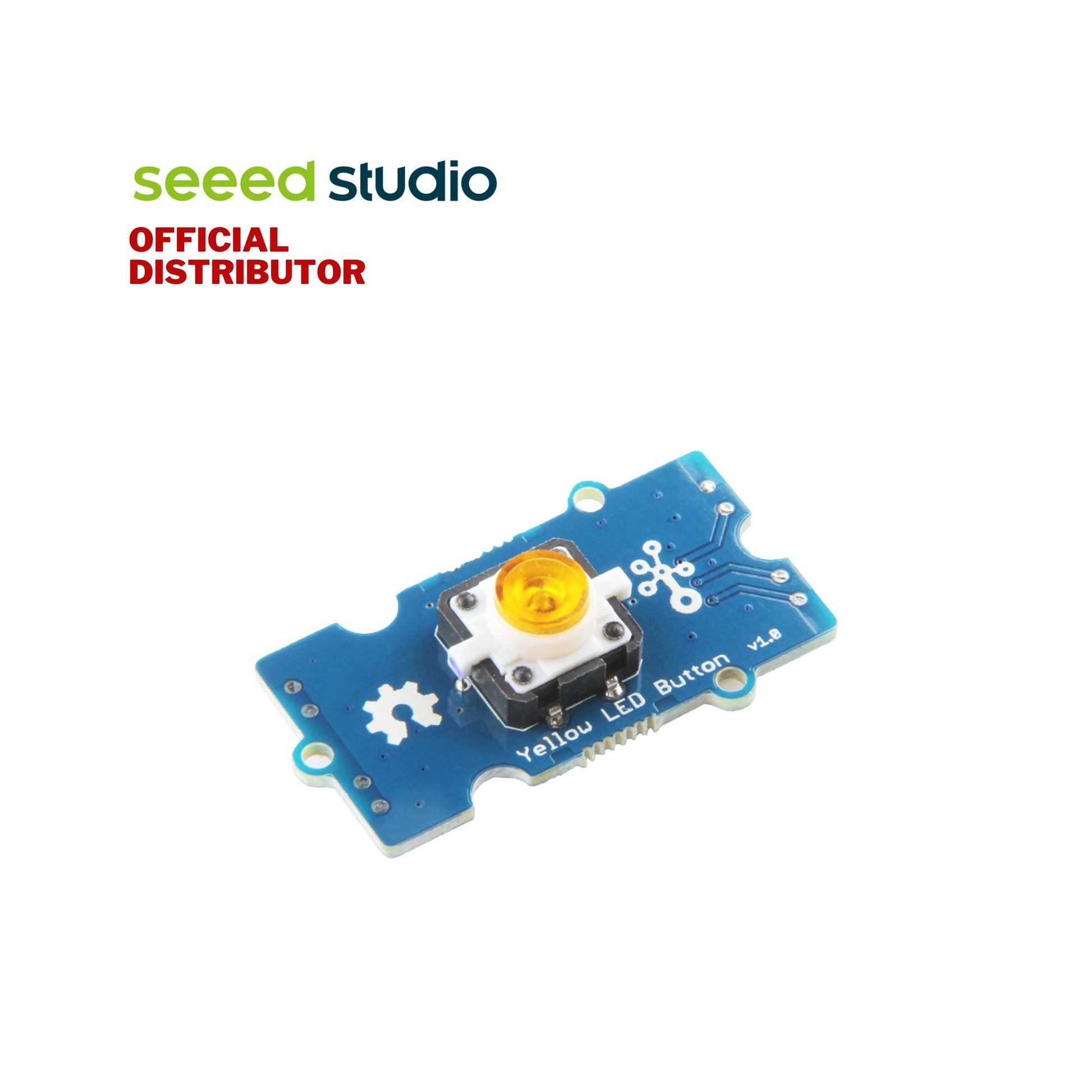

Grove - Yellow LED Button

₱159.00
₱159.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Loading locations...
Product Description

Description:

The Grove - Yellow LED Button is stable and reliable with a 100,000 times long life. With the built-in LED, you can apply it to many interesting projects. It is really useful to use the LED to show the status of the button. We use a high-quality N-Channel MOSFET to control the LED to ensure high switching speed and low consumption. All in all, a really awesome button.


Features:

Obvious Click Feedback: The built-in LED will automatically light up whenever it is clicked.
Long Operating Life: Up to 100,000 clicks.
Grove Unified Socket: The product ensures "Plug and Play" and could be versatile for various applications.


Specifications:

Working Voltage: 3.3V/5V
Operating Life without Load: 100,000 times
LED Rated Current: 50mA
Press Resistance1: <100mΩ
Release Resistance2: >100MΩ
Size: L: 40mm W: 20mm H: 13mm
Weight: 4.3g
Package Size: L: 140mm W: 90mm H: 10mm
Gross Weight: 11g

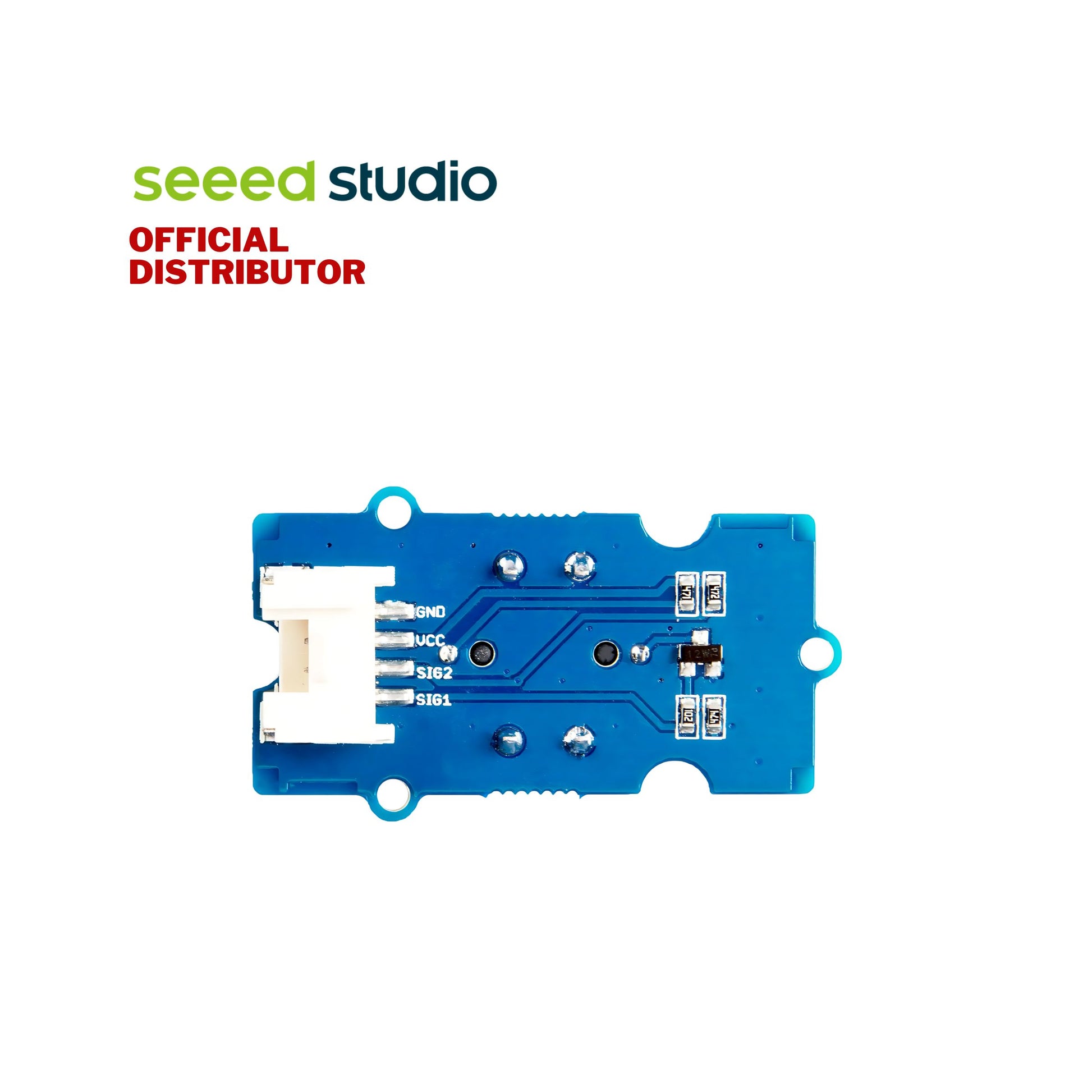

Hardware Overview:


Application:

  • Function switching keys
  • Counters
  • Light switch
  • Pet feeding button


Documents:

Grove-LED Button Eagle file


Part List:

1x Grove - Yellow LED Button
1x Grove Cable
