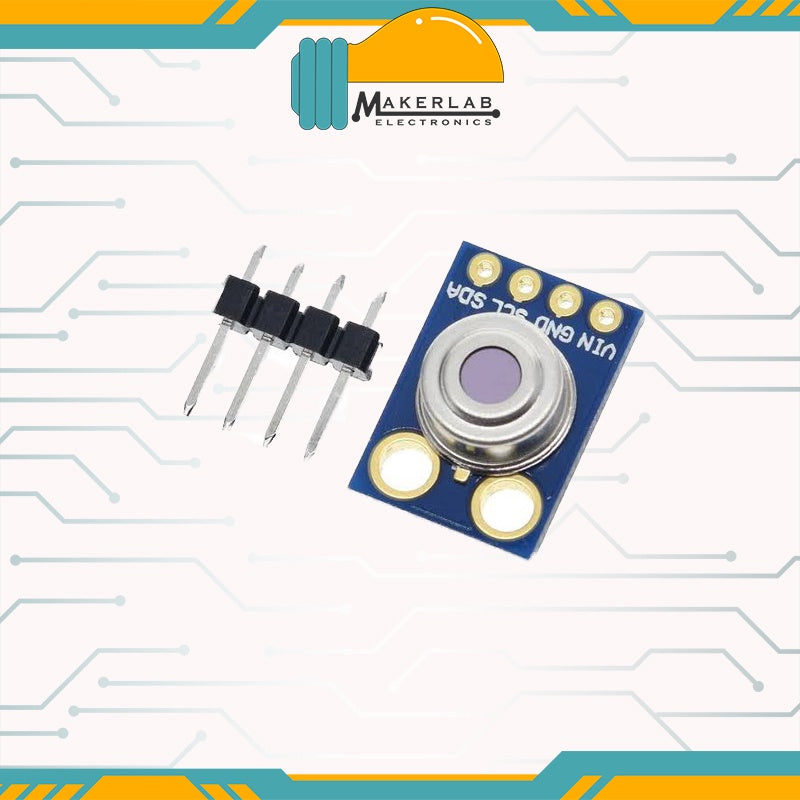

GY-906 MLX90614ESF MLX90614 Contactless Temperature Sensor Module For Arduino Compatible

₱800.00 PHP
₱800.00 PHP
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

GY-906 MLX90614ESF MLX90614 Contactless Temperature Sensor Module For Arduino Compatible

Product Description:
Using a Chip: MLX90614 Power supply: 3-5v (internal low dropout regulator) Communication: standard IIC communication protocol Range: 2cm
This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered.
Features and Benefits:
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range:
--40 - 125 ° C for sensor temperature and
- -70 - 380 ° C for object temperature.
- High accuracy of 0.5 ° C over wide temperature range (0 ... + 50 ° C for both Ta and To) High (medical) accuracy calibration
- Measurement resolution of 0.02 ° C
- Single and dual zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- Simple adaptation for 8 -16V applications
- Sleep mode for reduced power consumption
- Different package options for applications and measurements versatility
- Automotive grade
Applications Examples:
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- Temperature sensing element for residential, commercial and industrial building air conditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Healthcare
- Livestock monitoring
- Movement detection
- Multiple zone temperature control - up to 127 sensors can be read via common 2 wires
- Thermal relay / alert
- Body temperature measurement
Package include:
1 * Sensor Module
