GY-NEO6MV2 NEO-6M Ublox | NEO-M8N Flight Controller GPS Module

GY-NEO6MV2 NEO-6M Ublox | NEO-M8N Flight Controller GPS Module

In stock

SKU:MLE00516

Regular price ₱270.00
Regular price ₱999.75 Sale price ₱270.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Type
View full details

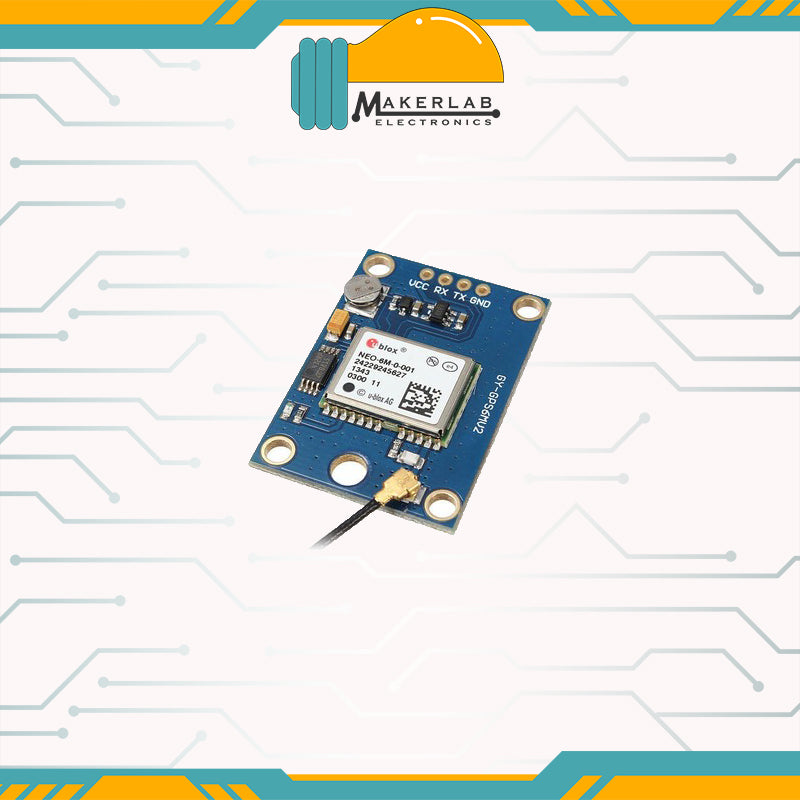

GY-NEO6MV2 NEO-6M Ublox Flight Controller GPS Module

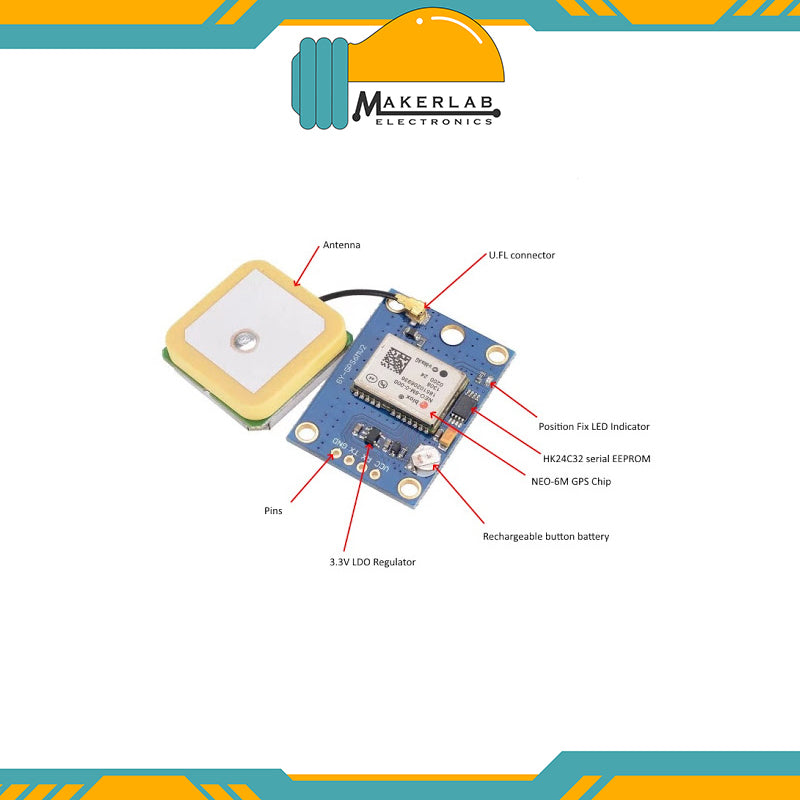

GY-NEO6MV2 board features the u-blox NEO-6M GPS module with antenna and built-in EEPROM. This is compatible with various flight controller boards designed to work with a GPS module.

Features:

GPS modules NEO-6M, 3V-5V power supply Universal

Module with ceramic destined antenna, super signal

EEPROM power down to save the configuration parameters data

LED signal indicator

With data backup battery

The default baud rate: 9600

Applicable for Raspberry Pi and Arduino

Dimensions:

Mounting Hole: 3mm

Module size: 23mm x 30mm

Antenna size: 25mm x 25mm

Cable Length: 50mm

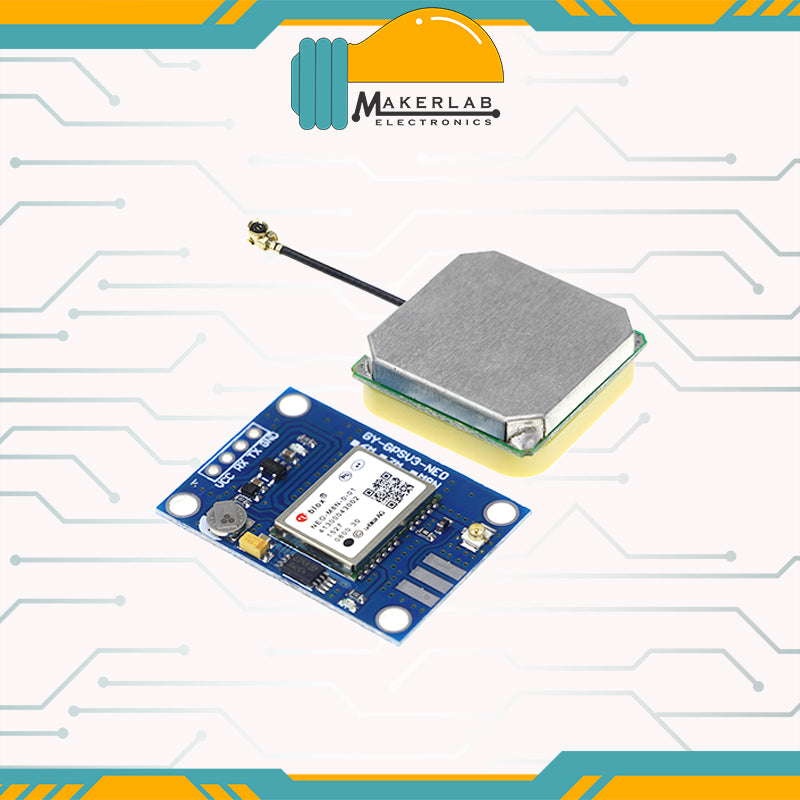

Ublox NEO-M8N GPS Module

The APM2.5 UBlox NEO-M8N GPS Module GYGPSV1-8M is optimized for cost sensitive applications, while NEO-M8N/M8Q provides best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal flash that allows future firmware updates. This makes the item perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules is built on the high performing u-blox M8 GNSS engine in the industry proven NEO form factor.

Specifications:

Accuracy: Velocity accuracy 0.05 m/s

Communication: Communication Protocol; NMEA (default) / UBX Binary

Current: 35mA

Interfaces: TTL level compatible with 3.3V/5V systems

Dimensions: Antenna Size - approx. 25mmx25mm, Module Size - approx. 25mmx36mmx6mm

Sensitivity: Tracking & Navigation -167 dBm

Temperature Range: -40°C ~ 85

Weight: 17g

1 X GPS module
