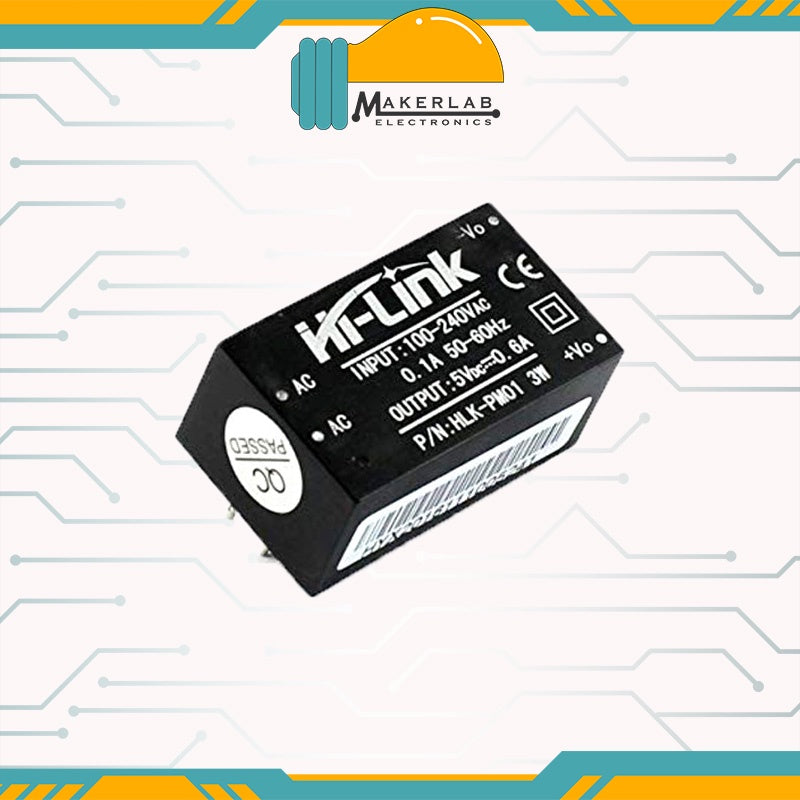

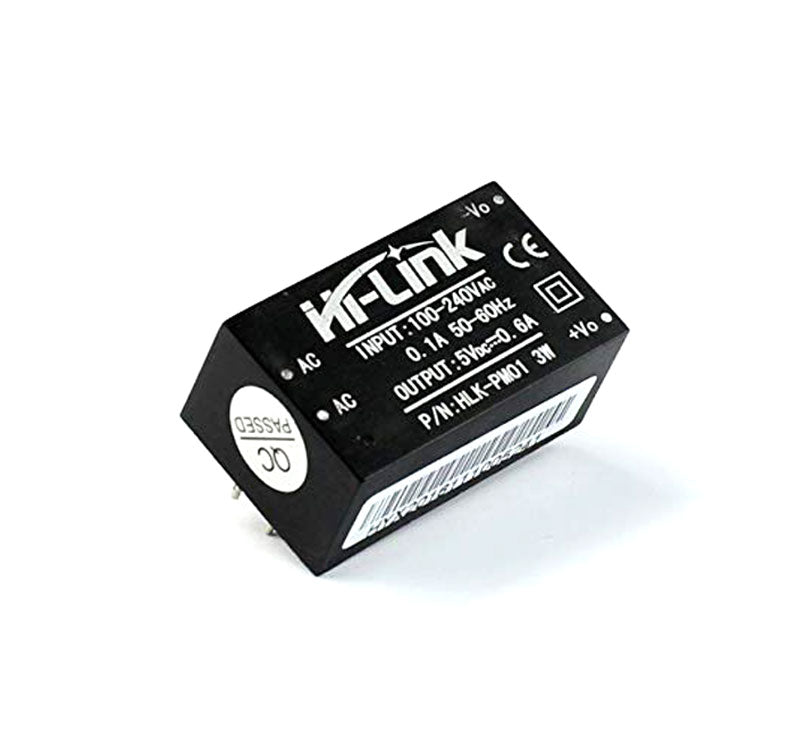

HI-Link HLK-PM01 AC-DC 220V to 5V Step-down Power Supply Module

Hi-Link (HLK-PM01) is PCB mounted plastic enclosed isolated switching step-down power supply module. It can supply 5V DC from 120V AC – 230V AC and has a power rating of 3 Watt. This makes it perfect for small projects that needs a 5V supply from Mains.

Features:

• The ultra-thin, subminiature
• The full voltage input (90 ~ 264 vac)
• Low ripple and low noise
• Output overload short circuit protection function
• High efficiency and power density
• Product design to meet the EMC and safety testing requirements
• Low power consumption, green environmental protection

Environmental conditions

• Technical indicators:Single bit
• Working temperature: - 20-60 +degree
• Storage temperature: + 80-40 -degree
• Relative humidity: 5-95.%
• The cooling way: Natural cooling
• The atmospheric pressure: 80-106Kpa
• The altitude :2000M or less
• Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
