HIFI AMP HAT

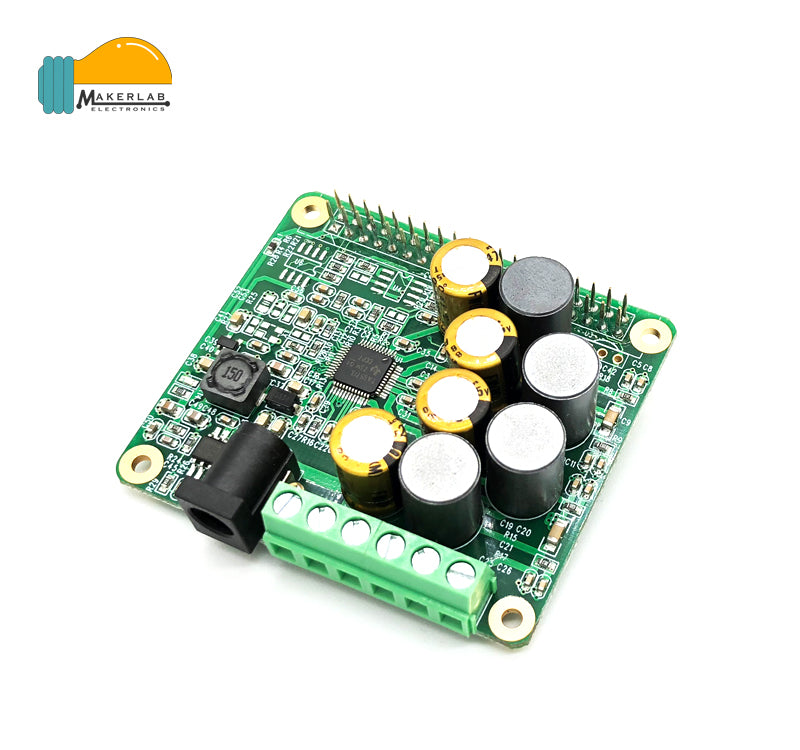

  • HIFI AMP HAT amplifier module is a high-quality, highly efficient 25W Class-D power amplifier for the Raspberry Pi.
  • You can get a stereo audio system by mount it onto your Raspberry Pi, Only thing you have to do is connect your loudspeakers to our module.
  • RPI HIFI AMO amplifier module is the ideal choice for small room audio system.
  • PI-HIFI-AMP module compatible with many Raspberry pi music playback system such as: OSMC / Max2Play / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC / Debian / Ubuntu etc.
  • Packing List: 1 x Amplifier HIFI AMP Expansion Board; (Note: the raspberry pi 3 board is not included.)

Features:

Software
  • compatible with many Raspberry pi music playback system such as:
  • OSMC / Max2Play / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC / Debian / Ubuntu etc.
  • We provide Debian/Volumio/Max2play2 Preset System
Hardware
  • 1. Fully controllable from the Raspberry Pi?up to 25W output power, capable of driving 4 Ohm speakers or higher.
  • 2. Support 44.1kHz and 48kHz sample rates. Digital-analog conversion included—no need for external DACs or sound cards.
  • 3. Fully digital sound path for optimal audio performance. Connects directly to the Raspberry Pi no additional cables needed.
  • 4. Wide Power input :12-20v external power input for both RPI and module. HAT size.
  • 5. Up to 90% Efficient. Integrated EEPROM for automatic configuration (Reserve the pin of eeprom).

Hardware Connection

Raspberry_Pi_HiFi_AMP_HAT_25W_Class-D_Power_Amplifier_TAS5713_Expansion_Board_Audio_Module_01
